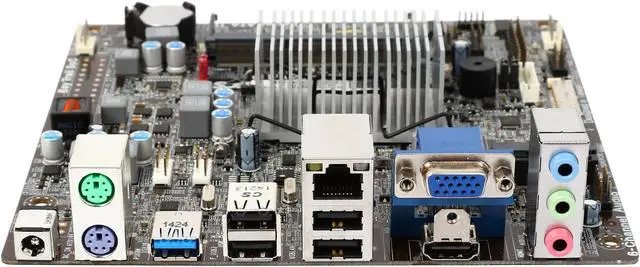

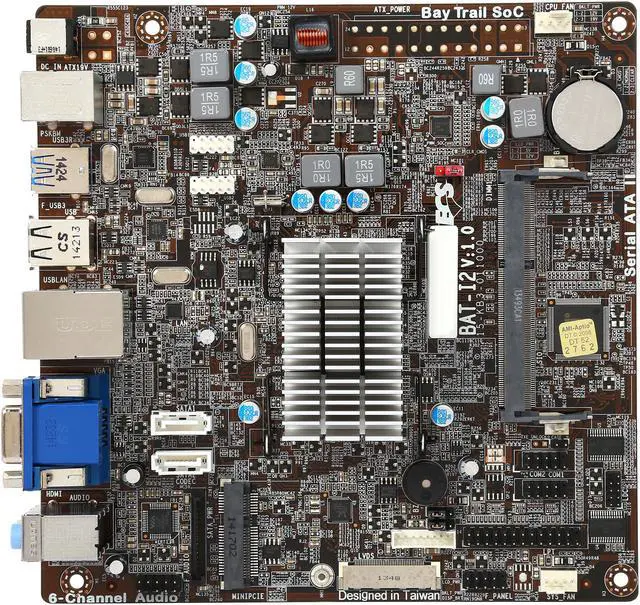

ECS BAT-I2/J1900 (1.0) Intel Celeron Processor J1900 Onboard Intel Bay Trail Mini ITX Motherboard / CPU Combo

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) BAT-I2/J1900 (1.0)

Bundle
Motherboard	ESC BAT-I2 (V1.0)
CPU	Intel Celeron Processor J1900

Supported CPU
CPU Socket Type	Onboard Intel Bay Trail
Supported CPU Technologies	Hyper-Threading Technology

Expansion Slots
Mini Card Slots	1 X Mini PCI Express X1 slot(s) for Wi-Fi /Blutooth modules

Storage Devices
SATA	2 x SATA 3.0Gb/s

Onboard Audio
Audio Chipset	VIA VT1705
Audio Channels	6 Channels

Onboard LAN
LAN Chipset	Realtek 8111G
LAN Speed	10/100/1000Mbps

Rear Panel Ports
PS/2	1 x PS/2 keyboard/mouse port
Video Ports	1 x D-Sub (VGA) port(s)
HDMI	1 x HDMI
USB 1.1/2.0	4 x USB 2.0
USB 3.0	1 x USB 3.0
Audio Ports	1 x Audio port (Line Out/Line In/Mic In)

Internal I/O Connectors
Onboard USB	2 x USB 2.0 header - Support additional 4 USB ports
Other Connectors	1 x RJ-45 port 1 x 4-pin CPU_FAN connector with smart fan 1 x 4-pin SYS_FAN connector with smart fan 1 x Front Panel MIC/Speaker out header 1 x Front Panel switch/LED header 1 x CLR_CMOS header 2 x Serial port header (COM) 1 x Parallel port header (LPT) 1 x LVDS connector (optional)

Features
Features	Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system ECS Durathon Technology ensure the stability, reliability and performance of system. Dual Display design for multiple output support Integrated Printer (LPT) port / header to expand functionality Microsoft Windows 8 Certified Intel VRD 12 Ready Supports DirectX 11 to enhance graphical performance Supports HDMI 1.4a Technology ( resolution up to 1920X1200 ) and HDCP function Free Bundle: Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9, Muzee, Google Chrome, Magix with trial version

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.69" x 6.69"

Additional Information
First Listed on Newegg	March 03, 2015
