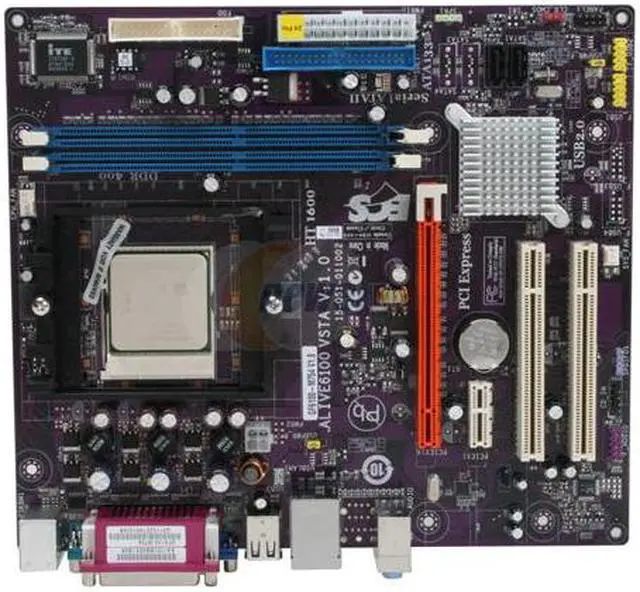

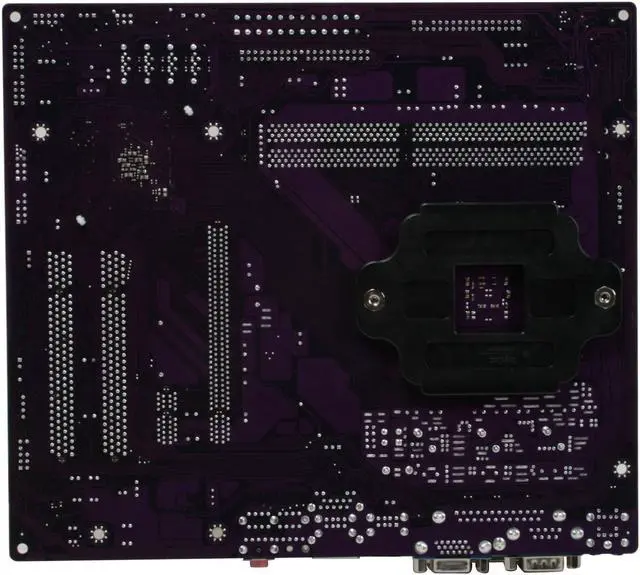

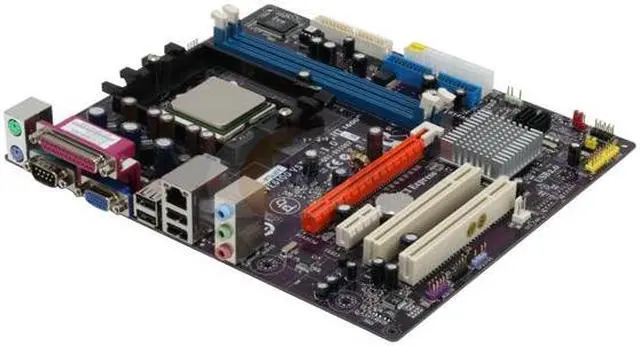

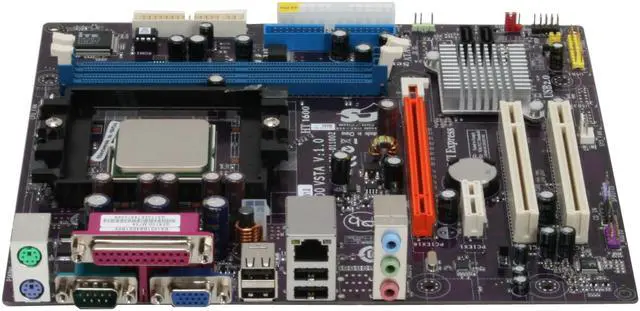

ECS GF6100-M754 (V1.0) Athlon 3200+ 754 NVIDIA GeForce 6100 Micro ATX Motherboard/CPU/Memory Combo
- Athlon 3200+
- NVIDIA GeForce 6100
Specs
Reviews (102)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the ECS (EliteGroup) GF6100-M754 (V1.0)
| Brand | ECS |
|---|---|
| Model | GF6100-M754 (V1.0) |
| Combo Type | Motherboard/CPU/Memory Combo |
| CPU | Athlon 3200+ |
|---|
| CPU Socket Type | 754 |
|---|---|
| CPU Type | Athlon 64/Sempron |
| FSB | 800 MHz |
| North Bridge | NVIDIA GeForce 6100 |
|---|
| Number of Memory Slots | 2x184pin |
|---|---|
| Memory Standard | DDR 333 |
| Maximum Memory Supported | 2GB |
| PCI Express x16 | 1 x PCI Express x16 |
|---|---|
| PCI Express x1 | 1 x PCI Express x1 |
| PCI Slots | 2 x PCI Slots |
| PATA | 1 x ATA 133 2 Dev. Max |
|---|---|
| SATA | 2 x SATA 3.0Gb/s |
| SATA RAID | 0/1 |
| Onboard Video Chipset | NVIDIA GeForce 6100 |
|---|
| Audio Chipset | Realtek ALC662 |
|---|---|
| Audio Channels | 6 Channels |
| LAN Chipset | Broadcom AC131 PHY |
|---|---|
| LAN Speed | 10/100Mbps |
| Max LAN Speed | 100Mbps |
| PS/2 | 2 |
|---|---|
| COM | 1 |
| LPT | 1 |
| Video Ports | D-Sub |
| USB 1.1/2.0 | 4 x USB 2.0 |
| Audio Ports | 3 Ports |
| Onboard USB | 4 x USB 2.0 |
|---|

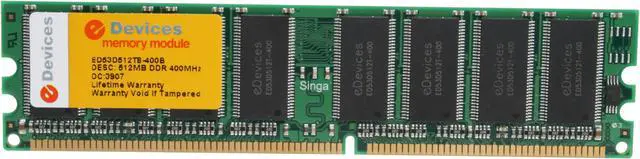

| Features | With 512MB DDR Memory |
|---|
| Form Factor | Micro ATX |
|---|---|
| Dimensions (W x L) | 9.6" x 8.6" |

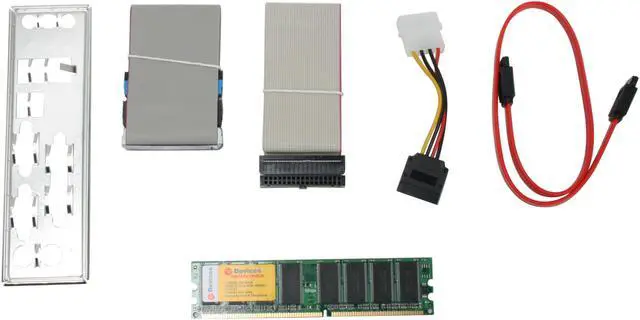

| Package Contents | GF6100-M754 (V1.0) Driver Disk User Manual Rear I/O Panel Shield IDE/PATA Cable FDD Cable SATA Cable 4-pin to SATA Power Cable 512MB DDR Memory |
|---|
| First Listed on Newegg | March 10, 2008 |
|---|
