ECS KN3 SLI2 (1.0) AM2 NVIDIA nForce 590 SLI MCP ATX AMD Motherboard

(56) Write a Review
  • NVIDIA nForce 590 SLI MCP
  • Athlon 64 X2 / Athlon 64 FX / Athlon 64
  • DDR2 800
🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
Specs
Reviews (56)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the ECS (EliteGroup) KN3 SLI2 (1.0)

Model
Brand ECS
Model KN3 SLI2 (1.0)
Supported CPU
CPU Socket Type AM2
CPU Type Athlon 64 X2 / Athlon 64 FX / Athlon 64
FSB 1000 MHz
Chipsets
Chipset NVIDIA nForce 590 SLI MCP
South Bridge MCP55XE
Memory
Number of Memory Slots 4x240pin
Memory Standard DDR2 800
Maximum Memory Supported 32GB
Channel Supported Dual Channel
Expansion Slots
PCI Express x16 2 x PCI Express x16
PCI Express x1 2 x PCI Express x1
PCI Slots 2 x PCI Slots
Storage Devices
PATA 2 x ATA100 4 Dev. Max
SATA RAID NV RAID 0/1/0+1/5/JBOD/NCQ
Additional RAID Controller JMB363
Onboard Video
Onboard Video Chipset None
Onboard Audio
Audio Chipset Realtek ALC883
Audio Channels 8 Channels
Onboard LAN
LAN Chipset Marvell 88E1116
Second LAN Chipset Marvell 88E1116
Max LAN Speed 2 x 1Gbps
Rear Panel Ports
Back I/O Ports 1 x COM (Serial Port) / 2 x PS/2 / 4 x USB 2.0/1.1 / 6 x Audio Jacks
PS/2 2
COM 1
USB 1.1/2.0 4 x USB 2.0
eSATA 1 x eSATA 3Gb/s
Audio Ports 6 Ports
Internal I/O Connectors
Onboard USB 6 x USB 2.0
Onboard 1394 2 x 1394a
Physical Spec
Form Factor ATX
Dimensions (W x L) 12.0" x 9.6"
Power Pin 24 Pin
Packaging

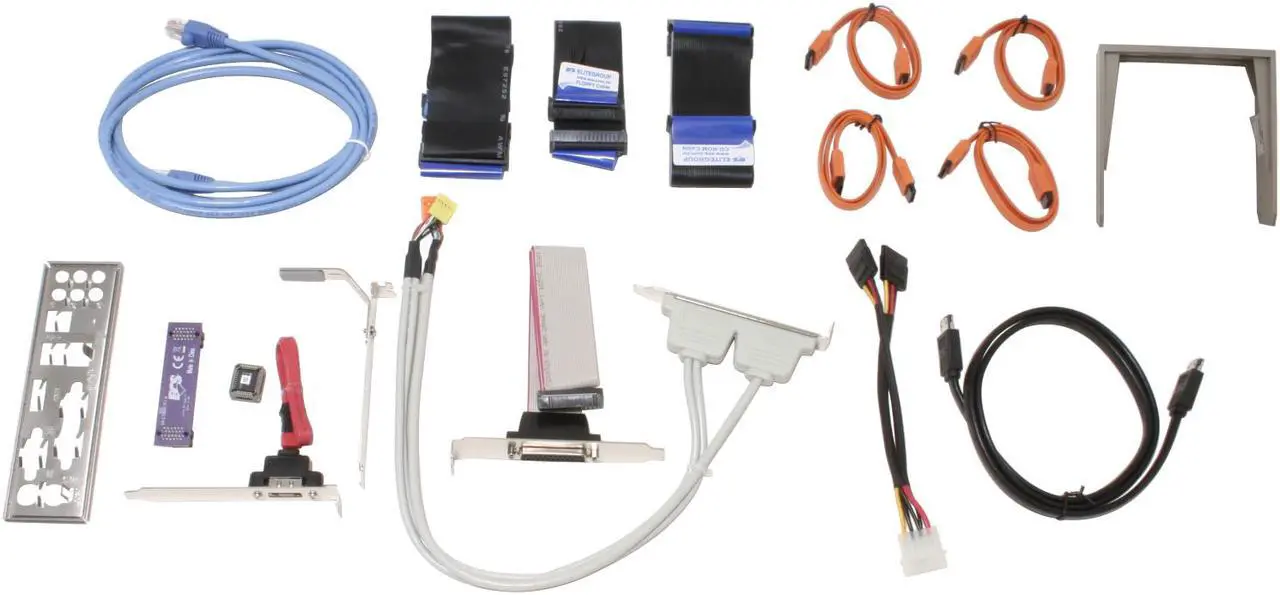

Package Contents KN3 SLI2 (1.0)
Driver Disk
User Manual
Rear I/O Panel Shield
2 x IDE/PATA Cable
FDD Cable
4 x SATA Cable
4-pin to SATA Power Cable
Software Disk
IEEE 1394 and USB Bracket
IEEE 1394 and USB Bracket Housing
eSATA Module
Top Hat Flash
SLI Bridge
SLI Retention Bracket
Ethenet Crossover Cable
Parallel/LPT Bracket
Additional Information
Date First Available December 14, 2006
