Design
Plug & Play, Hassle-free Setup
LIVA Q break away the traditional mini PC exterior and found a way to outdo its rivals by its Plug PC design concept. Small size, one hand holding, and it is also an interesting cube.
Performance
Tiny in size, Big in Performance

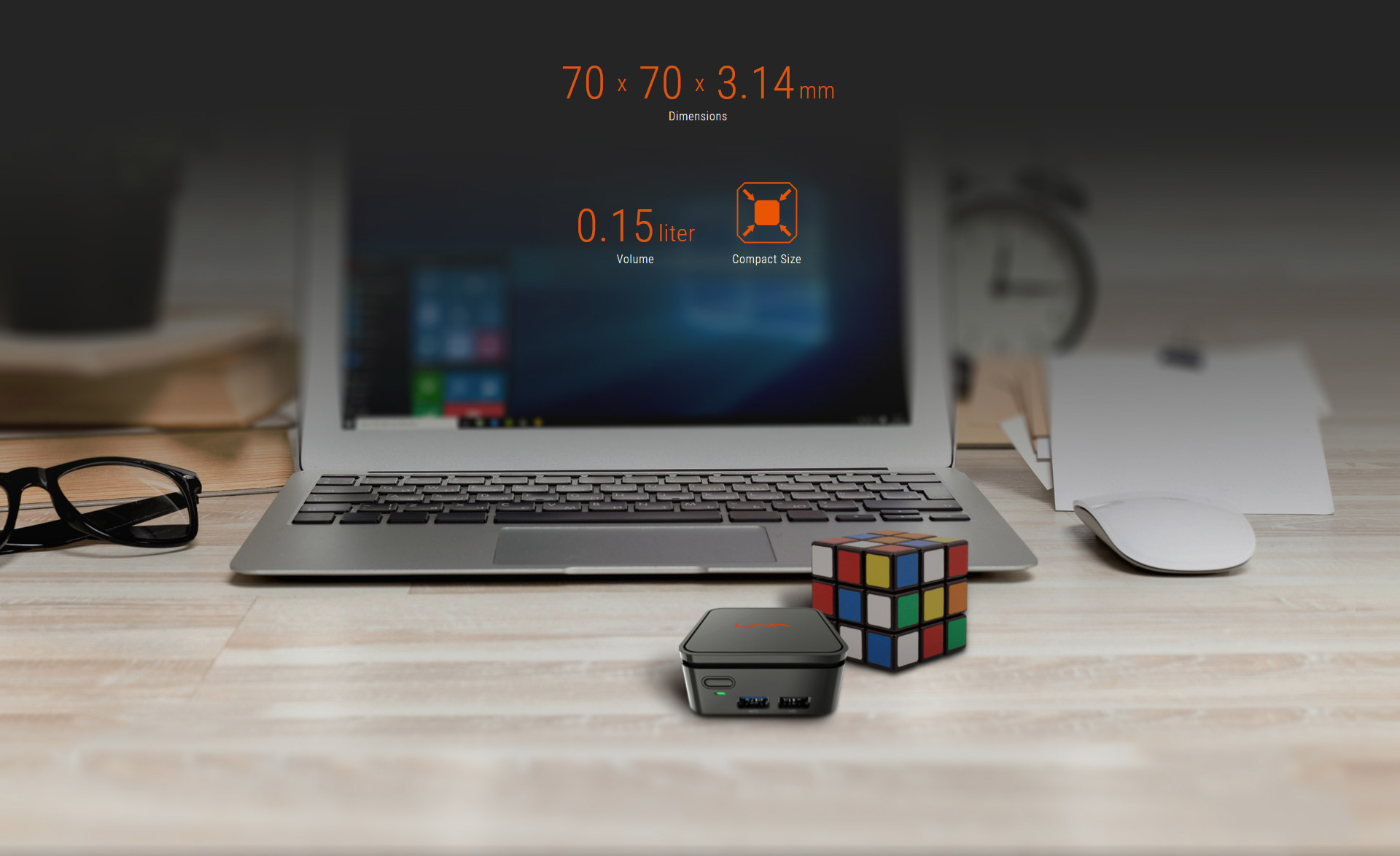

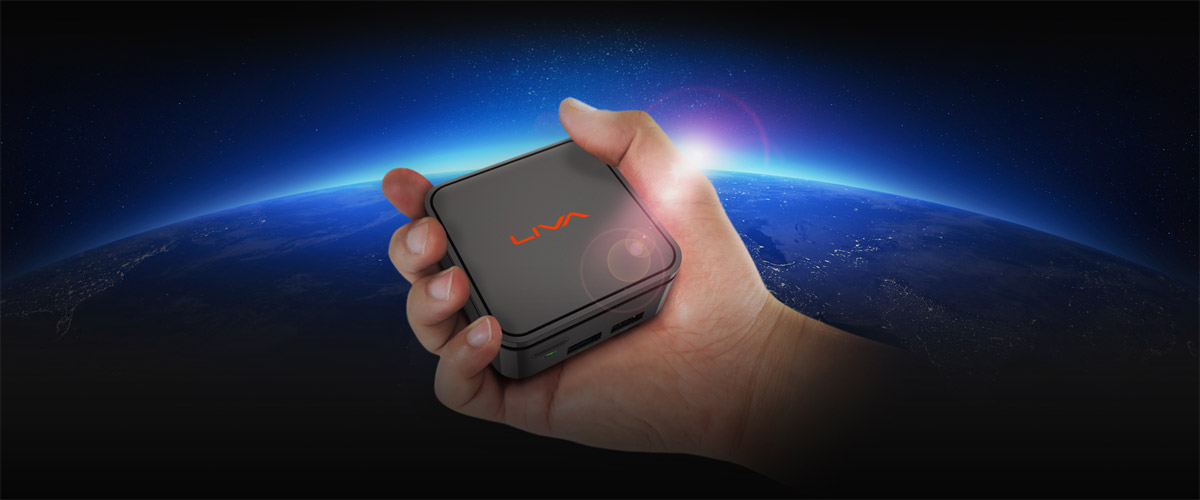

Measured at only 70mm x 70mm x 31.4mm around 0.15 liter, LIVA Q is smaller than a mouse and less volume than a Pocket Rubik's Cube, LIVA Q Mini PC is the smallest mini PC in its kind.
4K UHD Resolution

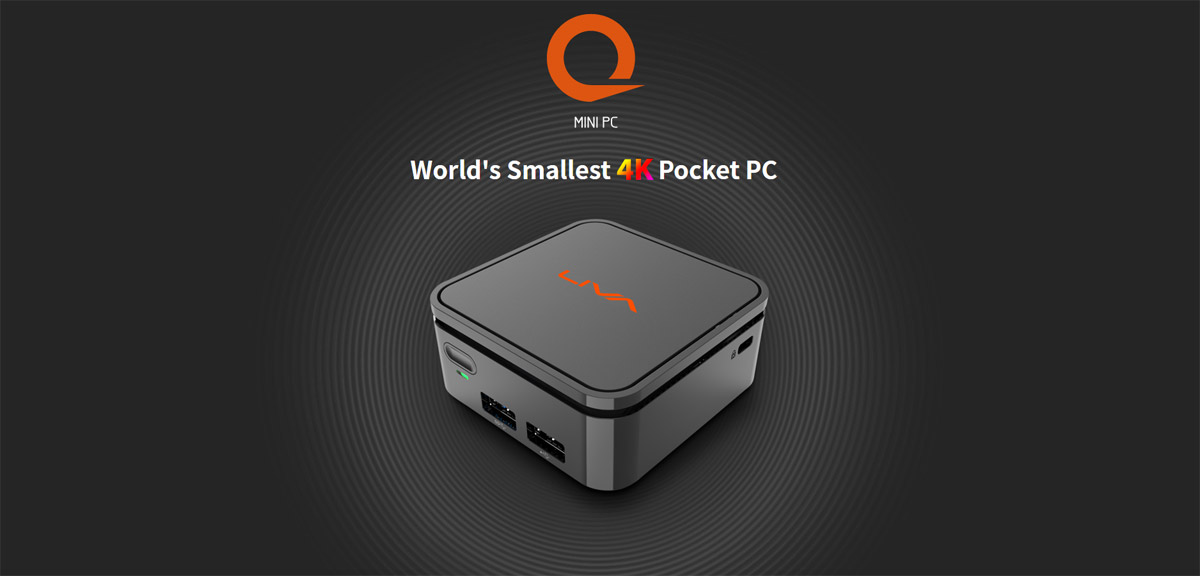

World's Smallest 4K Pocket PC

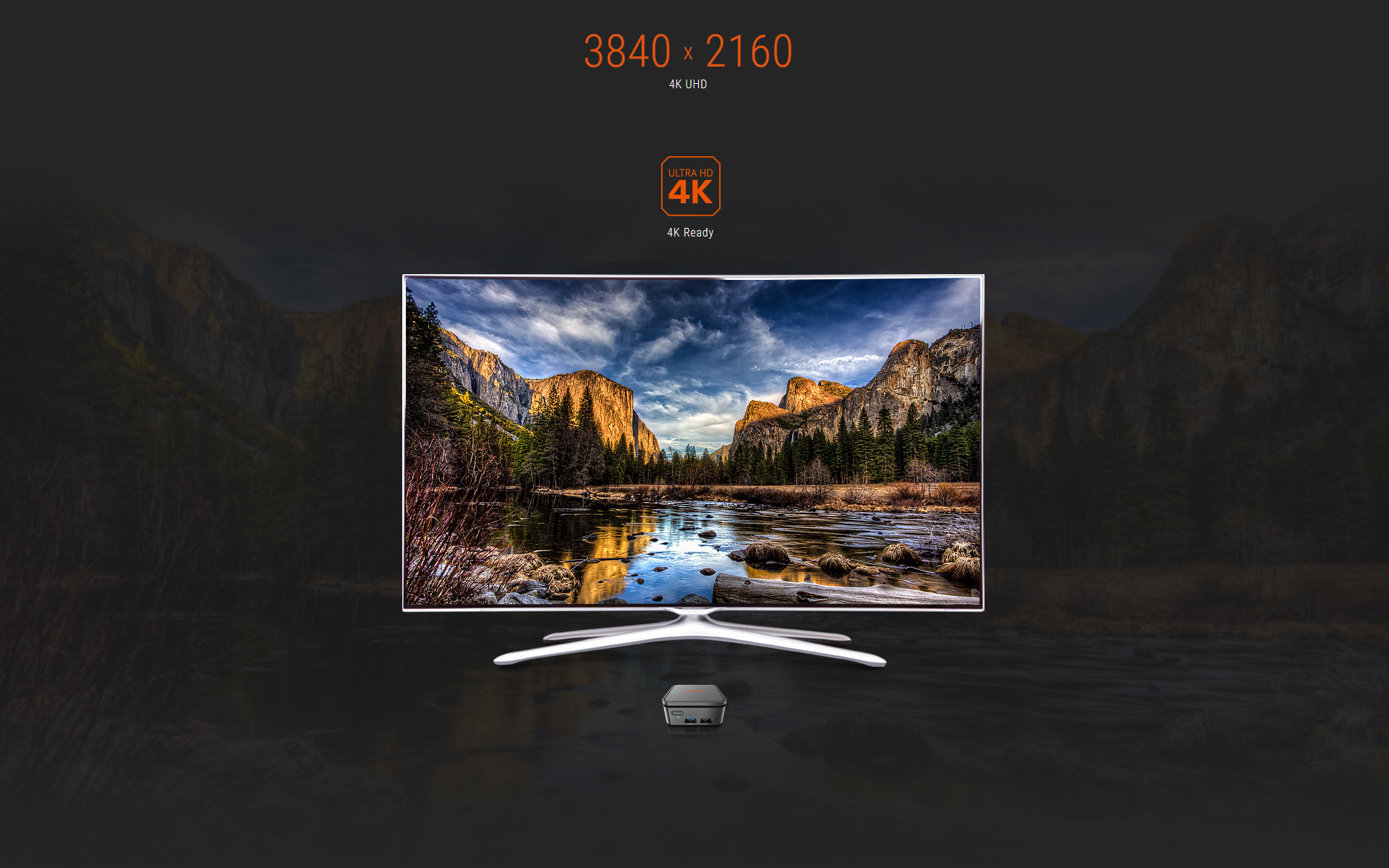

LIVA Q is equipped with an Intel® Apollo lake SOC with Intel HD graphics. It supports HDMI graphic output and 4K UHD (3840 x 2160) video. LIVA Q is the smallest, palm-sized, 4K capable Pocket PC available in the market today.
Functionality
Full PC Functionality

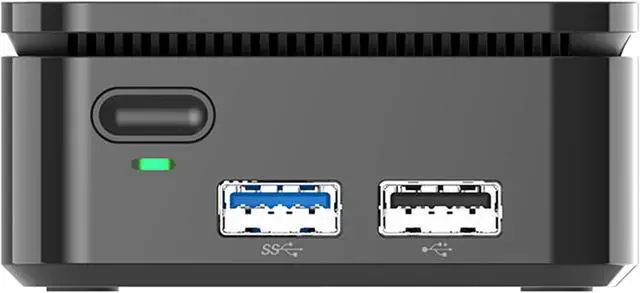

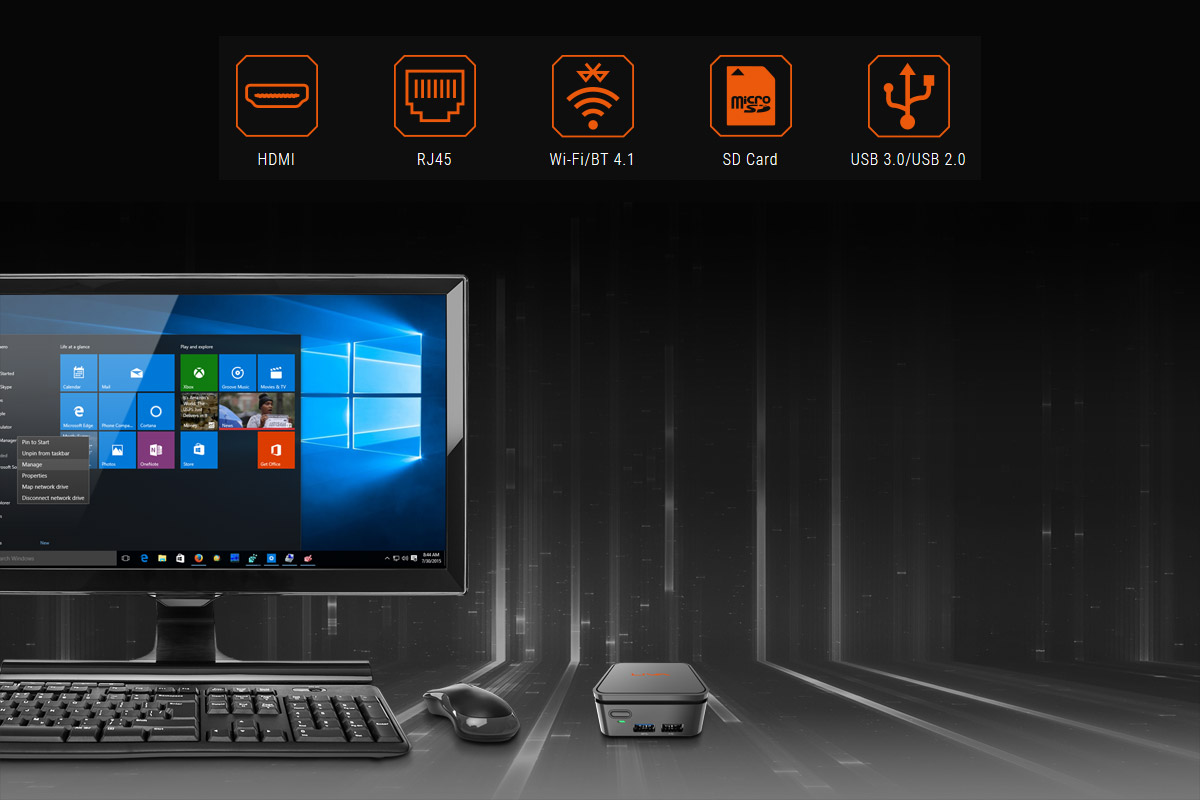

With the complete I/O ports, LIVA Q can satisfy all the devices which you need. And there's no setup needed, LIVA Q boots up quickly and is ready to go right out-of-the-box.
Storage Space

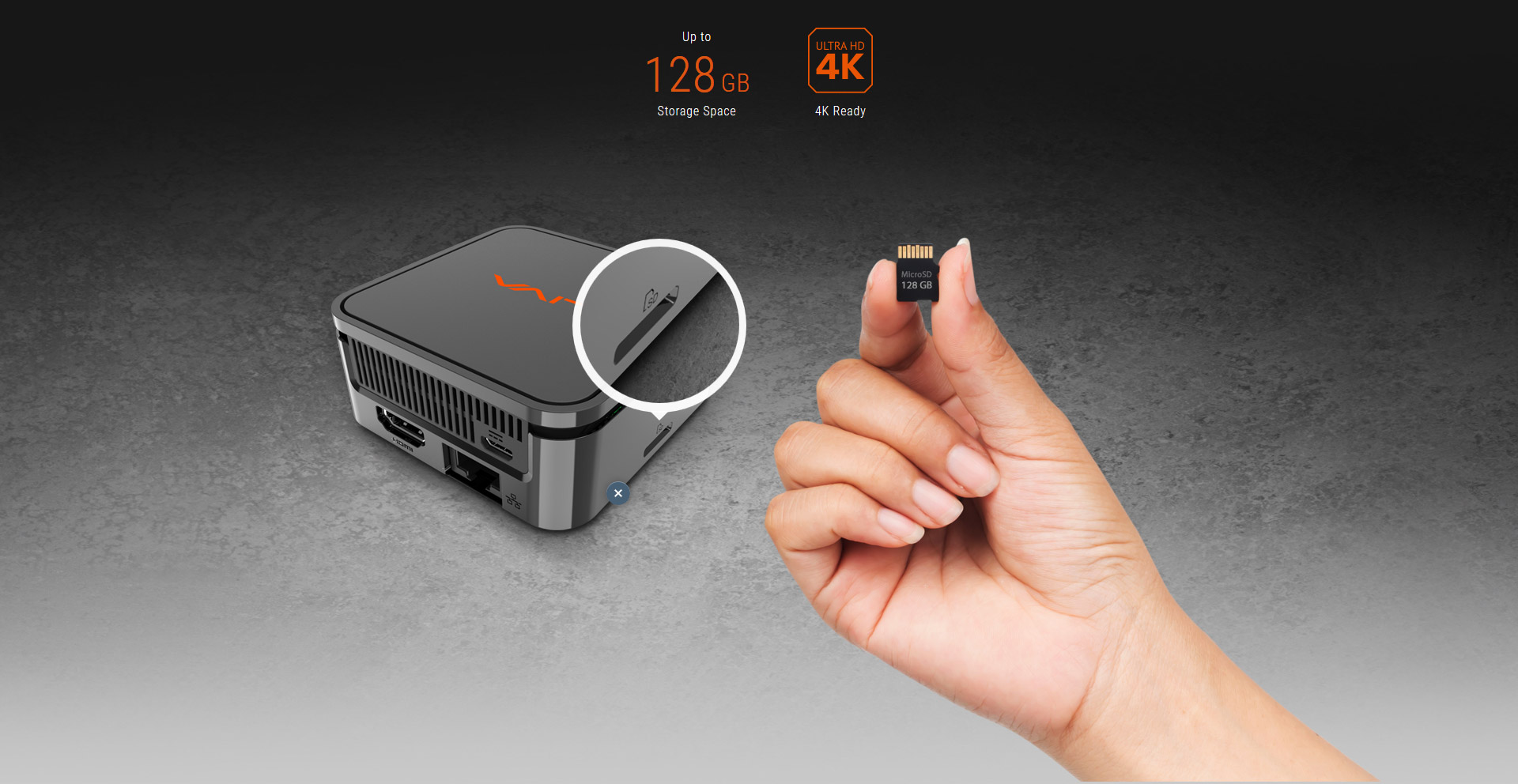

Micro SD Slot for Extend Storage
With LIVA Q offers best C/P Micro SD extend storage solution, you can easily have big space to storage your treasure photos and movies.
Connectivity
Online Anywhere with LAN/WiFi Options

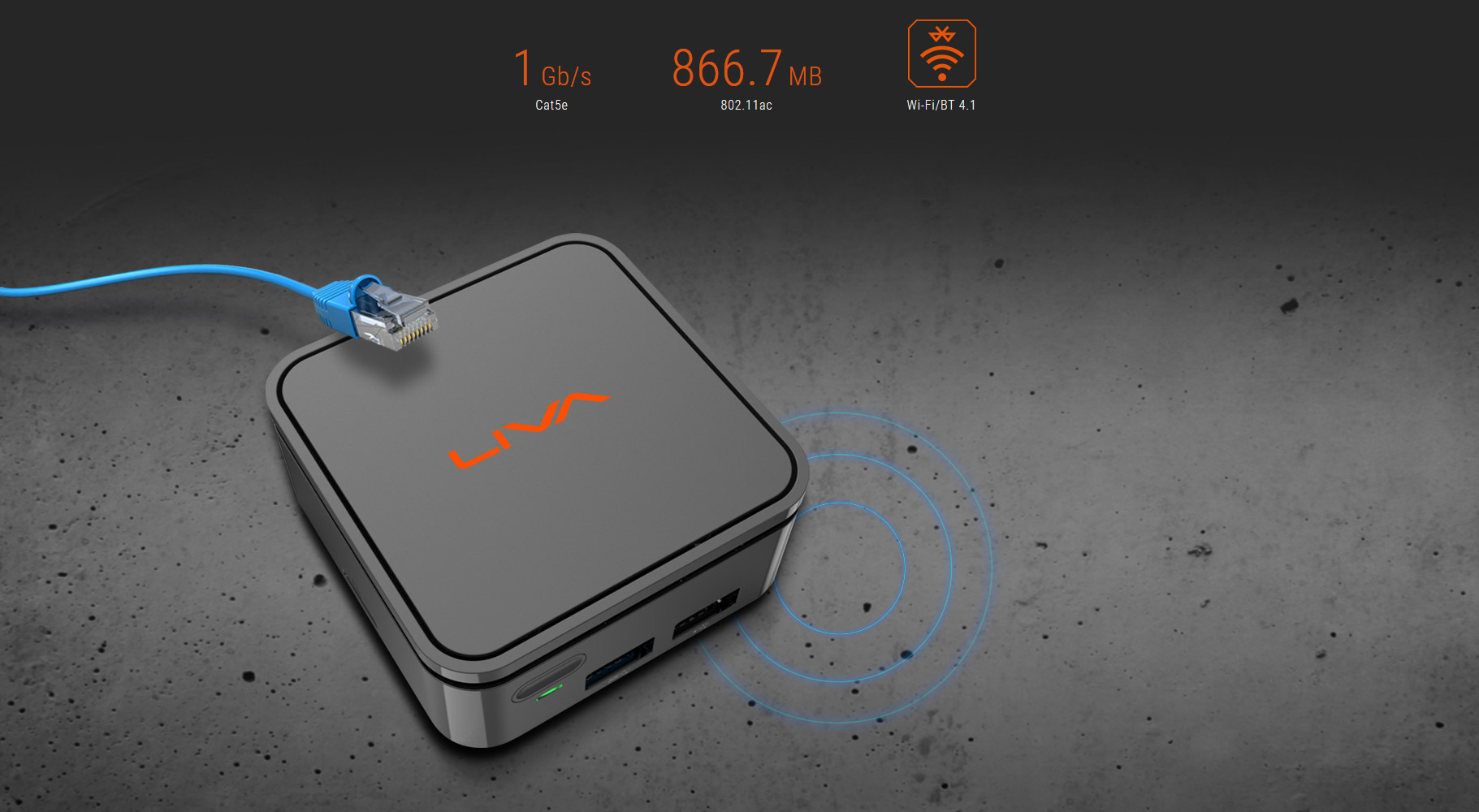

Although LIVA Q is pocket-size PC, but it still keep RJ45 Ethernet connection and support dual band Wi Fi wireless which picks up 2.4GHz + 5GHz signals design, it is more easy online anywhere with LAN/WiFi options.
Ubiquity
Your Ideal Desktop/Media Station Replacement
With compact design especially for limited space, LIVA Q is ideal for living room multimedia center, desktop PC at office, use for a commercial project like digital signage and so on.
Flexbility
Fits Everywhere

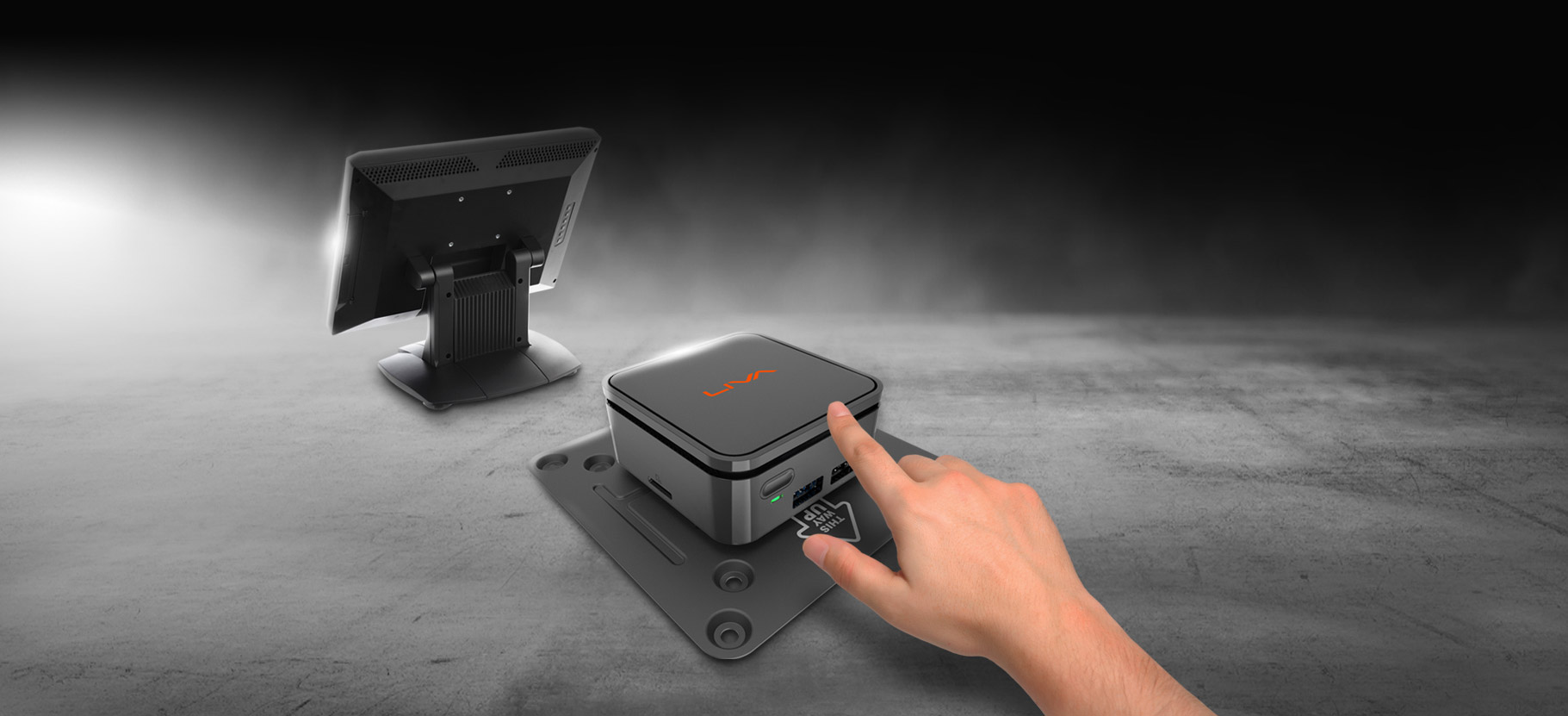

The LIVA Q mini pc offers the greatest flexibility, in space constrained such as office, behind your TV or digital signage locations. The VESA mount kit allows easy fix to your digital signage, LCD monitors & HD/4K TVs.
System
System On/Off via TV/Monitor Remote
Remotely switch on/off your system via HDMI using your display remote
LIVA Q features of HDMI designed to allow users to control devices connected to display via HDMI connection, by using the remote of the display (TV), when user switch on the display and connected devices, it will be turned on along with the display.
| LIVA X | LIVA X2 | LIVA Core | LIVA One | LIVA Z | LIVA ZE | LIVA Z Plus | LIVA Q | |
|---|---|---|---|---|---|---|---|---|
| CPU | Bay Trail-M - N2808 | Braswell - N3050 / J3060 | Broadwell Core M-5Y10C | Supports Skylake H110 35W i3 / i5 / i7 / Pentium / Celeron | Apollo Lake - N3350 / N4200 | Apollo Lake - N3350 | Kaby Lake i3-7100U / i5-7200U / i5-7300U | Apollo Lake - N3350 |
| Display Output | 1 x HDMI Port 1 x VGA Port |
1 x HDMI Port 1 x VGA Port |
2 x HDMI Port | 1 x HDMI Port 1 x VGA Port 1 x Display Port |
1 x HDMI Port 1 x mDP |
1 x HDMI Port 1 x mDP |
1 x HDMI Port 1 x mDP |
1 x HDMI Port 4k@60fps |
| Audio | 1 x Combo Jack | 1 x Combo Jack 2 x Microphone |
1 x Combo Jack 2 x Microphone |
1 x Combo Jack | 1 x Combo Jack 1 x Microphone |
1 x Combo Jack 1 x Microphone |
1 x Combo Jack 1 x Microphone |
via HDMI |
| USB | 2 x USB 2.0 1 x USB 3.0 |
3 x USB 3.1 (1 EZ Charger) | 4 x USB 3.1 (1 EZ Charger) | 1 x USB 3.1 Type C 4 x USB 3.1 |
3 x USB 3.1 Type A 1 x USB 3.1 Type C |
3 x USB 3.1 Type A 1 x USB 3.1 Type C |
3 x USB 3.1 Type A 1 x USB 3.1 Type C |
1 x USB 2.0 1 x USB 3.1 |
| Memory | DDR3L 2G/4G | DDR3L 2G/4G | DDR3L 4G | Support 2 x DDR3L | Support 2 x DDR3L | Support 2 x DDR3L | Support 2 x DDRR4 | LPDDR4 4G |
| Storage | eMMC 32GB/64GB | eMMC 32GB/64GB | Intel 535 Series 120G M.2 SSD | Support M.2 SSD | eMMC 32GB/64GB | eMMC 32GB/64GB | Available via M.2 | eMMC 32GB |
| Expansion Slot | 1 x mSATA SSD (Up to 1TB) | 1 x M.2 SSD (Up to 1TB) | N/A (slot in use) | 1 x M.2 SSD 1 x 2.5” HDD |
1 x M.2 SSD (Up to 1TB) | 1 x M.2 SSD 1 x 2.5” HDD |
1 x M.2 SSD (Up to 1TB) | MicroSD Card (Up to 128GB) |
| Wired Connectivity | 1 x Gigabit Ethernet | 1 x Gigabit Ethernet | 1 x Gigabit Ethernet | 1 x Gigabit Ethernet | 2 x Gigabit Ethernet | 2 x Gigabit Ethernet 4 x COM Port |
2 x Gigabit Ethernet | 1 x Gigabit Ethernet |
| Wireless Connectivity | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.0 | 802.11ac WiFi Bluetooth 4.1 |
| Card Reader | N/A | N/A | MicroSD Card | MicroSD Card | N/A | N/A | N/A | MicroSD Card |
| Dimensions | 135 x 83 x 40 mm | 156 x 83 x 51 mm | 136 x 84 x 38 mm | 173 x 176 x 33 mm | 117 x 128 x 32 mm | 117 x 128 x 51 mm | 117 x 128 x 32 mm | 70 x 70 x 31.4 mm |
| OS Support | Windows 7*/8.1/10 (7 supported by mSATA) | Windows 7*/8.1/10 (7 supported by M.2) | Windows 7/8.1/10 | Windows 7 / 10 Ubuntu 14.04 LTS | Windows 10 Ubuntu 16.04 LTS | Windows 10 Linux | Windows 10 | Windows 10 Ubuntu 16.04 LTS |
