Is it only a motherboard or the motherboard with the mentioned CPU? Thank you

It is both. The CUP is soldered to the motherboard. I've had this running my NAS server for two years now. No problems whatsoever.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Sold by Newegg

Shipped by Newegg

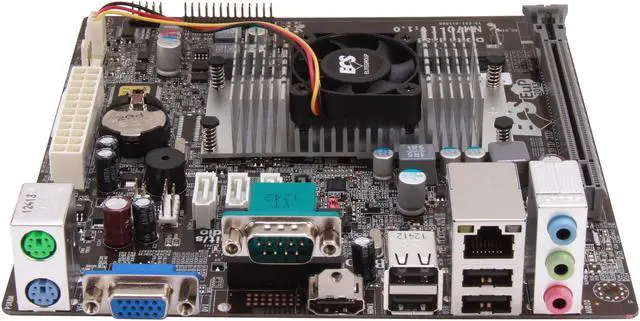

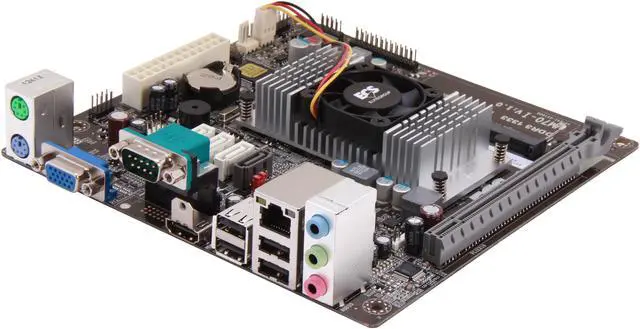

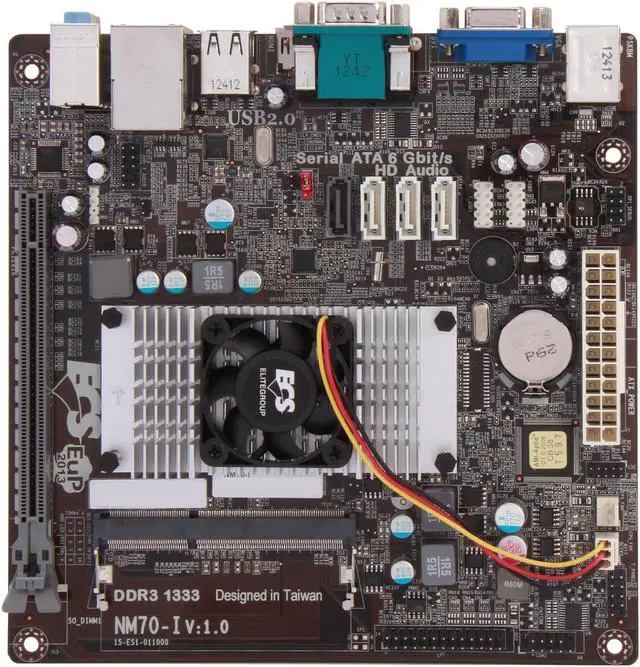

ECS NM70-I v1.0 Intel Celeron 1037U 1.80GHz BGA1023 Intel NM70 Mini ITX Motherboard / CPU Combo

Specs

Reviews (6)

Any questions? Our AI mode will help you find out quickly.

Try me now

Bundle
CPU	Intel Celeron 1037U 1.80GHz
With Cooler	Yes

Supported CPU
CPU Socket Type	BGA1023
CPU Type	Celeron

Chipsets
North Bridge	Intel NM70

Expansion Slots
PCI Express x16	1 x PCI EXpress X16 2.0(running x8)

Storage Devices
SATA	3 x SATA 3.0Gb/s + 1 x SATA 6.0Gb/s

Onboard Audio
Audio Chipset	VIA VT1705
Audio Channels	6 Channels

Internal I/O Connectors
Onboard USB	4 x USB 2.0
Other Connectors	1 x 24-pin ATX Power Supply connector 1 x 3-pin CPU_FAN connector (with smart fan) 1 x 3-pin SYS_FAN connector (with smart fan) 1 x Front panel switch/LED header 1 x Front panel audio MIC/Line-Out header 1 x Parallel port header (LPT) 1 x Serial port header (COM) 1 x Case open header 1 x Clear CMOS header 1 x SPDIF out header 1 x Buzzer

Features
Features	Microsoft Windows 8 Support Supports 2 independent displays ECS Intelligent EZ Utility : eBLU, eDLU, eSF Applied Solid Capacitor for CPU VRM to ensure a longer lifespan for system ESD Protection prevent computers from electrostatic discharge damage to enhance its durability and lifespan Supports DirectX 10.1 enhanced graphics performance Supports HDMI 1.4a Technology (resolution up to 1920X1200 ) and HDCP function Free Bundled Software: Trial version of Norton Internet Security ,CyberLink PowerDVD, CyberLink PowerDirector 9 and, Muzee

Physical Spec
Form Factor	Mini ITX
Dimensions (W x L)	6.7" x 6.7"

Additional Information
First Listed on Newegg	January 17, 2013
