Main image of EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

100%

Alt view image 2 of 6 - EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

Alt view image 3 of 6 - EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

Alt view image 4 of 6 - EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

Alt view image 5 of 6 - EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

Alt view image 6 of 6 - EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

360^°

Shop All EDIMAX Products

EDIMAX BR-6478AC V2 AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN - OEM

(3) Write a Review

AC1200 High-Speed
Compatible with 802.11a/b/g/n standards
Wireless connectivity for 2.4 GHz and 5 GHz
5-port gigabit Ethernet connectivity

Overview

Specs

Reviews (3)

Any questions? Our AI beta will help you find out quickly.

Try me now

MAIN OVERVIEW FEATURES: Broadband Transmission Technology: EthernetWireless LAN Standard: IEEE 802.11acISM Band: YesUNII Band: YesISM Maximum Frequency: 2.40 GHzUNII Maximum Frequency: 5 GHzNumber of External Antennas: 2Wireless Transmission Speed: 1200 Mbit/sNumber of Network (RJ-45) Ports: 4USB: YesPoE (RJ-45) Port: NoNumber of Broadband (RJ-45) Ports: 1Ethernet Technology: Gigabit EthernetVPN Supported: YesForm Factor: DesktopHeight: 1.7"Width: 7.5"Depth: 6.8"Weight (Approximate): 11.36 ozPackage Contents: AC1200 Gigabit Dual-Band Wi-Fi Router with USB Port & VPN 1 x Quick Installation Guide 1 x CD-ROM (Including the Setup Wizard Multi-languages Quick Installation Guide and User Manual) 1 x 12V DC power adapter Ethernet Cable

Model
Brand	EDIMAX
Model	BR-6478AC V2

Details
Standards	IEEE 802.11a/b/g/n
WiFi Generation	Wi-Fi 5
Wireless Standard	IEEE 802.11a / IEEE 802.11ac / IEEE 802.11b / IEEE 802.11g / IEEE 802.11n
Device Management	Multi-language user interface Supports remote management System status and security log Fault tolerance firmware upgradable Auto firmware upgrage Auto restart while malfunction (Watch Dog) Smart iQ Setup, no CD required Supports smartphone, tablet or laptop setup (iOS 4 or Android 4 and above are required for smartphone or tablet setup).
Security	WEP, WPA and WPA2 security QoS for critical operations SPI anti-DoS firewall
WPA	WPA2

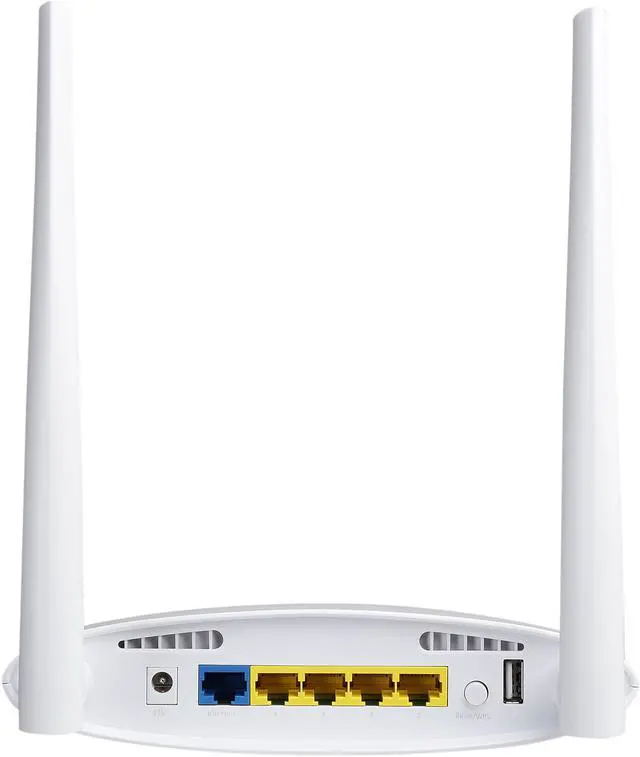

WAN Ports	1 x 10/100/1000M
LAN Ports	4 x 10/100/1000M
LEDs	Power, Internet, WLAN, USB
Buttons	Reset, WPS
Wireless Data Rates	AC1200 / Up to 1.2Gbps
Frequency Band	2.4 GHz / 5 GHz
Antenna	2 x Dual-band antennas
Receiver Sensitivity	2.4 GHz Receive Sensitivity 11b (1 Mbps): -91 +/-2 dBm 11b (11 Mbps): -87 +/-2 dBm 11g (54 Mbps): -71 +/-2 dBm 11n (20 MHz, MCS7): -68 +/-2 dBm 11n (40 MHz, MCS7): -65 +/-2 dBm 5 GHz Receive Sensitivity 11a (6 Mbps): -90 +/-2 dBm 11a (54 Mbps): -71 +/-2 dBm 11n (20 MHz, MCS7): -69 +/-2 dBm 11n (40 MHz, MCS7): -65 +/-2 dBm 11ac (80 MHz, MCS9): -55 +/-2 dBm
Interface	1 x USB 2.0 port
Power Supply	DC 12V, 1.25A (UK, AU) DC 12V, 1.5A (US, EU)
Dimensions	1.65" x 7.49" x 6.77"
Weight	0.71 lb.
Temperature	0°C - 40°C (32°F - 104°F)
Humidity	10% - 90%, Non-Condensing

Features
Features	AC1200 High-Speed: Next generation 802.11ac Wi-Fi standard 5 Modes in 1: Router, Access Point, Wi-Fi Range Extender, Wi-Fi Bridge and WISP Backward Compatible: Compatible with 802.11a/b/g/n standards Concurrent Dual-Band: Wireless connectivity for 2.4 GHz and 5 GHz Gigabit: 5-port gigabit Ethernet connectivity VPN (Virtual Private Network): Access secure, remote networks from anywhere and protect privacy on public Wi-Fi and bypass Internet censorship USB Port: Storage & FTP file or printer sharing as your own private, secure cloud Multiple SSIDs & VLAN: Supports up to 10 SSIDs (5 x 2.4 GHz & 5 x 5 GHz) and provides security and protecting confidential or critical network resources (Access point mode only) Guest Network: Provides secure & private connectivity while isolating guests from your primary network (Router mode only) Smart iQ Setup: Smart, automatic and quick web-based installation with no CD required from any smartphone, iPad, tablet, or PC iQoS Bandwidth Management: Efficient and effective internet bandwidth management

Packaging

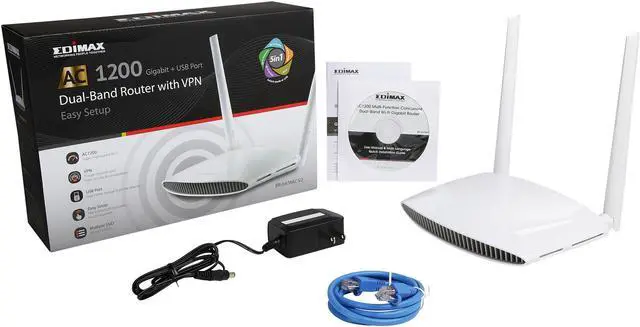

Package Contents	Broadband router (main body, 1 pcs) Quick Installation Guide (1 pcs) One CD-ROM (Including the Setup Wizard, Multi-languages Quick Installation Guide and User Manual) 12V DC power adapter (1 pcs) Ethernet Cable

Additional Information
First Listed on Newegg	December 22, 2015
