Specification
Center Frequency: 1575.42MHz±3 MHz
V.S.W.R<2.0
Band Width:±5 MHz
LNA Gain(Without cable): 28+/-3dB
Noise Figure :1.5dB Typ.
Impendence:50 ohm
Polarization RHCP
DC Voltage 2.7V/3.0V/3.3V/5.0V/3.0V to 5.0V/other
DC Current 5mA /11mA/15mA Max
Cable:RG174 3 meter/9.8 feet

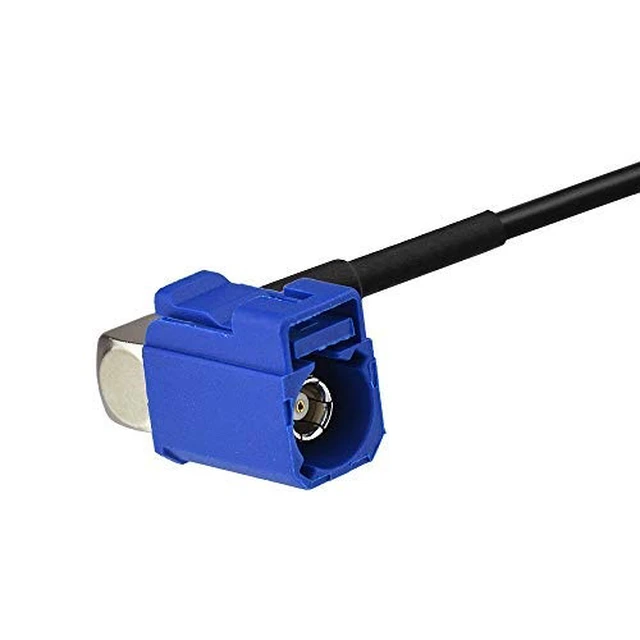

Connector:Fakra C female right angle
Application
Automobile GPS
Bluetooth Receiver
Vehicles /Car Tracking Navigation System
AVL / Fleet Management Systems
External Antenna for Handheld GPS
External Antenna for PDA Navigator
