EK-AIO Elite 360 D-RGB
The EK all-in-one liquid cooling solution is ideal for users who are looking to take their first step into cooling. It offers all the benefits of a water-cooling solution in a compact, easy-to-install, and maintenance-free design. The EK AIO Elite comes with a universally compatible CPU water-block, along with a pre-filled pump-res combo design for a liquid cooling solution that’s ready to go straight out of the box. It’s simple, efficient, and comes with fully customizable D-RGB lighting.
Easy installation with Universal Compatibility

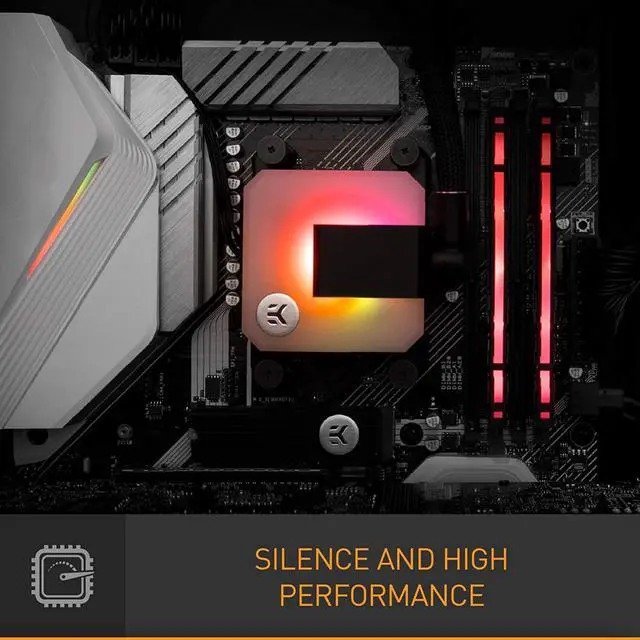

The EK AIO comes with a universally compatible CPU water-block, fitting all the latest Intel & AMD CPU sockets as well as featuring a tool-less mounting mechanism for easy installation. Requiring just a single radiator mount, with diamond cut rotary fittings for easy tube adjustment, the EK AIO Elite offers compatibility with almost all modern case designs.
Dynamic Addressable D-RGB lighting
Customize your EK AIO to match your set-up with its range of fully addressable D-RGB lighting effects. Built into both its CPU block and six Vardar S fans, the EK AIO Elite offers a range of color configurations controlled from either your motherboard or standalone D-RGB controller. The Black Nickel cover of the pump unit now offers a very elegant look with the subtle hint of D-RGB peeking through the EK logo.
This product is compatible with popular RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin LED connector is to be aligned with the +5V marking on the A-RGB (D_RGB) header.
Ultra-durable design with diamond-cut rotary fittings
The EK AIO comes pre-installed with reinforced and sleeved rubber tubing, each fitted with an aluminum cover to ensure they’re ultra-durable. Its diamond-cut rotary fittings allow for easy installation and adjustment of the rubber tubing, featuring a full range of movement to make the EK AIO suitable for installation in even the tightest spaces.
EK-Vardar High-Performance Fans

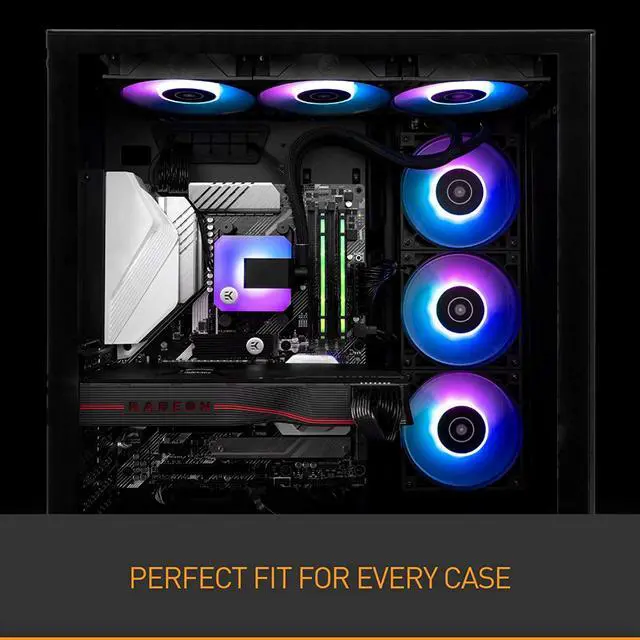

The EK-Vardar S included with the EK AIO are industrial grade high-static PWM fans, designed and built primarily for high-performance liquid cooling systems. Controlled by either your motherboard or standalone fan controller, the EK Vardar can be adjusted to run at speeds between 550 - 2200RPM for either high airflow or silent running. The EK-AIO Elite includes six Vardar fans, which can be utilized to create a push-pull configuration or if there is not enough space, create a better airflow by positioning three of the fans on the case itself.
Cable management
To help manage the cables of EK-Vardar fans, the EK-AIO Elite unit comes with an included EK-Hub, offering multi-connection with seven sets of addressable RGB LED headers and 4-pin PWM fan headers. The EK-Hub will help you neatly organize the Push-Pull fan configuration.
CPU Socket Support:
- Intel Sockets LGA: 1150, 1151, 1155, 1156, 1200, 2011, 2011-3, 2066, 1200
- AMD Sockets: AM4
Enclosed:
- EK-AIO Elite 360 D-RGB unit
- EK-Vardar S 120ER D-RGB (6pcs)
- EK-Hub PWM + D-RGB
- Tube of Thermal Paste
- Mounting Kit
- User Manual
Mounting kit:
Zip Bag 1:
- 12x Phillips Head Screw UNC 6-32 x 30mm (5 mm thread length)
- 12x Phillips Head Screw UNC 6-32 x 6mm
Zip Bag 2:
- 4x Thumb nut (Intel /AMD)
- 4x Mounting thumb screw for INTEL LGA 115x / AMD AM4 socket
- 4x Mounting thumb screw for Intel LGA 20XX socket
- 4x Spring
- 4x Mounting Plate Phillips Head M4x4mm (for the installation of mounting brackets)
Zip Bag 3:
- 1x Intel LGA 115x Backplate
- 2x Intel mounting bracket
- 2x AMD mounting bracket
