$99.00
Meet Your Seller

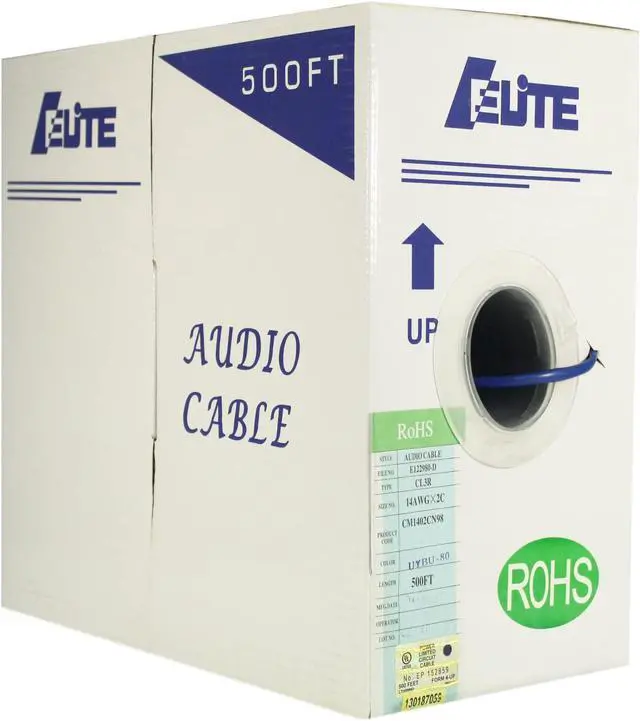

Elite Audio Cable, 500ft, 14AWG, 2 Conductor, 100% Bare Copper, PVC Jacket, UL Certified, Bulk Cable, Blue
- Elite Audio Cable is 500ft, 14AWG, 2 Conductors, PVC Jacket, made of Bare Annealed Stranded Copper
- Voltage rating: 300V rams; Continuous working temperature range: -20 Degrees C ~ 75 Degrees C
- Resistant to solvents chemicals, gasoline, radiations and UV protected. It's UV protection gives it the ability to be directly buried out of sight or installed outdoors.
- UL Listed, ETL Verified, RoHS Compliant, 3rd Party Tested for safety and performance. All cables have specification and UL printed on jacket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Style: Audio Cable
Size: 14AWG×4C AS -LFPart
No.: ADO144
Rate Temperature/Voltage: 75?/300V
Reference standards: CMR/CL3R

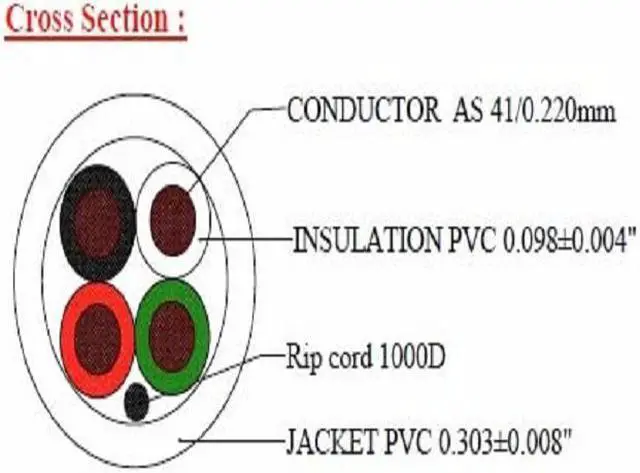

Structure:
Conductor:
Size: 14AWG
Construction: 60/0.180±0.010mm
Diameter: 0.064?(Approx.)
Material: Bare Annealed Stranded Copper
Insulation:
Average Thickness: 0.020”
Diameter: 0.098±0.004”
Material: PVC
Core Color: BLACK, RED, WHITE, GREEN
Assembly:
Diameter: 0.238?(Approx.)
Rip Cord:
Material: Tedlon 1000D
Jacket:
Ave Thickness: 0.026”
Diameter: 0.303±0.008”
Material: PVC
Color: Blue
Net Weight: 64.44ib/1000ft
Packing:
500’ Box Size: 14.17"×14.17"×7.87"
Pallet Size: 44.9”×44.9” 36 Boxes/Pallet
Electrical &Physical Performance:
Insulation:
( 113 ±1.0? ×168 H ) Unaged Aged
Tensile Strength 3000 PSI MIN. 70% Unaged MIN.
Elongation 100 % MIN. 70% Unaged MIN.
Jacket:
( 100 ±1.0? ×168 H in Oven ) Unaged Aged
Tensile Strength 1500 PSI MIN. 85% Unaged MIN.
Elongation 100 % MIN. 65% Unaged MIN.
(Carbon-Arc ×720H) Unaged Aged
Tensile Strength 1500 PSI MIN. 80% Unaged MIN.
Elongation 100 % MIN. 80% Unaged MIN.
Crushing Test: No Crack(454Kgf Load 60s)
Mechanical Water Absorption Test: Less Than 20.0 Milligrams /inch2
Heat Shock Test: No Crack ( 121 ±2.0? ×1 H )
Cold Bend Test: No Crack ( -20 ±1.0? ×4 H )
Deformation Test: T2/T1 >50% ( 121±2.0? ×1 H )
Flame Test: OK (CMR/ CL3R)
Marking: ELITE AUDIO CABLE (UL) CL3R E122980-D 14AWG/4C c(UL) CMR FT4 75? RoHS Compliant Direct Burial UV Protected XXXFT
Size: 14AWG×4C AS -LFPart
No.: ADO144
Rate Temperature/Voltage: 75?/300V
Reference standards: CMR/CL3R
Structure:
Conductor:
Size: 14AWG
Construction: 60/0.180±0.010mm
Diameter: 0.064?(Approx.)
Material: Bare Annealed Stranded Copper
Insulation:
Average Thickness: 0.020”
Diameter: 0.098±0.004”
Material: PVC
Core Color: BLACK, RED, WHITE, GREEN
Assembly:
Diameter: 0.238?(Approx.)
Rip Cord:
Material: Tedlon 1000D
Jacket:
Ave Thickness: 0.026”
Diameter: 0.303±0.008”
Material: PVC
Color: Blue
Net Weight: 64.44ib/1000ft
Packing:
500’ Box Size: 14.17"×14.17"×7.87"
Pallet Size: 44.9”×44.9” 36 Boxes/Pallet
Electrical &Physical Performance:
Insulation:
( 113 ±1.0? ×168 H ) Unaged Aged
Tensile Strength 3000 PSI MIN. 70% Unaged MIN.
Elongation 100 % MIN. 70% Unaged MIN.
Jacket:
( 100 ±1.0? ×168 H in Oven ) Unaged Aged
Tensile Strength 1500 PSI MIN. 85% Unaged MIN.
Elongation 100 % MIN. 65% Unaged MIN.
(Carbon-Arc ×720H) Unaged Aged
Tensile Strength 1500 PSI MIN. 80% Unaged MIN.
Elongation 100 % MIN. 80% Unaged MIN.
Crushing Test: No Crack(454Kgf Load 60s)
Mechanical Water Absorption Test: Less Than 20.0 Milligrams /inch2
Heat Shock Test: No Crack ( 121 ±2.0? ×1 H )
Cold Bend Test: No Crack ( -20 ±1.0? ×4 H )
Deformation Test: T2/T1 >50% ( 121±2.0? ×1 H )
Flame Test: OK (CMR/ CL3R)
Marking: ELITE AUDIO CABLE (UL) CL3R E122980-D 14AWG/4C c(UL) CMR FT4 75? RoHS Compliant Direct Burial UV Protected XXXFT
