Elite Cat6 Shielded Riser (CMR), 1000ft, 550MHz, 23AWG, F/UTP, Solid Bare Copper, UL Certified, UL-LP Certification, Bulk Ethernet Cable Reel, Violet
- Elite Cat6 Shielded Riser is 1000ft, 23AWG, Solid Bare Copper, 4 Unshielded Twisted Pairs with an overall foil shield around all 4 pairs.
- Perfect for installs in your home and business, risers, in walls, between flooring and can be substituted for CM rated applications.
- Cat6 Shielded Riser cable supports 1Gb (Gigabit) Ethernet and 550MHz up to 328 Feet. Achieve up to 10Gb at shorter distances with standard IEEE 802.3bz (2.5GBase-T and 5GBase-T). Power devices such as: POE (Power Over Ethernet), computers, routers, IP Cameras, switches, keystone jacks, RJ45's, modems, Xbox, PlayStation, Apple TV, ethernet adapters, Fax Machines, Smart TV's, Mesh networks, access points, cctv and much more!
- UL Listed, LP Certification, ETL Verified, HDBaseT, RoHS Compliant, TAA Compliant and 3rd Party Tested.
+
+
Overview
Specs
Reviews
Elite Cat6 Shielded Riser Features

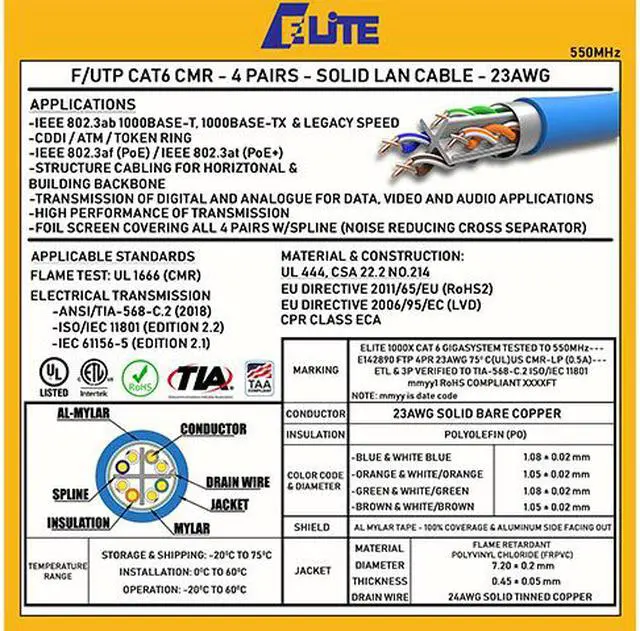

Structure
F/UTP | 23AWG | 550MHz | Spline | Solid | Bare Copper
Overall Metal Foil Screen with Drain Wire
On a wooden spool (Recommended because of cables weight). The bend radius is equal on a reel which will protect the shield from any internal cracking during pulls.
Where to Use
CMR/Riser cable is also known as wall rated. It is perfect for in wall installations and can also be used for CM Rated installs.
Great for computers, home and offices, gaming systems, routers, networking devices, PoE (Power over ethernet), cameras..plus more!
Performance

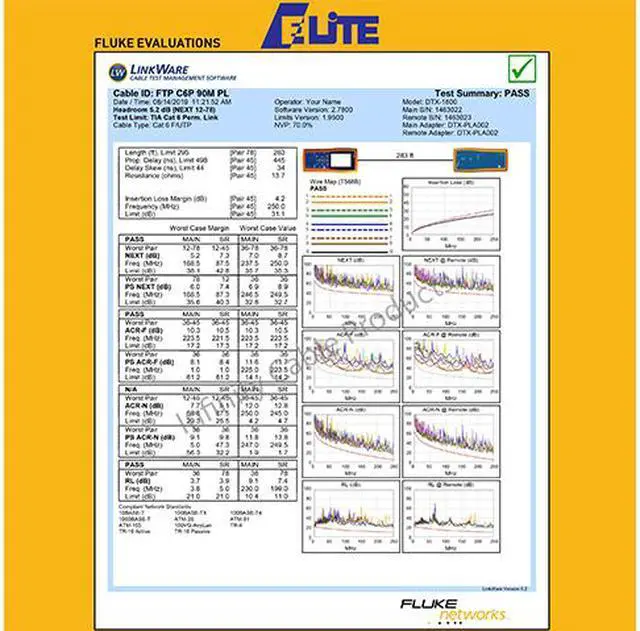

Electronic Performance: 3 - 5 DB extra margin over EIA/ TIA-568.2-D Standard
We only use 100% Pure/Bare Copper in our cables. Bare copper provides much greater performance compared to CCA and complies with Cat 6 Standards.
Certification
UL Certified, ETL Verified, RoHS Compliant, 3rd Party Tested.
The Importance of UL
UL is the leading safety/performance testing Lab in the U.S.
The Importance of UL-LP Certification for PoE
Limited Power Certification LP provides an uncomplicated way to help ensure installations are ready for the increasing power levels and are not susceptible to safety issues caused by
excessive heat generation. This simplifies installation planning. The test-based requirements also allow for innovation in cable design. Cables are distinguished with an industry
recognized and trusted UL certification Mark. This helps ensure compliance and reduces risk to all stakeholders in the supply chain.
Warranty
25 Years Warranty and Product Support
Structure
F/UTP | 23AWG | 550MHz | Spline | Solid | Bare Copper
Overall Metal Foil Screen with Drain Wire
On a wooden spool (Recommended because of cables weight). The bend radius is equal on a reel which will protect the shield from any internal cracking during pulls.
Where to Use
CMR/Riser cable is also known as wall rated. It is perfect for in wall installations and can also be used for CM Rated installs.
Great for computers, home and offices, gaming systems, routers, networking devices, PoE (Power over ethernet), cameras..plus more!
Performance
Electronic Performance: 3 - 5 DB extra margin over EIA/ TIA-568.2-D Standard
We only use 100% Pure/Bare Copper in our cables. Bare copper provides much greater performance compared to CCA and complies with Cat 6 Standards.
Certification
UL Certified, ETL Verified, RoHS Compliant, 3rd Party Tested.
The Importance of UL
UL is the leading safety/performance testing Lab in the U.S.
The Importance of UL-LP Certification for PoE
Limited Power Certification LP provides an uncomplicated way to help ensure installations are ready for the increasing power levels and are not susceptible to safety issues caused by
excessive heat generation. This simplifies installation planning. The test-based requirements also allow for innovation in cable design. Cables are distinguished with an industry
recognized and trusted UL certification Mark. This helps ensure compliance and reduces risk to all stakeholders in the supply chain.
Warranty
25 Years Warranty and Product Support
