Elite Cat6a Plenum (CMP), 1000ft, 650MHz, 23AWG, U/UTP, Solid Pure Copper, 10Gb, UL Certified, Bulk Ethernet Cable Reel, Orange
- Elite Cat6a Plenum is 1000ft, 23AWG, Solid Bare Copper, 4 Unshielded Twisted Pairs (UTP). This cable is built with a rip cord and a spline in the middle of all 4 pairs for better performance against near end crosstalk.
- Install Cat6 shielded plenum cable in areas with air flow, in drop ceilings and between raised flooring. Plenum cable can also be installed in Riser rated areas: in the walls, between floors and in risers. Transmission of digital and analogue for data, video and audio applications.
- Supports up to 10Gb at lengths of 328ft (100 meters). Power over ethernet, IEEE 802.3af (PoE) / IEEE 802.3at (PoE+). Speed transmission up to 650MHz and beyond IEEE 802.3an 10GBASE-T and legacy speeds.
- UL Listed, ETL Verified, RoHS Compliant, 3rd Party Tested. All cables have specification and UL printed on jacket.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
"The Best Cable Money Can Buy!"
Infinity Cable offers premium quality, bulk cable rolls at competitive pricing. Each roll contains 1000 feet of high performance cable great for custom installation projects. All of our cables are 100% bare copper wire as opposed to copper clad aluminum (CCA) wire, therefore compliant with UL code
Category 6A Cable Augmented Category 6 (Category 6A / Cat6A) The TIA completed a new specification that defines enhanced performance standards for unshielded twisted pair cable systems. Draft specification ANSI/TIA/EIA-568-B.2-10 specifies cable systems, called "Augmented Category 6" or more frequently as "Category 6A", that operate at frequencies up to 650 MHz and will provide up to 10 Gbit/s bandwidth. The new specification has limits on alien crosstalk in cabling systems. Augmented Category 6 specifies cable operating at minimum frequency of 500 MHz, for both shielded and unshielded. It can support future 10 Gbit/s applications up to the maximum distance of 100 meters on a 4-connector channel
Quality

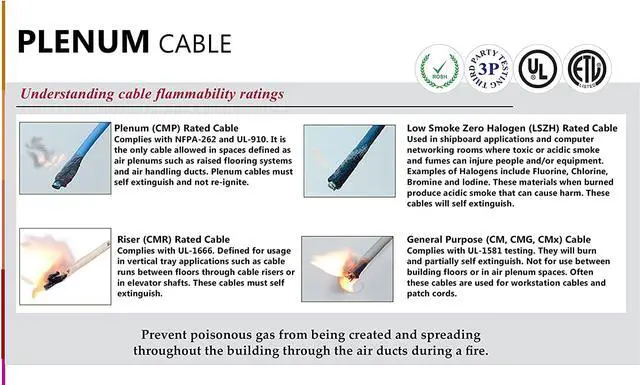

* CMP - Guarantee to pass UL Burning Test (Flame Retardant)
* Electronic Performance: 3 - 5 DB extra margin over EIA/TIA Standard
Our wires are UL Listed, ETL Verified, RoHS Compliant, 3rd Party Tested
Warranty
25 Years Warranty and Product Support
Infinity Cable offers premium quality, bulk cable rolls at competitive pricing. Each roll contains 1000 feet of high performance cable great for custom installation projects. All of our cables are 100% bare copper wire as opposed to copper clad aluminum (CCA) wire, therefore compliant with UL code
Category 6A Cable Augmented Category 6 (Category 6A / Cat6A) The TIA completed a new specification that defines enhanced performance standards for unshielded twisted pair cable systems. Draft specification ANSI/TIA/EIA-568-B.2-10 specifies cable systems, called "Augmented Category 6" or more frequently as "Category 6A", that operate at frequencies up to 650 MHz and will provide up to 10 Gbit/s bandwidth. The new specification has limits on alien crosstalk in cabling systems. Augmented Category 6 specifies cable operating at minimum frequency of 500 MHz, for both shielded and unshielded. It can support future 10 Gbit/s applications up to the maximum distance of 100 meters on a 4-connector channel
Quality
* CMP - Guarantee to pass UL Burning Test (Flame Retardant)
* Electronic Performance: 3 - 5 DB extra margin over EIA/TIA Standard
Our wires are UL Listed, ETL Verified, RoHS Compliant, 3rd Party Tested
Warranty
25 Years Warranty and Product Support
