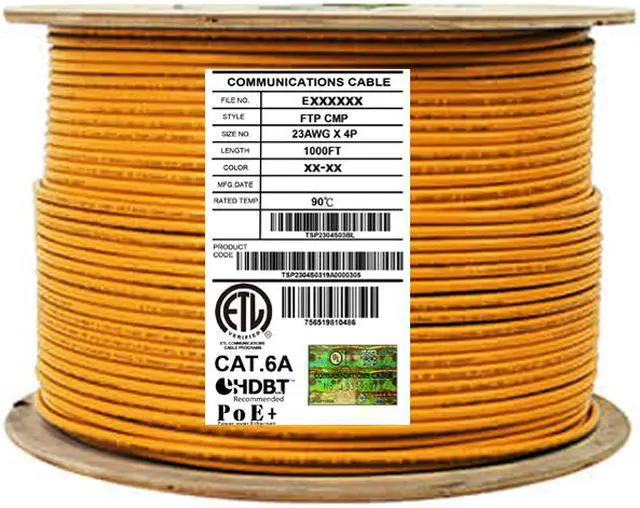

Elite Cat6a Shielded Plenum (CMP), 1000ft, 650MHz, 23AWG, F/UTP, Solid Pure Copper, 10Gb, UL Certified, UL-LP Certification, Bulk Ethernet Cable Reel, Orange
- Elite Cat6a Shielded Plenum is 1000ft, 23AWG, Solid Bare Copper, 4 Unshielded Twisted Pairs with an overall foil shield around all 4 pairs.
- Install Cat6a shielded plenum cable in areas with air flow, in drop ceilings and between raised flooring. Plenum cable can also be installed in Riser rated areas: in the walls, between floors and in risers.
- Supports 10Gb (Gigabit) Ethernet and up to 650MHz at 328 Feet. Protect your network in areas with EMI (electromagnetic interference) with shielded cable. Power devices such as: PoE (Power Over Ethernet), computers, routers, IP Cameras, switches, keystone jacks, RJ45's, modems, Xbox, PlayStation, Apple TV, ethernet adapters, Fax Machines, Smart TV's, Mesh networks, access points, cctv and much more!
- UL Listed, UL-LP Certification, ETL Verified, HDBaseT, RoHS Compliant, TAA Compliant and 3P Tested.
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Elite Cat6A Shielded Plenum Features

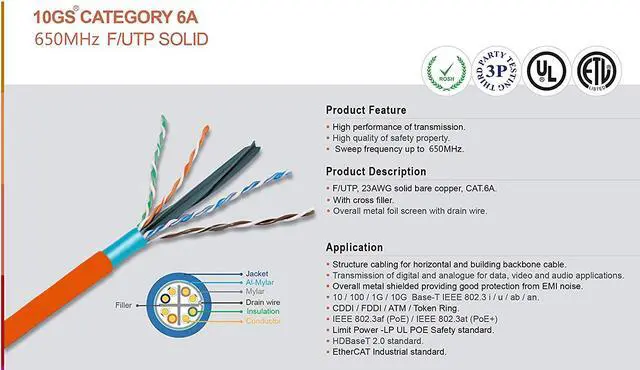

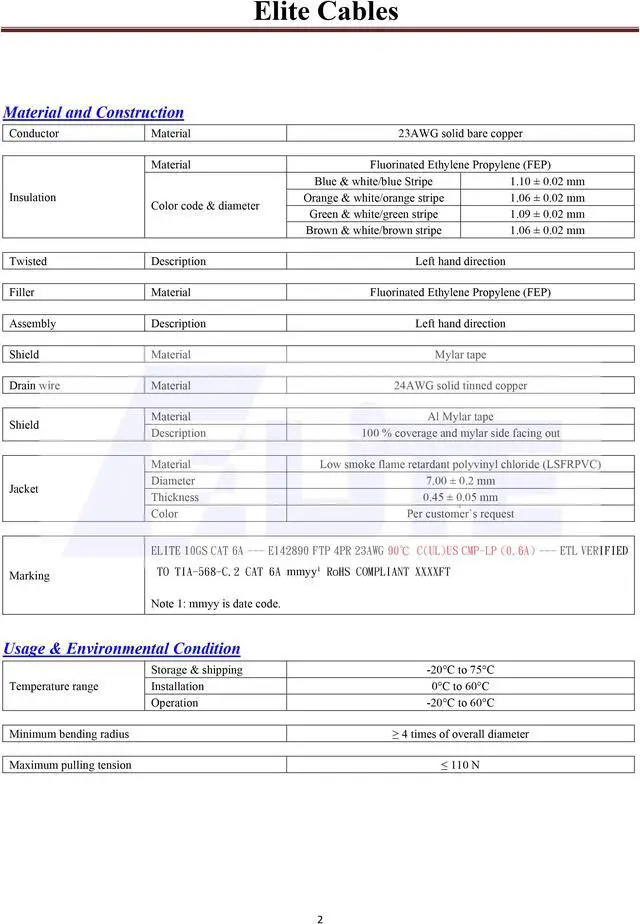

Structure
F/UTP | 23AWG | 650MHz | Solid | Spline | Bare Copper
Overall metal foil screen with drain wire
Where to Use
CMP/Plenum cable is for plenum rated installations above the ceiling or below the floors that are used for air circulation. Plenum cable can replace Riser rated cable.
Shielded for areas with EMI/Interference
Great for computers, home and offices, gaming systems, routers, networking devices, POE, power over ethernet, cameras..plus more!
Performance
Perfect for 10BASE-T / 100BASE-TX, G Base-T (Gigabit Ethernet) and 10Gb

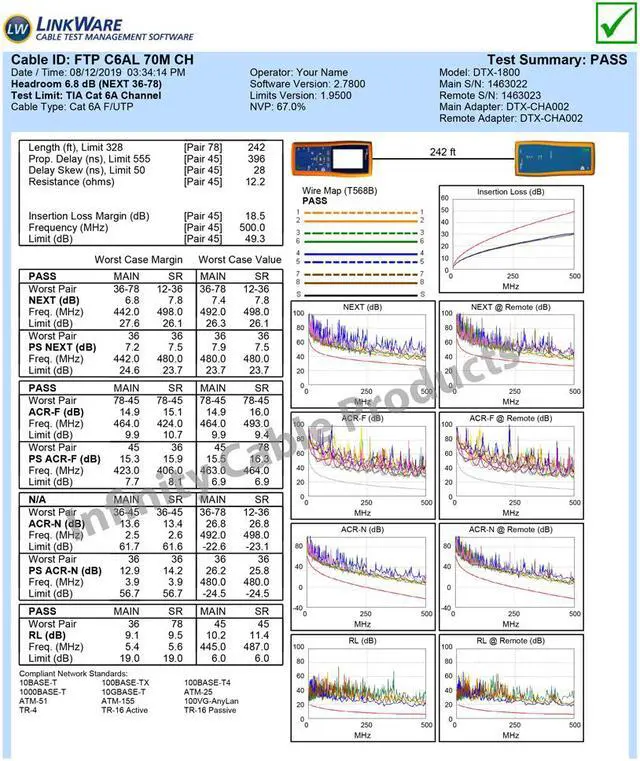

Electronic Performance: 3 - 5 DB extra margin over EIA/ TIA-568.2-D Standard
We only use 100% Pure Copper in our cables. Pure copper provides much greater performance compared to CCA and complies with Cat 6A Standards.
Certification
UL Listed, ETL Verified, RoHS Compliant, 3P Tested.
The Importance of UL
UL is the leading safety/performance testing Lab in the U.S.
The Importance of UL-LP Certification for PoE
Limited Power Certification LP provides an uncomplicated way to help ensure installations are ready for the increasing power levels and are not susceptible to safety issues caused by
excessive heat generation. This simplifies installation planning. The test-based requirements also allow for innovation in cable design. Cables are distinguished with an industry
recognized and trusted UL certification Mark. This helps ensure compliance and reduces risk to all stakeholders in the supply chain.
Warranty
25 Years Warranty and Product Support
Structure
F/UTP | 23AWG | 650MHz | Solid | Spline | Bare Copper
Overall metal foil screen with drain wire
Where to Use
CMP/Plenum cable is for plenum rated installations above the ceiling or below the floors that are used for air circulation. Plenum cable can replace Riser rated cable.
Shielded for areas with EMI/Interference
Great for computers, home and offices, gaming systems, routers, networking devices, POE, power over ethernet, cameras..plus more!
Performance
Perfect for 10BASE-T / 100BASE-TX, G Base-T (Gigabit Ethernet) and 10Gb
Electronic Performance: 3 - 5 DB extra margin over EIA/ TIA-568.2-D Standard
We only use 100% Pure Copper in our cables. Pure copper provides much greater performance compared to CCA and complies with Cat 6A Standards.
Certification
UL Listed, ETL Verified, RoHS Compliant, 3P Tested.
The Importance of UL
UL is the leading safety/performance testing Lab in the U.S.
The Importance of UL-LP Certification for PoE
Limited Power Certification LP provides an uncomplicated way to help ensure installations are ready for the increasing power levels and are not susceptible to safety issues caused by
excessive heat generation. This simplifies installation planning. The test-based requirements also allow for innovation in cable design. Cables are distinguished with an industry
recognized and trusted UL certification Mark. This helps ensure compliance and reduces risk to all stakeholders in the supply chain.
Warranty
25 Years Warranty and Product Support
