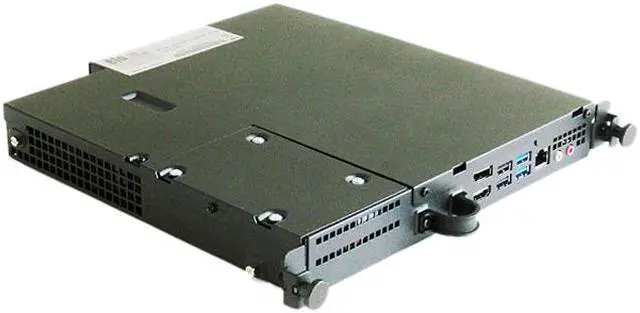

ELO TOUCH E001292 ECMG2B-i3 Computer Module Media Player for Elo Interactive Displays
- I3 3.40GHz
- 2 GB RAM
- 320GB HDD
- No OS
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
ELO TOUCH E001292 ECMG2B-i3 Computer Module Media Player for Elo Interactive Displays
- Integrates touch computing with Interactive Digital Signage
- Intel Core i3/i5/i7 processors running Microsoft Windows
- Platform for collaboration, digital whiteboard, building directory, virtual receptionist and other applications
- 3 year global warranty
The Elo Interactive Digital Signage (IDS) touch platform featuring the Intel® CoreTM 4th Generation CPUs with enhanced graphic engines enables increased customer engagement and immersive brand experiences by adding an exciting new dimension to traditional broadcast digital signage – the power of touch. Elo’s ECMG2 computer modules, available for the entire Elo 01 and 02 series of IDS displays are well-suited for interactive media delivery and online collaboration for modern office environments. Computer modules are available in a choice of three models: ECMG2-3 based on a 3.40GHz Intel® Core i3 processor and HD4400 graphics; ECMG2-i5 based on a 3.7GHz Intel® Core i5 processor and HD4600 graphics; and ECMG2-i7 based on a 4.00GHz Intel® Core i7 processor and HD4600 graphics.
Centralized management and security capabilities of Microsoft® Windows® ensures compatibility with many content management servers and web-based consoles for seamless connection with the internet, digital marketing, interactive whiteboard, building directory, virtual receptionist, and point-of-information (POI) applications.
The ECMG2 computer modules can support optimal partitioning of locally cached and network stored content, allowing developers to monitor and deploy content via deviceto- device or web connections.
Benefits:
- A fully self-contained computing solution when coupled with Elo IDS touch screens
- Professional-grade hardware provides improved durability
- Intel 4th Generation CPU Core i3, i5, i7 with high-end graphics enable media-rich interactive experiences
- Quick-access hard drive for easy initial imaging and field service
- Microsoft Windows platform offers maximum compatibility
- 72 hour on site exchange (continental US)

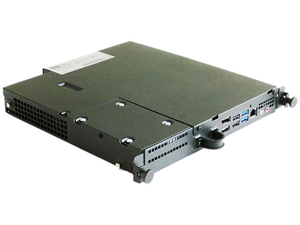

ECMG2 Computer Modules for Interactive Digital Signage
| Specifications | |||
| Module Dimensions | Width: 10.8" (274 mm) Depth: 9.9" (248 mm) Height: 1.5" (37 mm) | ||
| Processor | Intel Core i3 i3-4130 3.40GHz 3MB Intel® Smart Cache |
Intel Core i5 i5-4590S 3.70GHz 6MB Intel® Smart Cache |
Intel Core i7 i7-4970S 4.00GHz 8MB Intel® Smart Cache |
| Chipset | Intel® H81 Express Chipset | ||
| Video | i3-Intel® HD 4400; i5-Intel® HD 4600; i7-Intel® HD 4600 | ||
| BIOS | AMI | ||
| Memory (RAM) Standard/max./slots | i3-2GB DDR3 SO-DIMM on 1 of 2 slots; i5-4GB DDR3 SO-DIMM on 1 of 2 slots; i7-8GB DDR3 SO-DIMM on 1 of 2 slots (Expandable up to 16GB MAX SO-DIMM DDR3-1333/1600 (PC3-10600) |
||
| Hard Disk Drive | 320GB 2.5" ADVANCED FORMAT (AF) SATA HDD | ||
| Operating Systems Supported | No Operating System Microsoft Windows 7 Professional (32/64-bit) Microsoft Windows Embedded 8.1 Industry (32/64-bit) |
||
| Languages | Windows 7: (35 language groups) Arabic, Brazilian Portuguese, Bulgarian, Chinese (Simplified), Chinese (Traditional),
Chinese (Hong Kong), Croatian, Czech, Danish, Dutch, English, Estonian, Finnish, French, German, Greek, Hebrew,
Hindi, Hungarian, Italian, Japanese, Korean, Lithuanian, Norwegian, Polish, Portuguese, Romanian, Russian, Serbian
Latin, Slovak, Slovenian, Spanish, Swedish, Thai, Turkish, Ukrainian Windows Embedded 8.1: 10 pre-installed language groups: Chinese (Simplified), Chinese (Traditional), English, French, German, Italian, Japanese, Korean, Russian, Spanish |
||
| USB Port(s) | 4 x Type A ports (2 x USB 2.0; 2 x USB3.0) | ||
| Ethernet Port(s) | 1 x LAN RJ45 (Gigabit) | ||
| Audio Ports | Microphone in, line out | ||
| Rear I/O (Summary of all above ports) | 4 Type A USB ports 1 Gigabit Ethernet LAN RJ45 port 3 3.5 mm TRS jacks for Audio In, Audio Out, Microphone in |
||
| Real Time Clock | Replaceable lithium-ion battery for clock | ||
| Power Supply | Power supplied by Interactive Digital Signage display | ||
| Weight | Actual: 4.40 lb (2.0 Kg) Shipping: 5.9 lb (2.7 Kg) |
||
| Shipping Box Dimensions | Width: 15.4" (390 mm) Depth: 14.25" (362 mm) Height: 4.75" (120 mm) | ||
| Temperature | Operating : 0°C to 40°C (32°F to 104°F) Storage : -20°C to 60°C (-4°F to 140°F) |
||
| Humidity (non-condensing) | Operating : 20% to 80% Storage : 5% to 95% |
||
| Agency Approvals | US UL, FCC; Canada cUL, IC; Europe CE; Japan VCCI; Taiwan BSMI; International CB | ||
| Warranty | 3 years | ||
| MTBF | 50,000 hours demonstrated | ||
