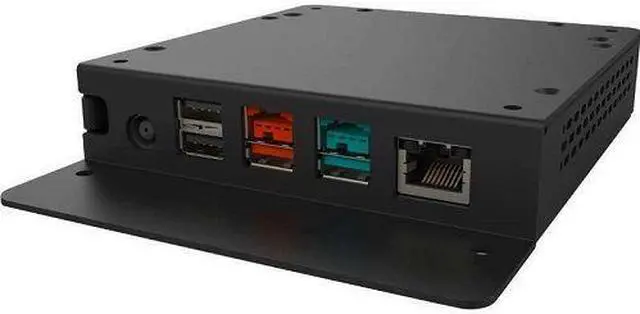

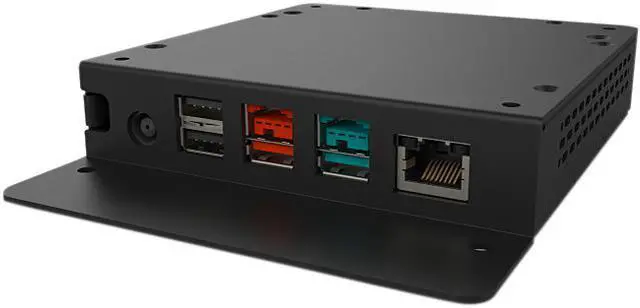

Elo's expansion module provides options for installation - either on the back of the I-Series unit with a VESA mount or under the flip stand for better cable management
Expansion Module requires 150W power brick, different from I-Series (included in the box)
I/O Ports: 12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC IN
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
POS EXPANSION MODULE FOR I-SERIES ANDROID 10/15NULL
Learn more about the Elo Touch Solutions E923781
General
Brand
Elo
Model
E923781
Type
Expansion Module
Spec
Specification
I/O Ports: 12V (1.5A) Powered USB; 24V (2.3A) Powered USB; Serial COM Port (RJ45); 5V USB 2.0 (x2); 19V DC IN Dimensions: 5.79" x 4.69" x 1.02" Mounting Options: 100mm VESA mount Weight (Unpackaged): 1.26 lbs. Operating Temperature: 0°C to 40°C / 32°F to 104°F Storage Temperature: -20°C to 60°C / -4°F to 140°F Humidity: Operating: 20% to 80%; Storage: 10% to 95% Regulatory approvals and declarations: CE (Europe) - Class A; China RoHS; UL, FCC (US) - Class A; cUL, IC (Canada); CB (International safety); VCCI (Japan); RCM (Australia); BSMI (Taiwan); KCC (Korea) MTBF: 50,000 hours demonstrated
Color
Black
Compatibility
Compatible with the 15" I-Series for Android
Additional Information
First Listed on Newegg
September 07, 2017
