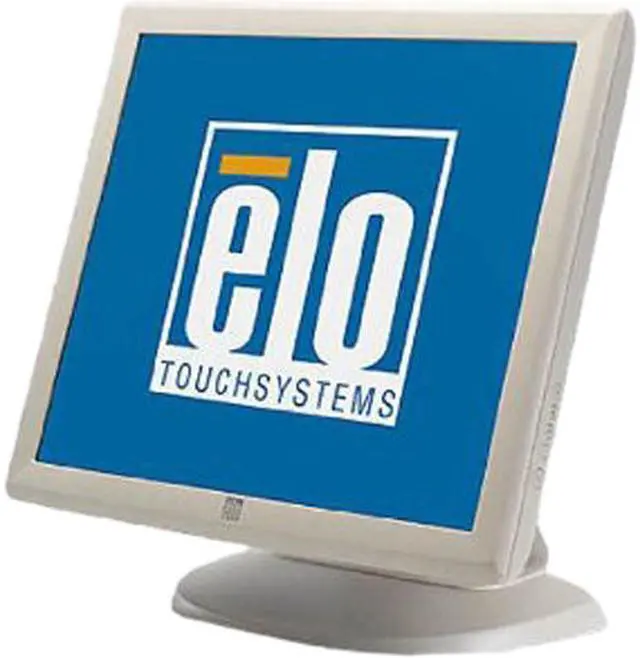

Elo E586024 Non-Touch 1928L 19-inch Desktop Touchmonitor for Medical and Healthcare Settings
- 19.0" diagonal
- 1280 x 1024
- 300nits Brightness
- VGA, DVI-D
- 1300:1 Typical CR
- Beige
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Elo Touch Solutions 1928L (E586024)
| Brand | ELO TOUCHSYSTEMS |
|---|---|
| Model | 1928L (E586024) |
| Form Factor | Desktop |
| Cabinet Color | Beige |
| Bezel | Yes |
|---|---|
| Panel | TFT LCD |
| Screen Size | 19" |
| Display Type | VGA |
| Aspect Ratio | 5:4 |
| Resolution | 1280 x 1024 |
| Viewing Angle | Horizontal: ±89° or 178° total Vertical: ±89° or 178° total |
| Display Colors | 16.7 Million |
| On-Screen Display(OSD) | Controls (side): menu, up, down, select, power Settings: contrast , brightness, H-position, V-position, recall default, RGB, volume, sharpness, phase, clock, OSD H-position, OSD V-position, OSD timeout, auto adjust, input select Languages: English, French, Dutch, Spanish, Swedish, Italian, Chinese, Polish, Japanese Lockouts: power, user controls |
| Brightness | 300 cd/m2 |
| Contrast Ratio | 1300:1 |
| Response Time | 20ms |
| Horizontal Refresh Rate | 31.5 - 80 kHz |
| Vertical Refresh Rate | 56.3 - 75 Hz |
| Touchscreen Interface | Serial/USB |
|---|---|
| Input Video Compatibility | Analog VGA, DVI-D |
| Connectors | Input Video Signal Connector: Mini D-Sub 15-Pin VGA type, DVI-D connector Input Connector: DC: Coaxial power jack (2.5 mm pin diameter, 6.3 mm barrel diameter, 9.5 mm barrel length) |
| DVI | Yes |
| Power Supply | External power adapter; efficiency rating: CAT: V |
|---|---|
| Power Consumption | 48 W |
| Built-in Speakers | Yes |
|---|---|
| VESA Compatibility - Mountable | 100 mm VESA mount Threaded-through mounting holes, under stand |
| MTBF | 50,000 hours demonstrated |
| Features | Input Voltage: DC: 12.0 V ± 0.60 V 2 stage DPMS VESA DDC, Plug & Play Five-second power down delay function Security lock receptacle A wide array of electronic certifications and IPX1 drip-proof enclosure. Long lasting product cycle - enclosure controlled by Elo specifications. Touch can be activated with gloved hands. 5-second power down delay (prevents accidental power shut down). Designed for touch features such as a stable tilt stand. |
| Dimensions | 16.90" x 15.21" x 8.15" (including base) |
|---|---|
| Weight | 17.66 lbs (Actual with stand) |
| Humidity Range | Operating: 20%-80% Storage: 10%-90% |
| Temperature Range | Operating: 0 °C to 40 °C (32 °F to 104 °F) Storage: -20 °C to 60 °C (-4 °F to 140 °F) |
| First Listed on Newegg | September 23, 2015 |
|---|
