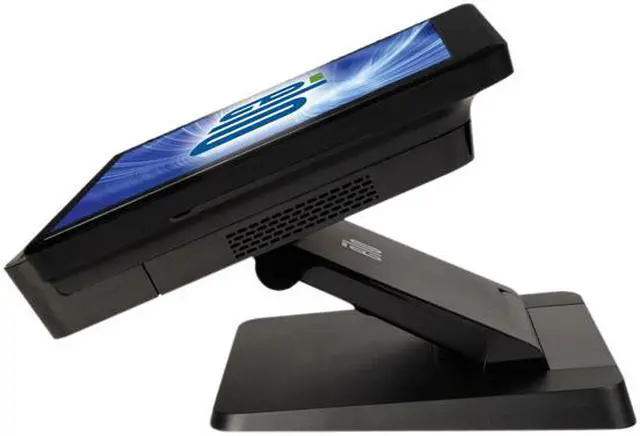

Elo E413385 X3-15 15" All-in-One Touchscreen Computer (Rev A) with AccuTouch
- 15'' diagonal, Active matrix TFT LCD (LED), 1024 x 768, 60Hz, 200nit, 5-Wire Resistive (AccuTouch) - Single-Touch
- Intel Core i3 2.1 GHz 4350T Dual-Core; 4MB Intel Smart Cache 3.10 GHz
- Innovative, all-in-one, standard-aspect touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities
- Ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk
- Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector
- Rigorously tested and backed by a three-year warranty, splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments
- Kensington lock
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
X-Series 17-inch AiO Touchscreen Computer
Overview

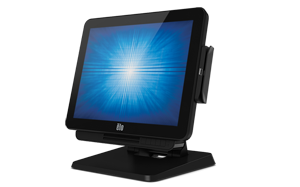

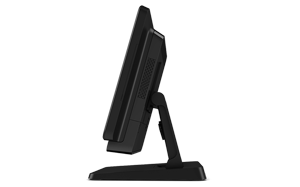

The Elo 17-inch X-Series is an innovative, all-in-one, standard-aspect touchscreen computer that offers a sleek form factor with flexibility, power and endless configuration possibilities. With a compact design, the X-Series is ideal for applications in any retail, self-service or hospitality environment that requires a small footprint POS terminal or kiosk. The highly versatile platform provides maximum configurability and offers you unprecedented freedom of choice in the design of your AiO system.
Configurability.
A wide range of processor, interface, storage, expansion, operating system and mounting options allows you to further tailor the X-Series to meet your needs. Choose from IntelliTouch® surface acoustic wave (SAW), AccuTouch® five-wire resistive or TouchPro™ projected capacitive (PCAP) touch technologies to meet the demands of your environment. With processor options that scale from the value-based Intel® Celeron J1900 to the high-performance Intel® Core i5, the Elo X-Series offers one of the most powerful systems in its class.
Versatility.
Every X-Series system is built with transactions in mind, and the wide assortment of peripheral options reflect just that. Whether for staff- or guest-facing applications, easily attach any combination of up to three peripherals, including an EMV reader, a near-field communication (NFC/RFID) reader, mag stripe reader (MSR), barcode reader or fingerprint scanner to the bezel of the X-Series via a universal snap-in connector. To enhance customer engagement at checkout, choose from a wide array of customer facing displays ranging from 2-line to 20-inch. For self-service applications, transform the Elo X-Series from counter-top terminal to kiosk with the optional wall-mount kit.
Reliability.
Rigorously tested and backed by a three-year warranty, the X-Series delivers superior quality and reliability. The splash-proof housing and rugged retail-hardened design easily withstand the adverse conditions associated with most commercial environments. The unique, modular chassis provides easy access to storage and memory for quick, tool-less service.
Other features.
- Small footprint, retail-hardened design
- Field serviceable design allows for quick troubleshoot and fix, no tools needed
- Full range of standard connectivity ports for retail POS, POI and hospitality applications with option to add expansion module if needed
- Removable base with 100mm VESA mounting
- Kensington lock
Specifications
| Part Number(s) | AccuTouch X2 No OS (Worldwide) - E420678 AccuTouch X2 POSReady (Worldwide) - E135387 AccuTouch X2 Win7 (Worldwide) - E131508 AccuTouch X2 Win10 (Worldwide) - E289559 AccuTouch X3 No OS (Worldwide) - E158777 AccuTouch X3 Win7 (Worldwide) - E414336 AccuTouch X3 Win10 (Worldwide) - E290421 PCAP X2 No OS (Worldwide) - E131137 PCAP X2 POSReady (Worldwide) - E135689 PCAP X2 Win7 (Worldwide) - E135017 PCAP X2 Win10 (Worldwide) - E290201 PCAP X3 No OS (Worldwide) - E159327 PCAP X3 Win7 (Worldwide) - E414538 |
| Enclosure Color | Black |
| Touch Technology & Capacity | 5-Wire Resistive (AccuTouch®) - Single-Touch SAW (IntelliTouch® Surface Acoustic Wave) - Single Touch PCAP (TouchPro™ Projected Capacitive) - 10 Touch SAW ZB (IntelliTouch® Surface Acoustic Wave) - Single Touch |
| Processor | Intel® Celeron® 2.41 GHz Quad-Core J1900; 2MB L2 Cache; Fanless Intel Core i3 2.1 GHz 4350T Dual-Core; 4MB Intel Smart Cache 3.10 GHz Intel Core i5 2.0 GHz 4590T; 6MB Intel Smart Cache 3.00GHz Intel Core i7 2.7 GHz 4790T; 8MB Intel Smart Cache |
| Graphics | X2 Model: Intel HD Graphics; X3, X5 & X7 Models: Intel HD Graphics 4600 |
| BIOS | AMI |
| Memory (RAM) | 2GB 1600MHz DDR3L SO-DIMM on 1 of 2 slots (Expandable to 8GB maximum1 on 2 slots) 4GB 1600MHz DDR3L SO-DIMM on 1 of 2 slots (Expandable to 16GB maximum2 on 2 slots) |
| Hard Disk Drive | 320GB 2.5" 5400RPM 4K FORMAT SATA HDD NOTE: GB equals one billion bytes when referring to storage capacity. Accessible capacity may be less. |
| Chipset | X2 Model: N/A X3 Model: Intel H81 Express X5 & X7 Models: Intel Q87 Express |
| RAID | X2 & X3 Models: N/A X5 & X7 Models: RAID 0 / RAID 1 |
| TPM | X2 & X3 Models: N/A X5 & X7 Models: TPM 1.2 |
| Diagonal Size | 17'' diagonal, Active matrix TFT LCD (LED) |
| Control Buttons | Power, brightness up, brightness down, volume up, volume down Security Lockouts: Power and Control buttons lock. |
| Aspect Ratio | 5:4 |
| Active Area (mm) | 13.30" x 10.64" / 337.92mm x 270.36mm |
| Resolution | 1280 x 1024 @ 60Hz |
| Colors | 16.7 million |
| Brightness (typical) | LCD panel: 250 nits AccuTouch: 200 nits IntelliTouch: 225 nits IntelliTouch ZB: 225 nits TouchPro PCAP: 212.5 nits |
| Response Time-total (typical) | 5 msec |
| Contrast Ratio | 1000:1 |
| Viewing Angle | Horizontal: ±85° or 170° total / Vertical: ±80° or 160° total |
| USB Ports | X2 & X3 Models: 2 x USB 3.0 on I/O 4 x USB 2.0 (2 on I/O, 2 on USB Front Access) X5 & X7 Models: 4 x USB 3.0 on I/O 2 x USB 2.0 (USB Front Access) All Models: 3 x USB 2.0 on edges for optional Elo peripherals |
| Powered USB | X2 Models: N/A X3, X5 & X7 Models: 1 x 24V, 1 x 12V (On Expansion Module) |
| Serial Ports | 1 x Serial RS-232 (standard), 1 x RJ45 (Native serial), 2 additional on Expansion Module |
| Ethernet Port | 1 x LAN RJ45 (Gigabit), 1 additional on Expansion Module |
| Wireless | 802.11 b/g/n |
| Bluetooth | BT 4.0 |
| Cash Drawer Port | 12V/24V Cash Drawer Port on Expansion Module (24V default; selectable by BIOS setting) |
| Additional Video Out | 2nd VGA output |
| Audio Ports | 1 x 3.5 mm Line out, 1 x 3.5 mm MIC in |
| Speakers | Two 2W internal speakers |
| OS | No OS Windows Pro 7 Windows POSReady 7 Windows 8.1 |
| Languages | Windows 7 - 35 Language groups Windows POSReady7 - 35 Language groups Windows 8.1 - 36 Language groups |
| Power Supply | External 19VDC universal-type power supply brick AC input voltage: 100-240 VAC Input frequency: 50 - 60 Hz X2 Model: Max output power: 90W (Max Draw: 100W) X3, X5 & X7 Models: Max output power: 150W (Max Draw: 170W) |
| Power Consumption (Typical) | X2 Model: 38W X3 Model: 50W X5 & X7 Models: 64W |
| Max Touchcomputer Dimensions With Stand | 15.64" x 15.40" x 2.86" / 397.29mm x 391.07mm x 251.7mm |
| Max Touchcomputer Dimensions Without Stand | 15.63" x 13.94" x 2.67" / 397.19mm x 354.24mm x 67.73mm |
| Shipping Box Dimensions | 20.3" x 14.4" x 19.2" / 517mm x 367mm x 487mm |
| Weight (with stand and Expansion Module) | 17.09 lbs / 7.76 kg |
| Weight (with stand) | 15.95 lbs / 7.24 kg |
| Weight (without stand) | 10.26 lbs / 4.66 kg |
| Shipping Weight (With stand) | 25.33 lbs / 11.5 kg |
| Operating Temperature | 0°C to 35°C / 32°F to 95°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | Operating: 20% to 80% Storage: 5% to 95% |
| Regulatory approvals and declarations | UL, cUL , FCC, IC, TUV, CE, CB, CoC, RCM, VCCI, CCC, RCM, SRRC, Energy Star |
| Real-Time Clock | Replaceable lithium-ion battery for clock |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | 100mm VESA mount or secure base to tabletop/desktop |
| Warranty | 3-year |
| Sealability | Touchscreen sealed to sub-bezel Touchscreen sealed to LCD |
| Power Cables | North American and European power cables included |
| Other Features | Serviceable internal components Threaded holes on bottom of stand for high and low display position Removable base with 100mm VESA mounting Kensington lock. |
| What's in the Box | X-Series Touchcomputer, North America Power Cord, EU Power Cord, Power Adapter – 150W: X3/X5/X7 Or 90W: X2, Adapter Cable RJ-45 to DB-9, Cable cover locking screw, Quick Installation Guide (QIG) |
| Upgrade Options | 320GB 5400 rpm Hard Disk Drive (HDD) 500GB 7200 rpm Hard Disk Drive (HDD) 1TGB 5400 rpm Hard Disk Drive (HDD) 64GB 2.5" SATA SSD 128GB 2.5" SATA SSD 256GB 2.5" SATA SSD 2GB DDR3L Memory SO-DIMM 4GB DDR3L Memory SO-DIMM 8GB DDR3L Memory SO-DIMM |
| Expansion Options | Expansion Module for additional I/O port support [2 x Serial RS-232 (Standard), 1 x Giga LAN, 1 x Powered USB (+12V), 1 x Cash Drawer (+24/+12V selectable)] |
| Replacement DC Power Supply | X2 model: 90W - PN: E395155 X3, X5 & X7 Models: 150W - PN: E394965 Replacement power supply is available at an additional cost |
| Optional Peripherals | Magnetic Stripe Reader (MSR) – Elo P/N: E001002 NFC/RFID Reader – Elo P/N: E001004 Fingerprint Reader (FPR) – Elo P/N: E001001 Barcode Reader (BCR) – Elo P/N: E267080 Customer Display (2x20 VFD) – Elo P/N: E001003 7" LCD Customer Display – Elo P/N:E807955 (without touch) - *Requires POLE MOUNT (E038989) 7" LCD Customer Display – Elo P/N: E791658 (AccuTouch) 10" LCD customer display (10 touch) – Elo P/N E045337 (requires pole mount kit E038989) 10" LCD customer display (no touch) – Elo P/N E138394 (requires pole mount kit E038989) Expansion Module – Elo P/N: E001006 |
| Stands, Mounts & Kits | Wall Mount Kit – Elo P/N: E143088 Rear Facing display Pole Mount Kit – Elo P/N: E038989 |
