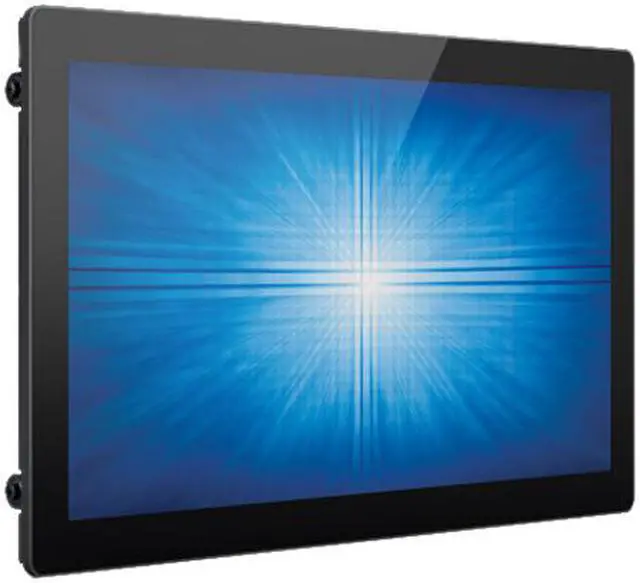

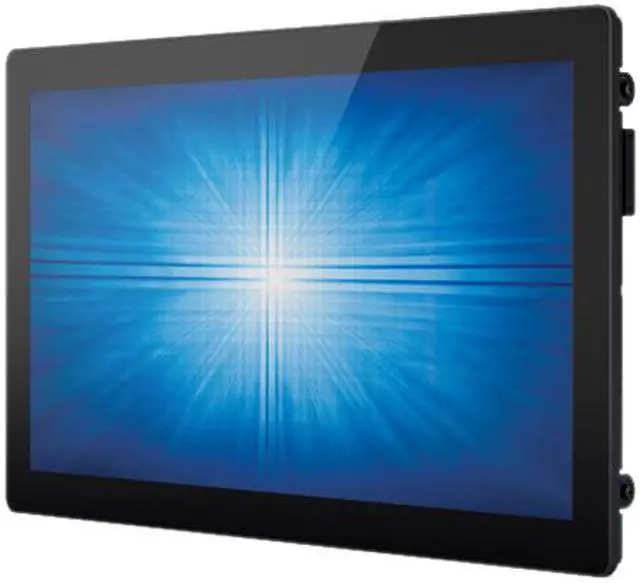

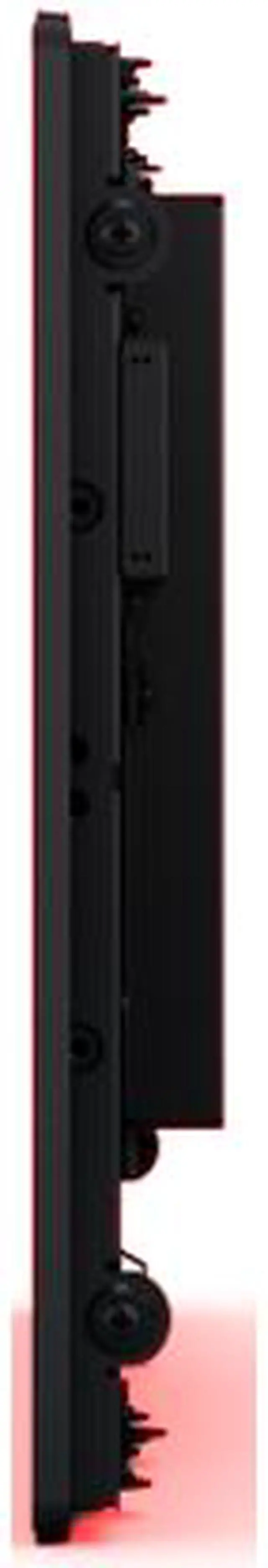

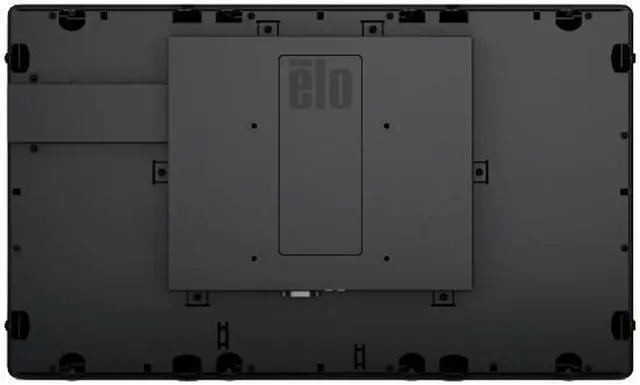

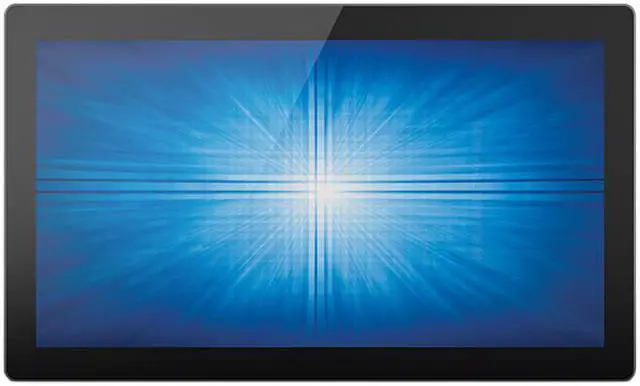

Elo E331214 2094L 20" Open-frame Commercial-grade Touchscreen Display with TouchPro PCAP
- 19.5", 1920 x 1080, 60Hz, 225nit, PCAP (TouchPro® Projected Capacitive) - 10 Touch, TouchPro PCAP - USB 2.0
- The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure; projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit
- Latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves
- Elo touchscreens combined with ELO software and drivers are designed to work together and is tested as part of our life testing processes
- All Elo products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF
- Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
- HDMI, VGA & Display Port video interfaces
+
+
Overview
Specs
Reviews
See all Q & A
Any questions? Our AI beta will help you find out quickly.
Try me now
MAIN OVERVIEW FEATURES: Viewable
Screen Size: 19.5"S creen
Mode: Full
HDResponse Time: 20 msAspect
Ratio: 16:9
Mount Type: Flush Mount
Backlight Technology: LED
Maximum Resolution: 1920 x 1080Color
Supported: 16.7 Million Colors
Contrast Ratio: 3, 000:1
Brightness: 250 Nit
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Display
Port: Yes
Operating
Power Consumption: 17.60
WColor: Black
VESA Mount Compatible: Yes
Height: 11.2"W
idth: 18.9"D
epth: 1.6"W
eight (Approximate): 10.36 lbPackage
Contents: 2094L 19.5" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B info sheet
Environmentally Friendly: Yes
Environmental Certification: T? V, RoHS, China RoHS, WEEE
Limited Warranty: 3 Year
Screen Size: 19.5"S creen
Mode: Full
HDResponse Time: 20 msAspect
Ratio: 16:9
Mount Type: Flush Mount
Backlight Technology: LED
Maximum Resolution: 1920 x 1080Color
Supported: 16.7 Million Colors
Contrast Ratio: 3, 000:1
Brightness: 250 Nit
Touchscreen Type: Projected Capacitive
Multi-touch Screen: Yes
HDMI: Yes
USB: Yes
VGA: Yes
Display
Port: Yes
Operating
Power Consumption: 17.60
WColor: Black
VESA Mount Compatible: Yes
Height: 11.2"W
idth: 18.9"D
epth: 1.6"W
eight (Approximate): 10.36 lbPackage
Contents: 2094L 19.5" Open Frame Touchscreen (Rev B) HDMI cable VGA Cable RJ45 OSD Remote Touch USB Cable User Manual CD Quick Install Guide Flush Mount Brackets w/Screws EEI Label Japan Class-B info sheet
Environmentally Friendly: Yes
Environmental Certification: T? V, RoHS, China RoHS, WEEE
Limited Warranty: 3 Year
