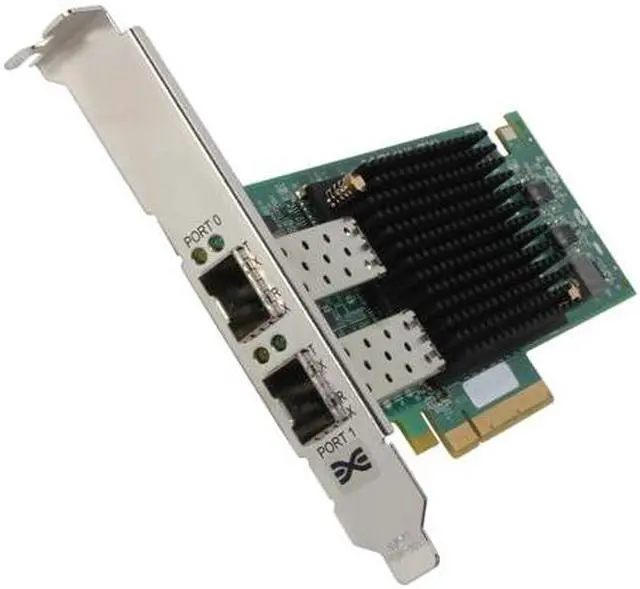

Emulex OCe11102-FX Dual-channel 10GBase-CR (direct attach copper) Network Adapter 10Gbps PCIe Express 2.0 SFP+ Direct Attached Twin-Ax Copper interface

OPEN BOX Product Type
  • 10Gbps
  • SFP+ Direct Attached Twin-Ax Copper interface
Please note that this product is non-returnable and non-refundable.
Specs
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the Emulex OCe11102-FX

Model
Brand Emulex
Model OCe11102-FX
Details
Standards ANSI INCITS T11 FC-BB-5 2.0, FC-PI-2, FC-GS-4,FC-TAPE, and FCP-3
PCI Express base spec 2.0, PCI Bus Power Management Interface, rev. 1.2, Advanced Error Reporting (AER)
IEEE 802.3ae (10GBASE Ethernet Ports)
IEEE 802.1q (Virtual LANs)
IEEE 802.3ad (Link Aggregation)
IEEE 802.3x (Flow Control)
IEEE 802.1p (Quality/Class of Service)
IEEE 802.1Qaz (Enhanced Transmission Selection)
IEEE 802.1Qaz (Data Center Bridging Capabilities Exchange)
IEEE 802.1Qbb (Priority-based Flow Control)
IEEE 802.1ab (Link Layer Discovery Protocol)
PHP hot plug-hot swap
Speed 10Gbps
Connectors SFP+ Direct Attached Twin-Ax Copper interface
Interface PCIe Express 2.0
Temperature 0°C ~ 55°C
Humidity 5 % ~ 95 % (Non-condensing)
Features
Features Controller: BladeEngine 3

FCoE Features:
Common driver for UCNAs and HBAs
64 N_Port ID Virtualization (NPIV) interfaces (total for adapter)
Support for FIP and FCoE Ether Types
Fabric Provided MAC Addressing (FPMA) support
1024 concurrent port logins (RPIs) per port
1024 active exchange (XRIs) per port

iSCSI Features:
Target discovery methods
Authentication mode
INT 13 Boot

Ethernet Features:
IPv4/IPv6 TCP, UDP checksum offload; Large Send Offload(LSO); Large Receive Offload; Receive Side Scaling (RSS); IPv4 TCP Chimney Offload
VLAN insertion and extraction
Jumbo frames up to 9000 Bytes
Preboot eXecution Environment (PXE) 2.0 network boot support
Interrupt coalescing
Load balancing and failover support including adapter fault tolerance (AFT), switch fault tolerance (SFT), adaptive load balancing (ALB), teaming support and IEEE 802.3ad

Hardware Environments:
x86, x64 servers
Sun SPARC servers

Comprehensive OS Support:
Windows Server
VMware ESX
Red Hat Enterprise Linux Server
Novell SUSE Linux Enterprise Server
Oracle Solaris (FCoE only)

Low profile with standard bracket (low-profile bracket available)
Additional Information
First Listed on Newegg May 24, 2012
