Features

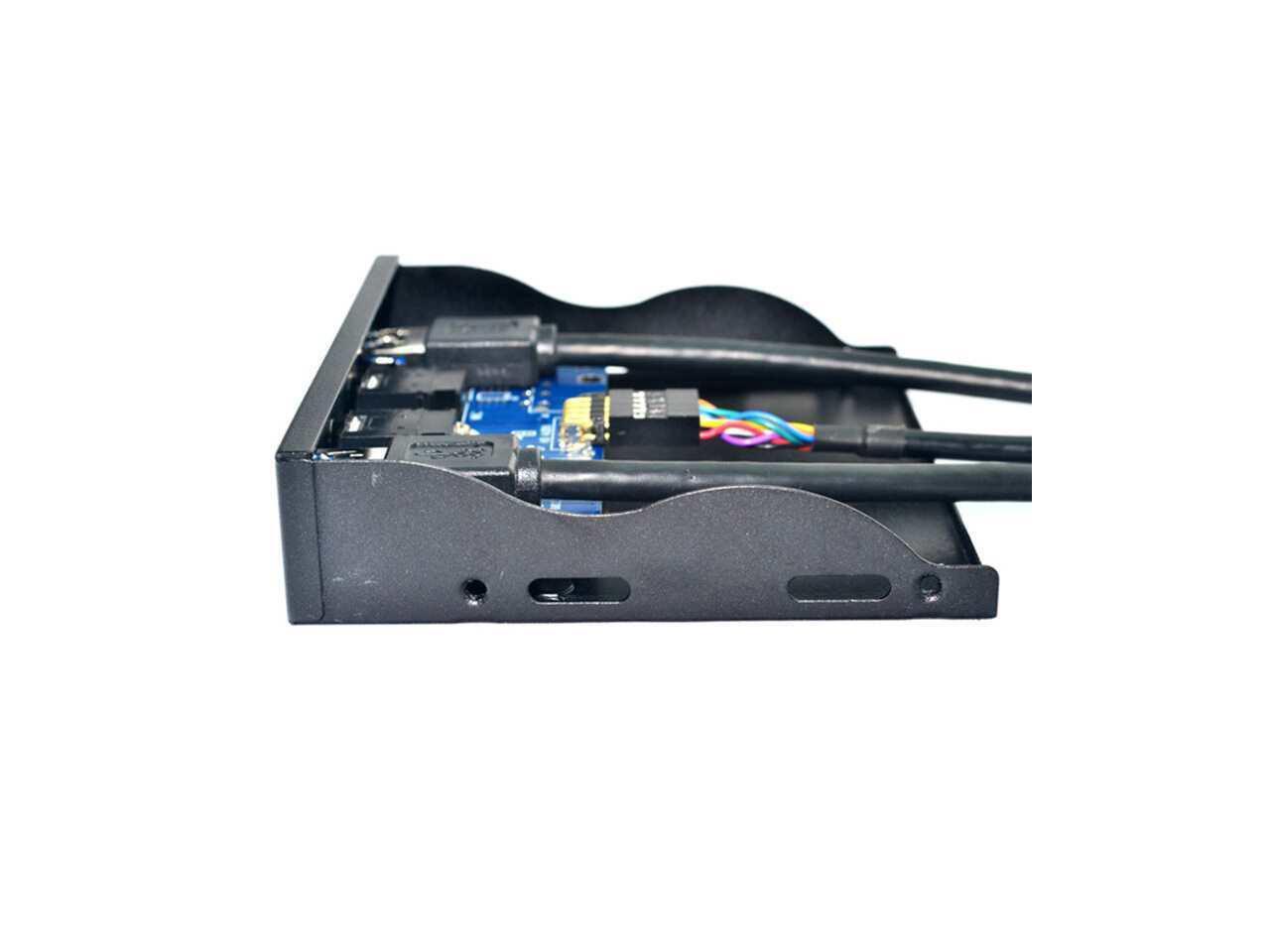

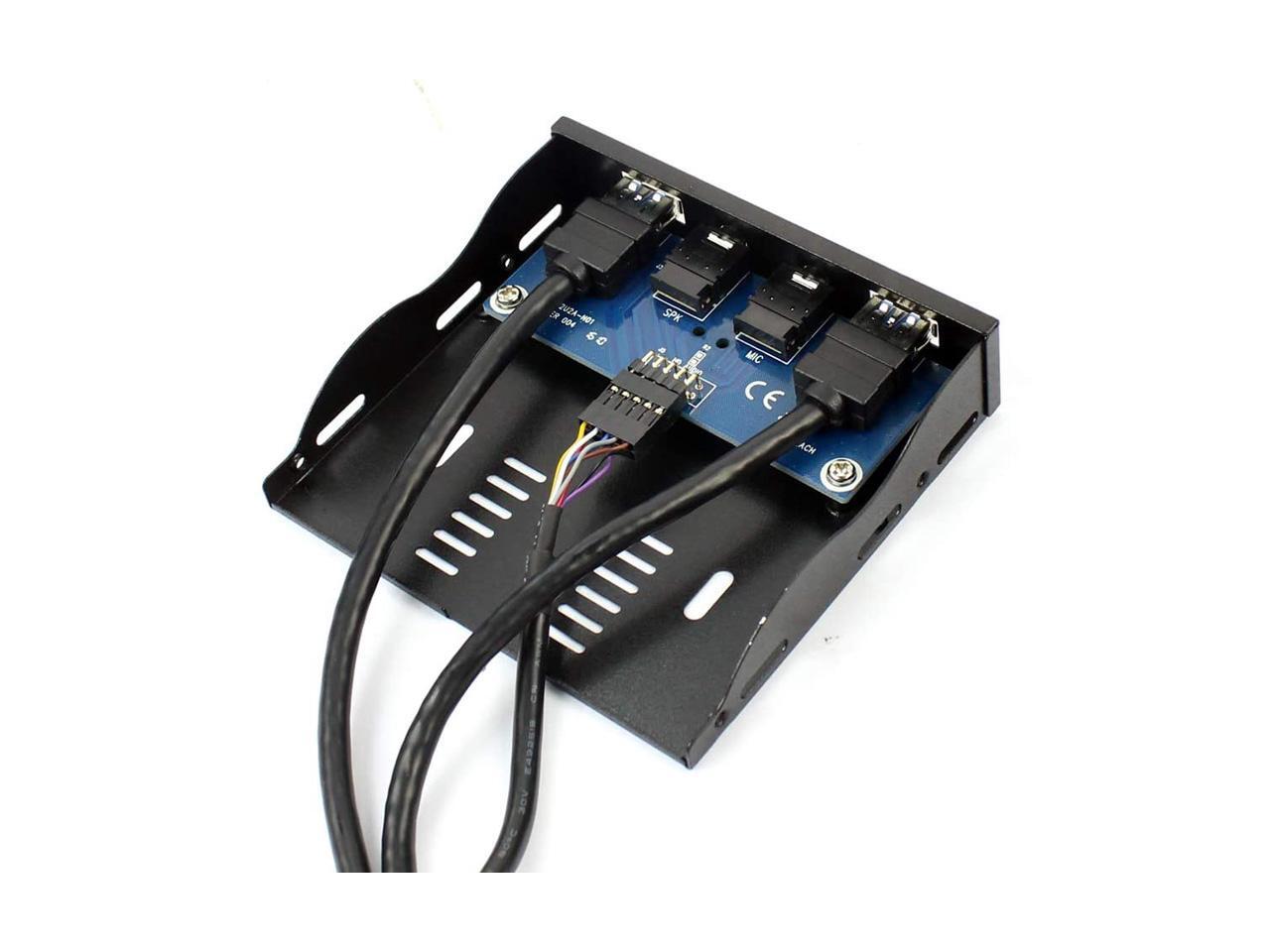

- This bay allows you to convert an unused 3.5" floppy drive space into 2x USB 3.0 Port and 1 HD Audio Port/1 Microphone Port
- Fit with PC 3.5" bay properly by provided screws.
- Standard 20pin compatible USB 3.0 header connector for motherboard
- Compatible with Super-Speed USB 3.0 supports data transfer speeds up to 5Gbps (maximum).
- Backward compatible with USB 2.0 / 1.1.
- Compatible with AC'97 or HD Audio standards with auto sensing
- Sturdy metal construction endures wear and tear, ensuring long-term use
- Hot-swapping
- Plug and play,no extra driver is needed
- Easy to install, no external power is needed.
Note
- Not all USB 20pin motherboard header on motherboard is driven as default. If the front panel install, but can not be recognized correct. Please try to drive motherboard USB 20pin header first.
- AC97 HD Audio 10pin header in motherboard is needed
- 3.5 inch front panel,not support 5.23 CD-ROM bay
- 2x USB 3.0 Type-A Female output
- 1x Stereo HD3.5mm audio output
- 1x microphone 3.5mm jacket input
- USB 20pin motherboard header in needed
- Support 5Gbps data transfer speed
- HD audio 9pin header is needed for audio and microphone
- All headers are 3 position jacket
- The left port is for microphone input
- the right port is for HD audio output
Specification
| Type | 3.5" 2 Ports USB 3.0 Front Panel with Audio & Mic |
|---|---|
| Input | 1 x Microphone Input |
| Output | 2 x USB 3.0 SuperSpeed Port / 1 x HD Audio Output ( 3.5 mm Stereo Jack) Port |
| Installation | 3.5" Open Floppy Bay Space |
| Cable Length | 2FT USB 20pin cable & 2 FT HD Audio Cable |
| System Requirements | Windows 10/ 8.1 / 8 / 7 / Vista / XP |
| Motherboard connector | USB 20pin motherboard header & AC97 HD Audio 9pin header |
Package Content
- 1 - USB Front Panel
- 1 - HD Audio Cable
- 1 - Screws bag
