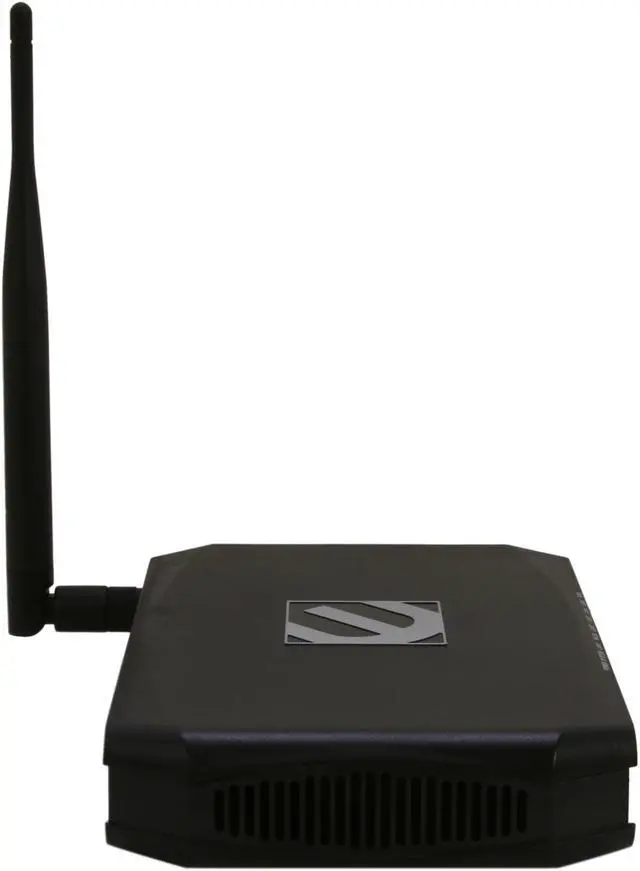

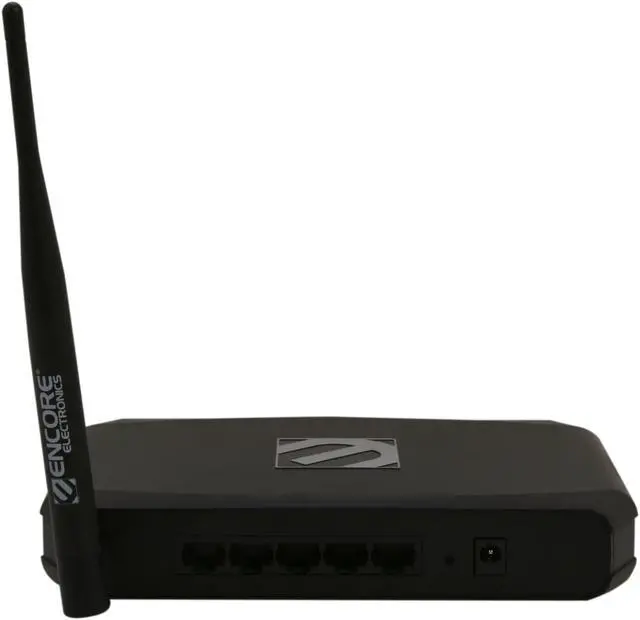

ENCORE ENXWI-1AN45 Wireless N150 Extender 3-in-1: Repeater / AP / AP Client
- 2.4 GHz - 2.4835 GHz
- 5dBi dipole antenna with RSMA connector
- Up to 150Mbps Wireless Data Rates
Specs
Reviews (12)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the Encore ENXWI-1AN45
| Brand | ENCORE |
|---|---|
| Model | ENXWI-1AN45 |
| Standards | IEEE 802.11b/g/n, IEEE 802.3/3u |
|---|---|
| Frequency Band | 2.4 GHz - 2.4835 GHz |
| Wireless Data Rates | Up to 150Mbps |
| Security | Support 64/128-bit WEP Data Encryption Support WPA, WPA2 (802.11i) security Support WPS software PBC/PIN Support MAC ACL (MAC Access Control List) Support 802.1x RADIUS Server Support MAC filter |
| WPA/WPA2 | WPA2 |
| Antenna | 5dBi dipole antenna with RSMA connector |
| Operating Range | Indoor: Up to 100m, Outdoor: Up to 300m |
| Transmit Power | 11b: 18 +/- 1 dBm, 11g: 15 +/- 1 dBm , 11n: 13 +/- 1 dBm |
| Receiving Sensitivity | IEEE 802.11b: -88 dBm (Typical) IEEE 802.11g: -70dBm (Typical) IEEE 802.11n: 20Mhz -68dBm; 40Mhz -65dBm (Typical) |
| Operating Mode | Support Access Point, Repeater, WDS, WDS + AP modes |
| Interface | Ethernet Port |
| Ports | 5 x 10/100M |
| LED | POWER, SYSTEM, WLAN x 1, LAN x 5, WPS |
| Power | DC 12V |
| System Requirements | OS: Windows 98SE, ME, 2000, XP, Vista, Win7, Mac and Linux |
| Dimensions | 18 x 11.5 x 3.4 cm (W x L x H) |
| Weight | 152g |
| Features | IP Management: DHCP (Dynamic Host Configuration Protocol) Server/Client Support UPnP (Internet Gate Device) Support WPS software PBC/PIN Built-in 5 ports 10/100 Ethernet switch with auto speed sensing Support software upgrade through Web Friendly web-based GUI Configuration and Management |
|---|
| Operating Temperature | 0°C - 40°C (32°F - 104°F) |
|---|---|
| Operating Humidity | 5% - 95%, Non-Condensing |
| First Listed on Newegg | February 16, 2012 |
|---|
