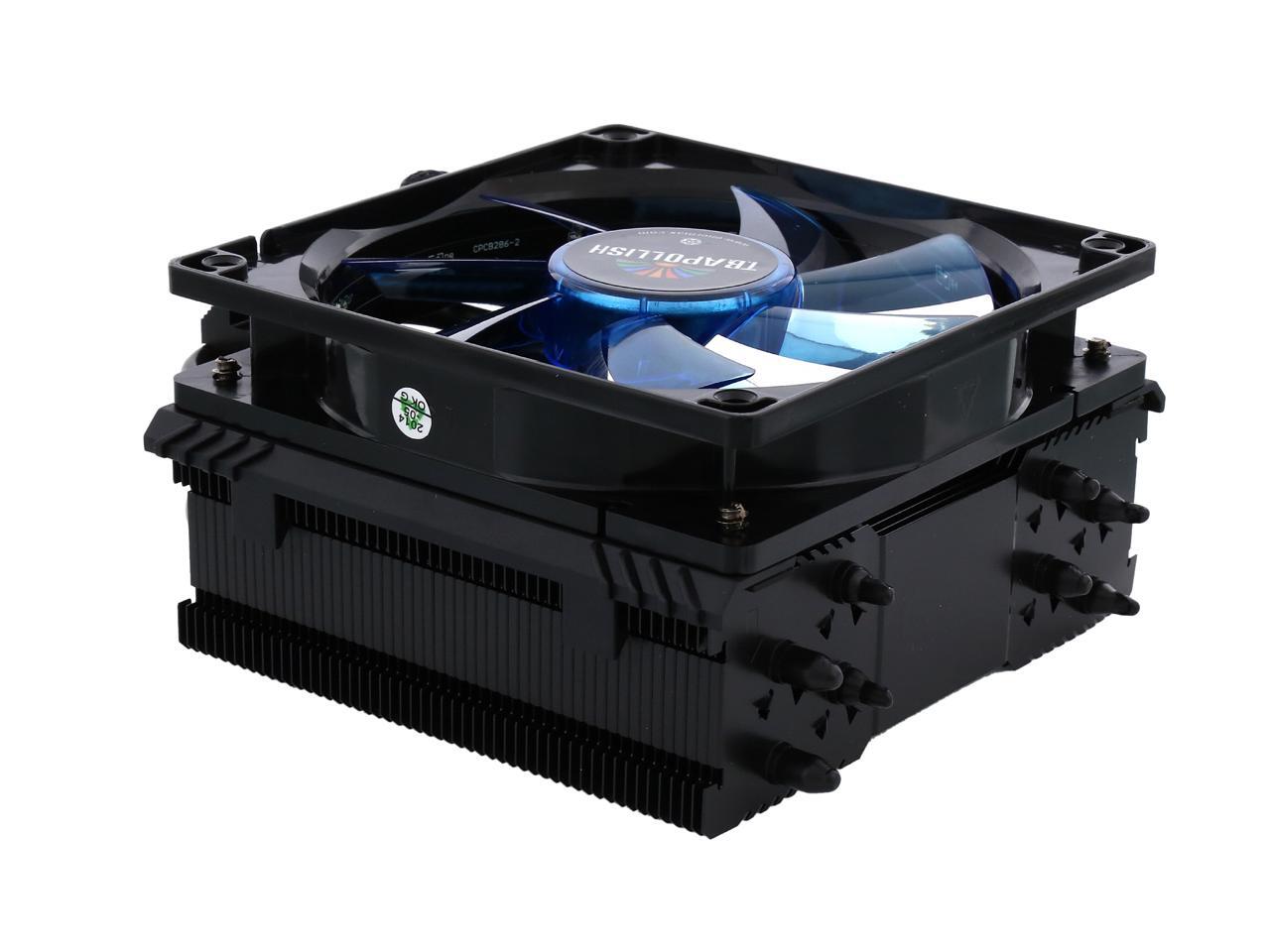

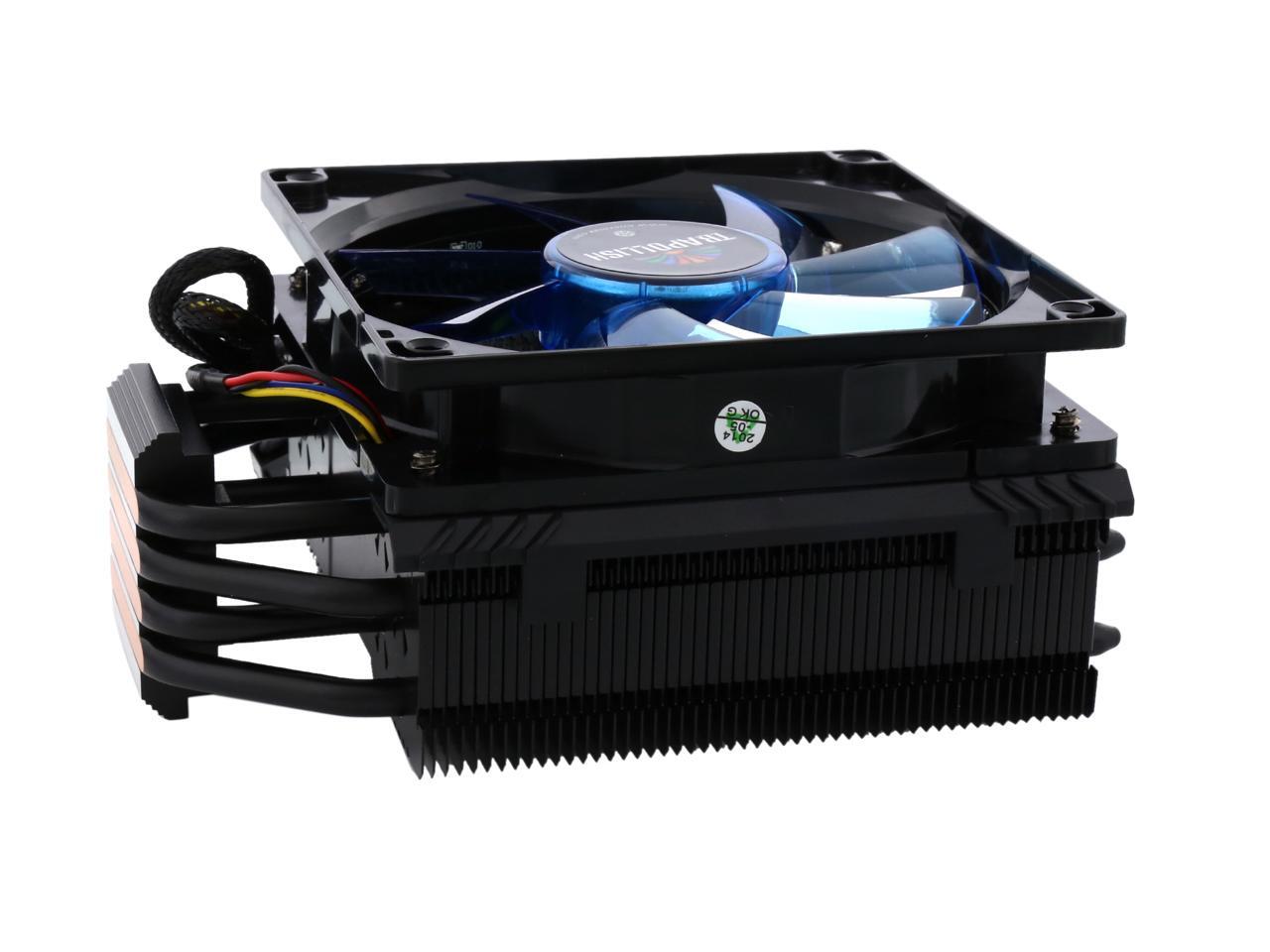

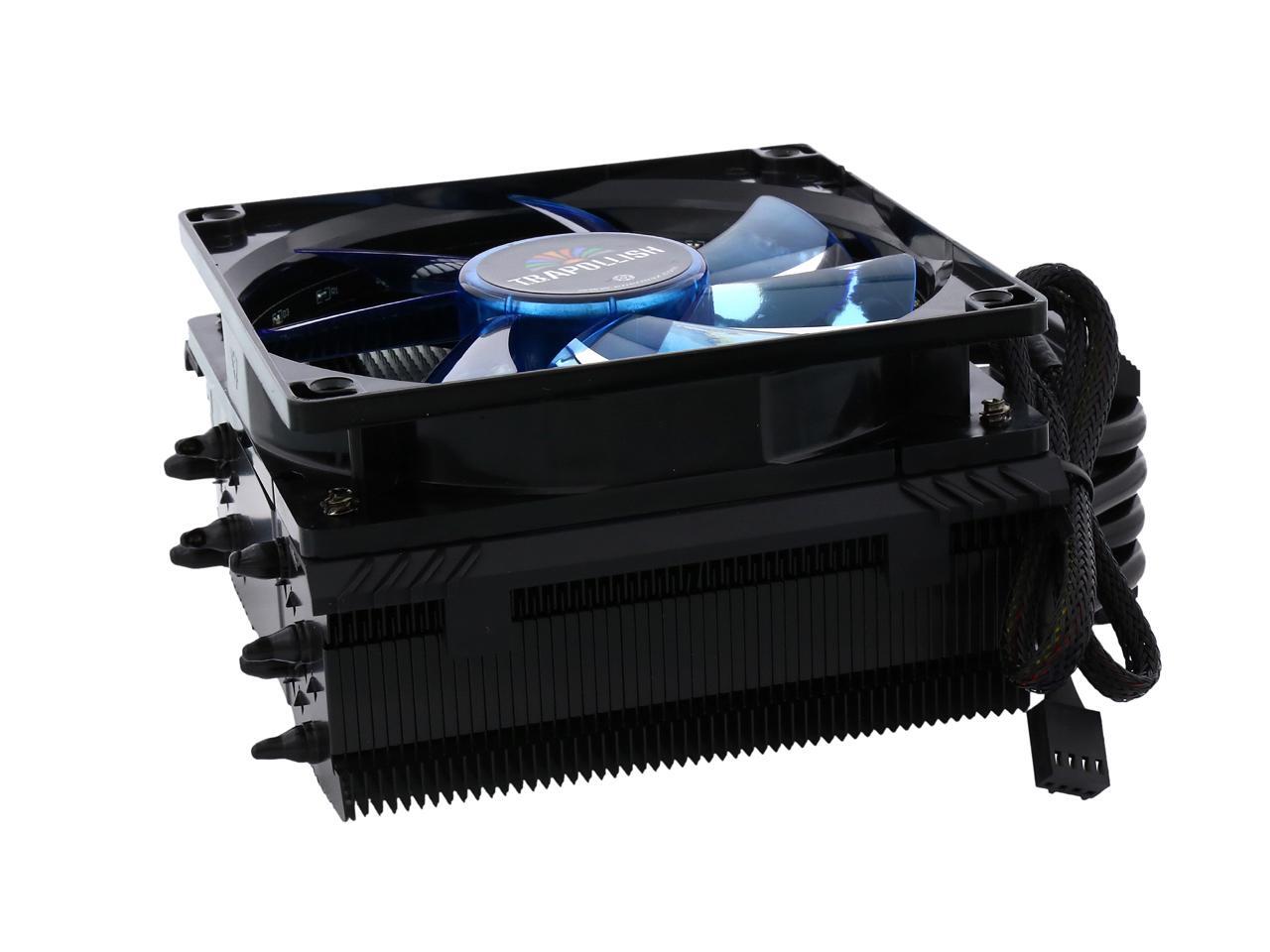

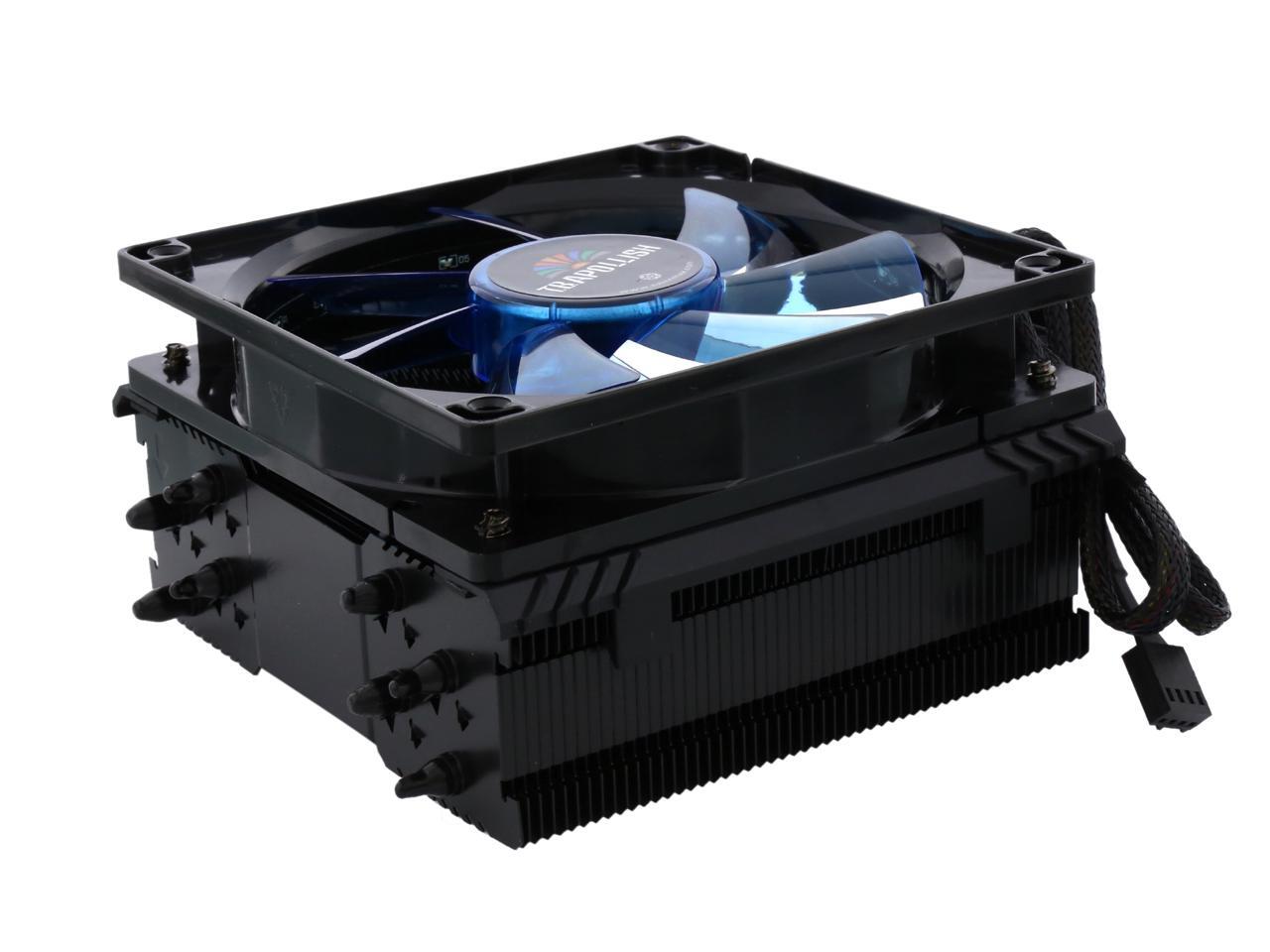

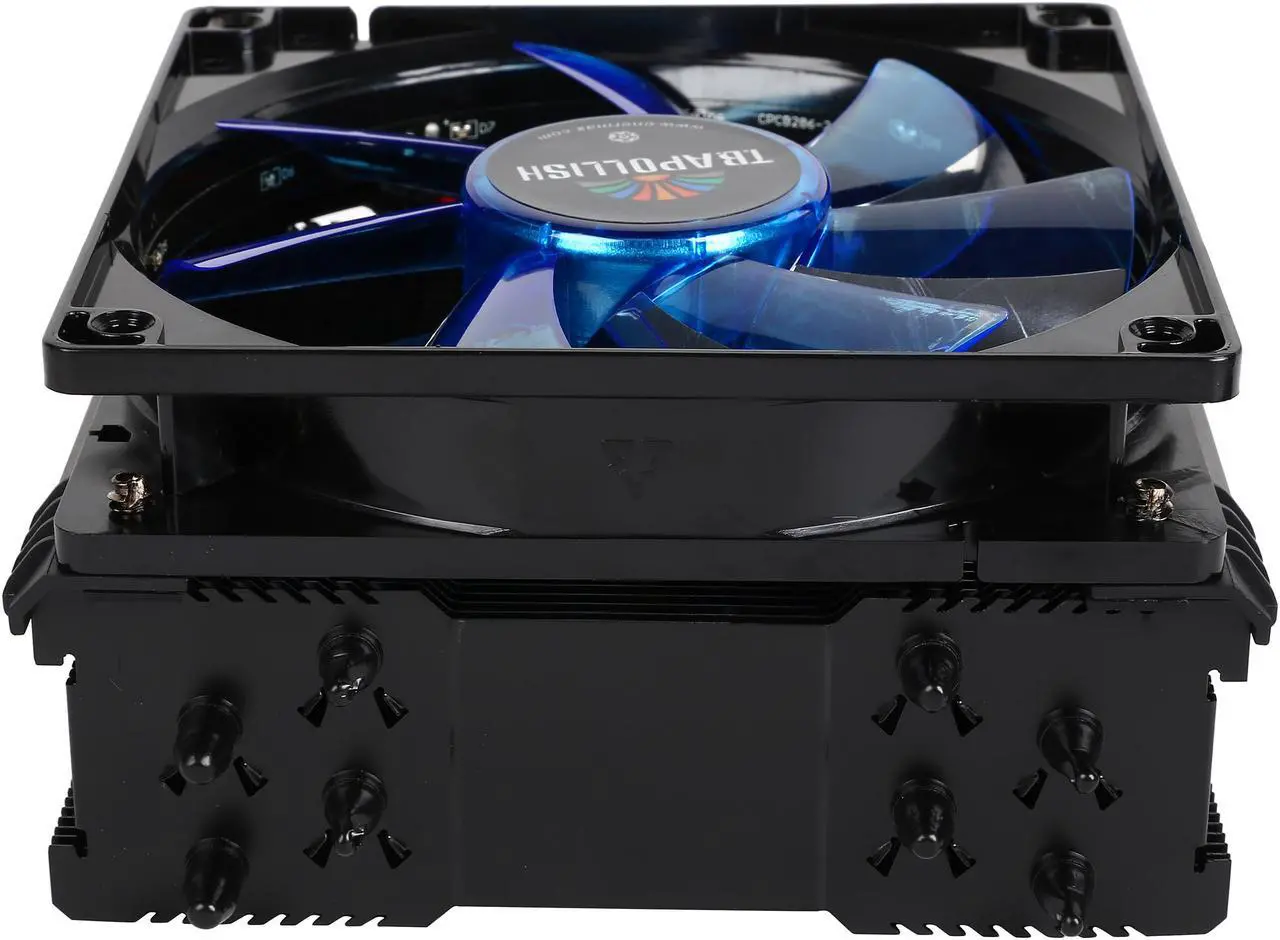

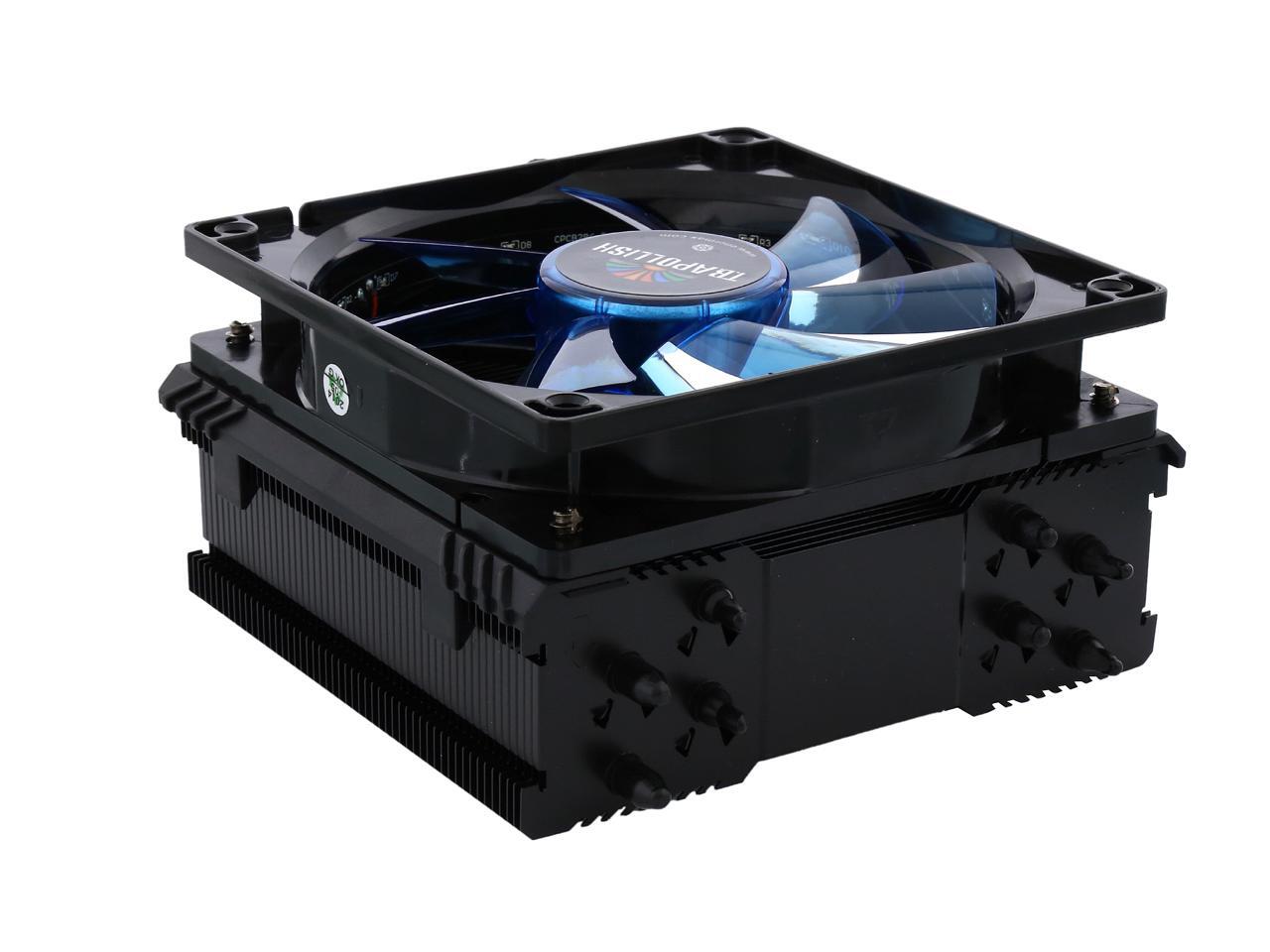

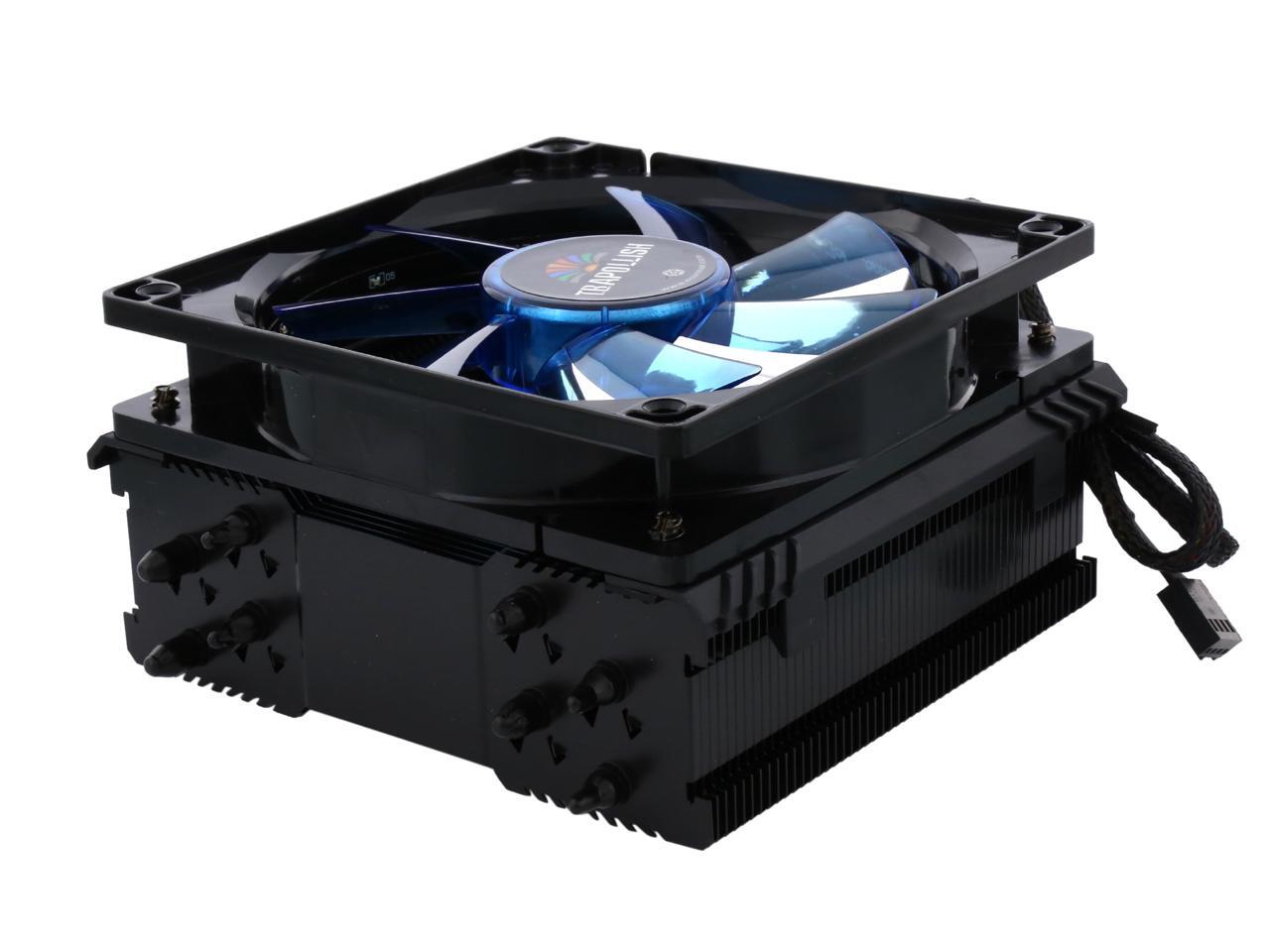

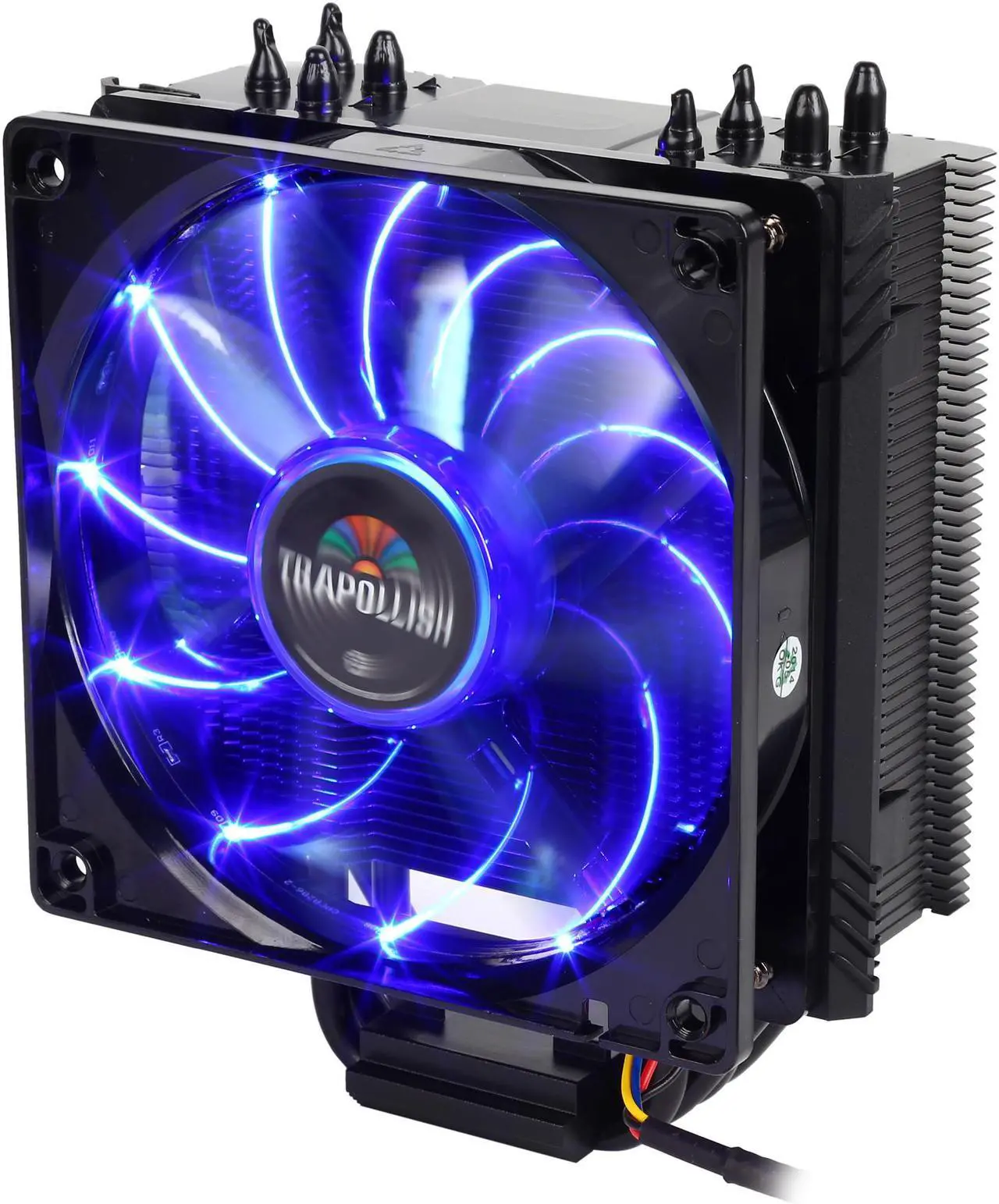

ENERMAX ETS-T40F-BK 120mm Twister Aluminum 120mm Black CPU Cooler with blue LED PWM Fan
- 800 - 1800 RPM
- 33.26 - 75.98 CFM
- Aluminum & Copper
Overview
Specs
Reviews (57)
eter: 1 x 120 mm| Heatsink Height: 6.37"| Heatsink Width: 1.57"| Application/Usage: Processor. .
Product Information
Product Information
Overview

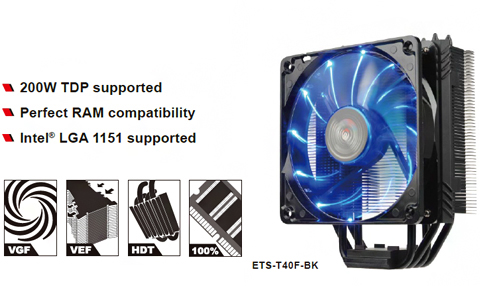

ENERMAX ETS-T40Fit series air cooler is rated with 200W thermal dissipation power thanks to its patented VGF (Vortex Generator Flow), VEF (Vacuum Effect Flow) fins, and the base are with HDT (Heat-pipe Direct Touch) structure. The slim heat sink ensures perfect compatibility with extended dimension RAM, whether single or dual fans attached.
Features

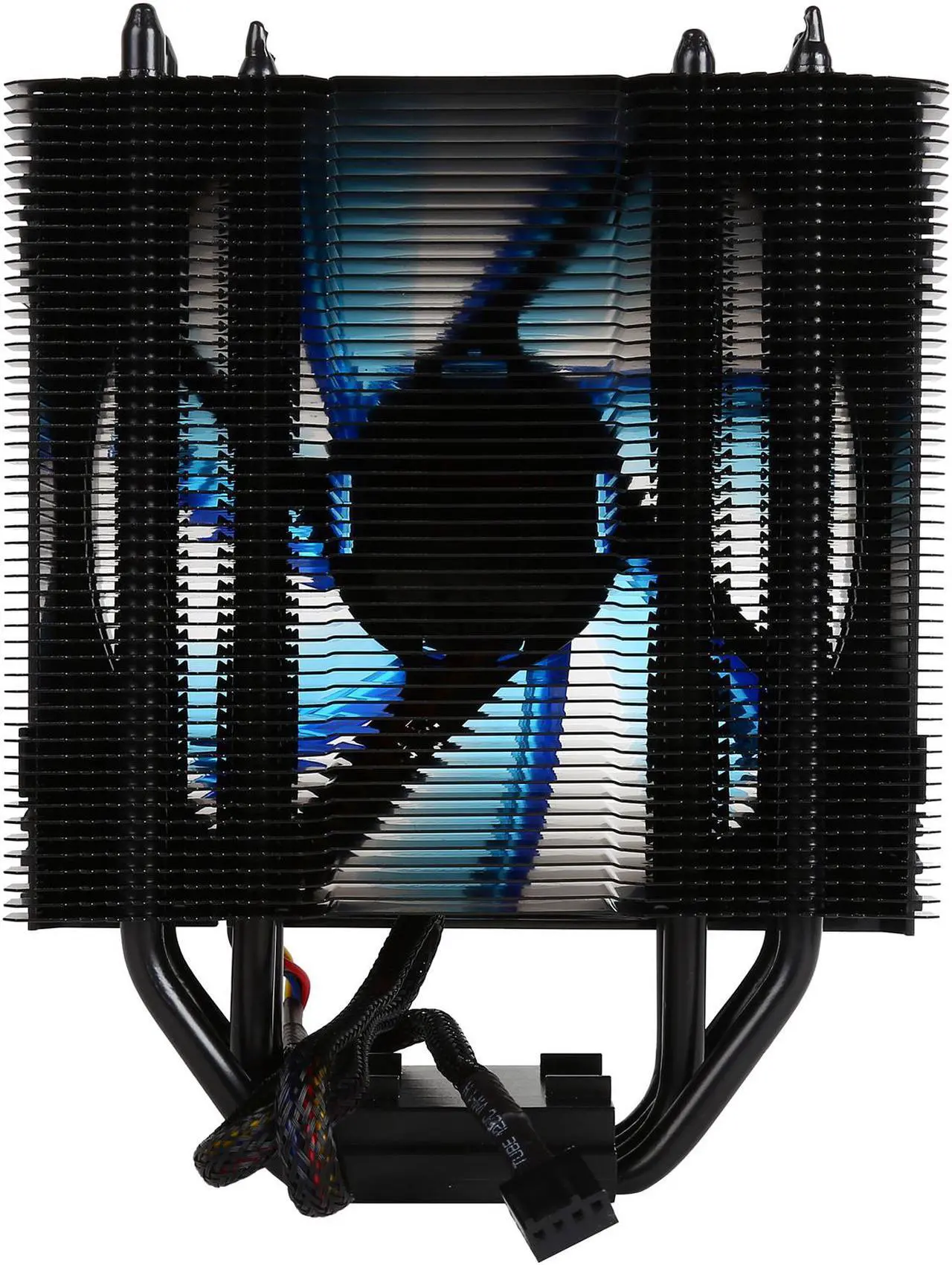

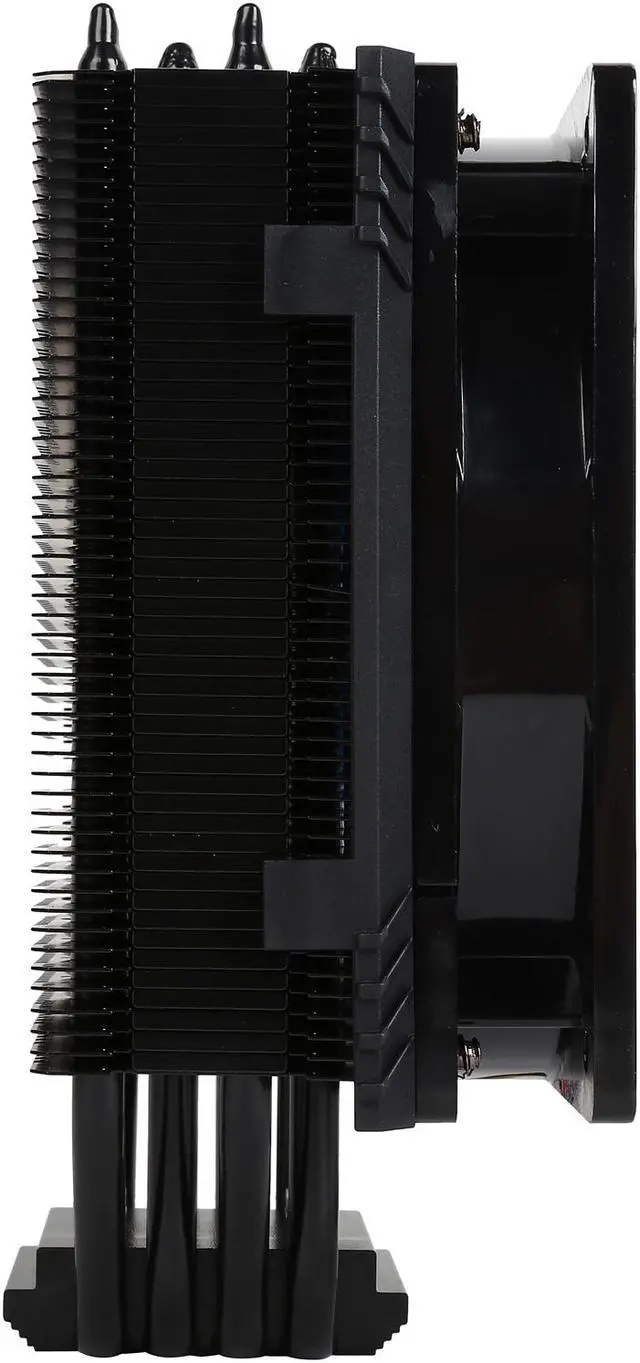

Compact side flow air cooler for perfect RAM compatibility

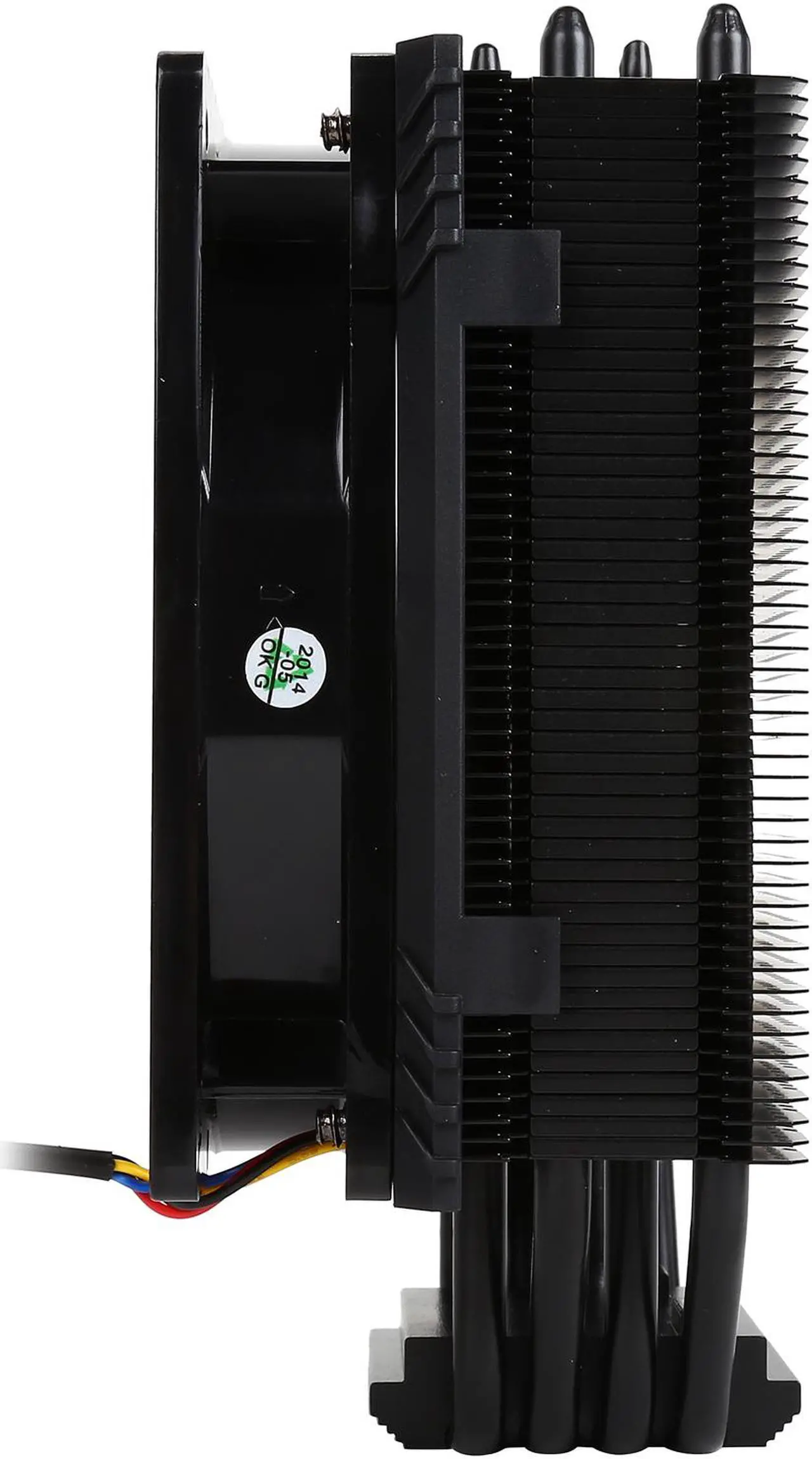

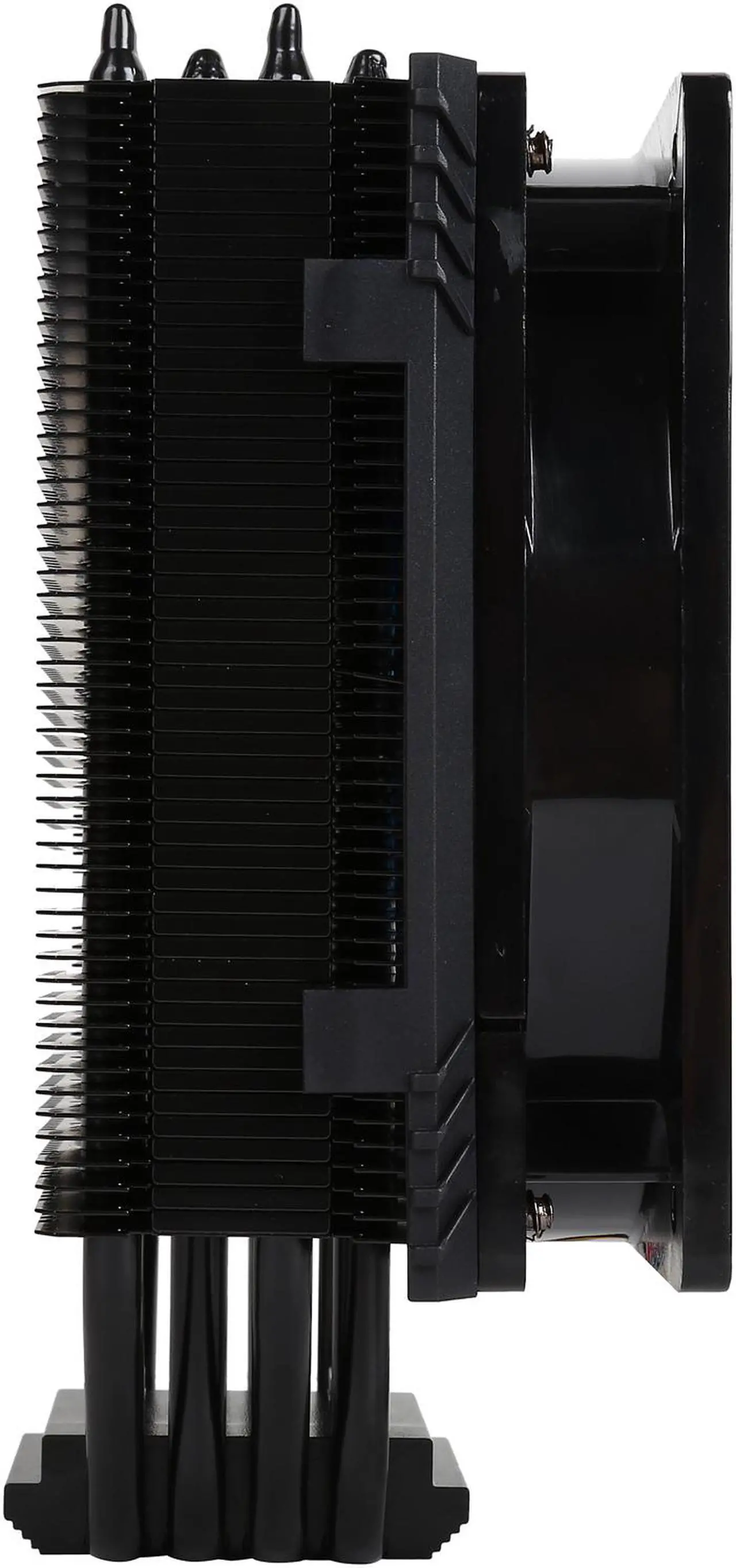

The depth of its heat sink is only 42.5mm which is compatible with all kinds of RAM, whether a single or dual fans are attached.
Patented VGF (Vortex Generator flow) to increase air convection around the heat pipes
Unique air path creating high VEF(Vacuum Effect flow) to optimize the airflow

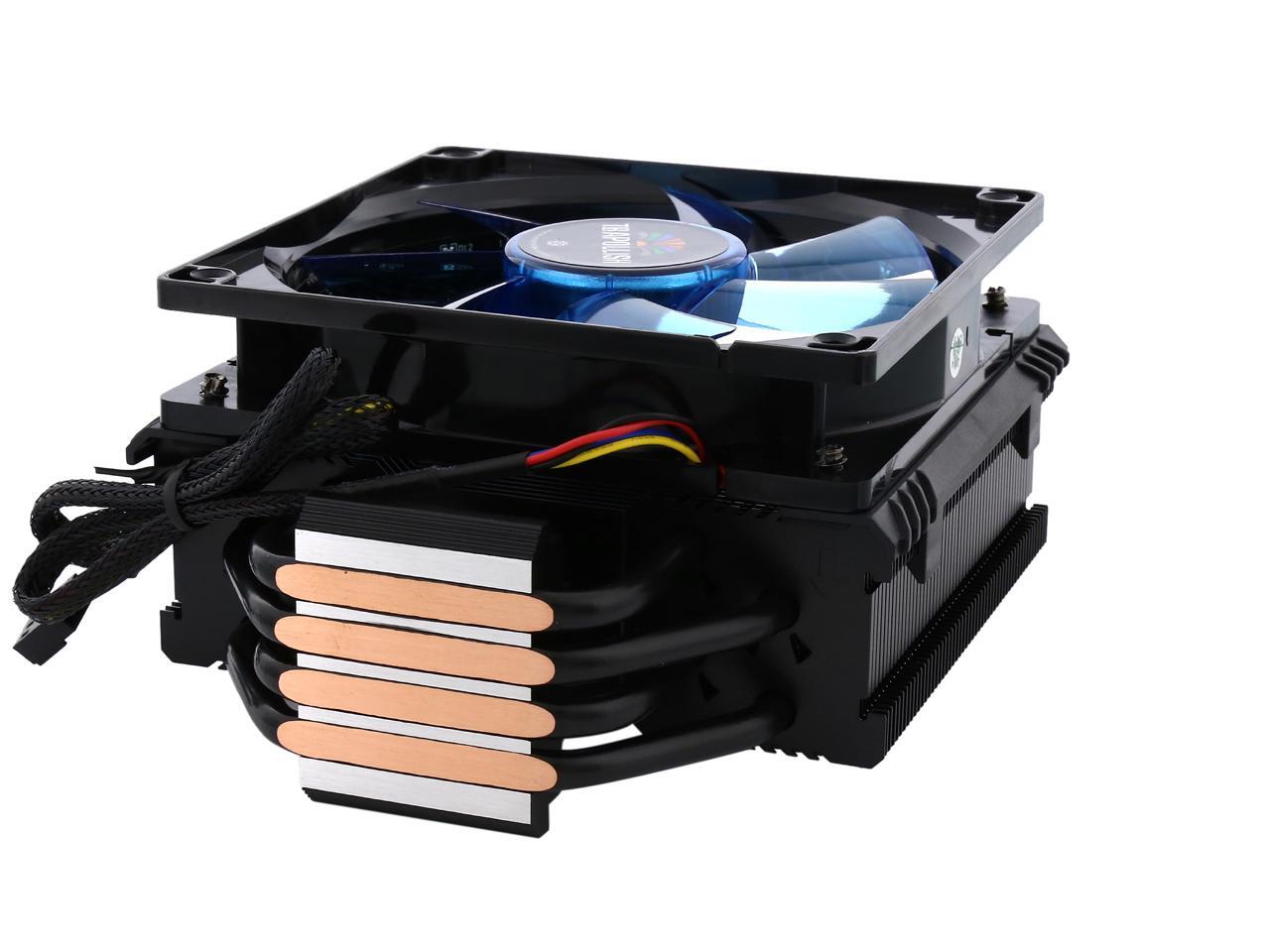

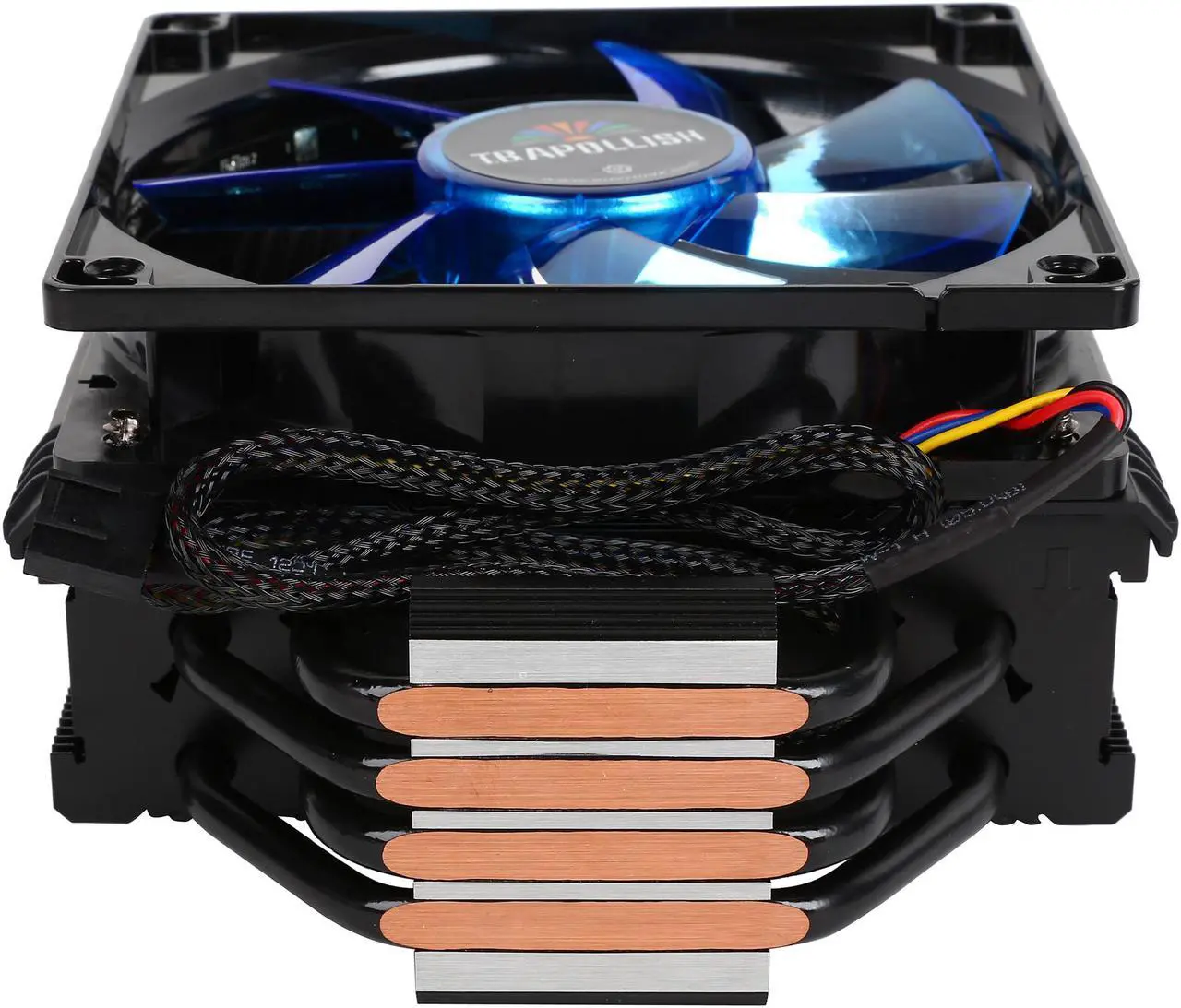

HDT (Heat-pipe direct touch) technology to ensure rapid thermal conduction and eliminate CPU hot spots
Twister Bearing technology
Patented Twister Bearing fan features stable operation and long lifespan of 160,000 hours MTBF. Furthermore, the detachable blade allows easy cleaning and maintenance.
Unique TCC (Thermal Conductive Coating) on heatsink, to create better velocity of thermal transferring and to prevent oxidation

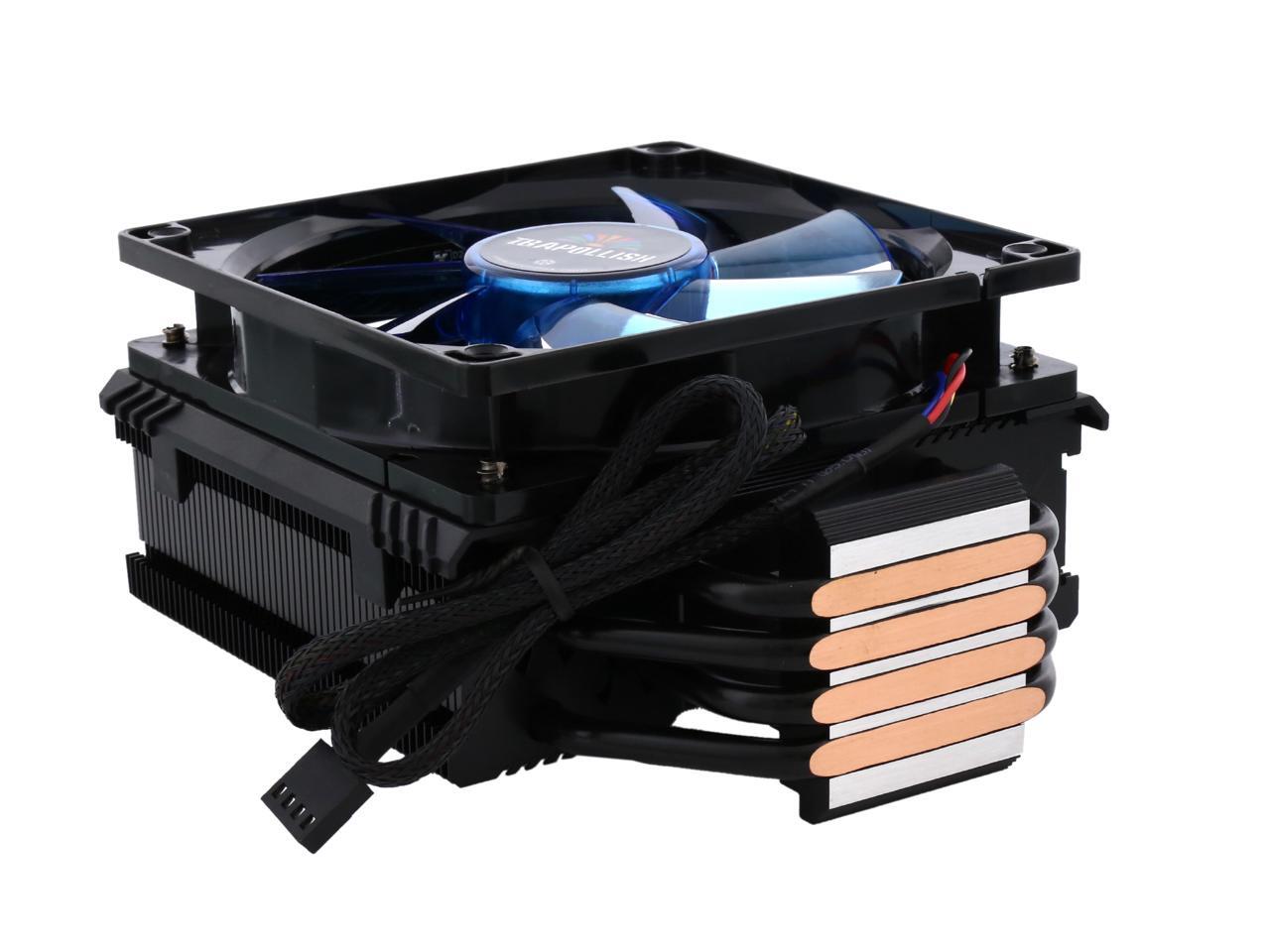

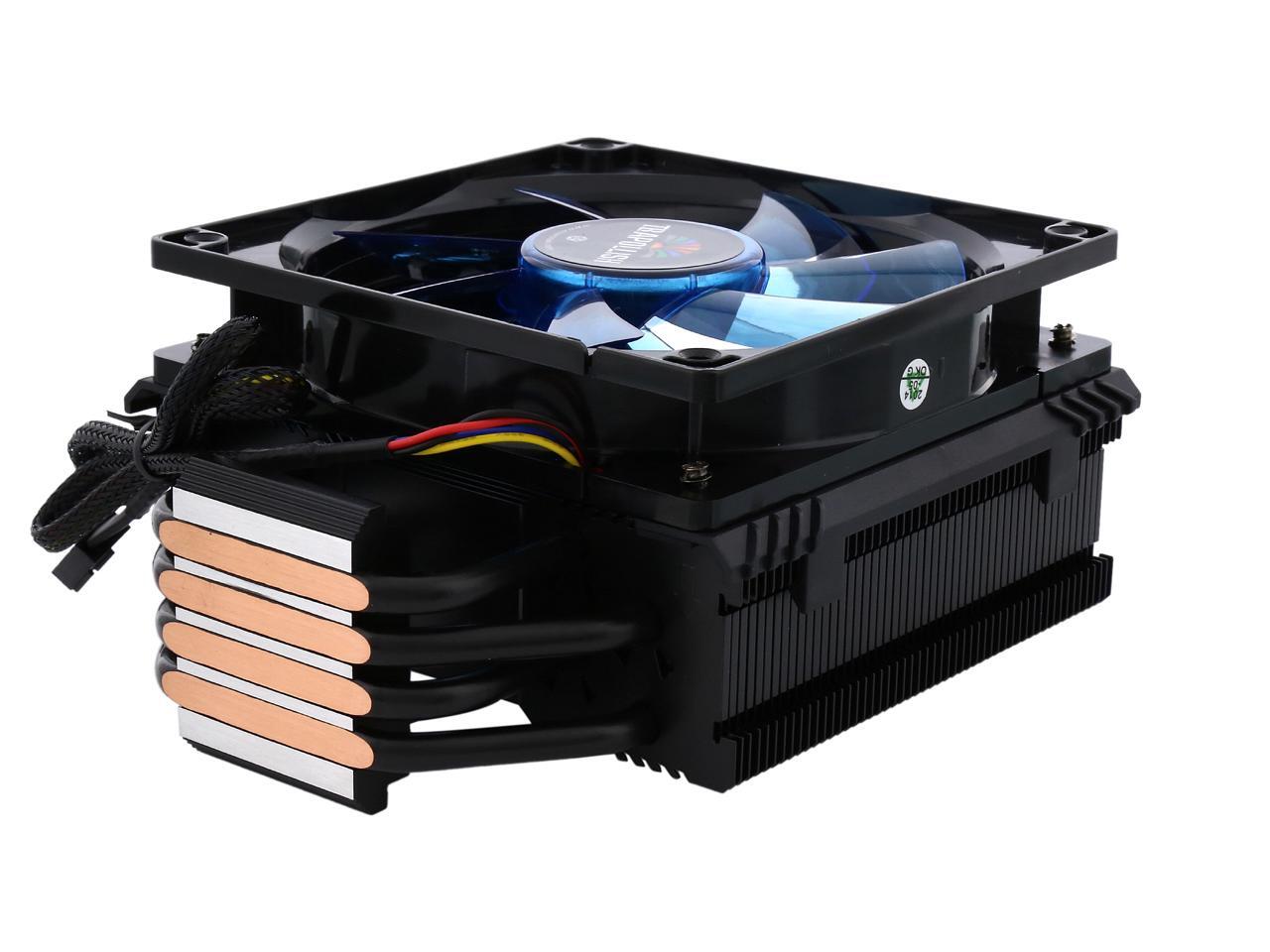

4 x Ø6mm heat pipes
High performance heat pipes offer great heat conductivity from CPU to the heat sink.

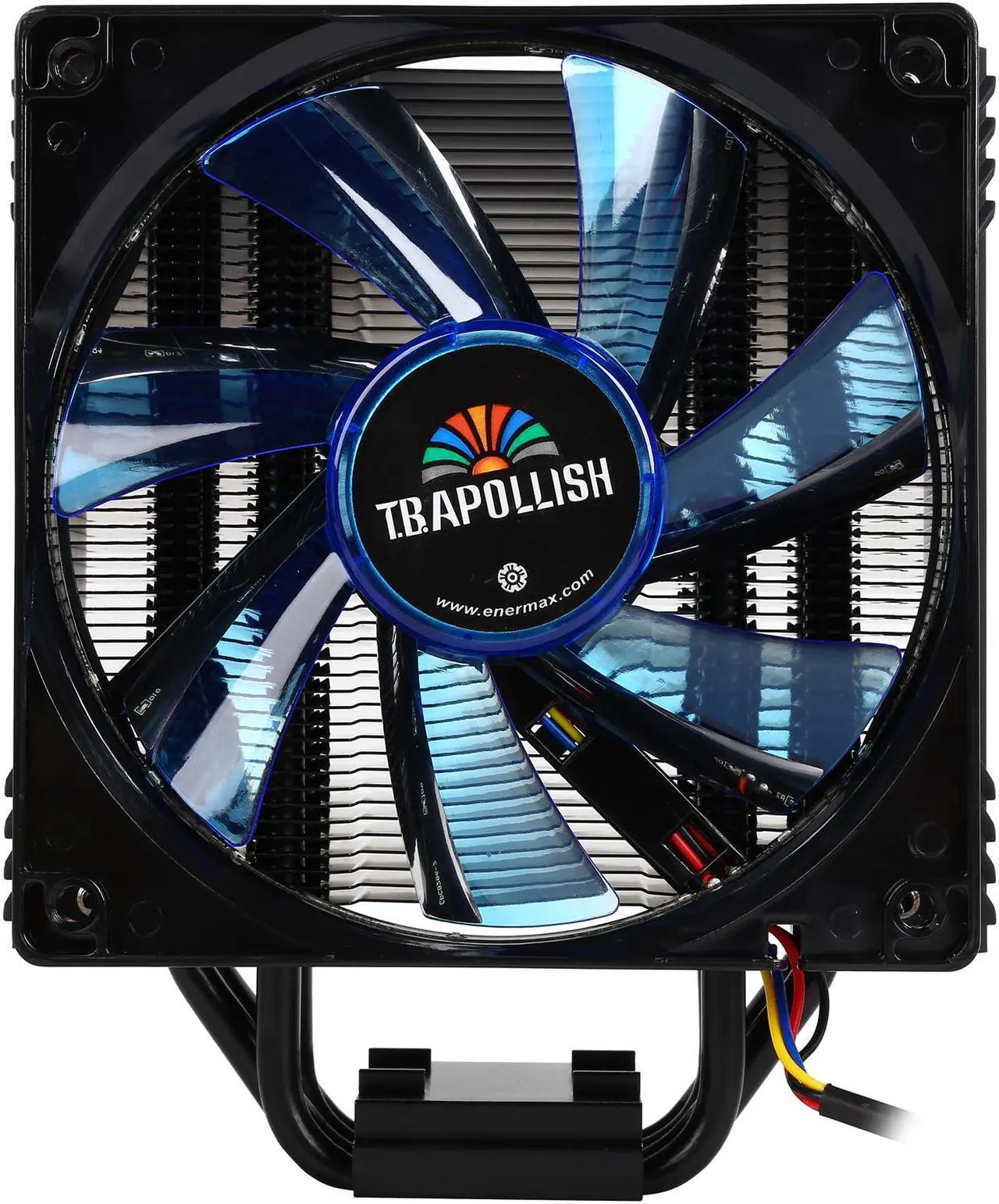

Patented circular type LED fan for utmost and eye-catching light effects
ETS-T40Fit Black Twister has patented circular type blue LED fan to create luminous atmosphere and make your rig glaring

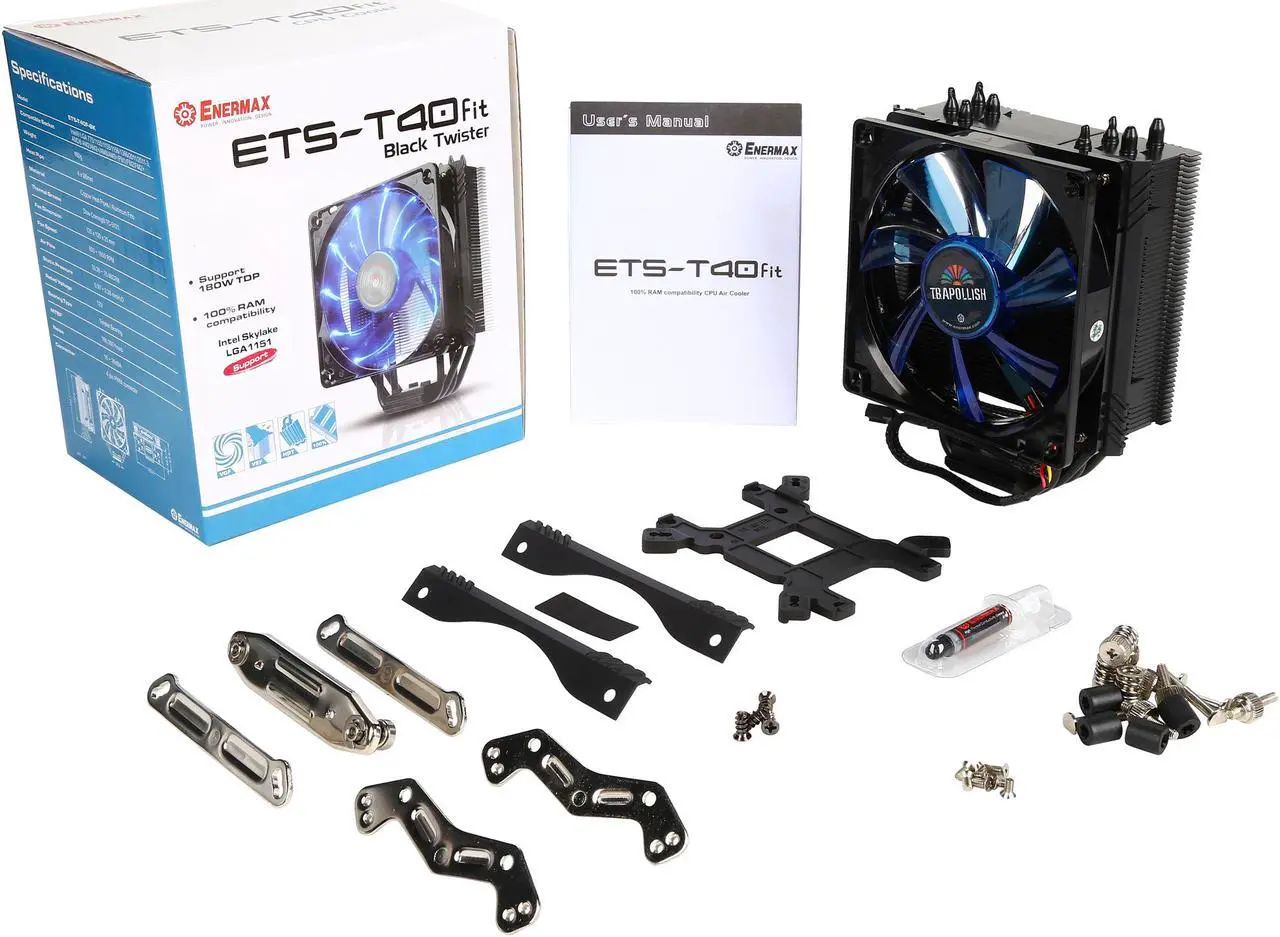

Dual fan installation option
Additional fan bracket enables dual fans installation in push / pull setting to enhance the cooling performance.
High thermal conductivity grease Dow Coning® TC5121
Dow Corning® TC-5121 thermal grease ensures the perfect thermal conduction
"1-Clip" fan bracket
"1-Clip" fan bracket design for user-friendly installation
Specification
| Model | ETS-T40F-BK | |
| Compatible Socket | Intel® LGA 775/1150/1151/1155/1156/1366/2011/2011-3 AMD® AM2/AM2+/AM3/AM3+/FM1/FM2/FM2+ | |
| Heat Sink Dimension | 126(L) x 40(W) x 161.7(H) mm | |
| Weight | 460 g | |
| Heat Pipe | 4 x Ø6 mm | |
| Material | Copper Heat Pipes/Aluminum Fins | |
| Thermal Grease | Dow Corning® TC-5121 | |
| Fan | Fan Dimension | 120 x 120 x 25 mm |
| Speed | 800-1800 RPM | |
| Air Flow | 33.26 ~ 75.98 CFM 56.51~ 129.09 m3/h |
|
| Air Pressure | 0.97 ~ 2.28 mmH2O | |
| Rated Voltage | 12V | |
| Bearing Type | Twister Bearing | |
| MTBF | 160,000 hours | |
| Noise | 16 ~ 26 dBA | |
| Connector | 4 pin PWM connector | |
Dimension
unit : mm
