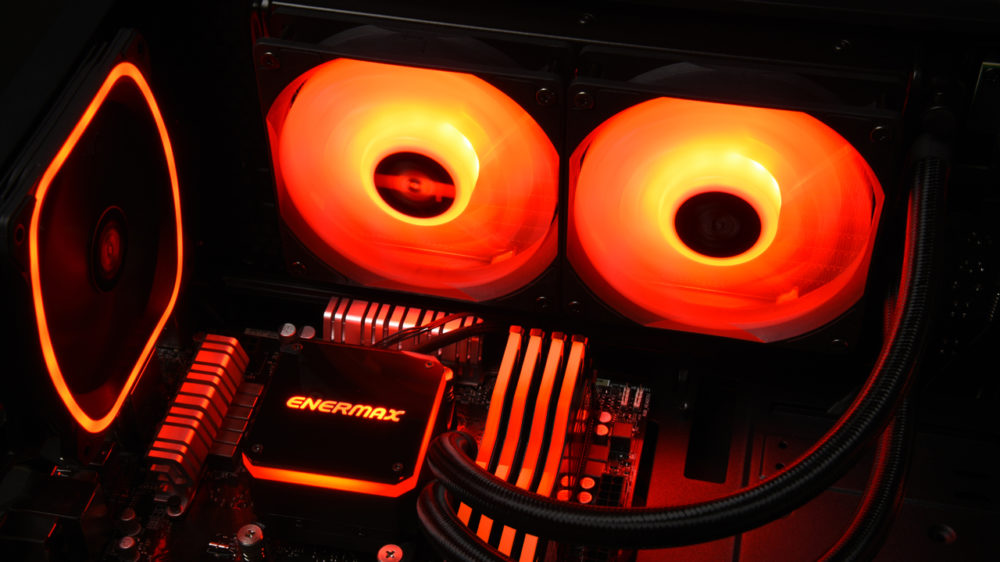

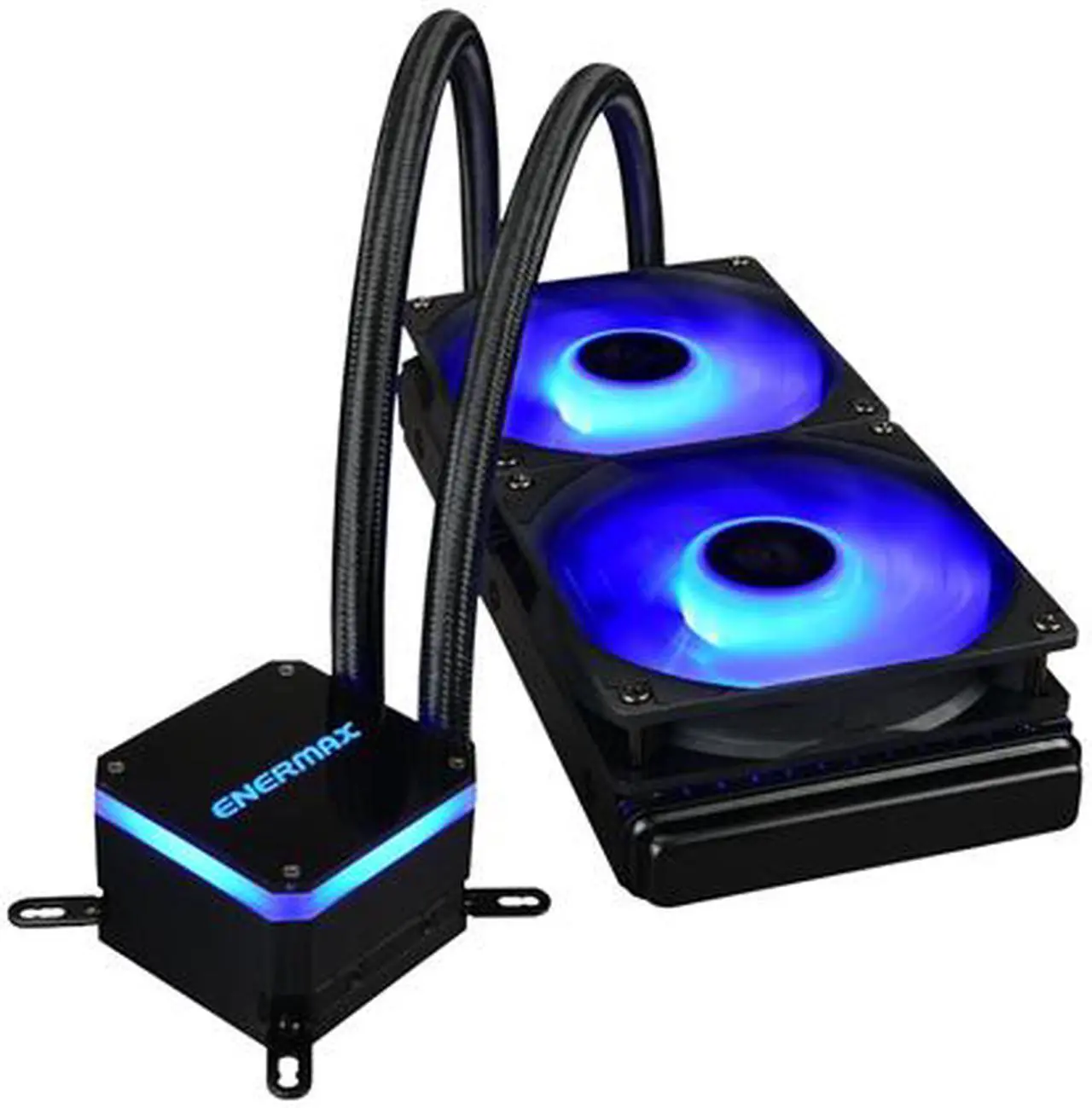

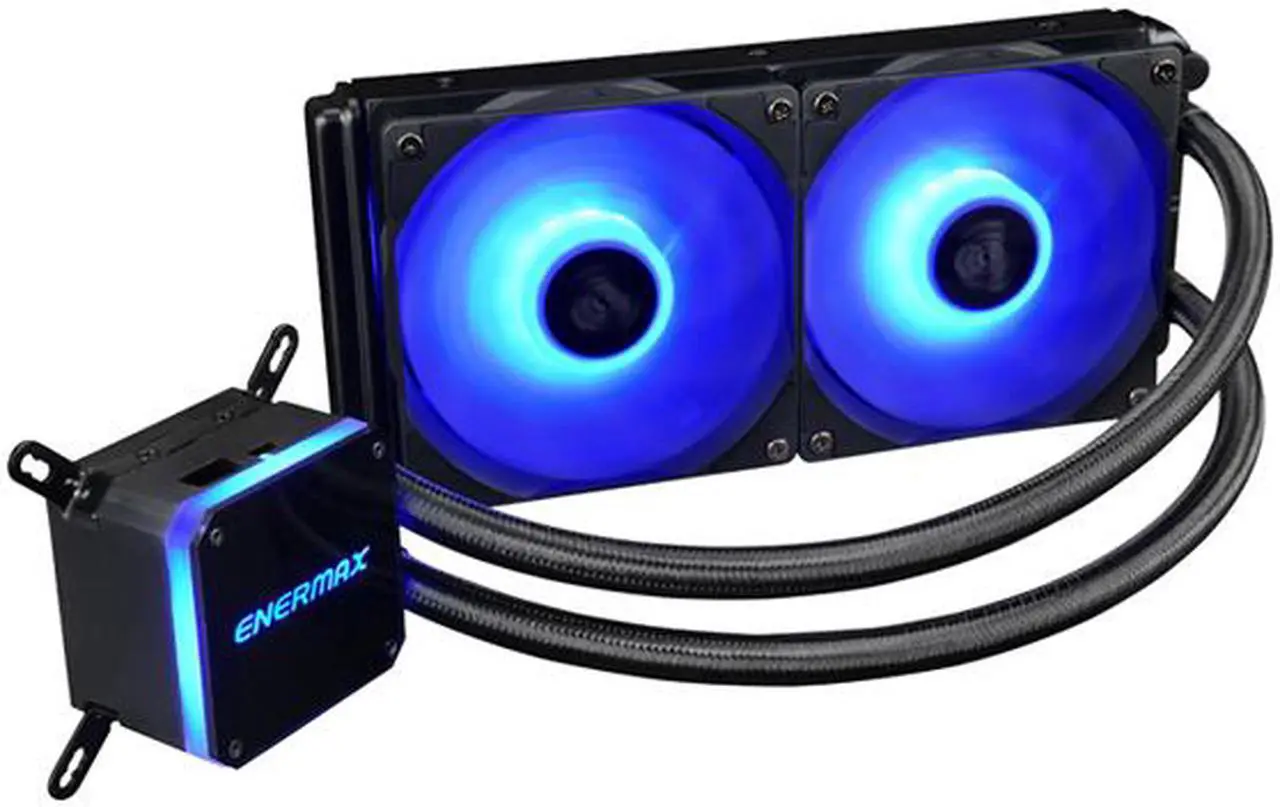

The ultimate cooling solution for your high-performance Intel or AMD CPU. Heat will rapidly be conducted by the Aurabelt water block and further taken away by two 120mm fans with dual-convex blades. Both the water block and the fans feature built-in RGB LEDs, which display white lighting by default and can sync with motherboards that have 4-pin RGB connectors (+12V/G/R/B).
Design

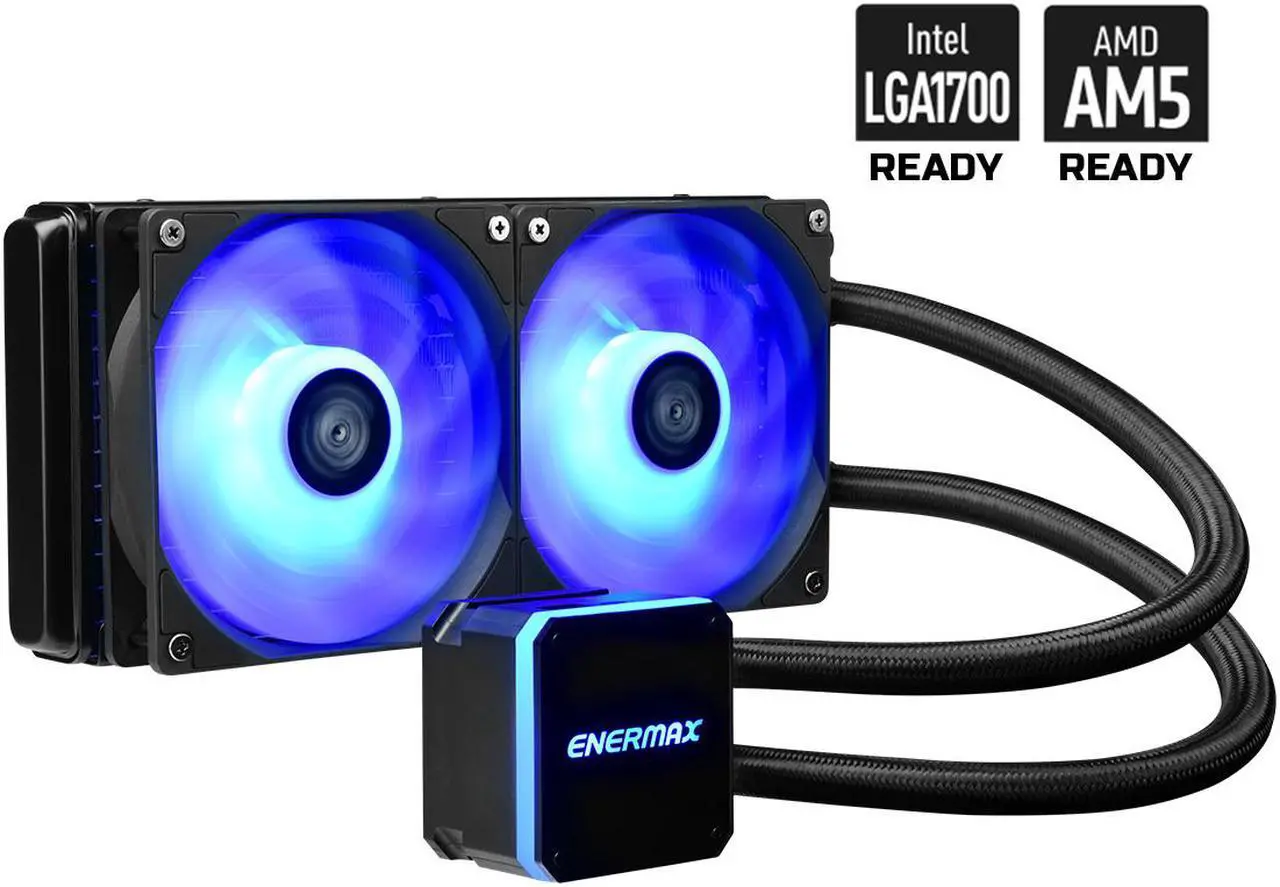

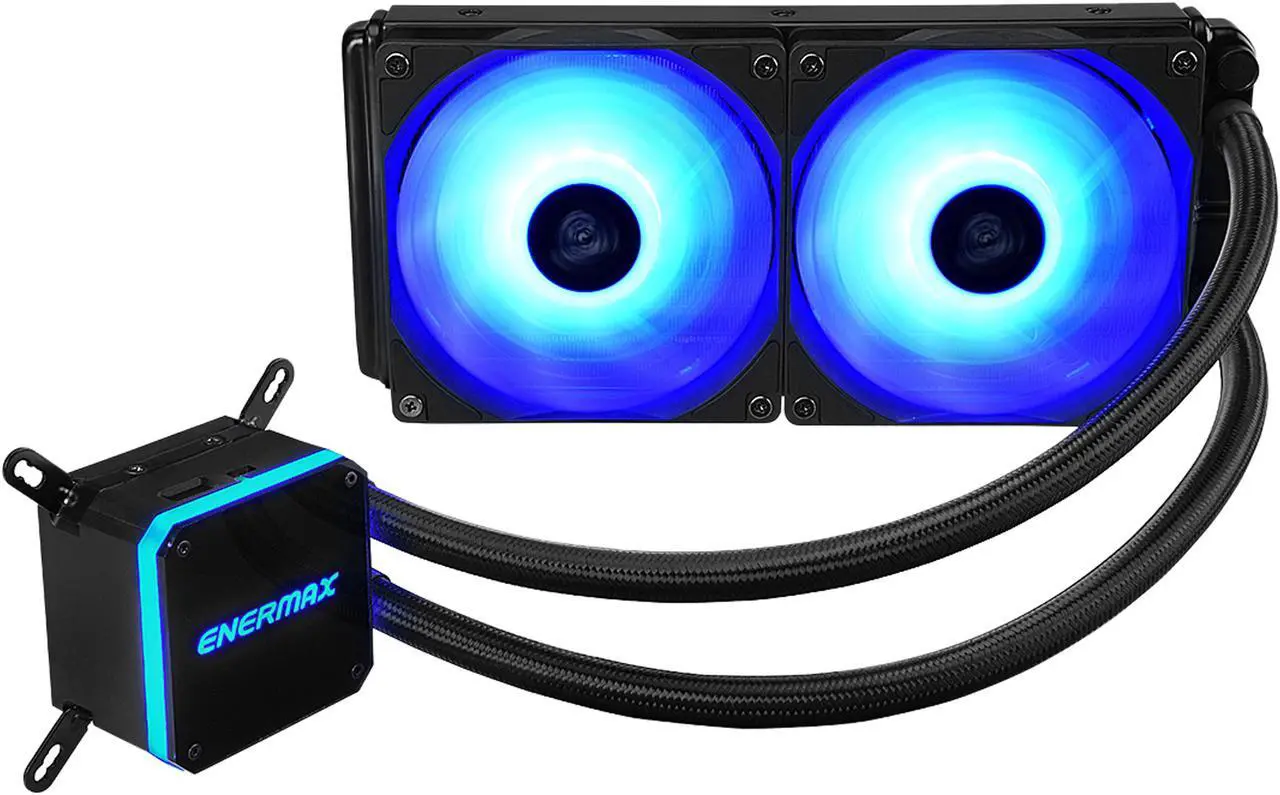

The LIQMAX III RGB is an All-in-One CPU liquid cooler with pre-filled coolant. This makes a water cooler as simple as a regular air cooler. Easy installation and no maintenance. The fully sealed design ensures lowest evaporation of liquid and a long product lifetime.

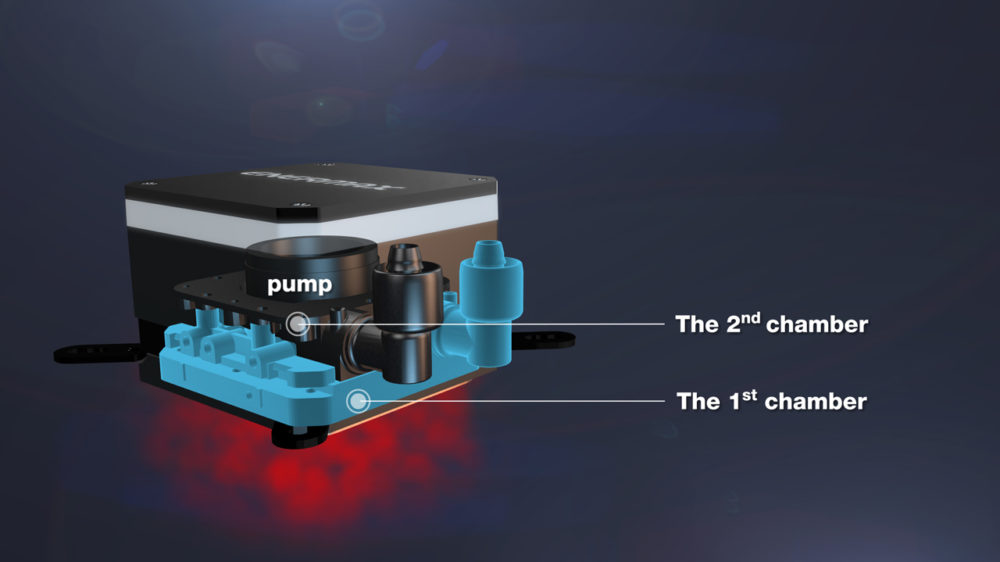

Dual-Chamber Water Block
The patented Dual-Chamber Design isolates the pump from the heated coolant, extending the life of the cooler. The cold coolant enters the first chamber with the pump inside and is then forced through the cold plate absorbing heat. The heated coolant is collected in the second chamber and then transported to the radiator for cooling.

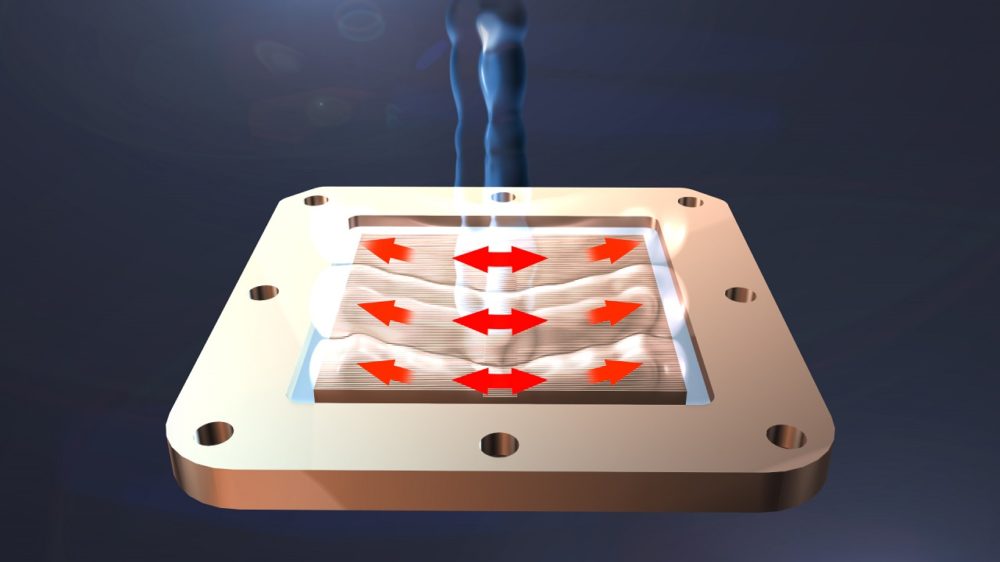

Central Coolant Inlet (CCI) Design
The Central Coolant Inlet (CCI) injects coolant in the middle area above the CPU and distributes it evenly across the cold plate using the patented Shunt Channel Technology (SCT). The result is a shorter coolant flow path and faster heat transfer.

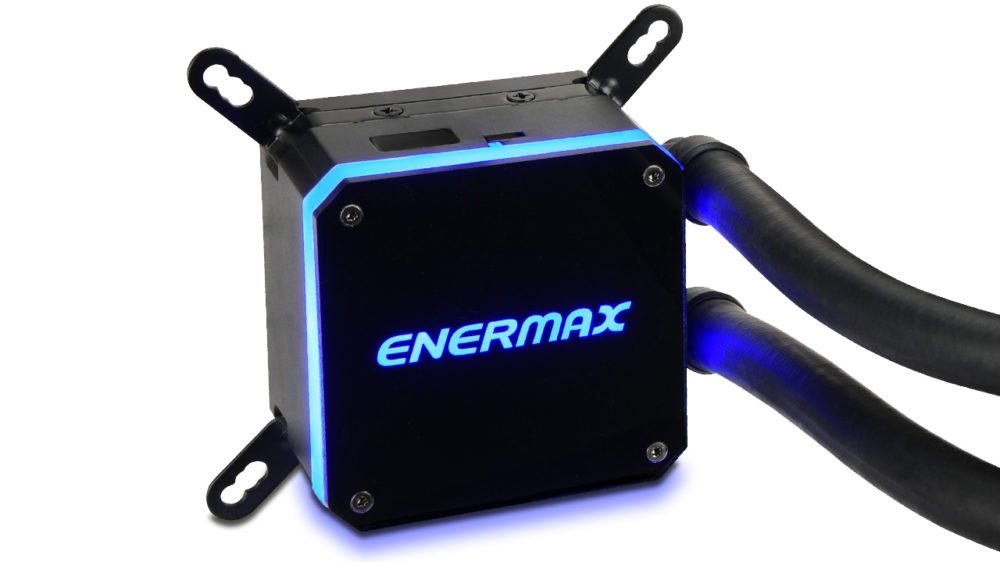

Aurabelt Water Block
The Aurabelt water block of LIQMAX III RGB is equipped with RGB LEDs designed for synchronization with RGB motherboards from ASRock, ASUS, Gigabyte and MSI. LIQMAX III RGB offers programmable lighting effects via motherboards software. For stand-alone operation, the lighting of the water block is kept white.

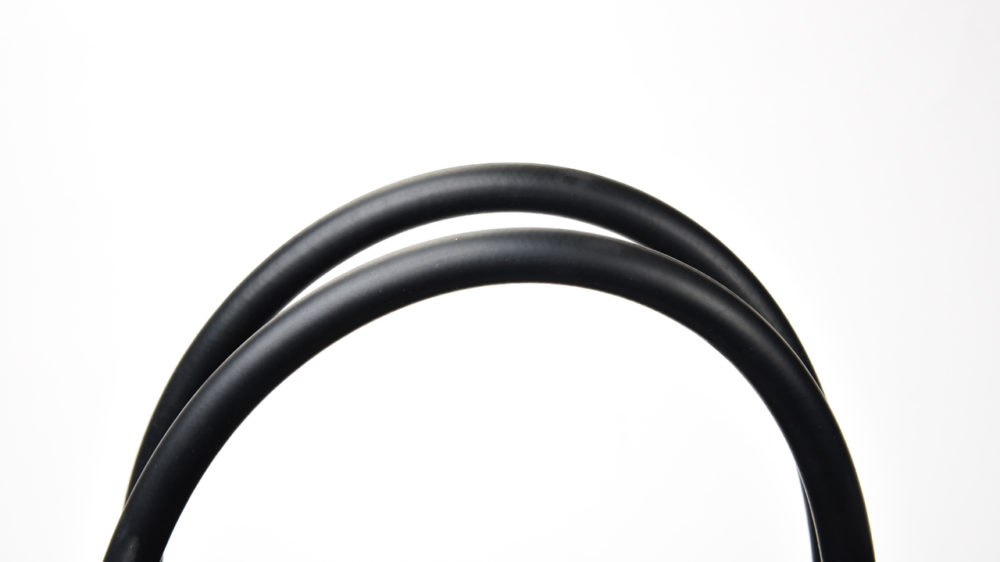

Tubes
The high-quality tubes are made of polyamide rubber with multiple layers ensuring zero permeability and long-lasting operation. The tubes enable easy system installation thanks to a length of 400mm. For maximum safety the connections to the fittings are sealed with extra strong glue.

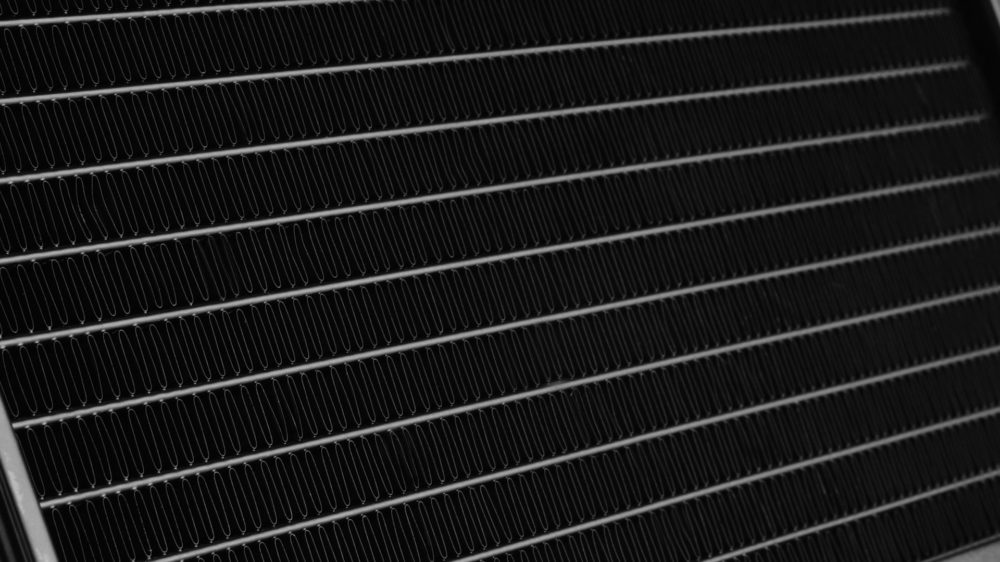

Radiator
The radiator offers a large cooling surface with high heat exchange capacity thanks to the fine channels and thin aluminum fins. LIQMAX III RGB is available with a compact 120mm radiator with 260W TDP cooling capacity and a 240mm radiator with 330W TDP cooling capacity.

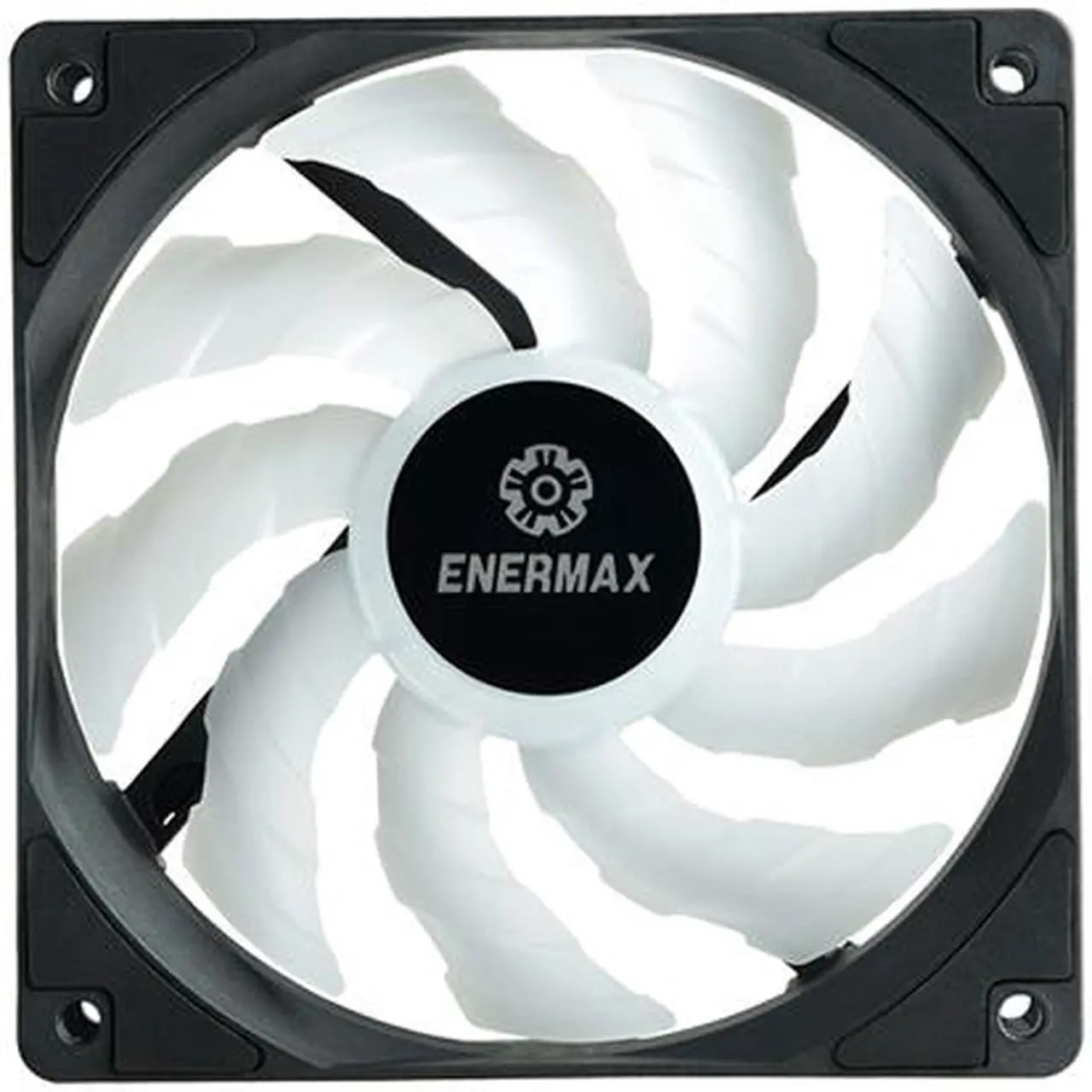

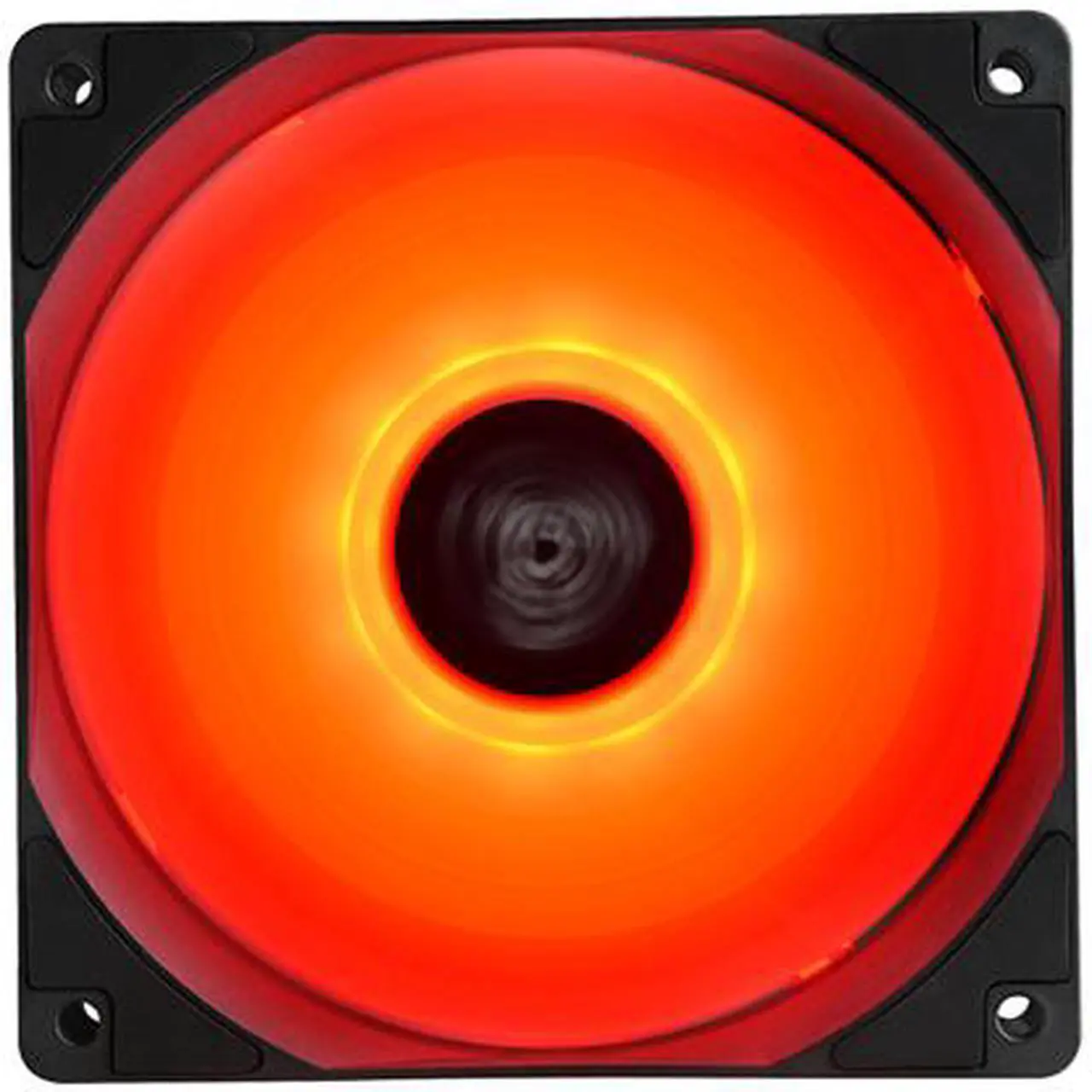

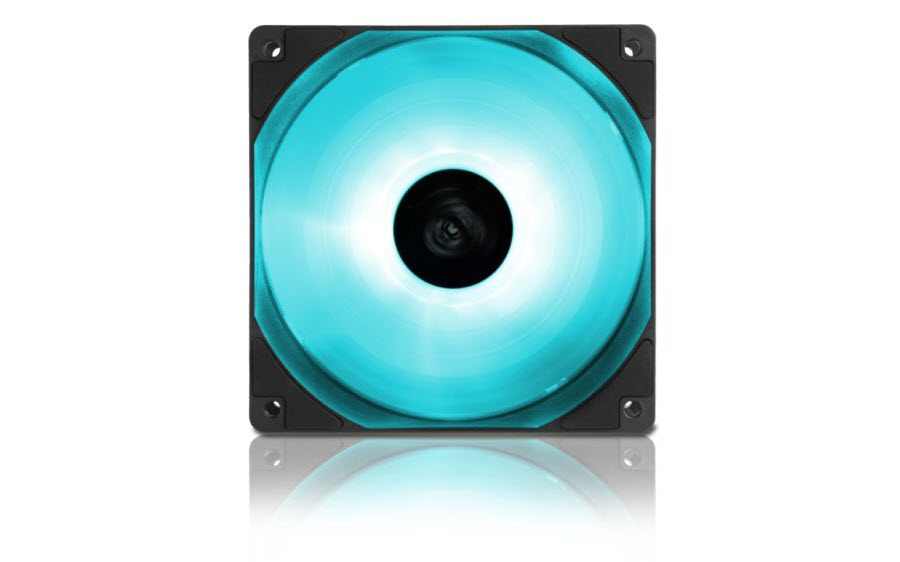

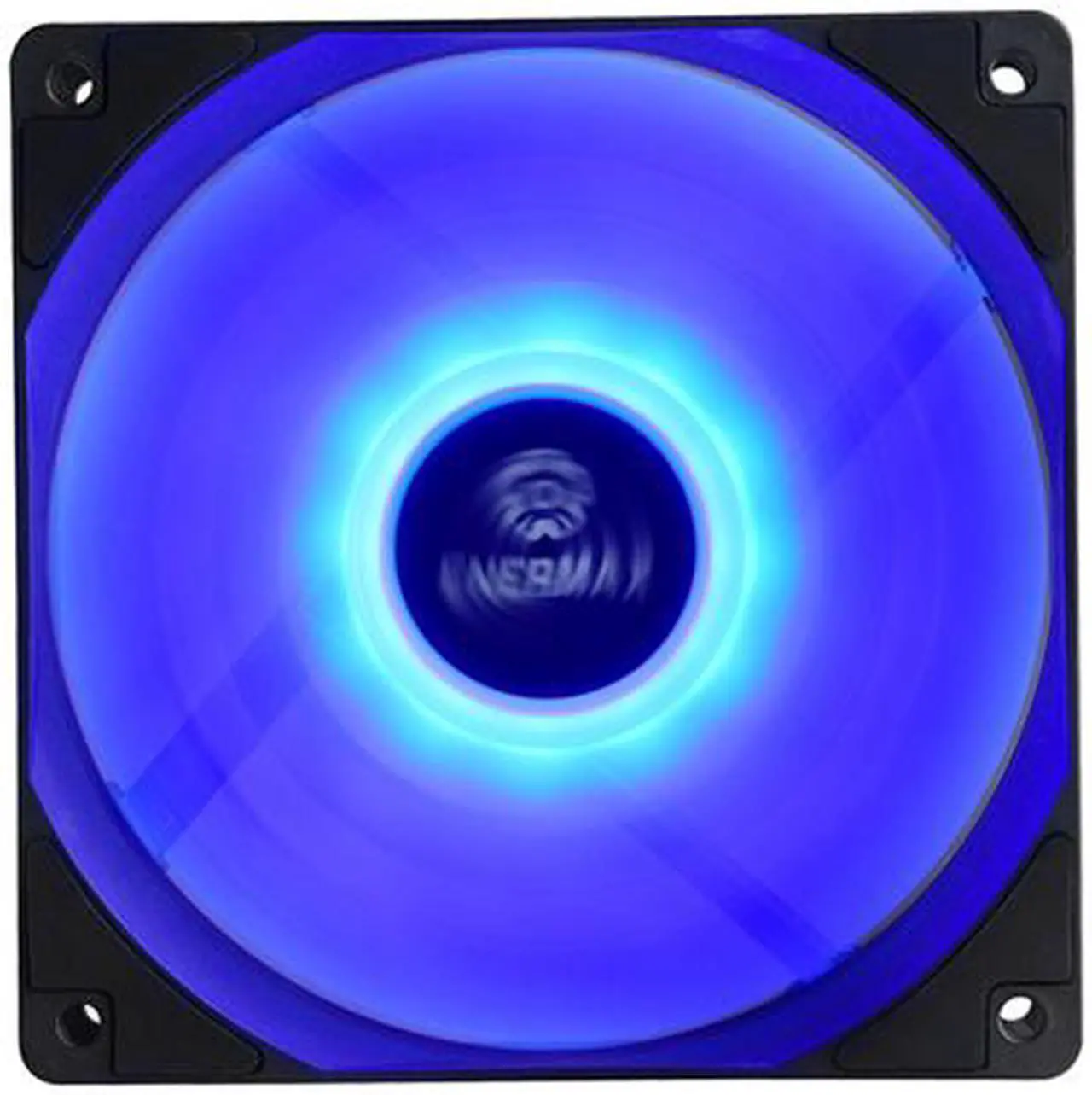

Dual-Convex Blade RGB Fan
The Dual-convex fan blade is a result of precision engineering calculating the shape and angles. The fan creates down force air pressure and a high-volume air flow. The frame is equipped with rubber pads to reduce the vibration and noise. RGB LEDs at the fan hub provide bright illumination.
Compatibility
Quick & user-friendly universal mounting system is included to support Intel and AMD sockets (excluding TR4/SP3 socket). The pressure adjustment spring system and high conductive Dow-Corning thermal grease ensure a perfect contact with the CPU's heat spreader.
* LIQMAX III RGB is compatible with 120mm fan mountings. Please ensure your case offers enough space to install the radiator.
Pros: Day and night compared to stock cooler.
Cons: Ok my Prime X470 pro does not have a 5V Header,have to use controller.
Overall Review: AMD users ,the Intel -AMD backplate , make sure to in stalled the right way ,otherwise your system won't start, short to ground, I was lucky to catch it.
