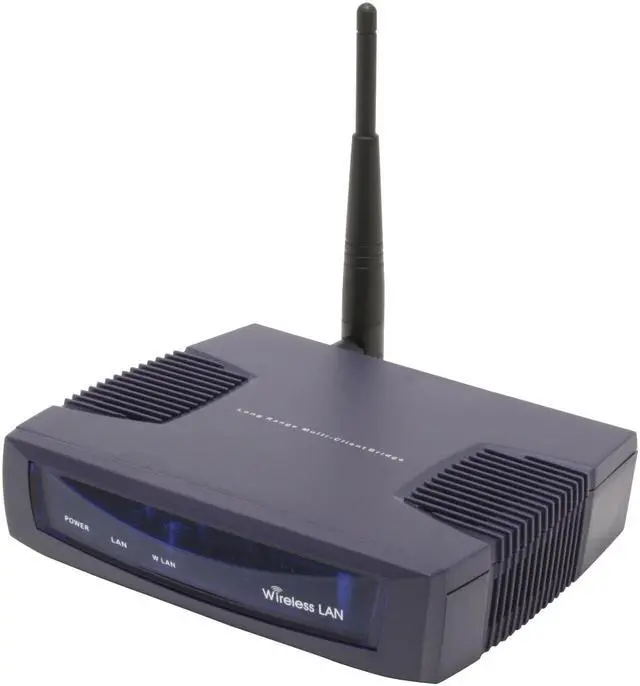

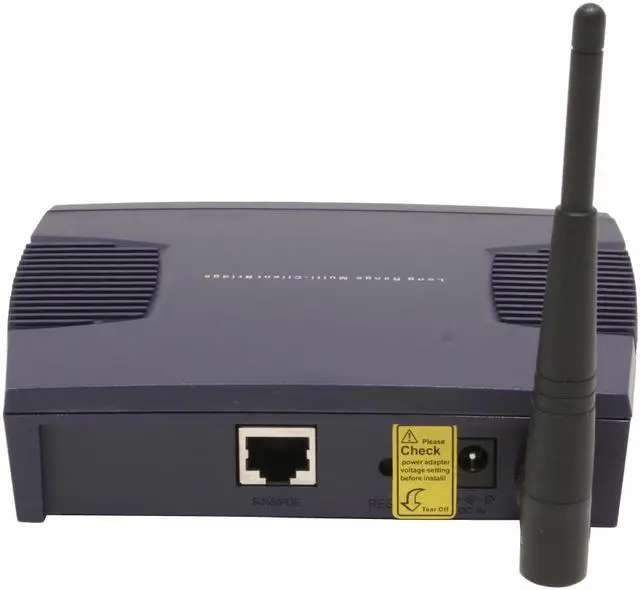

EnGenius ECB-3220 802.11g High Power 400mW Wireless AP/Bridge/WDS w/ Removable Antenna
- Up to 54Mbps Wireless Data Rates
- IEEE 802.3/3u, IEEE 802.11b/g
- Ethernet Port
- 2.4 GHz - 2.484 GHz
Specs
Reviews (15)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EnGenius Technologies ECB-3220
| Brand | EnGenius |
|---|---|
| Model | ECB-3220 |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g |
|---|---|
| Device Management | Configuration: Web-based configuration; HTTP Telnet configuration SNMP V1/V2C MIBI, MIBII Firmware Upgrade: Upgrade Firmware via web-browser |
| Wireless Data Rates | Up to 54Mbps |
| Security | IEEE802.1x Authenticator/RADIUS Client EAP-MD5/TLS/TTLS support in Access Point Mode WPA/Pre-share Key(PSK)/TKIP MAC Address Filtering Hide SSID in beacons Layer 2 isolation |
| Frequency Band | 2.4 GHz - 2.484 GHz |
| Channels | 11 for North America |
| Antenna | TNC Type Female Reverse |
| Transmitted Power | 25 +/- 2dBm @ 1,2,5.5 & 11Mbps 23 +/- 2dBm @ 6,9,12 & 18Mbps 22 +/- 2dBm @ 24 & 36Mbps 21 +/- 2dBm @ 48 & 54Mbps |
| Receiver Sensitivity | -94dBm @ 1Mbps -92dBm @ 2Mbps -89dBm @ 5.5Mbps -86dBm @ 11Mbps -92dBm @ 6Mbps -90dBm @ 9Mbps -88dBm @ 12Mbps -86dBm @ 18Mbps -83dBm @ 24Mbps -79dBm @ 36Mbps -74dBm @ 48Mbps -72dBm @ 54Mbps |
| Modulation | DBPSK @ 1Mbps DQPSK @ 2Mbps CCK @ 5.5&11Mbps BPSK @ 6&9Mbps QPSK @ 12&18Mbps 16-QAM @ 24&36Mbps 64-QAM @ 48&54Mbps |
| Interface | Ethernet Port |
| LEDs | LAN- Link WLAN- Link Power- on/off |
| WAN Ports | 1 x 10/100M |
| Power Supply | Power Supply 110VDC Device 12V/1A |
| Temperature | -10°C - 60°C |
|---|---|
| Humidity | 5% - 95%, Non-Condensing |
| Features | High Speed Data Rates up to 54Mbps for heavy data payloads like video streaming Point-to-point or point-multipoint capable wireless connectivity True Plug & Play device with no drivers necessary Full WPA & IEEE802.1x supplicant support for maximum security Hide SSID functionality creates a private network accessible only to those that you wish to allow Built-in DHCP Client/Server for easy network administration Fully funtional WDS “Wireless Distribution System” for bridge, access point, and repeater functionality all in one package MAC address filtering in AP mode ensures network security SNMP v1/v2 support for easy remote management 802.3af Power over Ethernet certified device Controllable output power for maximum flexibility in deployment options 400mW RF output power for greater range PoE capable for flexible deployment Media Access Protocol: Carrier Sense Multiple Access with Collision Avoidance CSMA/CA Radio Type: Direct Sequence Spread Spectrum (DSSS) Network Topology: Ad-Hoc, Infrastructure Operation Modes: Point-to-point/Point-to-MuItipoint Bridge/Access point/Client Bridge/WDS |
|---|

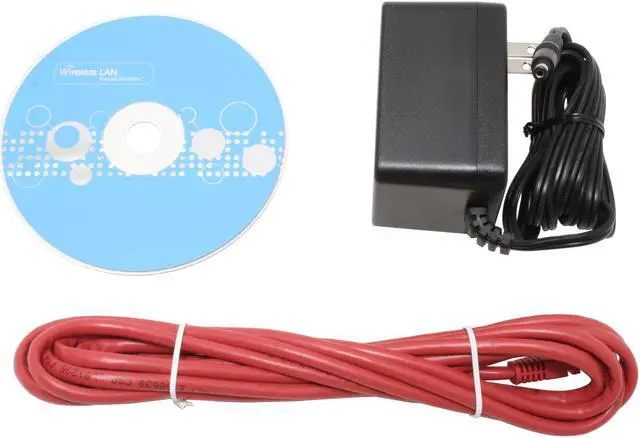

| Package Contents | ECB-3220 Power Adapter RJ45 Cable Resource Disk |
|---|
| First Listed on Newegg | March 01, 2007 |
|---|
