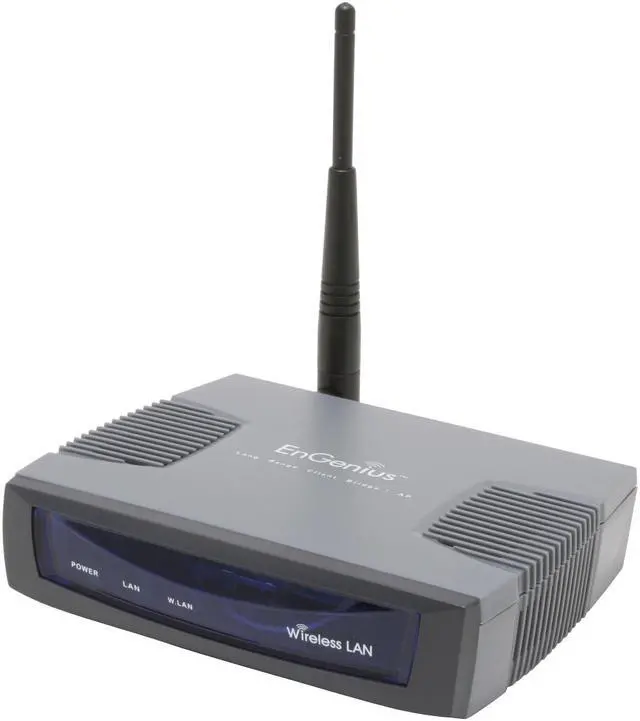

EnGenius ECB-8610 802.11a/g High Power 400mW Wireless AP/Bridge/WDS w/ Removable Antenna

(4) Write a Review
  • IEEE802.11a/b/g, IEEE802.1x, IEEE802.3af,
  • IEEE802.11b/g, IEEE802.11a
  • Ethernet Port
  • 802.11a: 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, 5.725-5.825GHz
  • 802.11b/g: 2.4-2.484 GHz (USA)
Specs
Reviews (4)
avatar

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the EnGenius Technologies ECB-8610

Model
Brand EnGenius
Model ECB-8610
Details
Standards IEEE 802.3/3u, IEEE 802.11a/b/g
Device Management Web-based configuration (HTTP)
Telnet Configuration
SNMP V1
Wireless Data Rates Up to 54Mbps
Security IEEE802.1x Authenticator / RADIUS Client (EAP-MD5/TLS/TTLS) Support in AP Mode
WPA/WPA2 supplicant support in Client Bridge mode
WPA2/WPA / Pre-share Key (PSK)/ AES/TKIP
MAC address filtering (AP mode)
Hide SSID in beacons
Frequency Band 802.11a: 5.15-5.25GHz, 5.25-5.35GHz, 5.47-5.725GHz, 5.725-5.825GHz
802.11b/g: 2.4-2.484 GHz (USA)
Channels 802.11b/g: 11 (North America)
802.11a: 12 non-overlapping channels (North America)
Antenna External Antenna
Transmitted Power 5.15~5.24 GHz(IEEE802.11a)
17dBm @6 ~ 36Mbps
16 dBm @48Mbps
15 dBm @54Mbps

5.26~5.35GHz(IEEE802.11a)
20dBm @6 ~ 24Mbps
18dBm @36Mbps
16 dBm @48Mbps
15 dBm @54Mbps

5.745~5.85GHz (IEEE802.11a)
18dBm @6 ~ 24Mbps
16dBm @36Mbps
14 dBm @48Mbps
13 dBm @54Mbps

2.412~2.472G(IEEE802.11g)
26dBm @6 ~ 24Mbps
23dBm @36Mbps
22 dBm @48Mbps
21 dBm @54Mbps

2.412~2.472G(IEEE802.11b)
Up to 26 dBm. @1, 2, 5.5 and 11Mbps
Receiver Sensitivity 5.15~5.85G(IEEE802.11a)
6Mbps@ -88dBm;
54Mbps@ -70dBm

2.412~2.472G(IEEE802.11g)
6Mbps@ -91dBm;
54Mbps@ -74dBm

2.412~2.472G(IEEE802.11b)
11Mbps@ -90dBm
1Mbps@ -95dBm
Modulation DBPSK @ 1Mbps
DQPSK @2Mbps
CCK @ 5.5 & 11Mbps
BPSK @ 6 and 9 Mbps
QPSK @ 12 and 18 Mbps
16-QAM @ 24 and 36 Mbps
64-QAM @ 48 and 54 Mbps

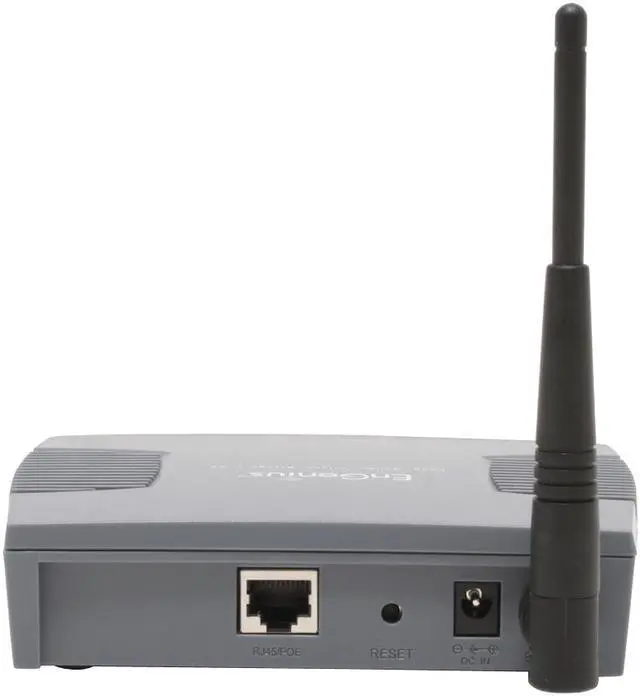

Interface Ethernet Port
WAN Ports 1 x 10/100M
Features
Features High Output Power up to 26 dBm in 11b/g
Point-to-point, Point-to-multipoint Wireless Connectivity
Hide SSID (AP Mode)
DHCP Client/ Server
WDS (Wireless Distributed System)
MAC address filtering (AP Mode)
SNMP/Telnet Remote Configuration Management
Power-over-Ethernet (IEEE802.3af)
Environmental
Temperature -10°C - 50°C (14°F - 132°F)
Humidity 5% - 95%, Non-Condensing
Packaging

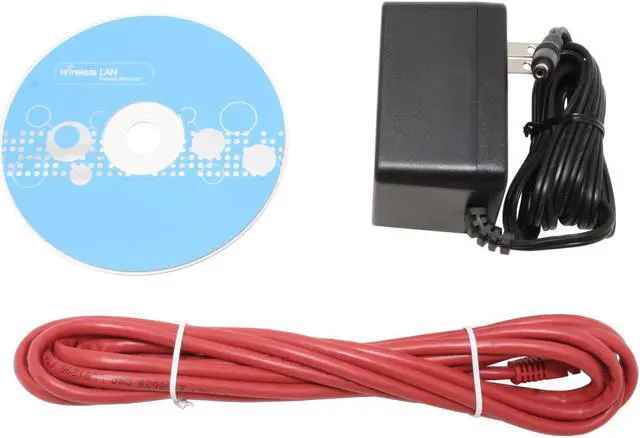

Package Contents ECB-8610
Resource Disk
RJ45 Cable
Power Adapter
Additional Information
First Listed on Newegg March 01, 2007

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 1 year
  • Limited Warranty period (labor): 1 year
