Will this create a second network in my home? My house is mostly brick and I'd like two for good, even coverage, but I don't want two networks (SSID's x 2). I have that situation now and am looking to change that.

It supports WDS so it can act as part of a mesh network with your current wireless unit. You would get passed off between the APs if you were roaming around the house. But it will need to be in a spot that gets good coverage from your main AP (so like halfway between where you want to be and your current router).

Is the Wi-Fi dual Switched or Dual Concurrent ?

It is dual Concurrent. Meaning there are two separate radios, one at 2.4GHz and one at 5GHz which can be used at the same time.

What is the maximum number of simultaneous client connections?

no idea. thats a question for the mfg.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list

Sold by Newegg

Shipped by Newegg

More Resources

EnGenius;ECB1200;ECB1200 - EnGenius Technologies, Inc.

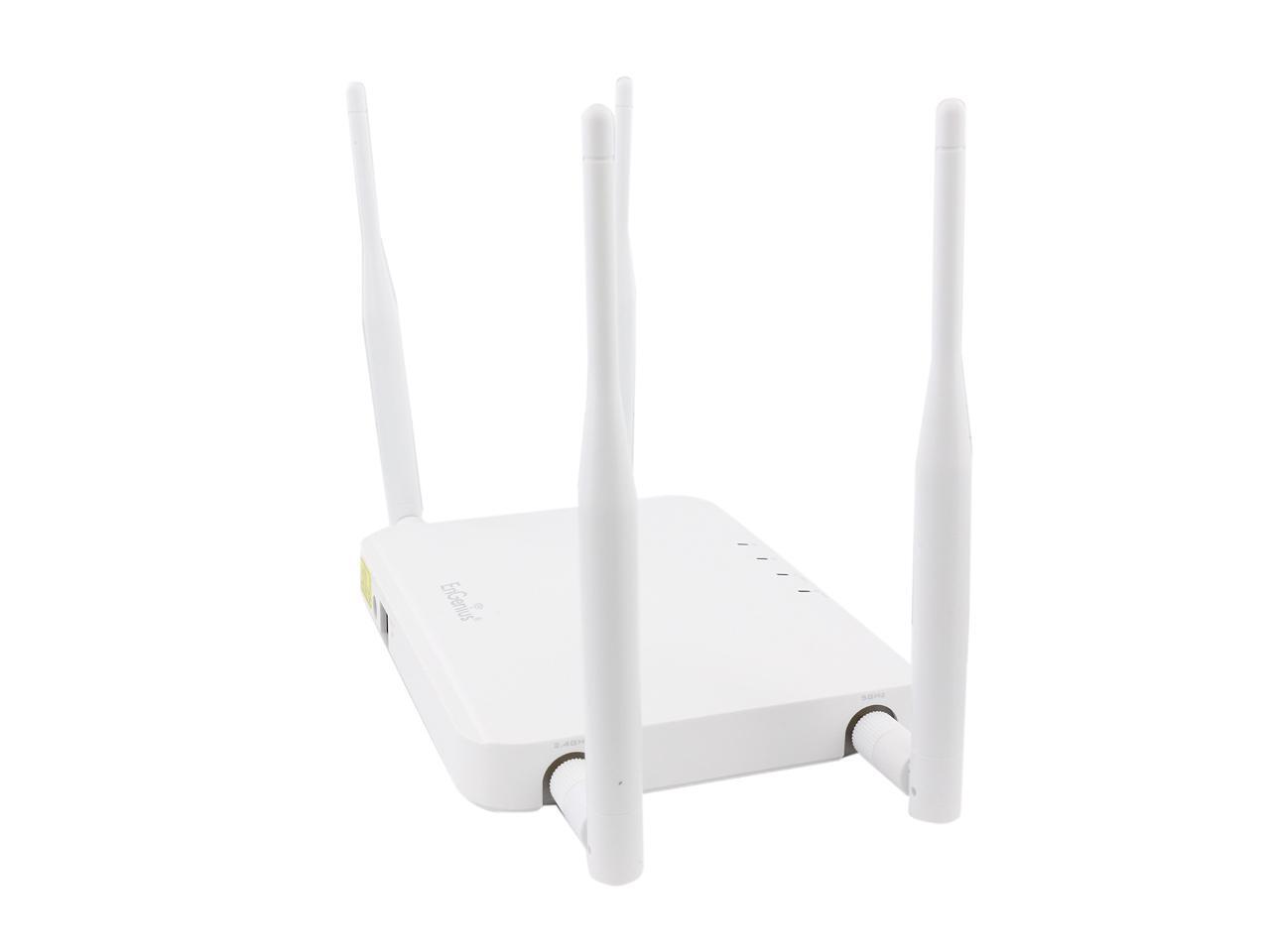

Main image of EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

100%

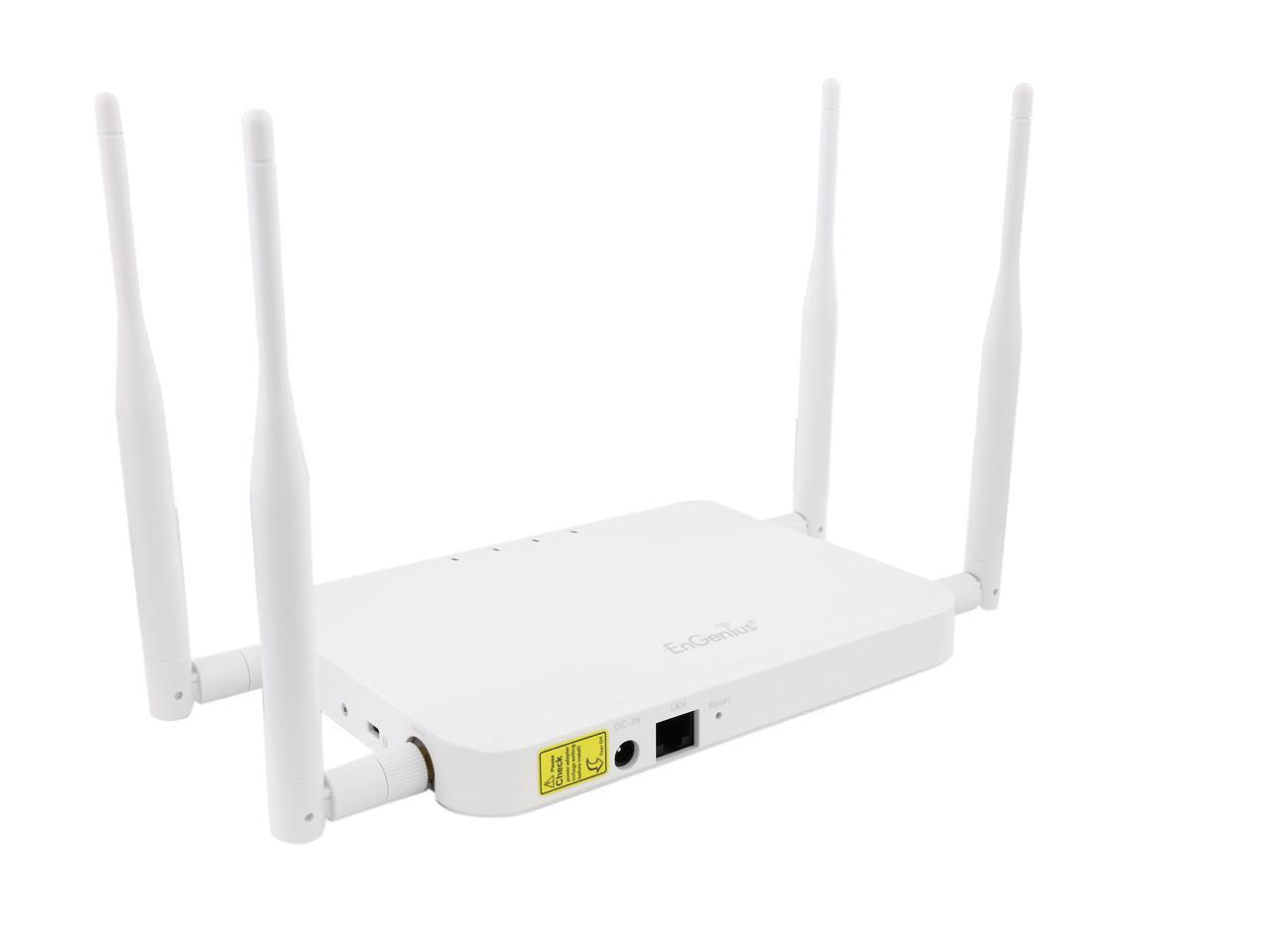

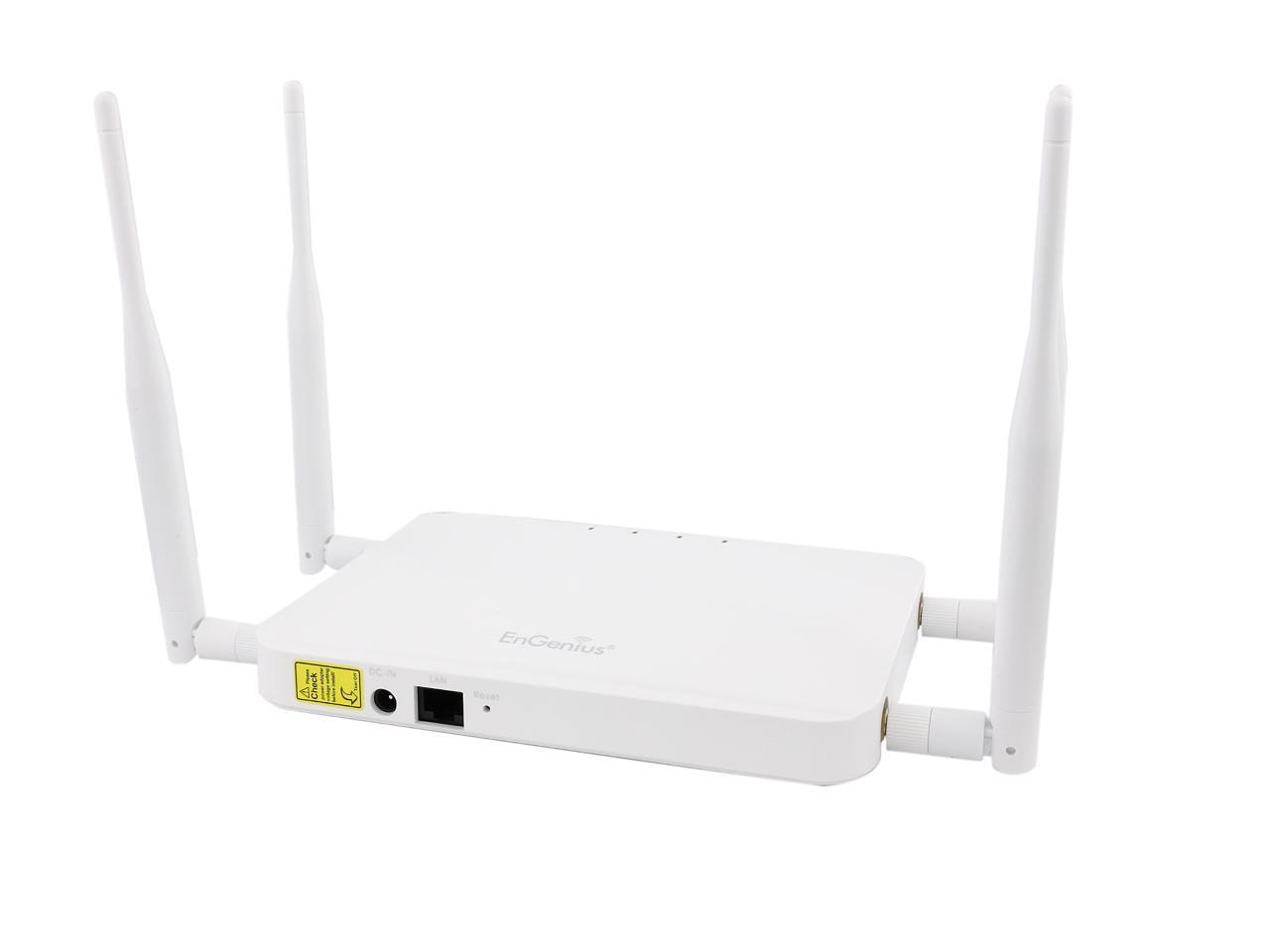

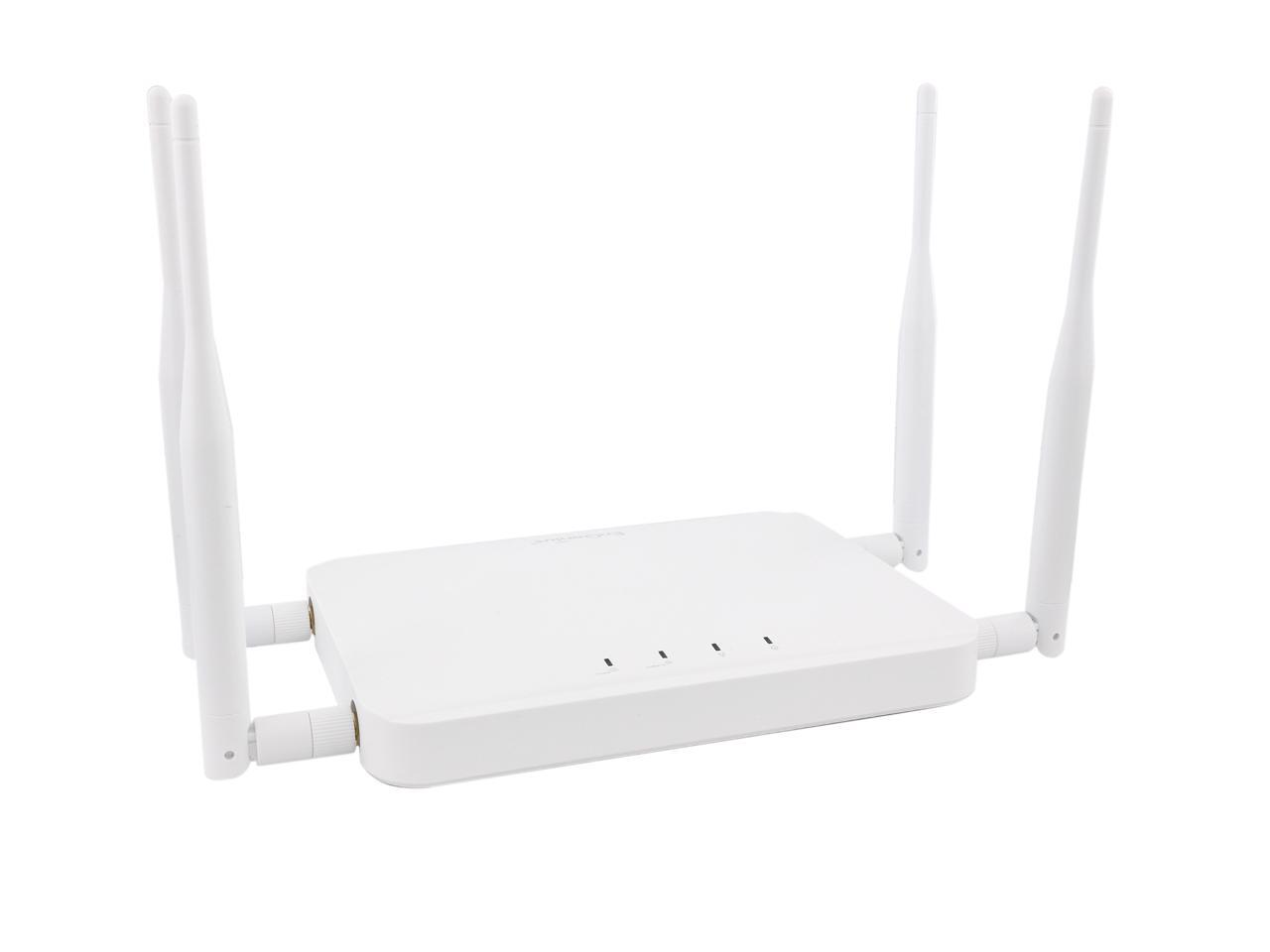

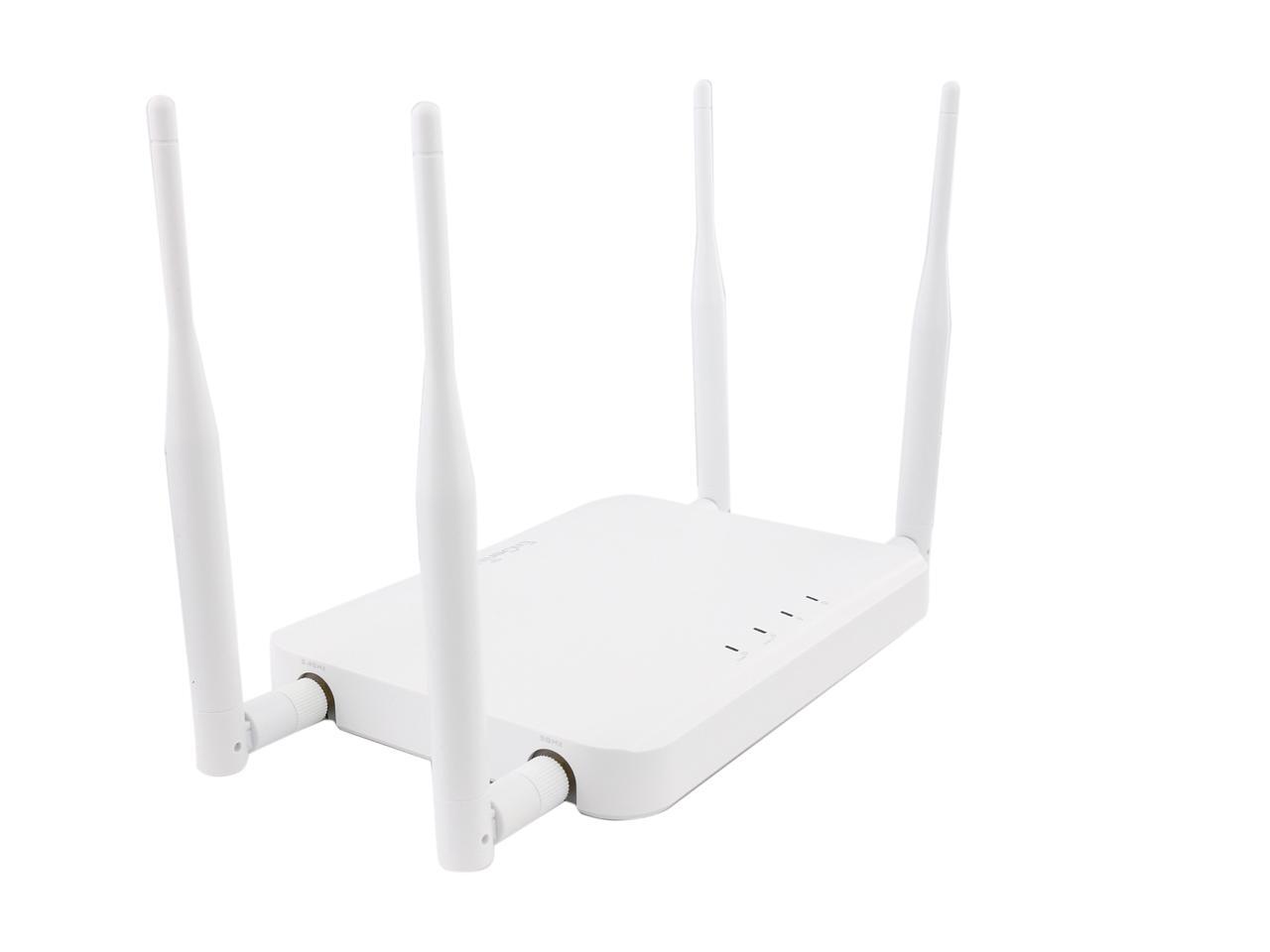

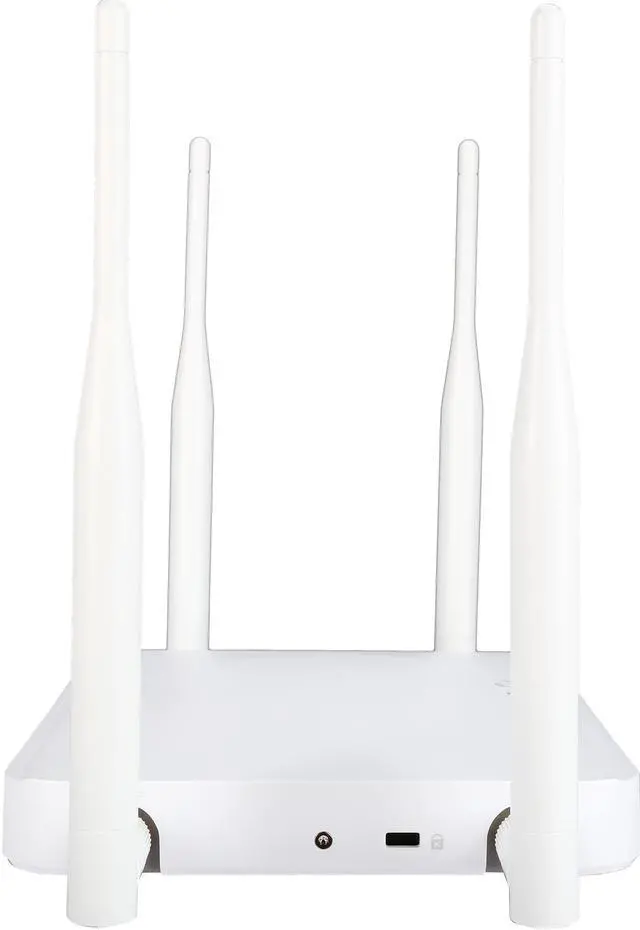

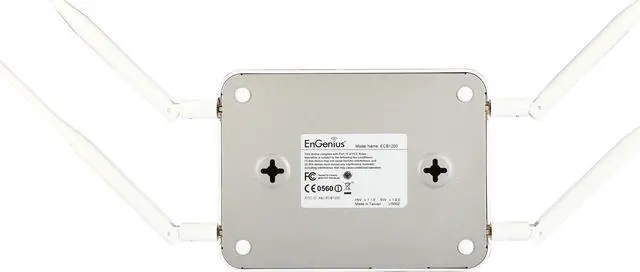

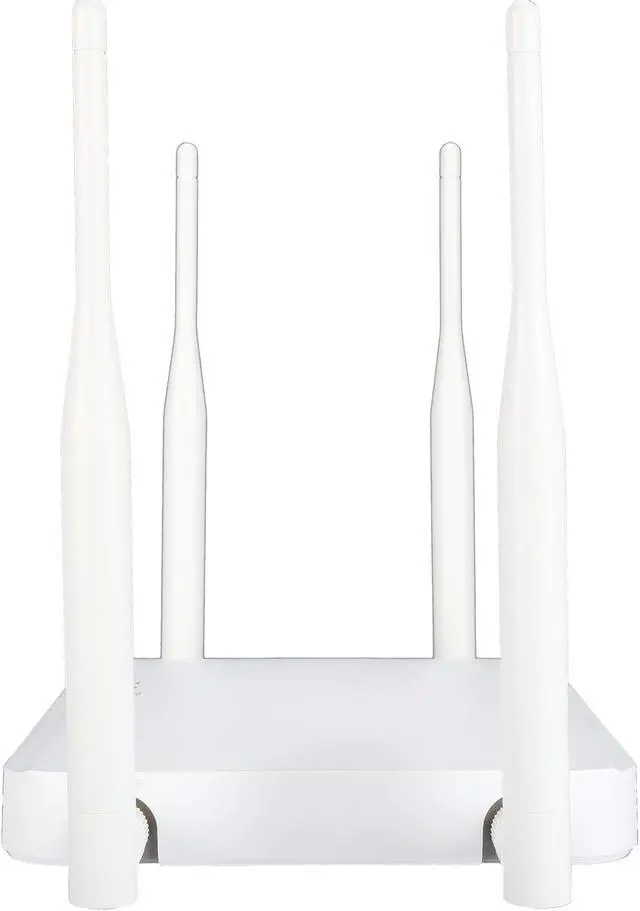

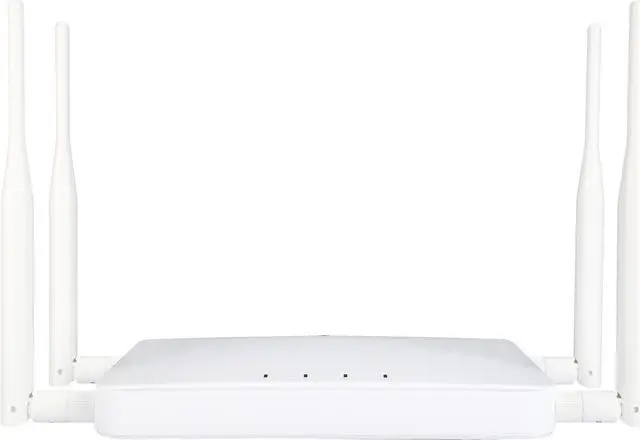

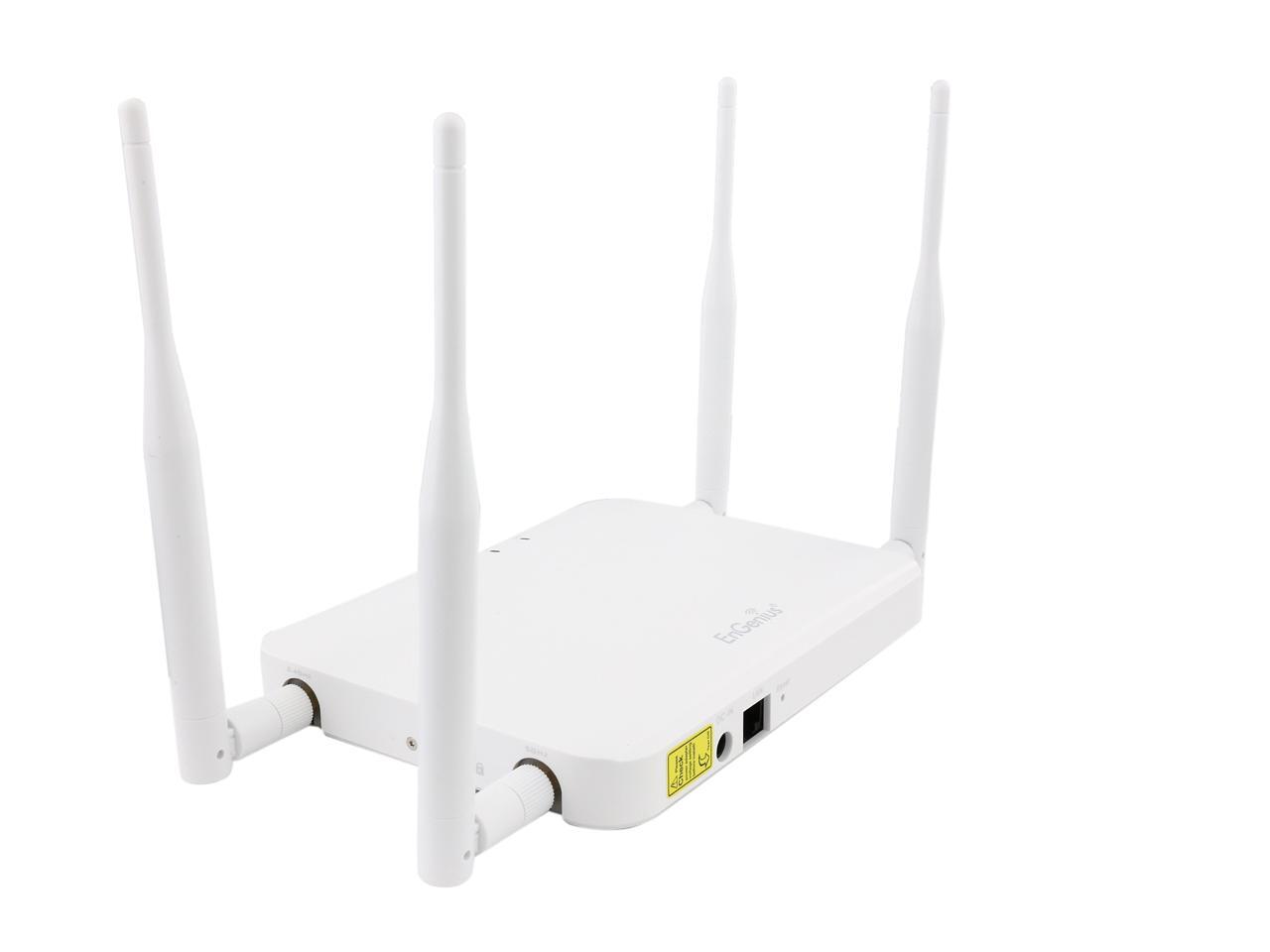

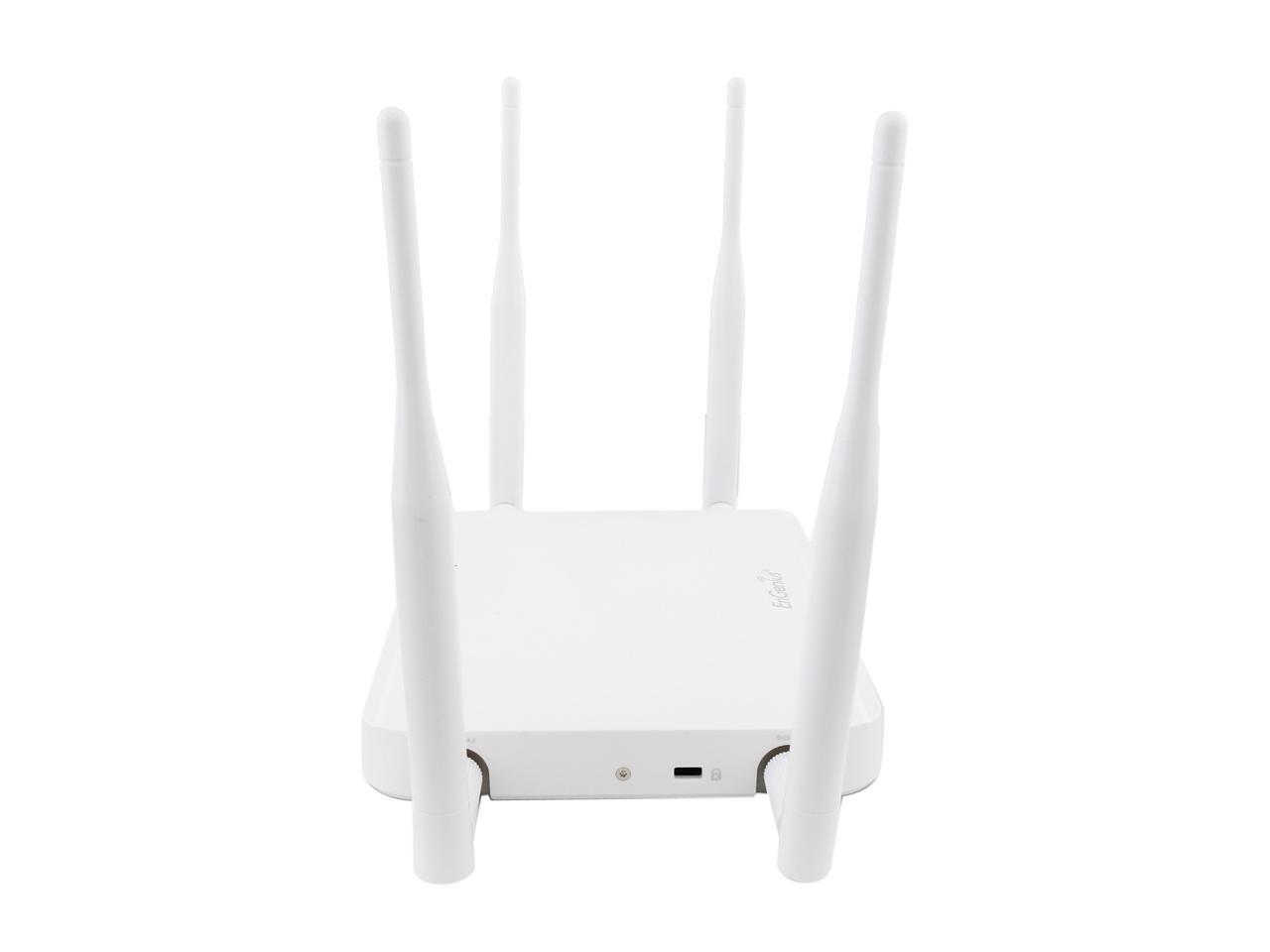

Alt view image 2 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

Alt view image 3 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

Alt view image 4 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

Alt view image 5 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

Alt view image 6 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

Alt view image 7 of 7 - EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

360^°

Shop All EnGenius Technologies Products

EnGenius ECB1200 2x2 802.11ac Desktop Dual Band AC1200 High-powered Long-range Wireless Indoor Access Point/Client Bridge

(5) Write a Review

11ac Speeds to 867 Mbps on 5 GHz
11n Speeds to 300 Mbps on 2.4 GHz
26 dBm High-Powered, Long-Range Coverage
802.3 at PoE support extends power to unwired areas
High-Gain External / Detachable Antennas
Gigabit Ethernet Port

Overview

Specs

Reviews (5)

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	EnGenius
Model	ECB1200

Details
Standards	IEEE 802.11a/n/ac on 5 GHz IEEE 802.11b/g/n on 2.4 GHz IEEE 802.3at
Wireless Data Rates	2.4 GHz: Max 300 (Mbps) 5 GHz: Max 867 (Mbps)
Security	WEP Encryption (64 / 128 / 152-bit) WPA / WPA2 Personal (WPA-PSK using TKIP or AES) WPA / WPA2 Enterprise (WPA-PSK using TKIP) 802.1x Authenticator Hide SSID in Beacons Client Isolation L2 Isolation (AP Mode) MAC Address Filtering, Up to 50 Fields
Frequency Band	2.4 GHz / 5 GHz
Antenna	4 External Antennas (2) Detachable 5 dBi 2.4 GHz Omni-Directional Antennas (2) Detachable 5 dBi 5 GHz Omni-Directional Antennas
Transmitted Power	2.4 GHz up to 26 dBm 5 GHz up to 26 dBm
Modulation	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Interface	1 x 10/100/1000 Gigabit Ethernet Port with PoE support 1 x Reset Button 1 x Power Connector
LEDs	1 x Power 1 x LAN 1 1 x 2.4 GHz 1 x 5 GHz
Buttons	1 x Reset Button
Power Supply	DC Input: 12V DC / 2A PoE: Compatible with 802.3at

Environmental
Temperature	Operating: 32 degree F to 122 degree F (0 degree C to 50 degree C) Storage: -4 degree F to 140 degree F (-20 degree C to 60 degree C)
Humidity	Operating: 90% or less Storage: 90% or less

Dimensions & Weight
Dimensions	1.02" x 5.51" x 7.44"
Weight	2.80 lbs.

Features
Features	Dual-Band 11ac Speeds to 866 Mbps on 5 GHz; to 300 Mbps on 2.4 GHz Strong 29dBm Transmit Power Ensures Greater Range & Multi-Floor Penetration 4 Far-Reaching, Detachable 5dBi Omni-Directional Antennas; 2 Per Band PoE-Compliant Port Offers More Deployment & Power Options Flexible Mounting Options With Desk, Wall or Ceiling-Mount-Ready Holes Versatile, Operation Mode Support: AP, Client Bridge, WDS AP, WDS Station & WDS Bridge

Packaging

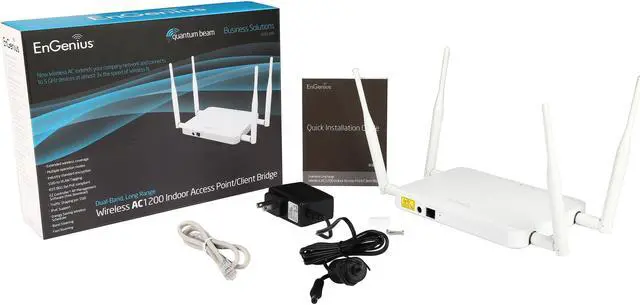

Package Contents	ECB1200 802.11ac 2x2 Dual Band Indoor Access Point / Client Bridge (2) Detachable 5 dBi 2.4 GHz Omni-directional Antennas (2) Detachable 5 dBi 5 GHz Omni-directional Antennas RJ-45 Cable Power Adapter (12V / 2A) Wall Mount Kit Quick Installation Guide

Additional Information
First Listed on Newegg	May 15, 2015
