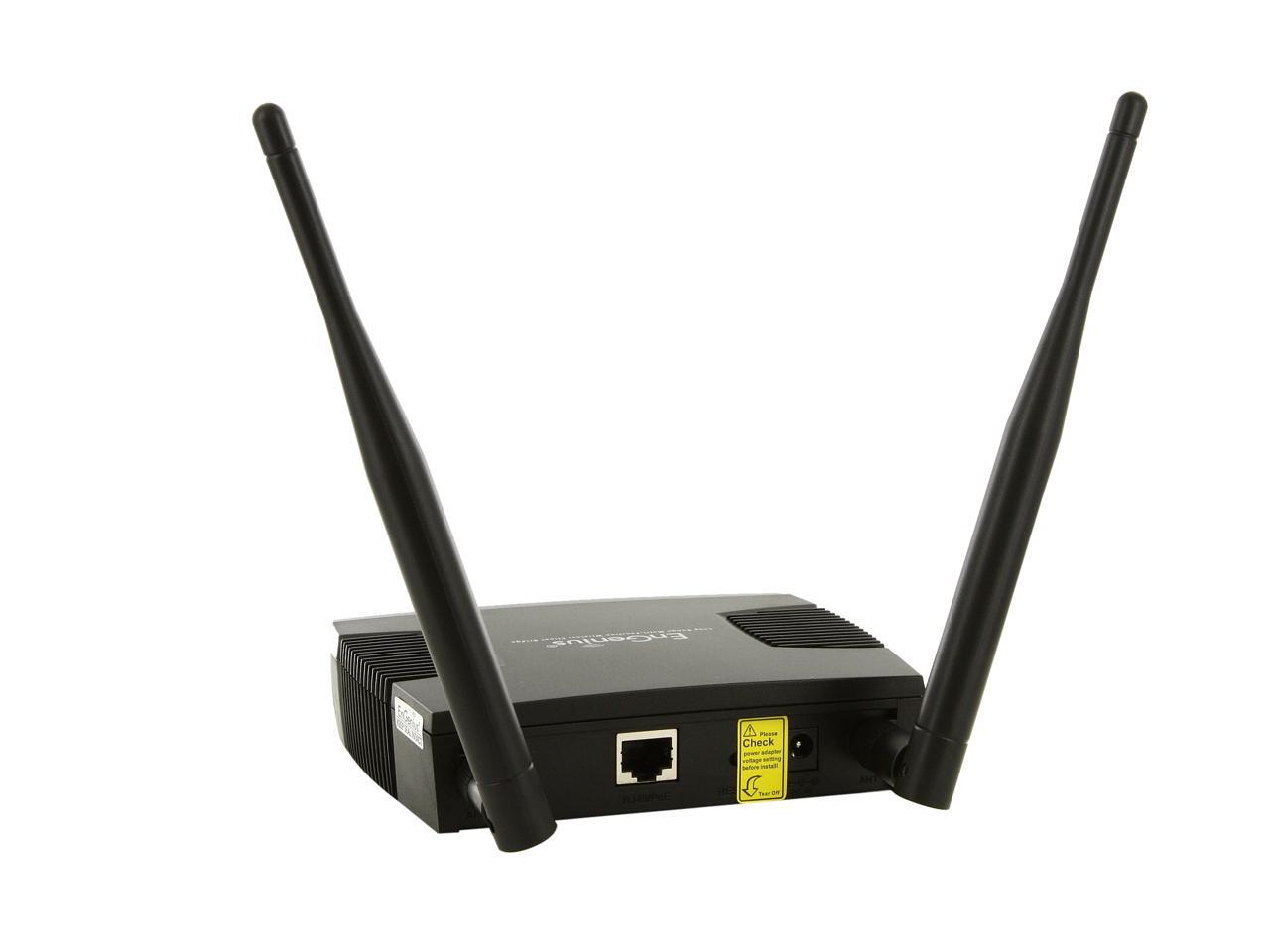

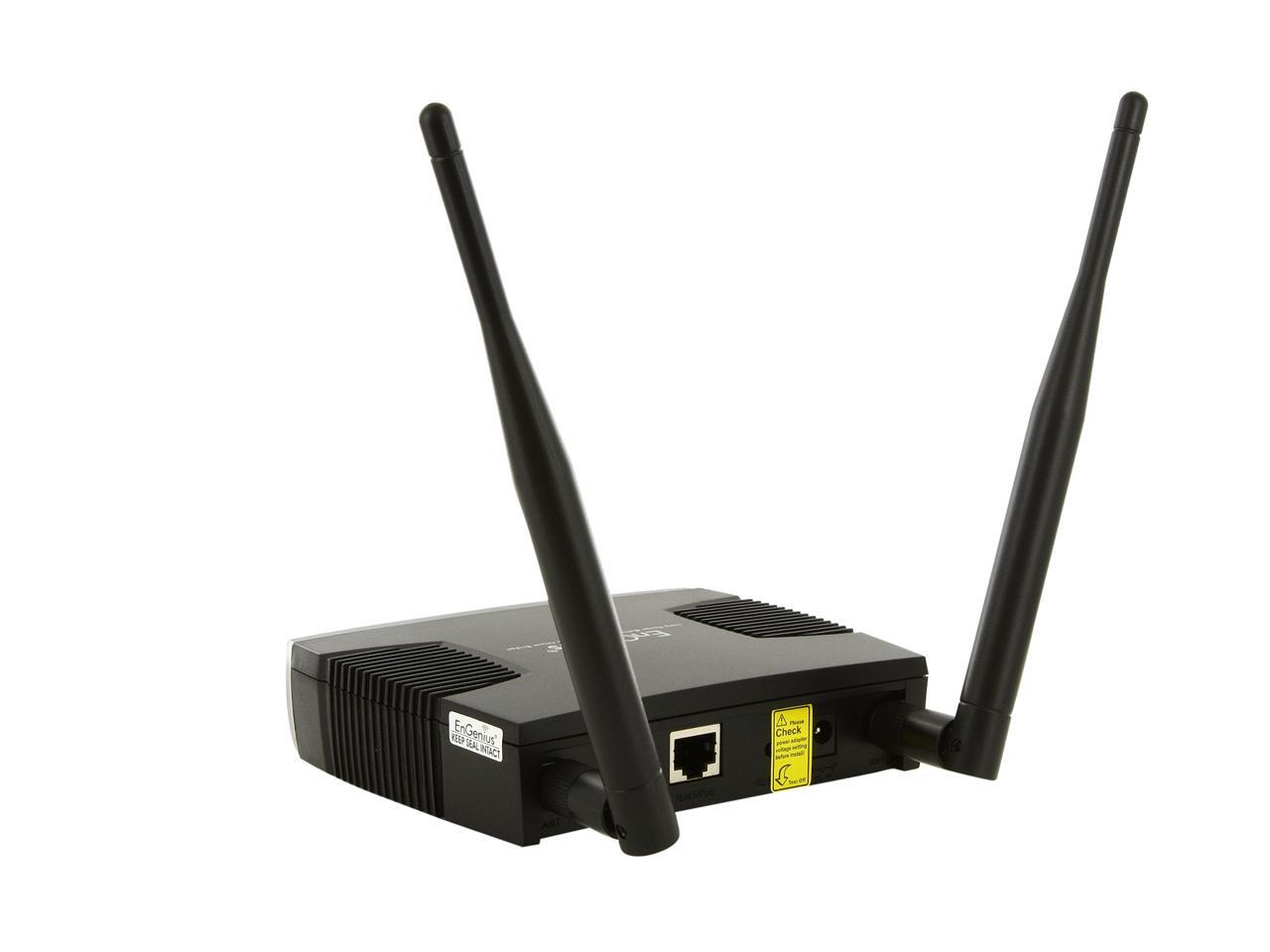

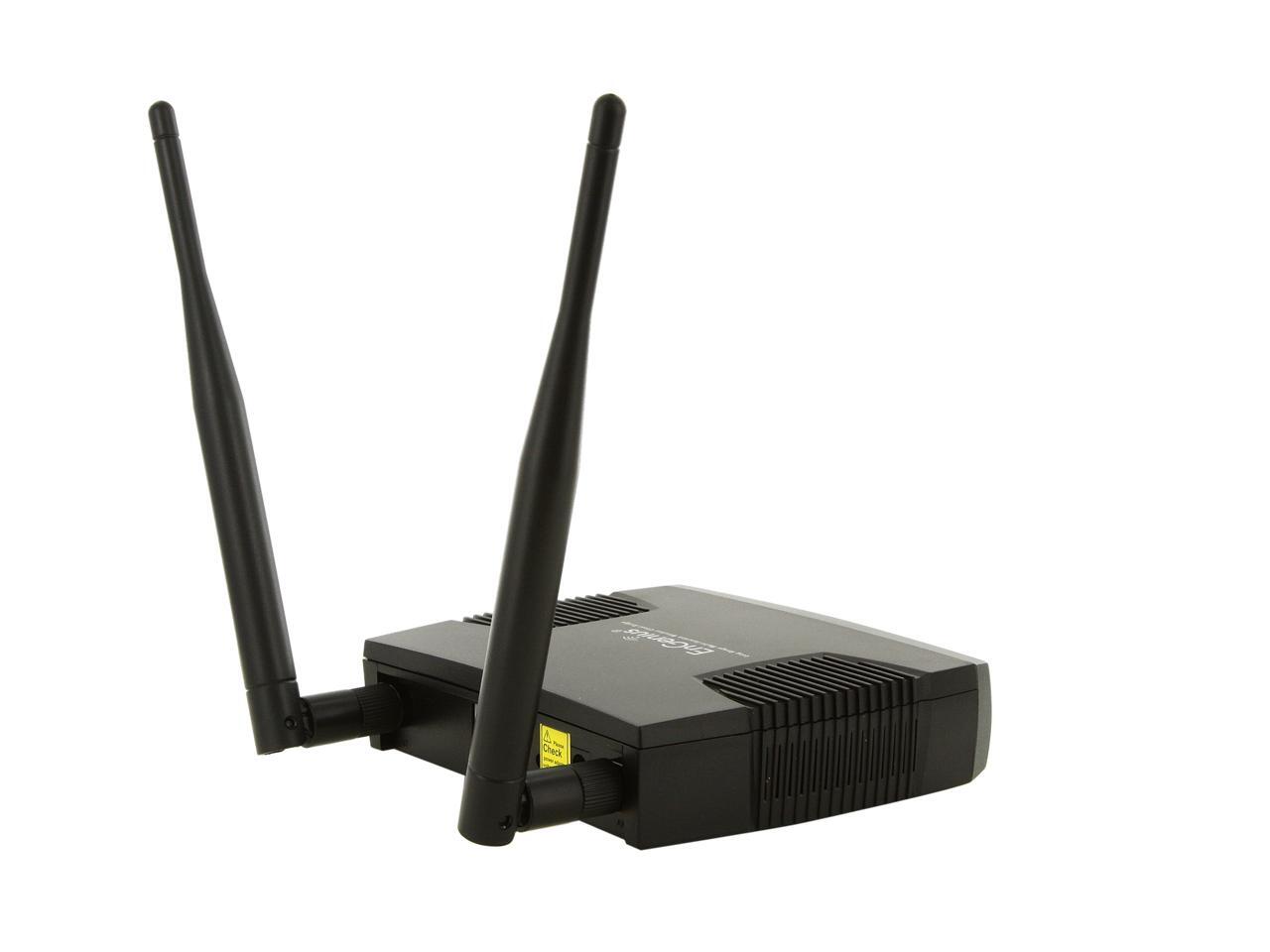

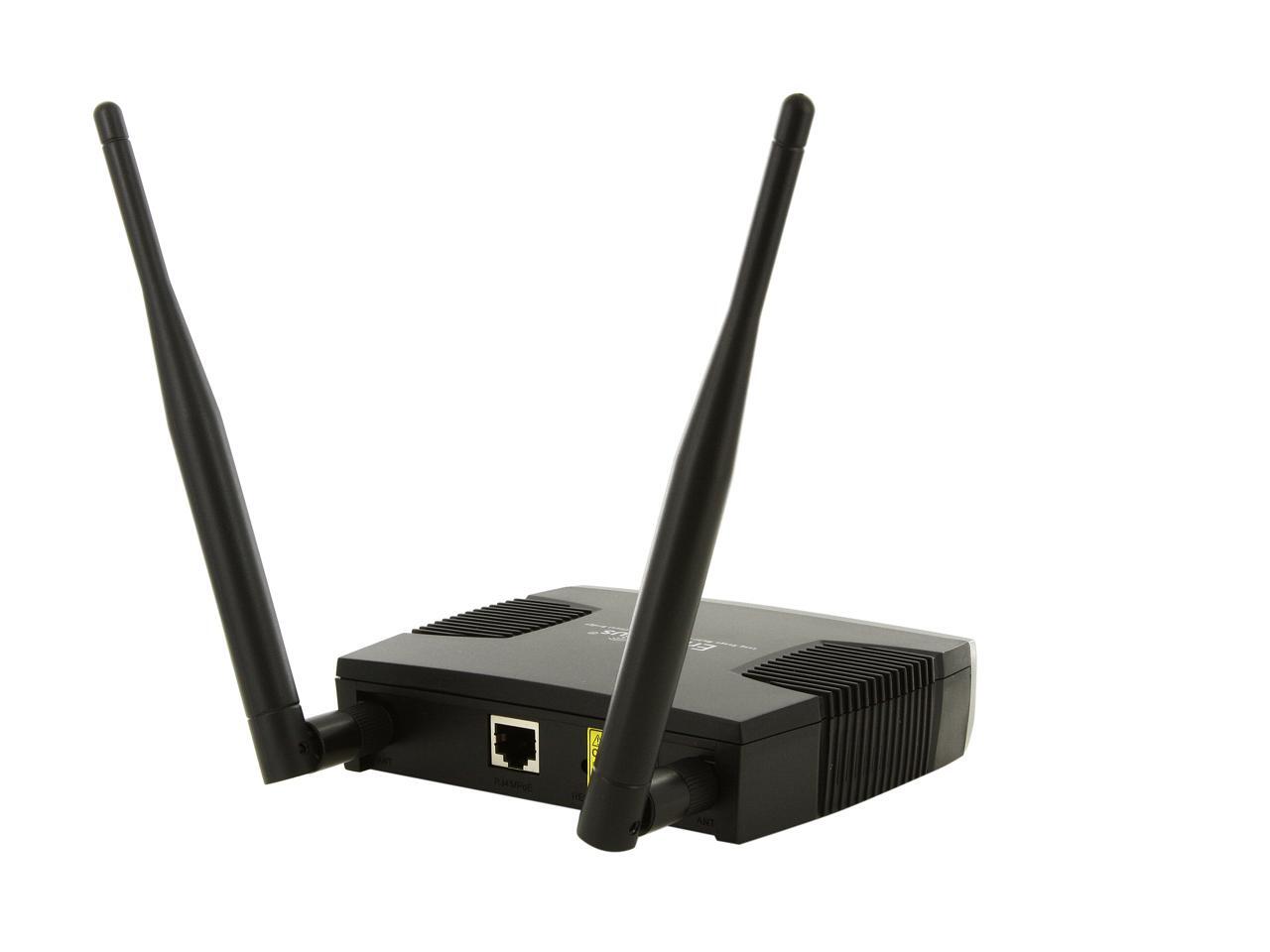

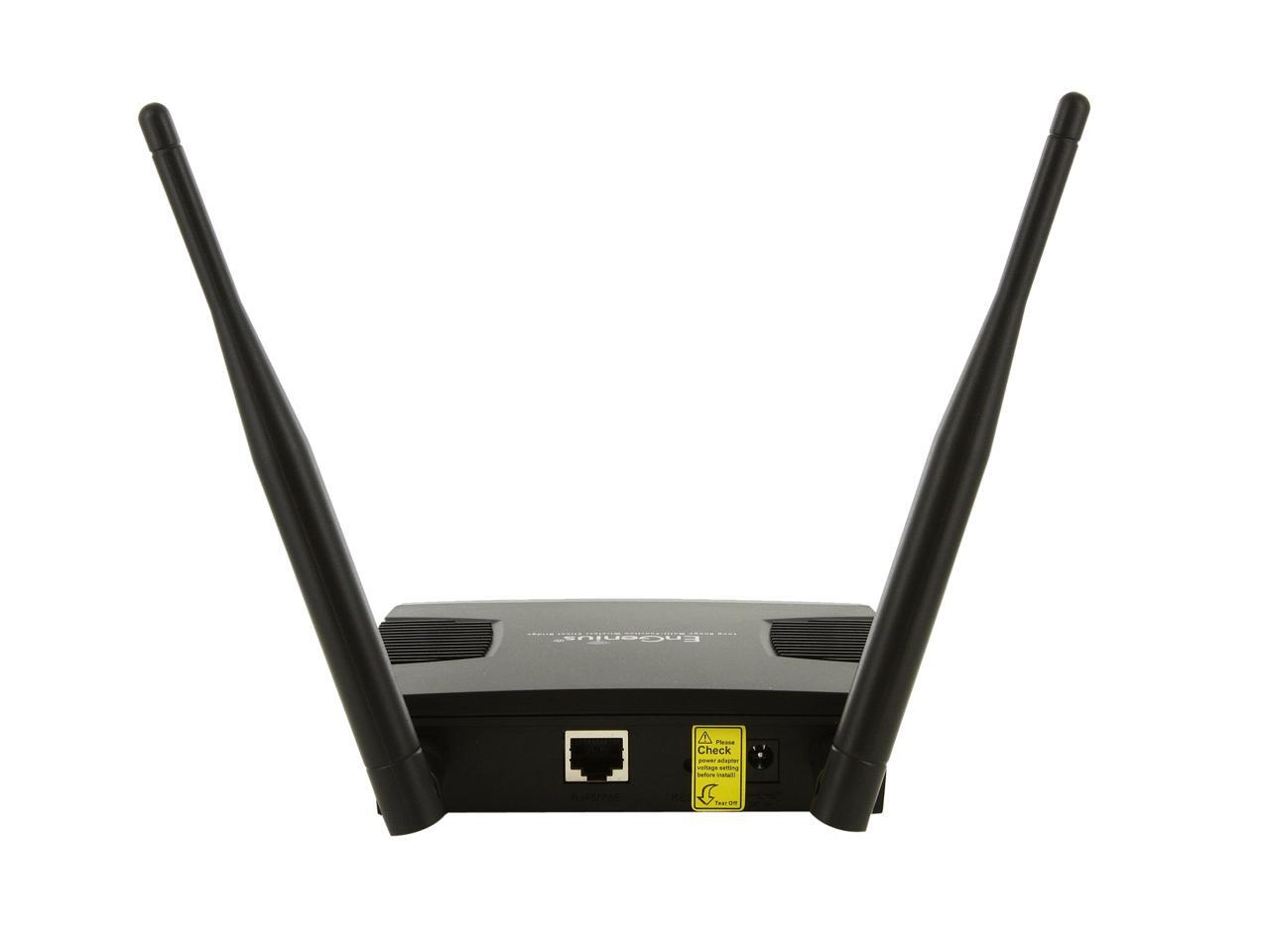

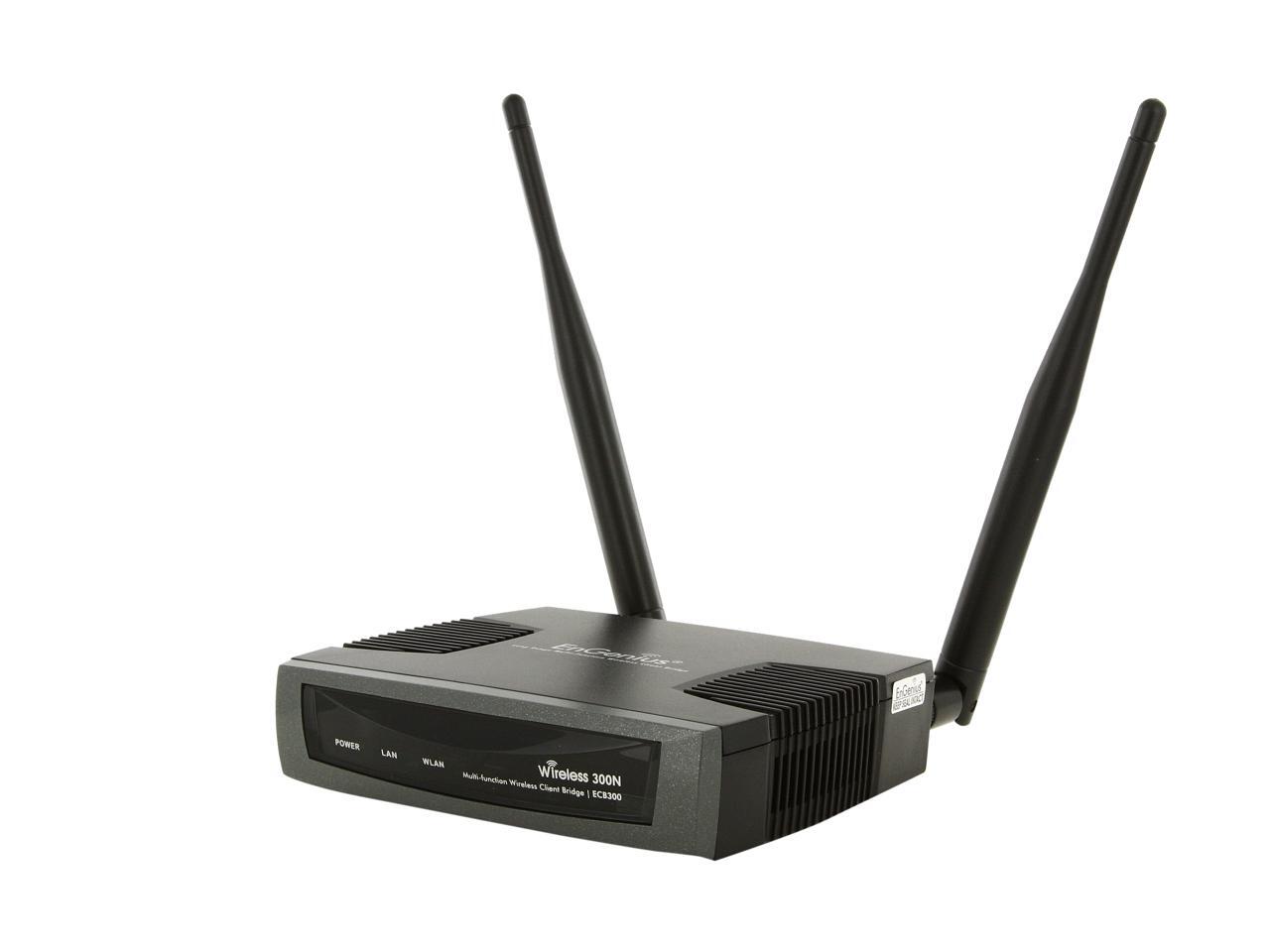

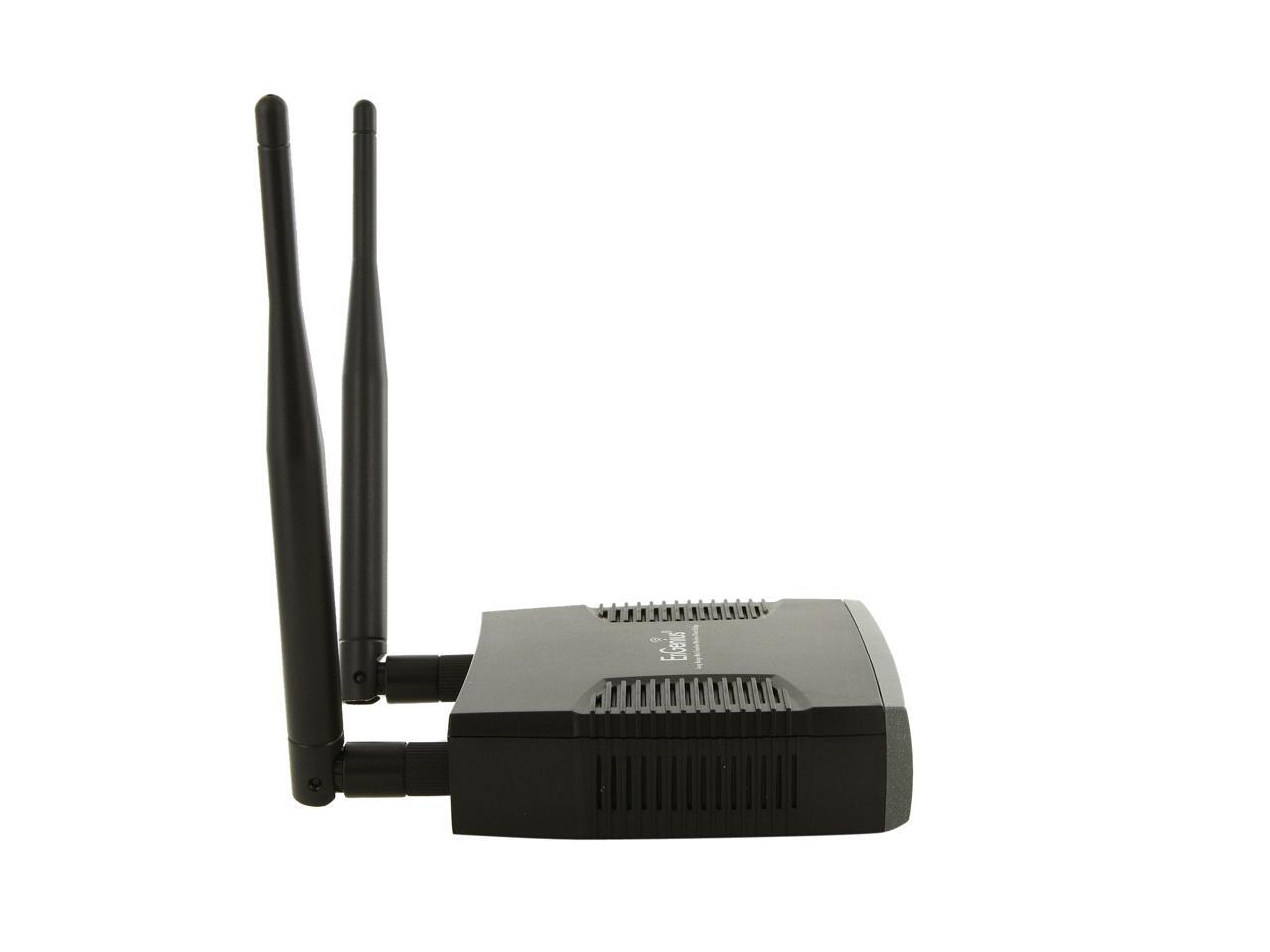

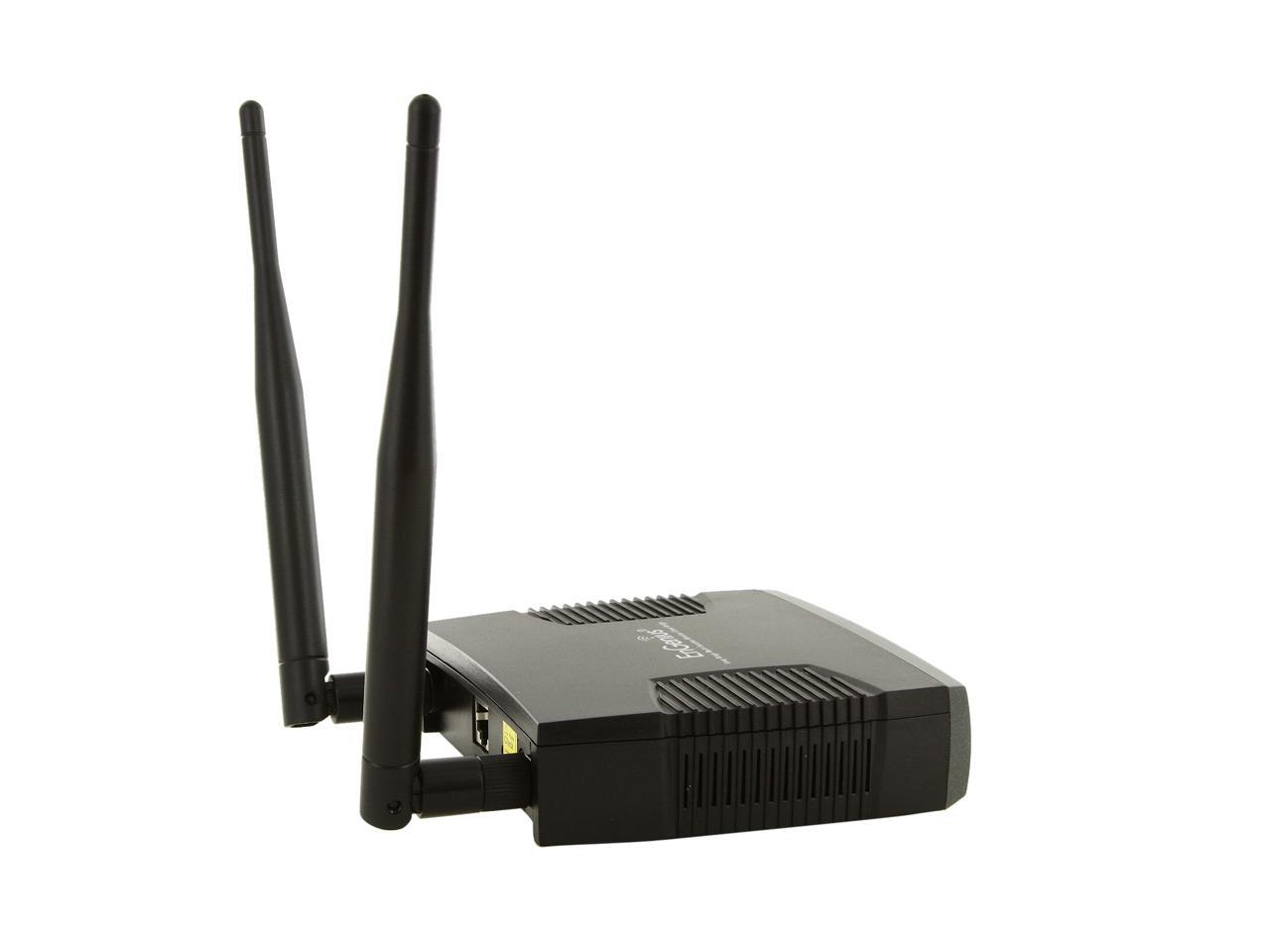

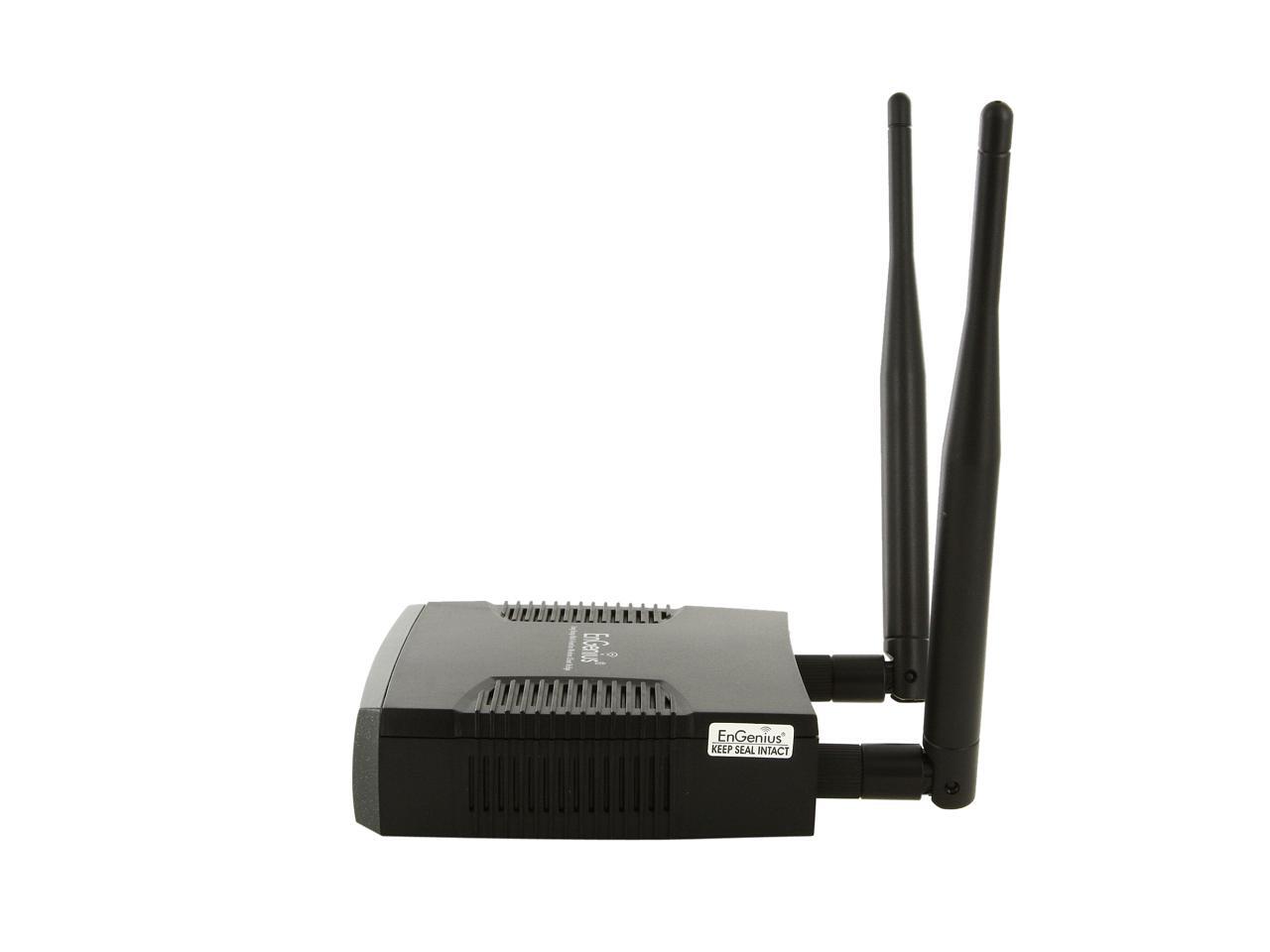

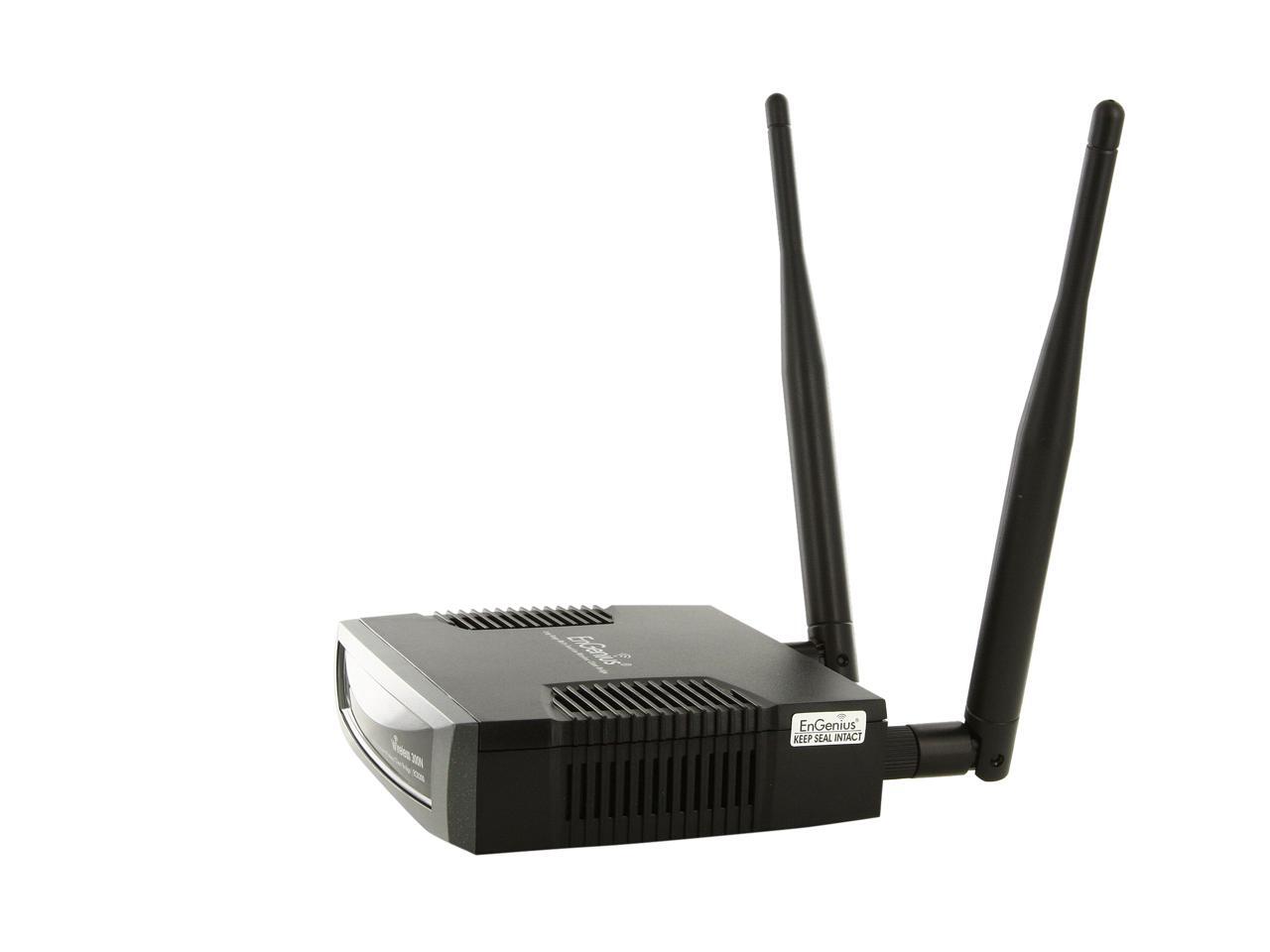

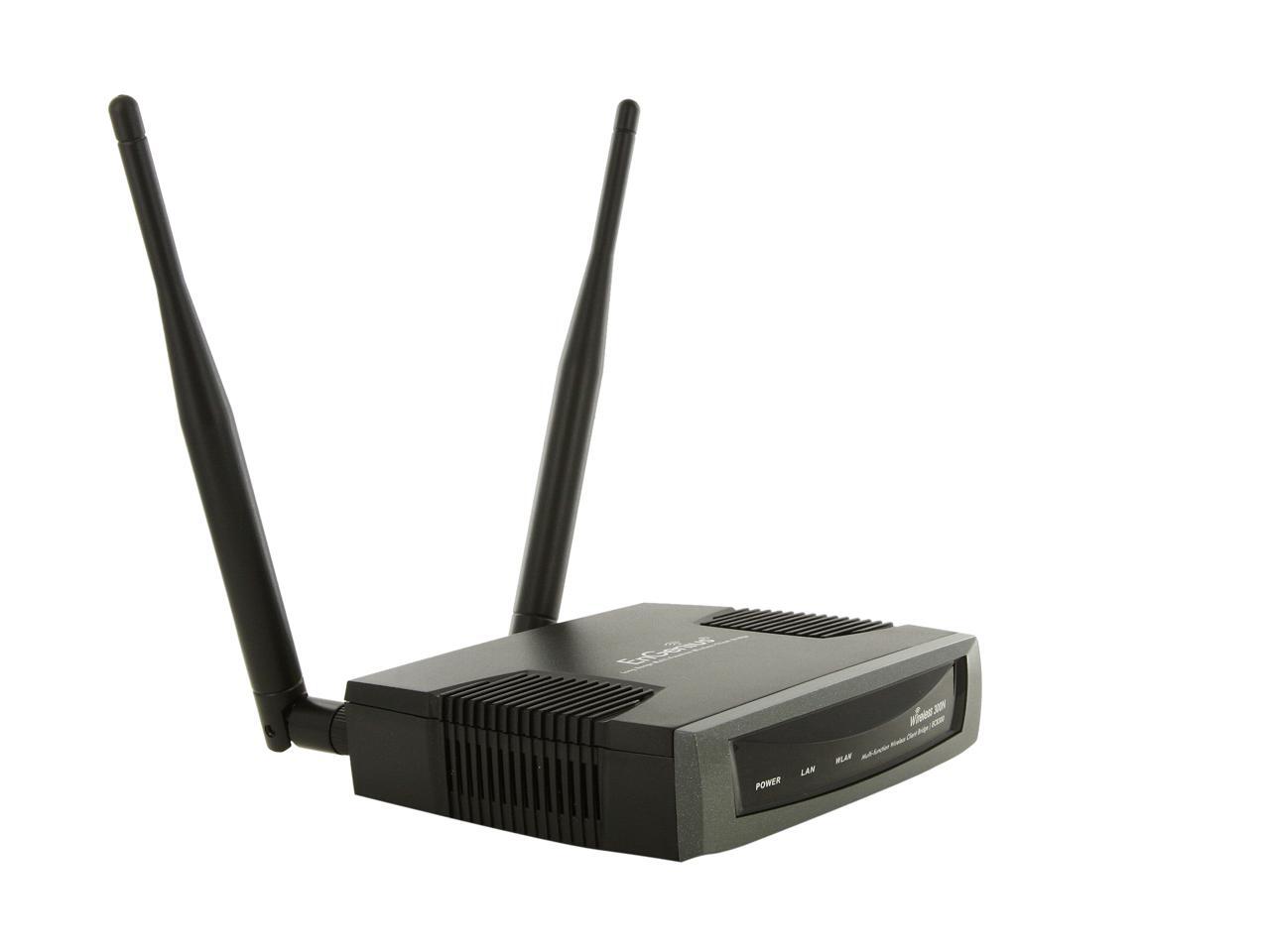

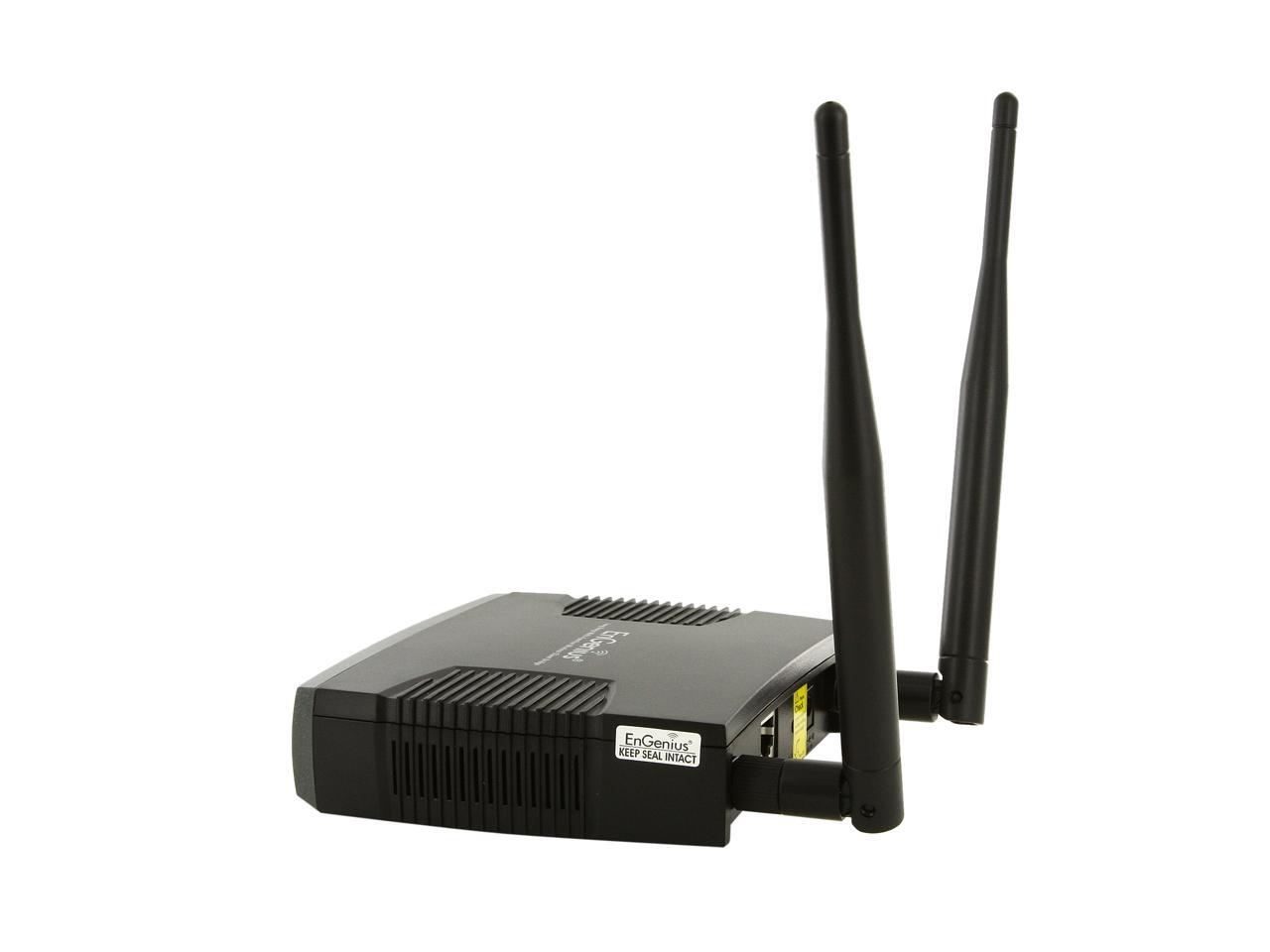

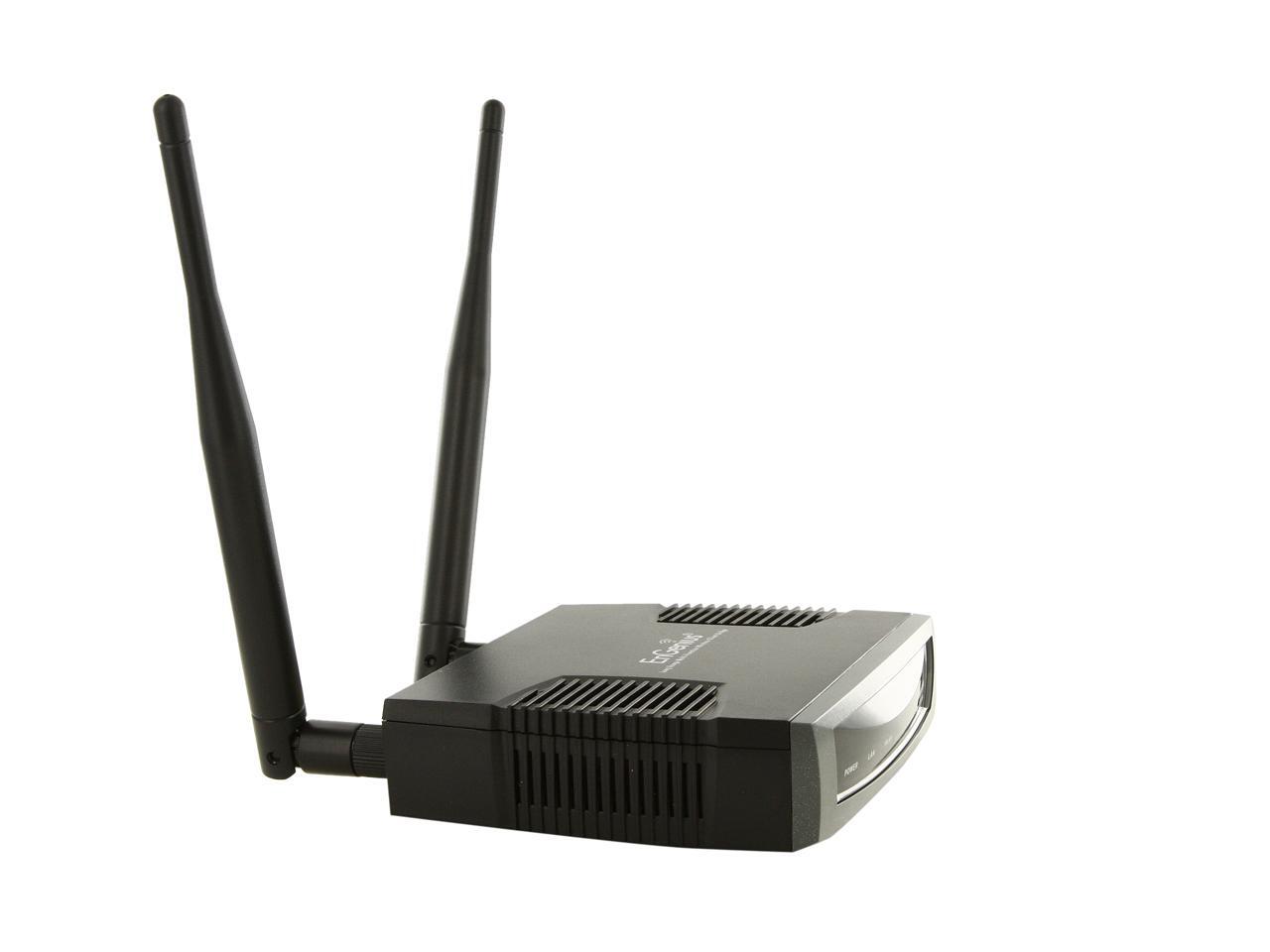

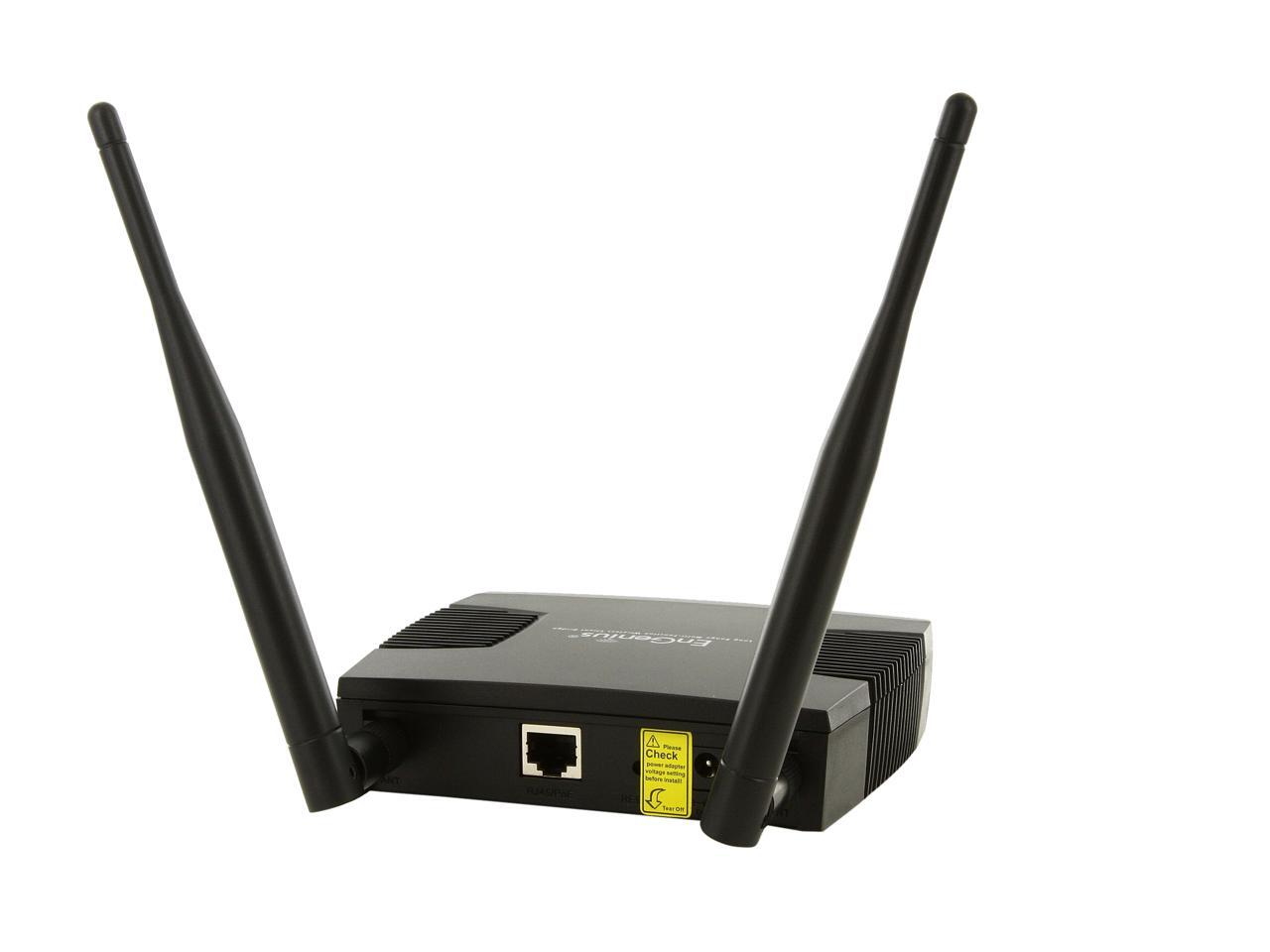

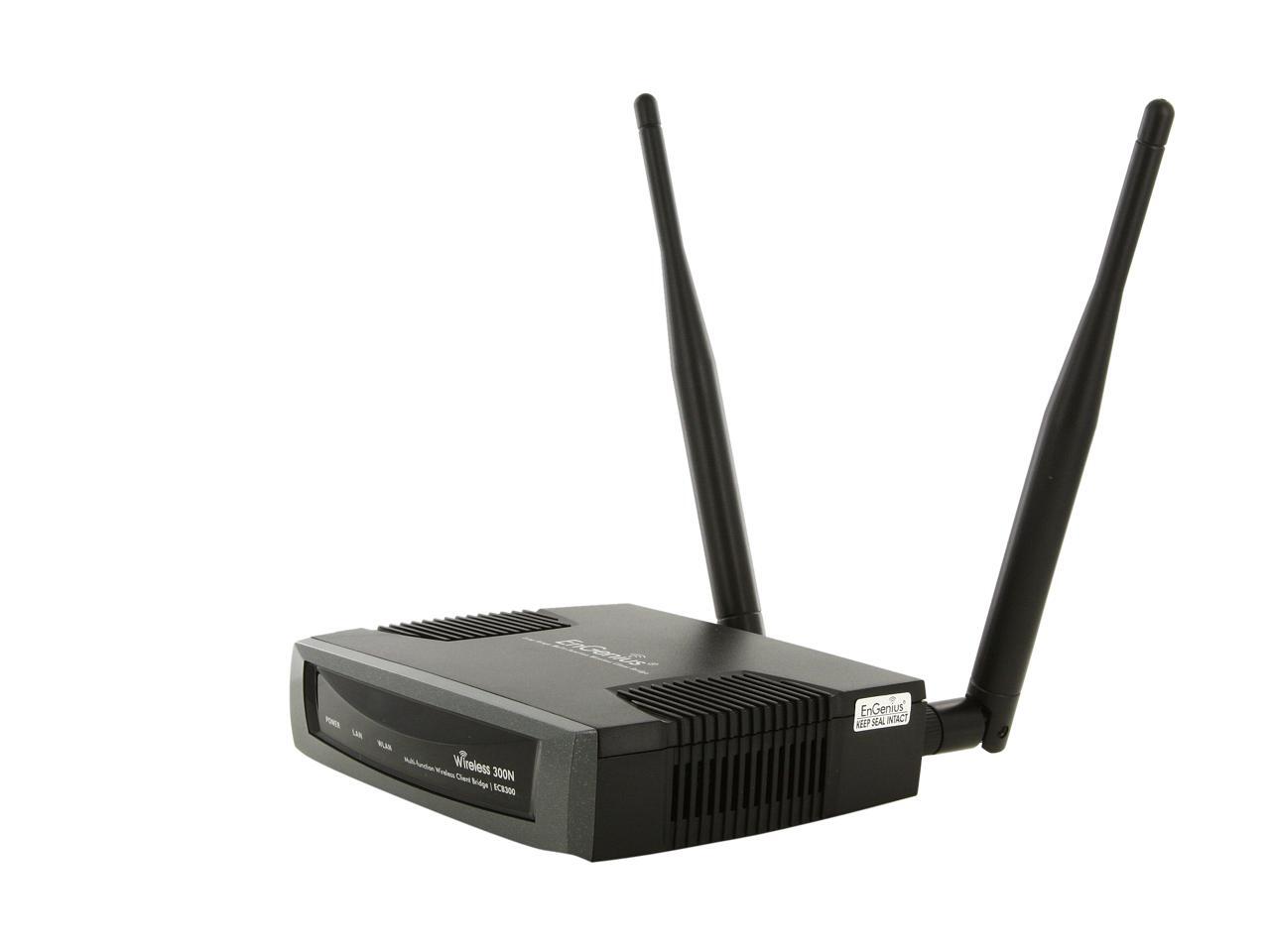

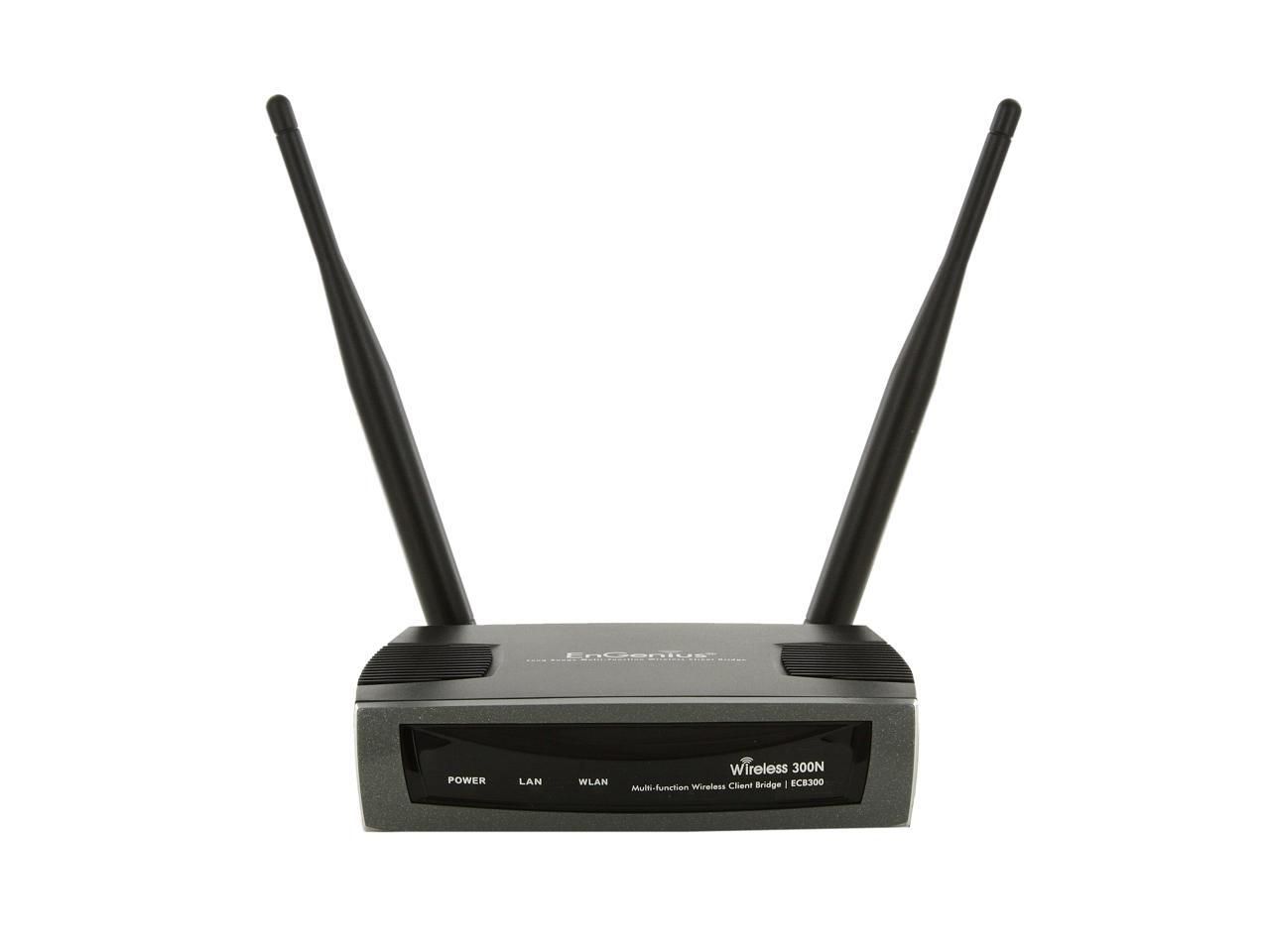

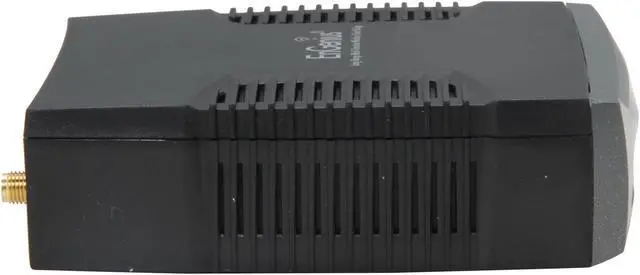

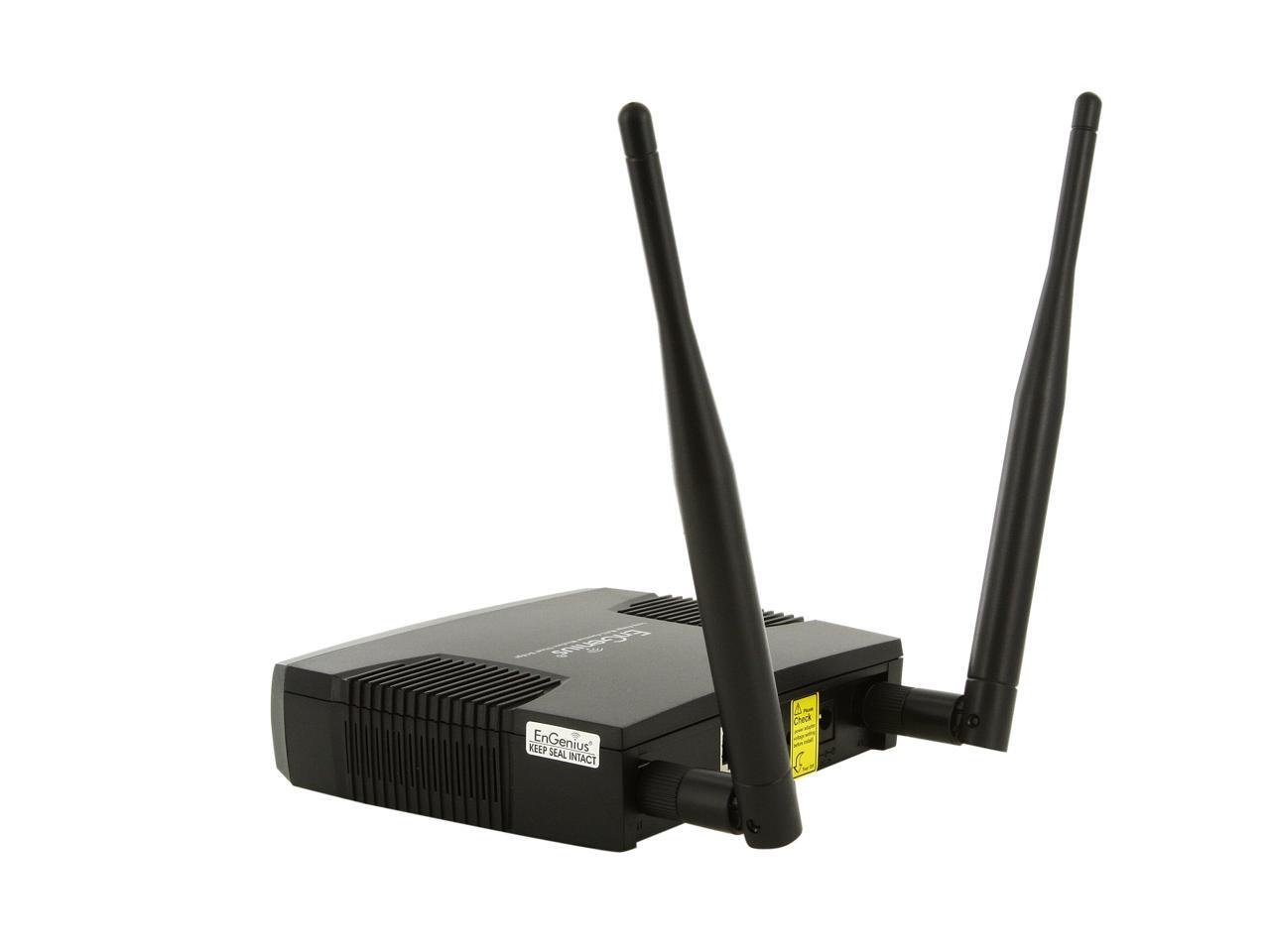

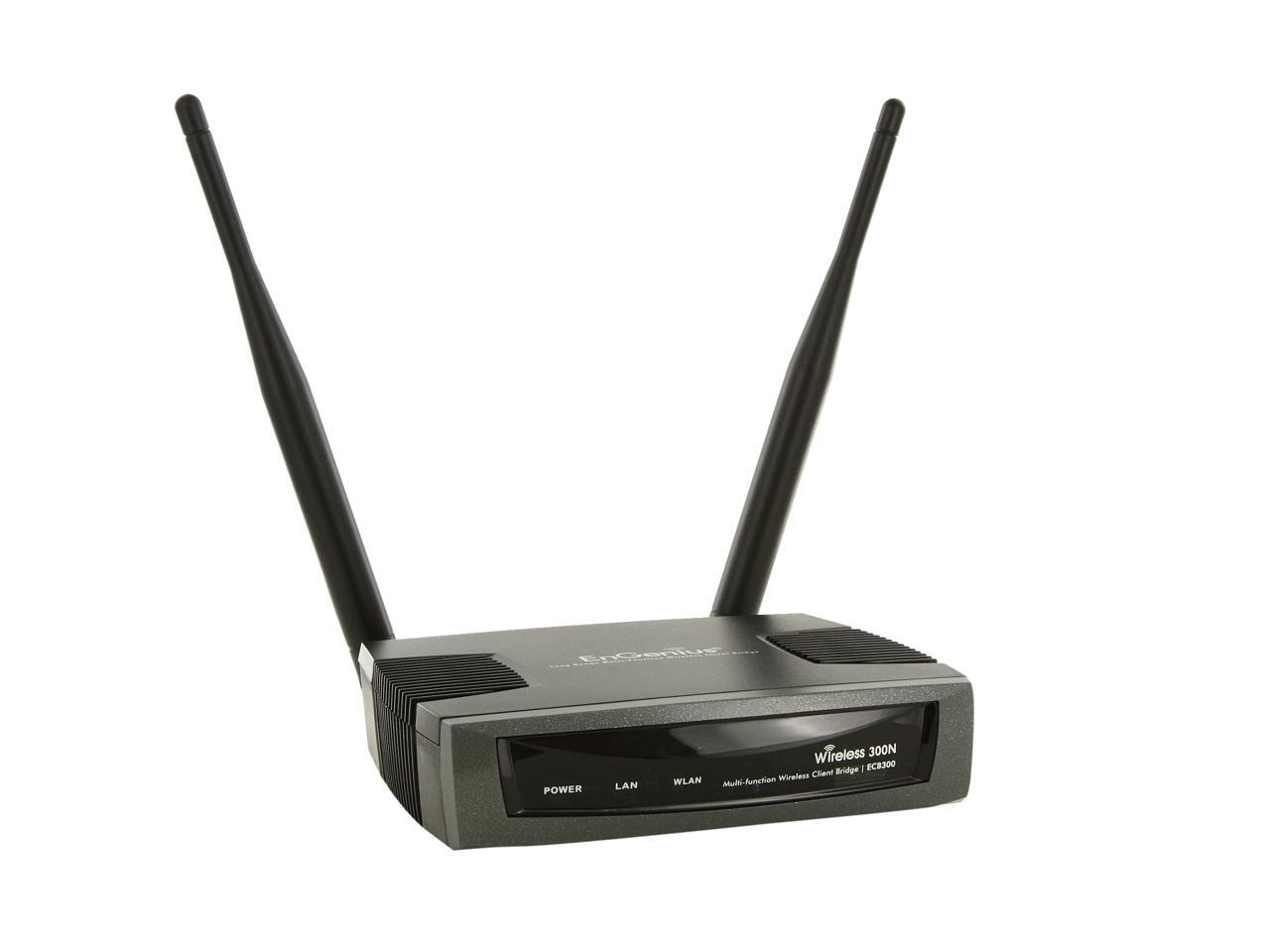

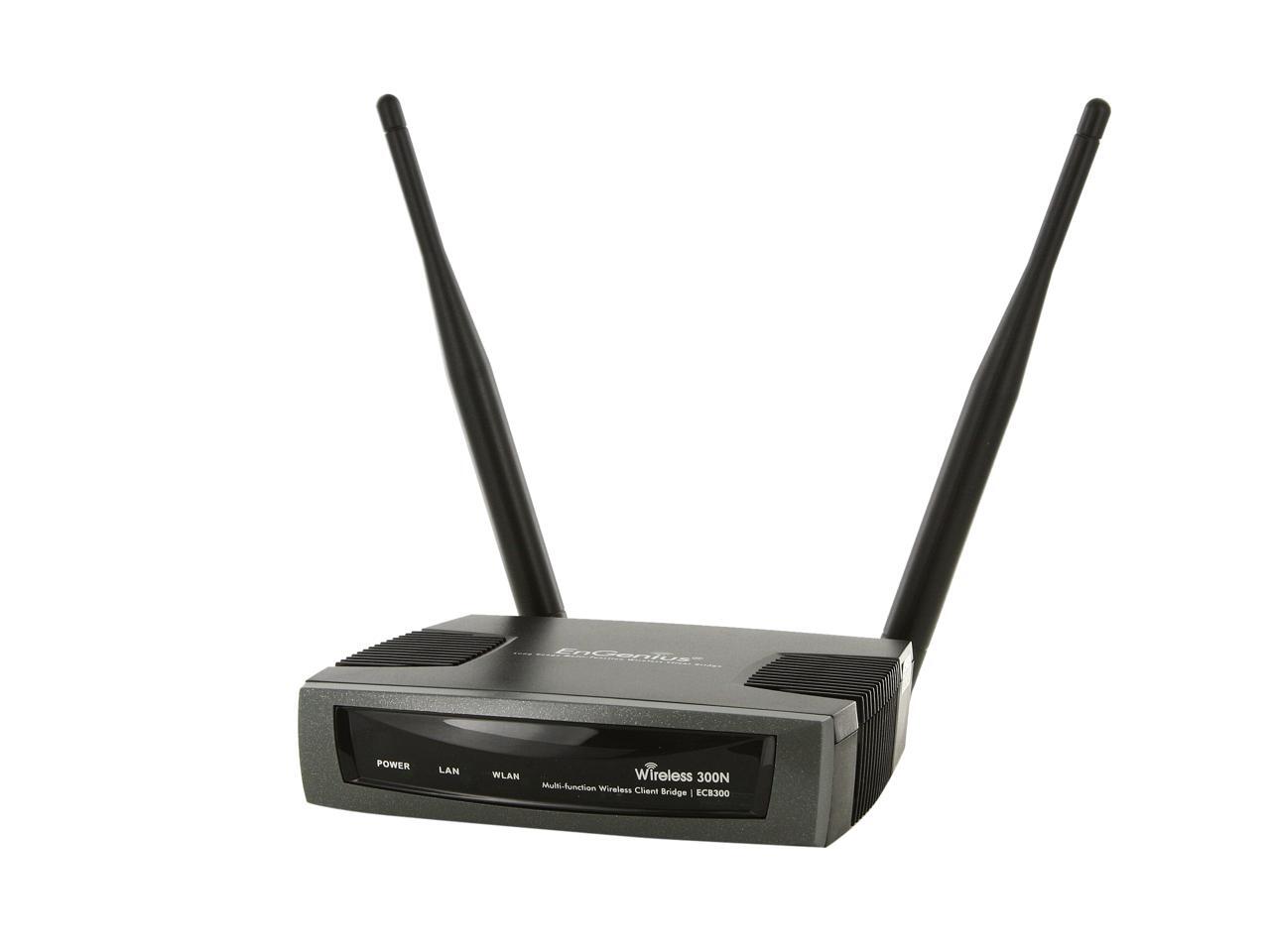

EnGenius ECB300 N300 High Transmit RF (up to 29 dBm) Wireless Access Point/CB/WDS w/ AP Management Software
- 29 dBm High-Powered, Long-Range Coverage
- Wireless N300 Speeds
- 802.3 af PoE support extends power to unwired areas
- High-Gain External / Detachable Antennas
- SSID-to-VLAN Tagging
Specs
Reviews (13)
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the EnGenius Technologies ECB300
| Brand | EnGenius |
|---|---|
| Model | ECB300 |
| Standards | IEEE 802.3/3u, IEEE 802.11b/g/n |
|---|---|
| Device Management | Yes |
| Wireless Data Rates | Up to 300Mbps |
| Security | WEP Encryption - 64/128 bit WPA Personal (WPA-PSK using TKIP or AES) WPA Enterprise (WPA-EAP using TKIP) 802.1x Authenticator SSID broadcast enable/disable WLAN MAC Address Filter WLAN L2 isolation (AP mode) Wireless STA (Client) connected list (Idle/Connection Time, Pkt statistics) |
| Frequency Band | 2.4 GHz - 2.484 GHz |
| Channels | 11 Channels |
| Antenna | 2x external 5dBi SMA antennas (Diversity support) |
| Receiver Sensitivity | 802.11b (2.412 ~ 2.472 GHz) best <= -98 dBm 802.11g (2.412 ~ 2.472 GHz) best <= -93 dBm 802.11n (2.412 ~ 2.472 GHz) best <= -93 dBm |
| Modulation | OFDM: BPSK, QPSK, 16-QAM, 64-QAM, DBPSK, DQPSK, CCK |

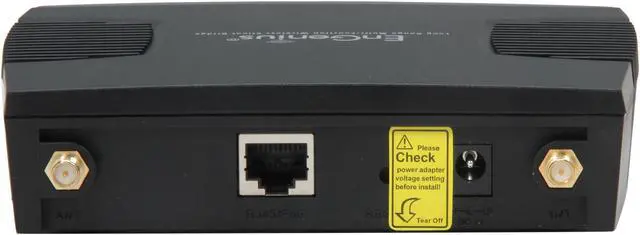

| Interface | Ethernet Port |

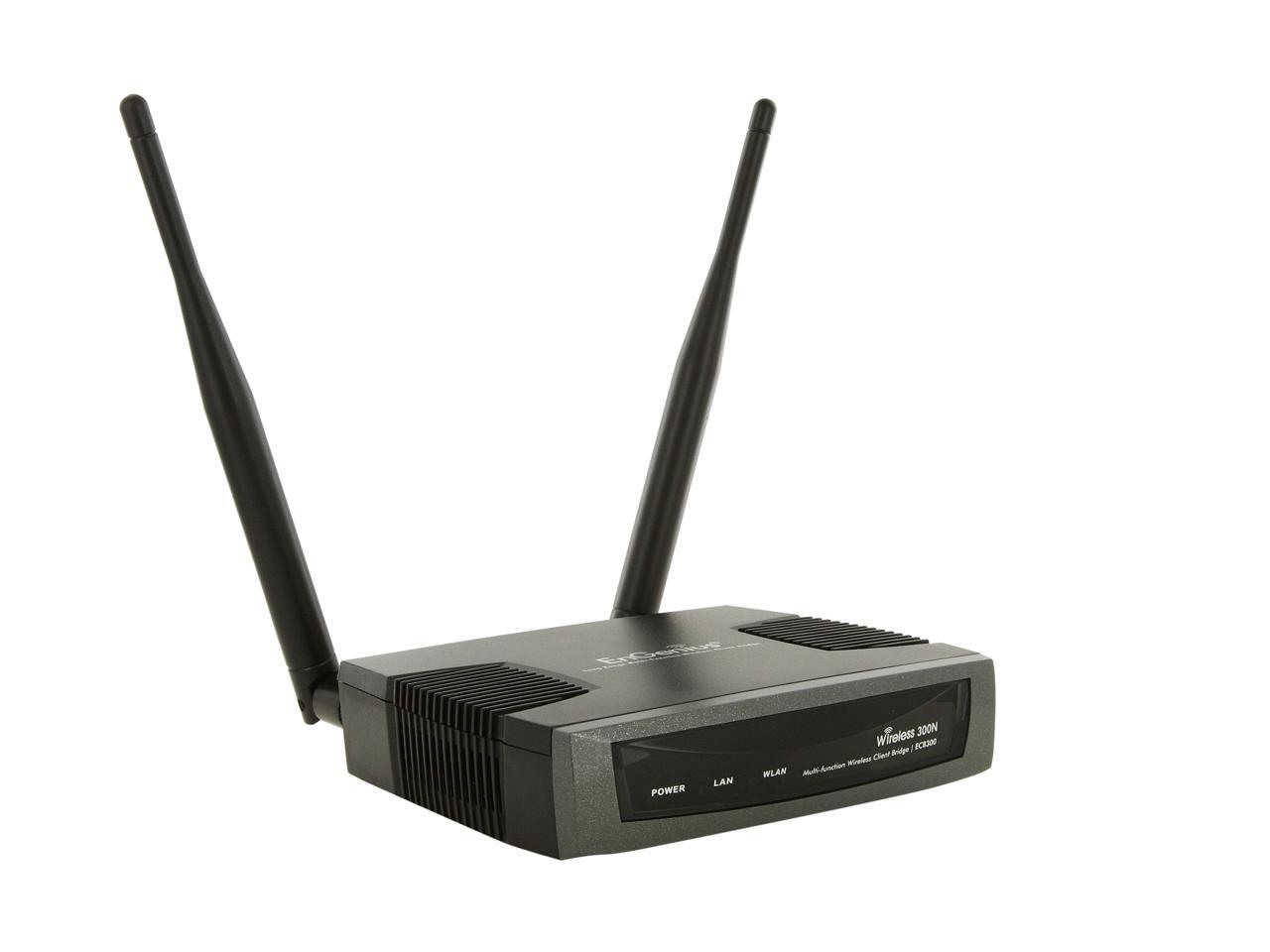

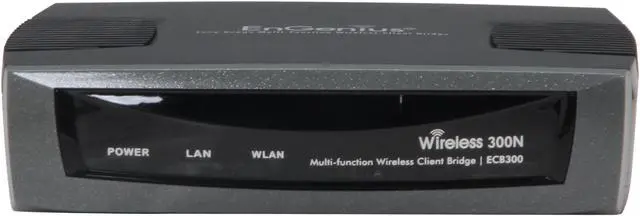

| LEDs | Power/Status LAN (10/100Mpbs) WLAN (Wireless connection |
| Buttons | Reset Button |
| WAN Ports | 1 x 10/100M |
| Power Supply | 12V/1A Power over Ethernet, IEEE802.3af, 48 VDC/0.375A |
| Temperature | 0°C - 50°C (32°F - 122°F) |
|---|---|
| Humidity | 90% Maximum, Non-Condensing |
| Dimensions | 5.32" x 4.14" x 1.18" |
|---|---|
| Weight | 0.77 lbs. |
| Features | Topology: Infrastructure/Ad-Hoc Operation Mode: Access Point/Client Bridge/Universal Repeater/WDS Bridge/WDS AP/AP Router Multiple BSSID: Supports up to 4 BSSIDs LAN: IP (check validity and DHCP server IP range) DHCP Server: DHCP range, lease time, client list VLANs: Supports 802.1q (up to 4 VLANs) SSID-to-VLAN mapping Spanning Tree: Supports 802.1d Spanning Tree Protocol Channel selection: setting varies by country Channel bandwidth: Auto, 20MHz, 40MHz Transmission rate: 11n only, 11b/g/n mix, 11b only, 11b/g, 11g only VPN: VPN pass-through (PPTP, L2TP, IPSEC) QoS: WMM WPS: Software only High-power, Long-range Wireless-N: Up to 29dBm RF Tx power provides 2x greater signal coverage compared to other competitive offerings Wireless-N 6x Speed Over Legacy 802.11g Access Points: Compliant with 802.11b/g/n standard and MIMO delivering up to 300Mbps throughput over wireless for greater overall performance and connectivity Multiple Operation Modes: Wireless-N Access Point, Client Bridge, WDS Access Point, WDS Bridge, Repeater, or AP Router SSID-to-VLAN Mapping: Supports 802.1q mapping of SSIDs and up to four VLANs IEEE802.3af PoE Compliant: Supports Power-over-Ethernet (IEEE 802.3af) and enables deployment in ceilings and other areas where power outlets may not be available. *Optional (purchased separately): Recommended PoE Injector: EnGenius EPE5818af (802.3af compliant) |
|---|

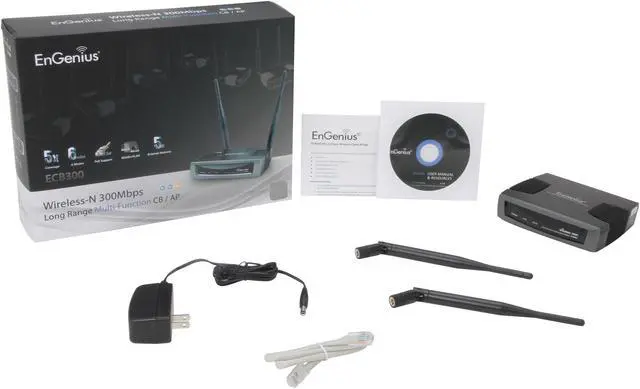

| Package Contents | ECB300 Indoor Access Point / Client Bridge 12V/1A Power Adapter Quick Installation Guide CD with User's Manual in pdf Ethernet Cable |
|---|
| First Listed on Newegg | May 24, 2012 |
|---|
