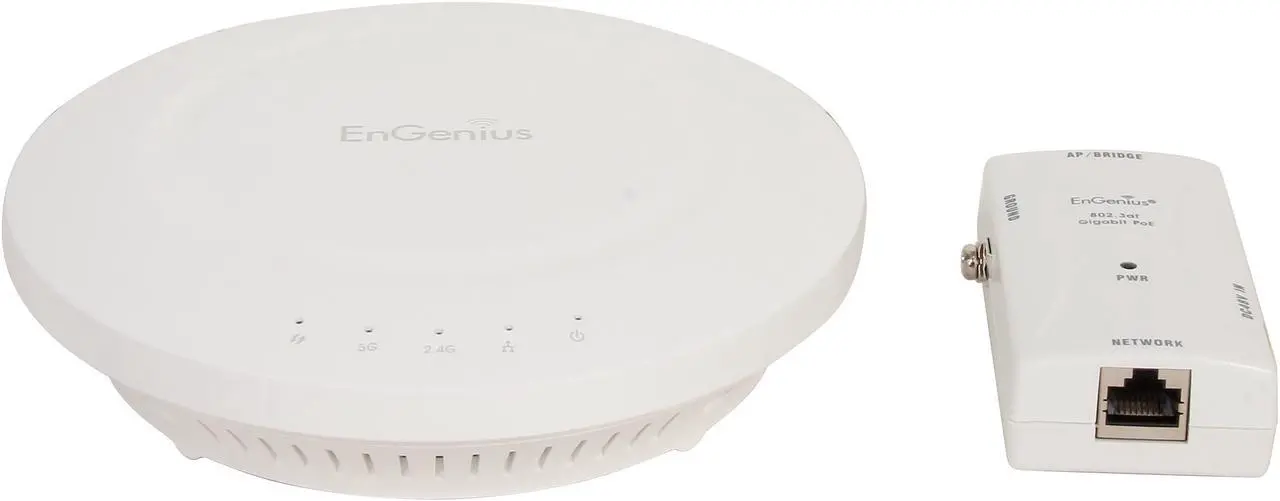

EnGenius N-EAP1750H Kit Indoor AC1750 Access Point & PoE Kit

Overview

Specs

Reviews (134)

Any questions? Our AI mode will help you find out quickly.

Try me now

ENGENIUS N-EAP1750H KIT INDOOR AC1750AP & POE KITCEILING-MOUNT DUAL-BAND WL AC1750

Model
Brand	EnGenius
Model	N-EAP1750H KIT

Details
Standards	IEEE 802.11a/n/ac on 5 GHz; IEEE 802.11b/g/n on 2.4 GHz
Wireless Data Rates	Up to 1.75Gbps
Security	WPA / WPA2 Personal (WPA-PSK using TKIP or AES) WPA / WPA2 Enterprise (WPA-EAP using TKIP) 802.1X RADIUS Authenticator: MD5 / TLS / TTLS, PEAP SSID broadcast enable / disable MAC Address Filtering, Up to 50 fields Wireless STA (Client) connected list (Idle / Connection Time, Pkt statistics)
Frequency Band	2.4 GHz / 5 GHz
Antenna	Integrated 3D Sectorized Antenna Array 4 dBi on 2.4 GHz 5 dBi on 5 GHz
Modulation	802.11b: BPSK, QPSK, CCK 802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM 802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
Interface	1 x RJ-45 Gigabit Ethernet Port (10/100/1000 Mbps) 1 x Reset Button 1 x Power Connector
LEDs	Power WPS 2.4 GHz 5 GHz LAN
Power Supply	Power Supply: 90 to 240V DC ± 10%, 50 / 60 Hz (depends on different countries) Active Ethernet: (Power-over-Ethernet, IEEE 802.3at) Power Adapter: 12V / 2A

Environmental
Temperature	Operating: 32 degree F to 122 degree F (0 degree C to 50 degree C) Storage: -4 degree F to 140 degree F (-20 degree C to 60 degree C)
Humidity	Operating: 90% or less Storage: 90% or less

Features
Features	Dual-Band 11ac Speeds to 1300 Mbps on 5 GHz; to 450 Mbps on 2.4 GHz Low-Profile, Ceiling-Mount Flexibility with Included Mounting T-Rail Potent 28dBm Transmit Power Offers Greater Range & Multi-Floor Penetration Internal, 3D Sectorized, 5dBi Antenna Array Minimizes Interference for Reliable Connections 802.3at-Compliant POE Port Provides Expanded Deployment & Power Options Versatile Operation Mode Support: AP, WDS Bridge & WDS AP

Packaging

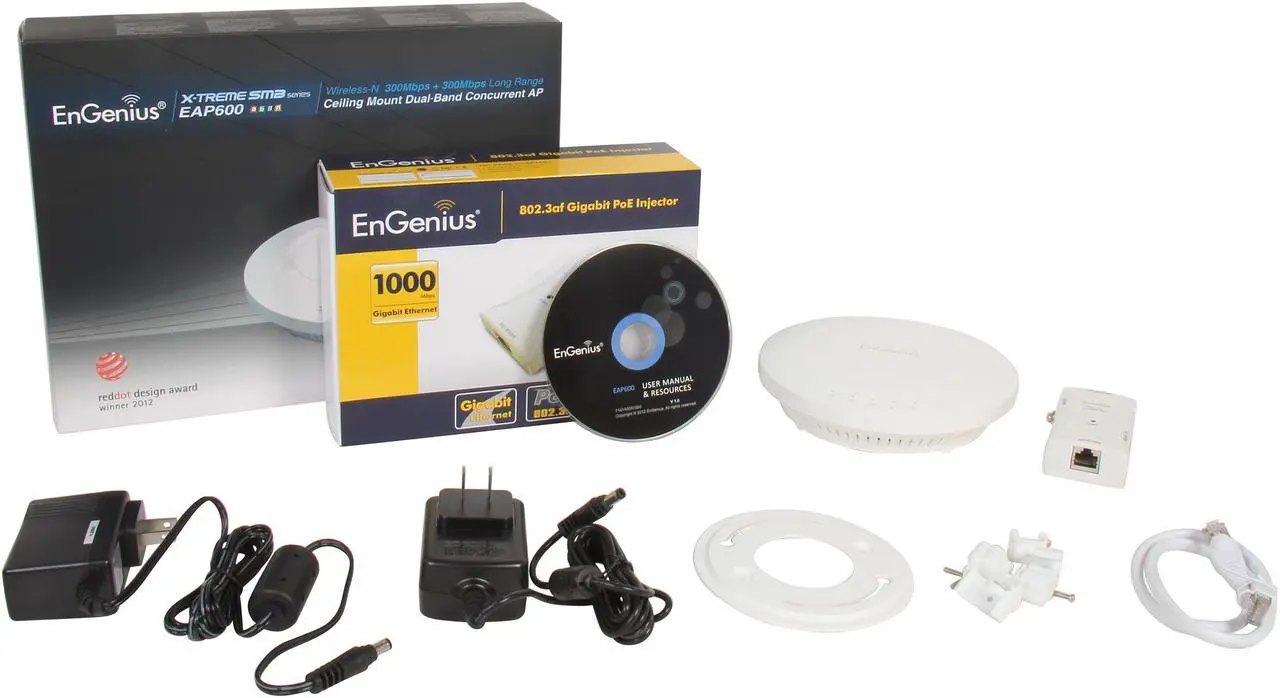

Package Contents	EAP1750H Dual band AC1750 Indoor Access Point 12V / 2A Power Adapter T-Rail Mounting Kit Ceiling Mount and Wall Screw Kit Mounting Bracket RJ-45 Ethernet Cable Quick Installation Guide

Additional Information
First Listed on Newegg	June 08, 2016
