What is the maximum memory supported by the MAG X670E TOMAHAWK motherboard?

The maximum memory supported by the MAG X670E TOMAHAWK motherboard is 192GB using DDR5 memory.

What type of CPU is supported by the MAG X670E TOMAHAWK motherboard?

The MAG X670E TOMAHAWK motherboard supports AMD Ryzen 7000 Series processors with an AM5 socket.

$467^.99

Limit 5 per customer.

Sold by Newegg

Shipped by Newegg

Price alert

Images from RETAIL item, box contents may vary.

OPEN BOX

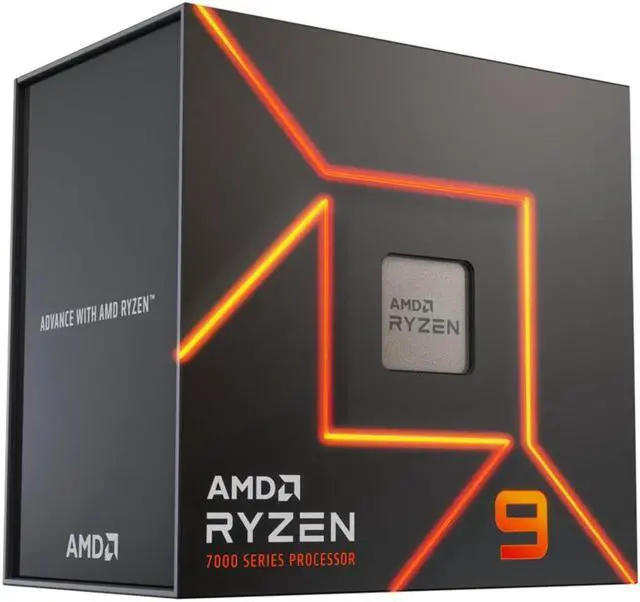

AMD Ryzen 9 7900X CPU Processor, 12 Cores, 24 processing threads, based on AMD "Zen 4" architecture, 5.6 GHz Max Boost, unlocked for overclocking, 76 MB cache, DDR5-5200 support. For the state-of-the-art Socket AM5 platform, can support PCIe 5.0 on select 600 Series motherboards
Support AM5 Socket, TDP 170W, L2+L3 cache 76MB, The world's best gaming desktop processor that can deliver ultra-fast 100+ FPS performance in the world's most popular games. OS Support Windows 11 - 64-Bit Edition/ Windows 10 - 64-Bit Edition. Cooler & Thermal Solution (PIB) not included

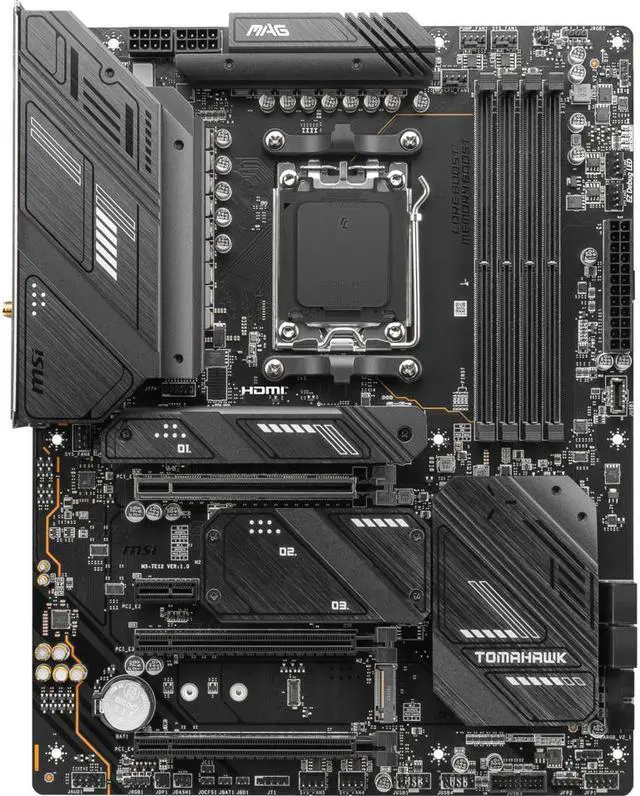

MAG X670E TOMAHAWK WIFI, Supports AMD Ryzen™ 8000 / 7000 Series Desktop Processors, supports DDR5 Memory, up to 7800+(OC) MHz
Enhanced Power Design: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost
Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen5 M.2, USB 3.2 Gen 2x2

The Open Box Product Disclaimer applies to this product. Please note that this product is non-returnable and non-refundable.

Specs

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	MSI
Part Number	MAG X670E TOMAHAWK WIFI

Supported CPU
CPU Socket Type	AM5
CPU Type	Ryzen 7000 Series

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz Max. overclocking frequency: - 1DPC 1R Max speed up to 7800+ MHz - 1DPC 2R Max speed up to 6400+ MHz - 2DPC 1R Max speed up to 6400+ MHz - 2DPC 2R Max speed up to 5400+ MHz
Maximum Memory Supported	192GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express x16	3 x PCI-E x16 slot Supports x16/x4/x2 PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) PCI_E3 Gen PCIe 4.0 supports up to x4 (From CPU) PCI_E4 Gen PCIe 4.0 supports up to x2 (From Chipset) *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.
PCI Express x1	1 x PCI-E x1 slot
M.2	4 x M.2 M.2_1 Source (From CPU) supports up to PCIe 5.0 x4, supports 22110/2280 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4, supports 2280/2260 devices *PCI_E4 & M2_4 share the bandwidth. M2_4 will run at x2 speed when installing device in the PCI_E4 slot.

Storage Devices
SATA	4 x SATA 6.0Gb/s
SATA RAID	Supports RAID 0, RAID 1, and RAID 10 for SATA storage devices
Additional SATA	Supports RAID 0, RAID 1, and RAID 10 for M.2 NVMe storage devices

Onboard Audio
Audio Chipset	Realtek ALC1200
Audio Channels	7.1 Channels

Rear Panel Ports
Back I/O Ports	1 x DisplayPort 1 x USB 3.2 Gen 2 10Gbps (Type-A) 1 x USB 3.2 Gen 2 5Gbps (Type-A) 1 x 2.5G LAN 1 x Wi-Fi / Bluetooth 5 x Audio Connectors 1 x Flash BIOS Button 1 x HDMI 1 x USB 3.2 Gen 2 10Gbps (Type-C Display port) 1 x USB 3.2 Gen 2x2 20Gbps (Type-C) 1 x S/PDIF-Out

Internal I/O Connectors
Other Connectors	1 x CPU Fan 1 x Pump Fan 6 x System Fan 2 x Front Panel (JFP) 1 x Chassis Intrusion (JCI) 1 x Front Audio (JAUD) 1 x Tuning Controller connector(JDASH) 2 x Addressable V2 RGB LED connector (JARGB_V2) 2 x RGB LED connector(JRGB) 1 x TPM pin header(Support TPM 2.0)

Physical Spec
Form Factor	ATX

Additional Information
First Listed on Newegg	July 10, 2024
