Product Model:XIC PE5162

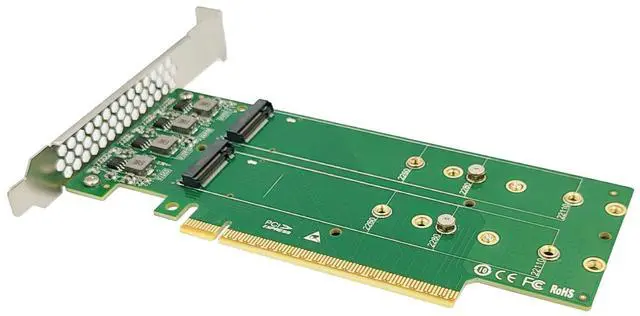

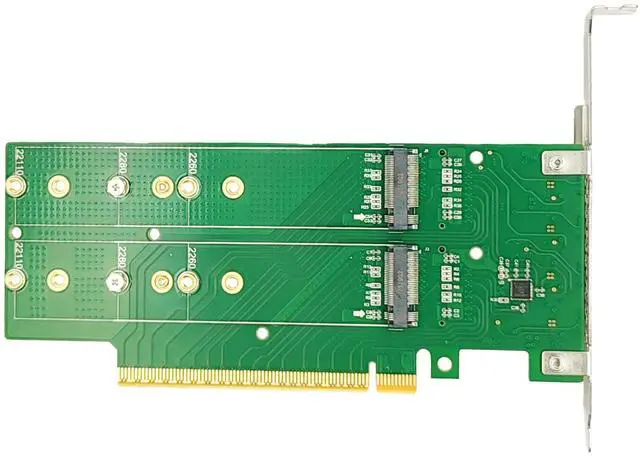

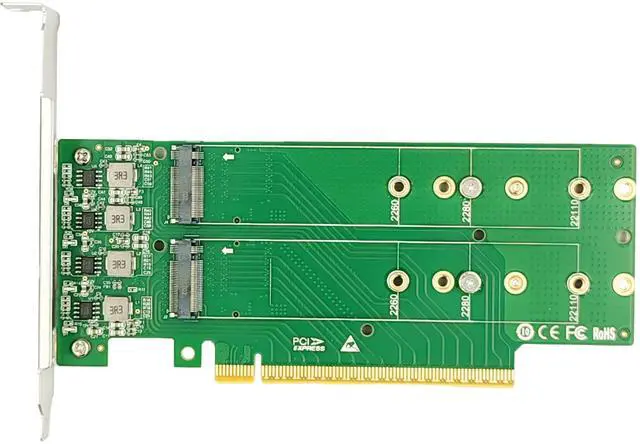

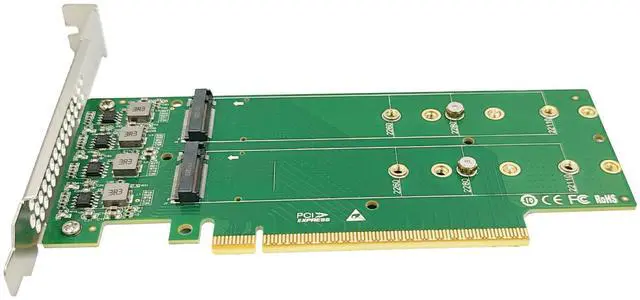

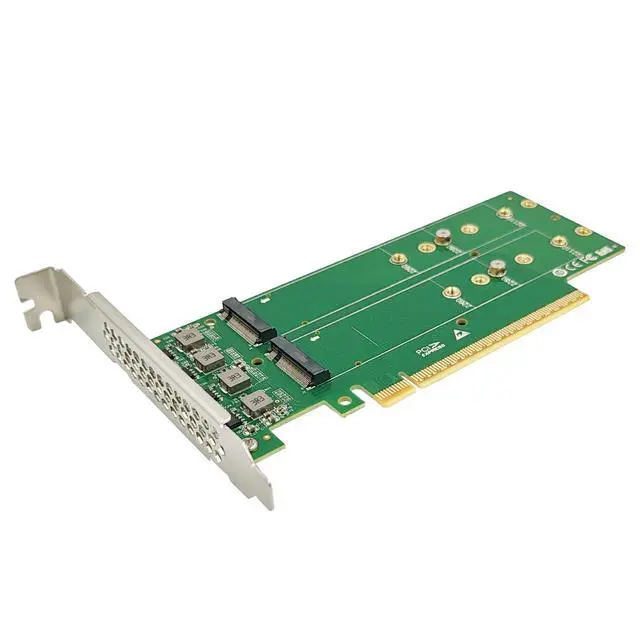

Product Name: PCIe5.0 x16 to 4 Port M.2 NVMe SSDs Adapter
Interface Type:4*M.2 M-key Connectors
Support Equipment:4*M.2 NVMe SSD
Host Bus Type:PCIe5.0 x16
Ps. Motherboards BIOS needs to have PCIe Bifurcation Mode Support
XIC PE5162 M.2 4 Ports Card is a great storage solution for any workstation with PCIe5.0 x16 bandwidth. It has four M.2 M-key connectors to accept four M.2 NVMe SSD Drives, So each M.2 SSD Drives has dedicated PCIe 5.0 x4 bus bandwidth. It allows user to add 4 M.2 NVMe into any PCIe x16 slot to achieve their full potential bandwidth.
Features:
Supports 4 PCIe M.2 NVMe SSDs.
Compatible with PCIe Gen5, Gen4, Gen3.
Each port supports [email protected] M.2 SSD.
Comes with a full-profile bracket (preinstalled), and also includes a low-profile bracket for a small form-factor computer.
Computer with PCI Express Slot (x16) support PCIe Bifurcation mode.
Please kindly verify with your mainboard manufacture to make sure the motherboard BIOS support Bifurcation for the PCI Express you are using.
Advantages
Upgrade your data center or enterprise-level applications with M.2 NVMe SSD capability
Utilize the advanced performance of a PCIe NVMe M.2 SSD for intensive data workloads - ideal for numerous professionals from architects to medical professionals
Work with large files more efficiently for audio/video production and editing
| HARDWARE |
| Model | XIC PE5162 |
| Bus Type | PCI Express Gen5 |
| Compatible Device Types | M.2 PCIe5.0 NVMe SSD |
| CONNECTOS(S) |
| Device Connector | 4*M.2 G5 ( 75 Pin,x4 PCIe G5) |
| Host Connector | PCI Express x16 goldfinger |
| ENVIRONMENTAL |
| Humidity | 15% ~ 90% |
| Operating Temperature | 5°C to 50°C (41°F to 122°F) |
| Storage Temperature | -25°C to 70°C (-13°F to 158°F) |
| PHYSICAL CHARACTERISTICS |
| Product Dimension | 162mm x 68.9mm |
| Product Weight | 63g |
| PACKAGING INFORMATION |
| Package size | 240mm x 150mm x 30mm |
| Shipping Weight | 160g |
| WHAT'S IN THE BOX |
| Included in Package | 1 * PCIe5.0 x16 to Quad M.2 NVMe SSDs Adapter |
| 1 * low-profile bracket |
| 1 * full-profile bracket (installed) |
|
|
Remark: Please kindly Note this card requires PCIe Bifurcation on the motherboard to support four M.2 NVMe hard drives, and BIOS supports PCIe Slot bifurcation.
