    ESTONE 8K 60Hz Panoramic Sound HDMI Audio Extractor, HDMI to HDMI + Optical Toslink SPDIF + 3.5mm Audio Jack + Coaxial + 7.1Ch HDMI Audio for PS5 Soundbar Blu-Ray Player

    Limited time offer, ends 10/25 By ESTONE

    Be the first to review this product...
    • 8K 60Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz .
    • There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output
    • Support 8K@30/60Hz, 5120x1440@120/60Hz, 4K@120Hz RGB 4:4:4, 4K@165Hz, 4K@144Hz ,2K@60/120/144Hz,1080P@60/120/240Hz, and back forward,with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2
    • Max transmission speed :48Gbps
    • Compatible with Dolby Vision,HDMI 2.1,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
    • Supports CEC,Dynamic HDR, HDR10+, Dolby atmos, Chroma 4:2:0 /4:2:2 / 4:4:4.
    • HDMI Audio Extractor 4K 120Hz 8K 7.1/5.1/2.1ch EDID Switch Atmos VRR CEC- SPDIF 5.1CH Optical Toslink Stereo Breakout, HDCP 2.2/2.3 Bypass for PS 5 Xbox X, Splitter 1x1 De-embedder Decoder
    +
    +
    Overview
    Specs
    Reviews

    Any questions? Ask CelesteSM will help you find out quickly.

    Try me now
    image for this item
    4K 120Hz RGB 4:4:4 HDMI 2.1 Audio Extractor With 7.1CH Atmos & Optical Toslink 48Gbps HDMI Audio Splitter 8K 60Hz HDMI Audio Converter for PS5 XBox One

    ESTONE 4K 120Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out .HDMI AUDIO ONLY /Toslink/Coaxial/3.5mm jack audio output support audio extract function ,The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz,4Kx2K@120Hz RGB 4 :4 :4 .



    HDMI Audio Extractor 4K 120Hz 8K 7.1/5.1/2.1ch EDID Switch Atmos VRR CEC- SPDIF 5.1CH Optical Toslink Stereo Breakout, HDCP 2.2/2.3 Bypass for PS 5 Xbox X, Splitter 1x1 De-embedder Decoder

    Features:

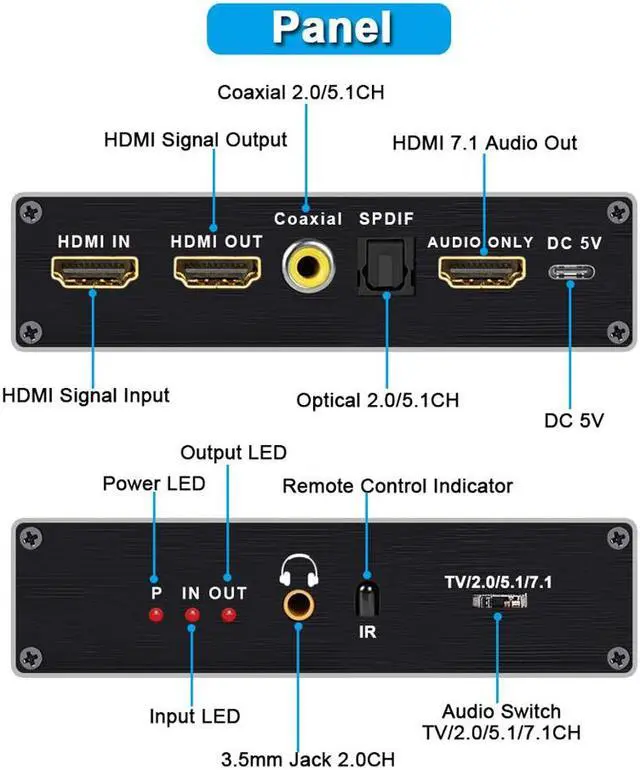

    • There are 1 HDMI input ,1 port HDMI output ,1 port Toslink audio output ,1 port coaxial audio output,1 port 3 .5mm audio jack ,1 port HDMI audio output .
    • Support 8K@30/60Hz, 5120x1440@120/60Hz, 4K@120Hz RGB 4:4:4, 4K@165Hz, 4K@144Hz ,2K@60/120/144Hz,1080P@60/120/240Hz, and back forward,with 24bit RGB/YcbCR 4:4:4/YcbCR 4:2:2
    • Max transmission speed :48Gbps
    • Compatible with Dolby Vision,HDMI 2.1,HDCP2.3/2.2/1.4/1.3/1.2/1.1.
    • Supports CEC,Dynamic HDR, HDR10+, Dolby atmos, Chroma 4:2:0 /4:2:2 / 4:4:4.
    • ESTONE HDMI Audio De-embedding support LPCM 7.1CH ,Dolby True -HD,DTS -HD,AC 3,DTS ,DSD, Dolby Digital Plus and Dolby Atmos audio format ,But can 't decode these audio formats .If your Amplifier or soundbar not support these audio formats ,there will be no audio out from your soundbar or amplifier .At this situation ,please set the audio format to PCM /LPCM on your HDMI source

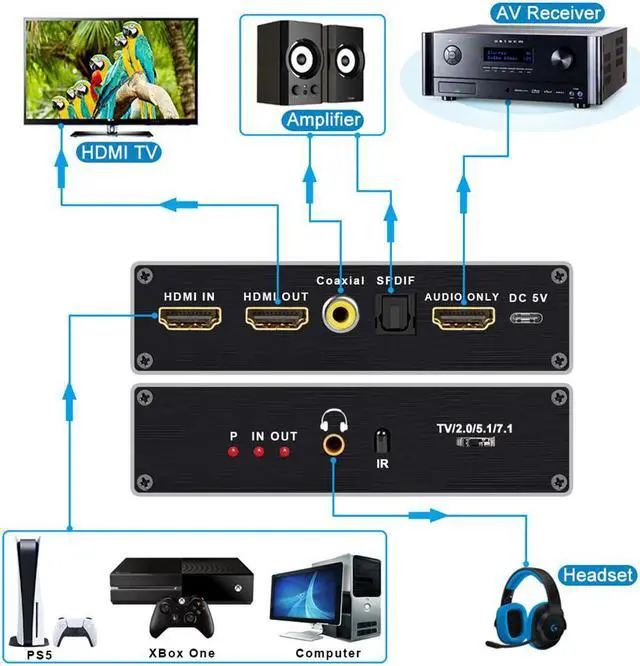

    • HDMI 2.1 Audio Extractor -with Optical TOSLINK SPDIF+Coaxial+3.5mm+HDMI audio out allow you to extract the sound from the HDMI input source (like PS5/4,Xbox one etc .)to your soundbar or amplifier ,no need connecting TV or Monitor .
    • HDMI Input compatible with any HDMI device :such as PS 5/XBox/Roku/Fire TV /Blu -ray players /Apple TV /Nintendo Switch /PS4 Pro /Xbox 3 60/Xbox One X / PS 3/Beamer/Laptop and other HDMI signal source .HDMI video /audio Output :Monitor ,TV ,Projector .HDMI audio /SPDIF/Coaxial/3.5mm audio output :Receiver ,Amplifier ,Speaker ,headphone and other audio device .
    • Support 24bit deep color per channel ( Kindly Note :It does not compatible with DVI ,we do not recommend you use HDMI to DVI cable connect to your projector /monitor)
    • Highly recommend use AWG 30(19+1) standard HDMI 2.1 cable .the distance could reach up to 2 meters before and after when the resolution is 8K@60Hz,can reach up to 2 meters before and after if the resolution is below 4K@120Hz.



    image for this item

    Notes :

    1. ESTONE HDMI 2.1 audio extractor not support ARC or eARC function
    2. When you use 7.1CH mode,if your TV/monitor not support 7.1CH audio,there are be no audio signal.
    3. when you want to get 7.1CH audio,please you set audio out of your HDMI 2.1 source(PS5/XBox etc) with auto mode or source mode or 7.1CH mode.
    4. When you use eARC or ARC soundbar,such as ARC, e-ARC/Sonos ARC soundbar,please you use HDMI INPUT of soundbar connect with HDMI AUDIO ONLY port of our audio extractor,please DO NOT use HDMI eARC/ARC Input of soundbar that can not get any audio.because eARC port of Soundbar ONLY could connect HDMI eARC INPUT of HDMI TV directly,it can not add another device between eARC soundbar and HDMI eARC TV
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    image for this item
    8K 60Hz HDMI 2.1 CEC Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with HDMI audio out. HDMI AUDIO ONLY /Toslink/Coaxial/ 3.5 mm jack audio output support audio extract function, The system supports all 3D TV formats in addition to all HDTV formats up to 8K@60Hz, 4Kx2K@120Hz.
    There are 1 HDMI input, 1 port HDMI output, 1 port Toslink audio output, 1 port coaxial audio output, 1 port 3. 5mm audio jack, 1 port HDMI audio output
    Support 8K@30/60Hz,
    5120x1440@120/60Hz,
    4K@120Hz RGB 4:4: 4, 4K@165Hz, 4K@144Hz, 2K@60/120/144Hz, 1080P@60/120/240Hz, and back forward, with 24bit
    RGB/YcbCR 4:4: 4/YcbCR 4:2: 2
    Max transmission speed: 48Gbps
    Compatible with Dolby Vision, HDMI 2.1, HDCP 2.3 / 2.2 / 1.4 / 1.3 / 1.2 / 1.1.
    Supports CEC, Dynamic HDR, HDR10+, Dolby atmos, Chroma
    4:2: 0
    / 4:2: 2
    / 4:4: 4.
    HDMI Audio Extractor 4K 120Hz 8K 7.1 / 5.1 / 2.1 ch EDID Switch Atmos VRR CEC- SPDIF 5.1CH Optical Toslink Stereo Breakout, HDCP 2.2 / 2.3 Bypass for PS 5 Xbox X, Splitter 1x1 De-embedder Decoder
