3X1 HDMI Switch Video Capture Cards HDMI to USB 1080P USB3.0 Record via DSLR Camcorder Action Cam to PC or Mac.
HDMI video capture can captureboth HDMI video and HDMI audio, send audio and video signals to computers or smart phones for preview and storage, Suitable for high definition acquisition, teaching recording, medical imaging, etc.
Specifications:

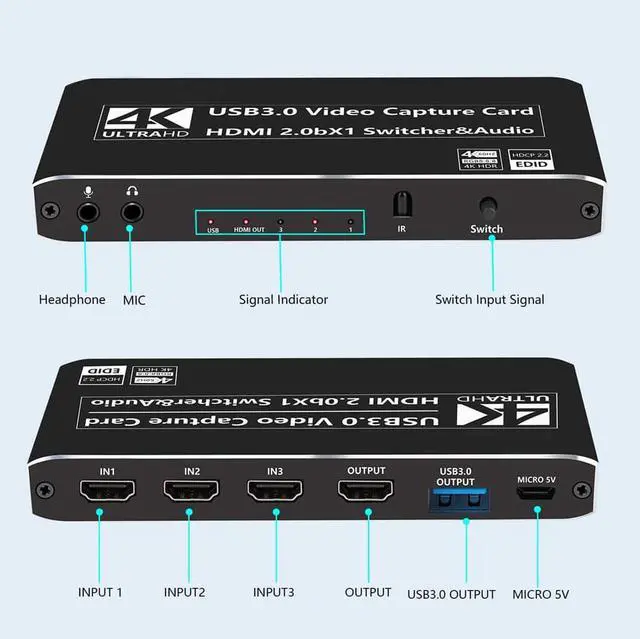

Input: HDMI Port x 3, Mic Port x 1
Output: USB3.0 Port x 1, HDMI x 1, Audio x 1
HDMI Video Input: 4K@60Hz HDMI HD interface
HDMI Audio Input: LPCM
Audio Signal Output Color Space: YUY2, RGB24
With ultra HD(4K) game capture, you can record the game more easily.
No need to install any driver, you can use any 3rd party software to capture or stream your HD game , or other HD video source.
The video capture card switcher can be used for video conference, game collection, multimedia teaching scenario etc, it has superior performance and compatibility than the previous versions.
HDMI output support 4K/60FPS 4K/30FPS or 1080P/60FPS.

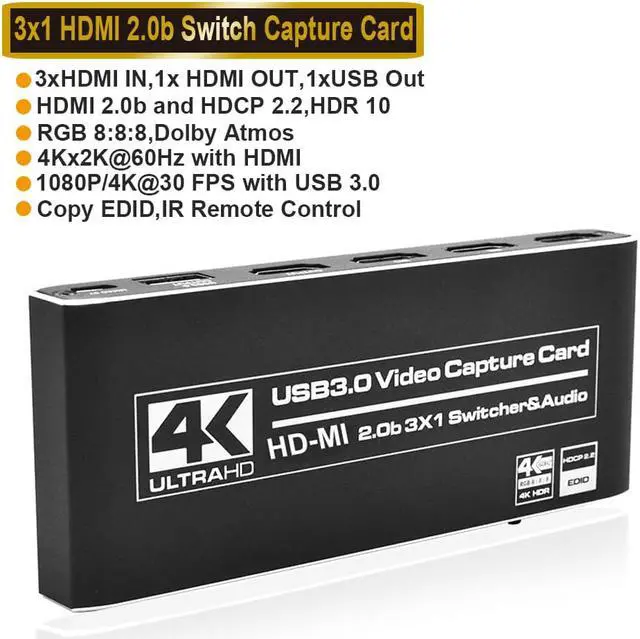

FEATURE:
4K Ultra Game Capture Card: The Navceker video capture card supports 4K@60fps 8:8:8 pass through for HDMI 2.0 input and output. The USB 3.0 output is maximum to 4K@30fps, the max HDMI input and output is up 4K@60Hz. Note: Your input and output devices must support 4K@30fps and above. This video capture card is also equipped with an additional USB 3.0 to Type-C cable to support other Type-C devices.
Video Capture Card&HDMI Switch: The Video Capture Card/ HDMI Switch allows up to 3 input devices to be connected, and it is equipped with a wireless remote control to seamlessly switch, avoiding continuous unplugging and damaging the devices when changing to another input device. Note: When HDMI Switch connected to Sources , the priority level is: Input 1 > Input 2 > Input 3.d to Sources.
4K@60fps HDMI Loop-Out: The max HDMI output is up to 4K@60fps which is ideal for live broadcasts, conference rooms, video recording and so on. Note: Firstly, please use the HDMI cable directly to determine whether your device can transmit signals to your computer or monitor without using our capture card. And it's best not to use the Xbox series with Samsung TVs, which will cause inability to work or other problems.
Extreme Audio Effects: Select "Output Desktop Audio" in "Audio Output Mode". And then tick the box below "Using Custom Audio Devices". Select "USB Digital Audio" in "Audio Device". When there is noise or sound delay, please first try to plug in the earphone or update your sound driver. Note: The video capture card do not support 5.1 channels.

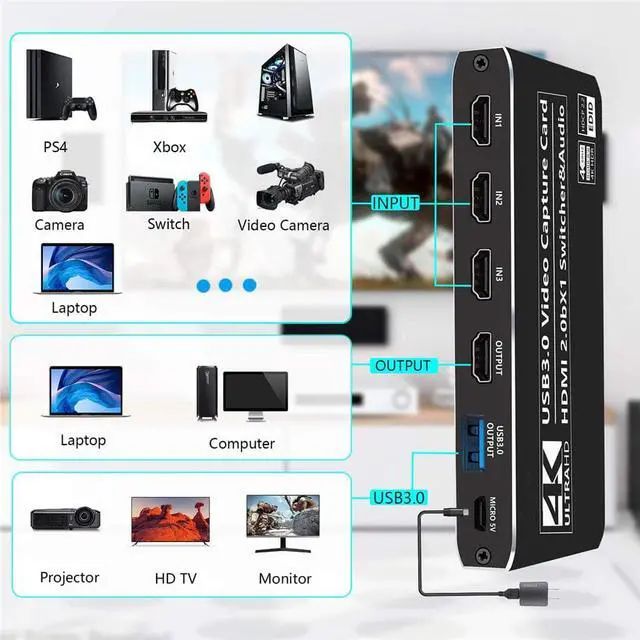

Wide Compatibility: This HDMI capture card takes USB 3.0 channel recording of high-speed full HD screens, video recording, meeting recording, game recording and others on the computer. Compatible with many systems, such as Windows 7, 8, 10, Mac OS X 10.9 or later, Linux. And it supports software such as: Potplayer, AMCap, VLC, Skype, Google Hangouts, WebEx and so on.
