FEATURES:

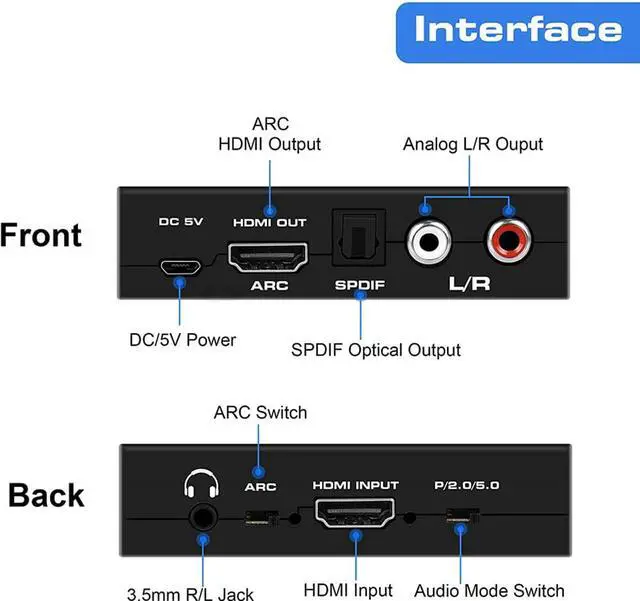

*One HDMI input converted to one HDMI(ARC)+ Audio (SPDIF+R/L+3.5Jack)output
*Support 4K x 2K@60Hz YUV4:4:4 , Support 3D, Maximum support for HDCP2.2
* Supports) HDR 10 Dolbby Vision and Dolby Atmos
* Support deep color 24/30bit,36bit
*Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
*Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD
*Support signal retiming
* Support for HDMI ARC.
* Easy to Connect, Plug&Play.
*Need DC5V power supply.
SPECIFICATIONS:
HDMI resolution: 4Kx2K@60Hz/3D /1080p/1080i/720p/720i/576p/576i/480p/480i
Max bandwidth : 600MHz ; Max baud rate: 18.5Gbps;
Input cable distance: Less than10m AWG26 HDMI2.0a standard cable
Output cable distance: Less than 10m AWG26 HDMI2.0a standard cable
Dimension (L x W x H) : 84.5X61.8X21 (mm)
Operating and Connecting:

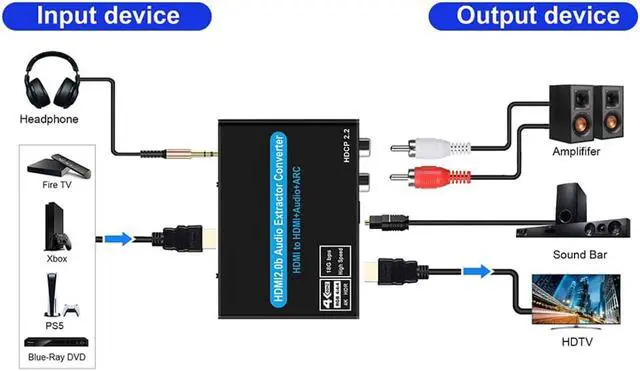

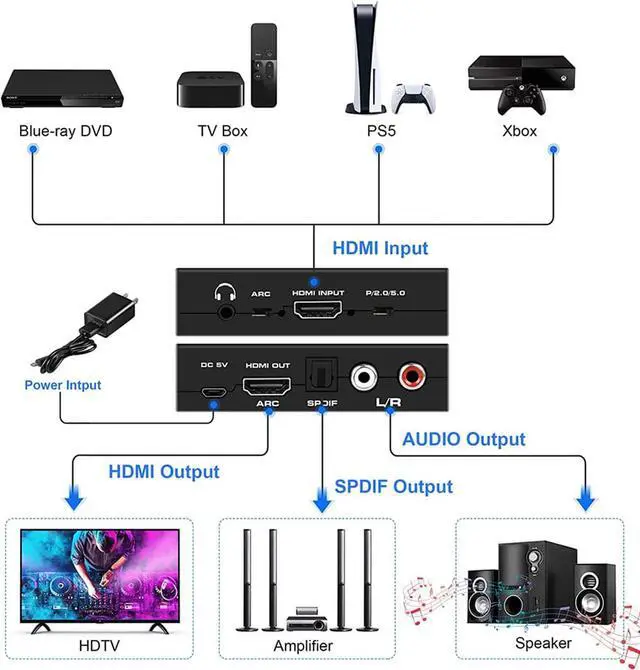

1.To use one hdmi 2.0 cable to connect the HD Source with the input HDMI2.0 port.
2.To connect the converter hdmi2.0 output port with the HD Display.
3.To use one audio cable to connect the converter R/L port with the audio equipment.
4.To use the optical cable to connect the SPDIF port with the audio equipment.
5.To connect the converter with 5V DC power adaptor.
Kindly Note:

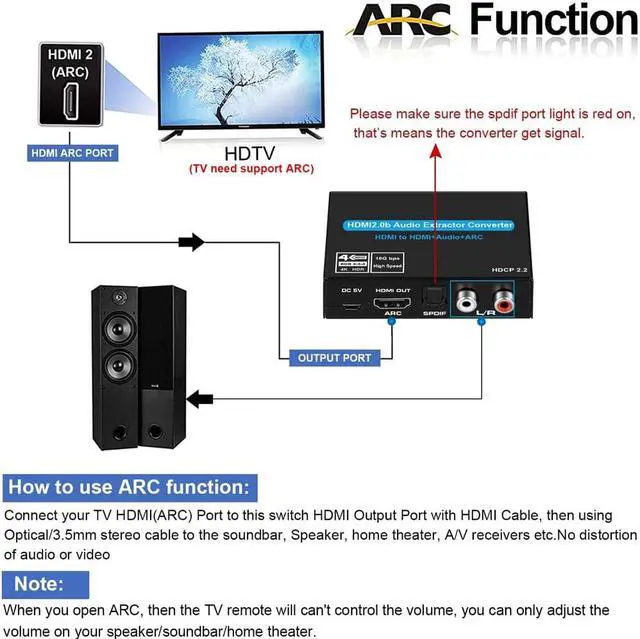

1. When you open ARC, then the TV remote will can't control the volume, you can only adjust the volume on your speaker/soundbar/home theater.
Trouble Shooting: 1. Dolby/DTS Issue: check your display compatibility about those formats. Our device does not decode only pass it to your display.
2. HDR/Dolby Vision Issue: Your HDMI cable must meet HDMI 2.0 specifications. Replace cable if it not meet the standard.

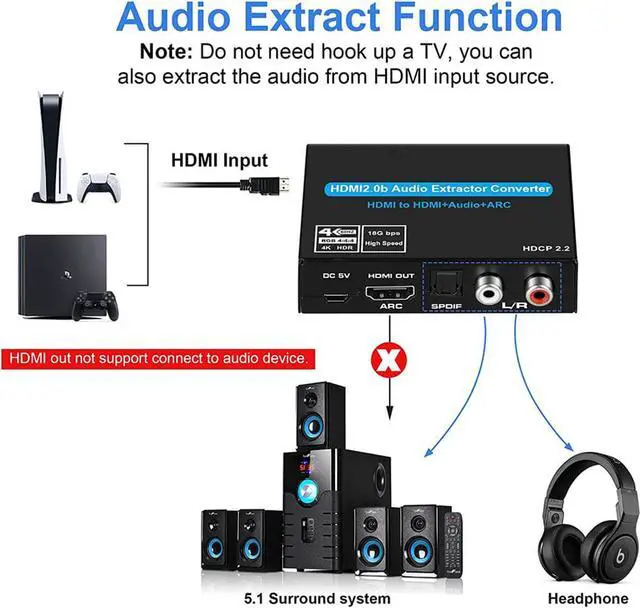

HDMI Audio Extractor 4K@60HZ: HDMI Audio Converter allows the HD Source connected to single HD Display and adds extra one L+R and SPDIF and 3.5 headphone jack audio out port.It achieve the synchronization of audio signal separation.
Supports 4K@60Hz ULTRA HD RESOLUTION: Supports 4K x 2K@60Hz YUV4:4:4, HDCP2.2,HDMI2.0, 4K 3D HDR 10 Dolbby Vision and Dollby Atmos , Color format RGB(YUV:4:4:4).It also back compatible with 4K@30HZ and 1080p/1080i/720p/576i/480p/480i. Max Bandwidth of 18Gbps . No loss of quality,Installs in minutes and Plug&Play. The Display More Clear and More Delicate,Give You a Nice Feeling of Home Theater.
Three audio EDID settings: The Converter provide the Best Flexibility through Three Audio EDID Setting, There are PASS/2.0CH/5.1CH three kinds of audio mode options. Support Digital audio format, as DTS-HD/Dollby-trueHD/LPCM7.1/DTS/Dollby-AC3/DSD,Support signal retiming, Support HDMI ARC.
Widely Compatibility: HDMI Audio Converter works flawlessly with with various HDMI source devices like Amazon Fire TV,Apple TV, PS3/4/5, Chromecast ,Blu-ray/ DVD/ HD player, cable/satellite box, Xbox, PC/laptop, HD camera, HD DVR etc. Just connect your devices and the Power Adapter (Power adapter included) and enhance your home theater experience with high-resolution video and audio.
