I need a connection diagram for this unit to send arc audio to a soundbar and send digital audio to the toslink port?

The product allows audio output through multiple ports including Toslink SPDIF, which can be used for digital audio. However, specific connection diagrams or instructions for setup are not provided in the product information.

Questions & Answers: ESTONE 4K 60Hz HDMI eARC/ARC Audio Extractor Splitter, Optical TOSLINK SPDIF 7.1CH, 3.5mm Audio Jack , Support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,HDR 10

double click image to zoom in

Top Rated Visit ESTONE Store

ESTONE 4K 60Hz HDMI eARC/ARC Audio Extractor Splitter, Optical TOSLINK SPDIF 7.1CH, 3.5mm Audio Jack , Support RGB 8:8:8(7.1CH Dolby atmos),EDID,Dolby Vision,HDR 10

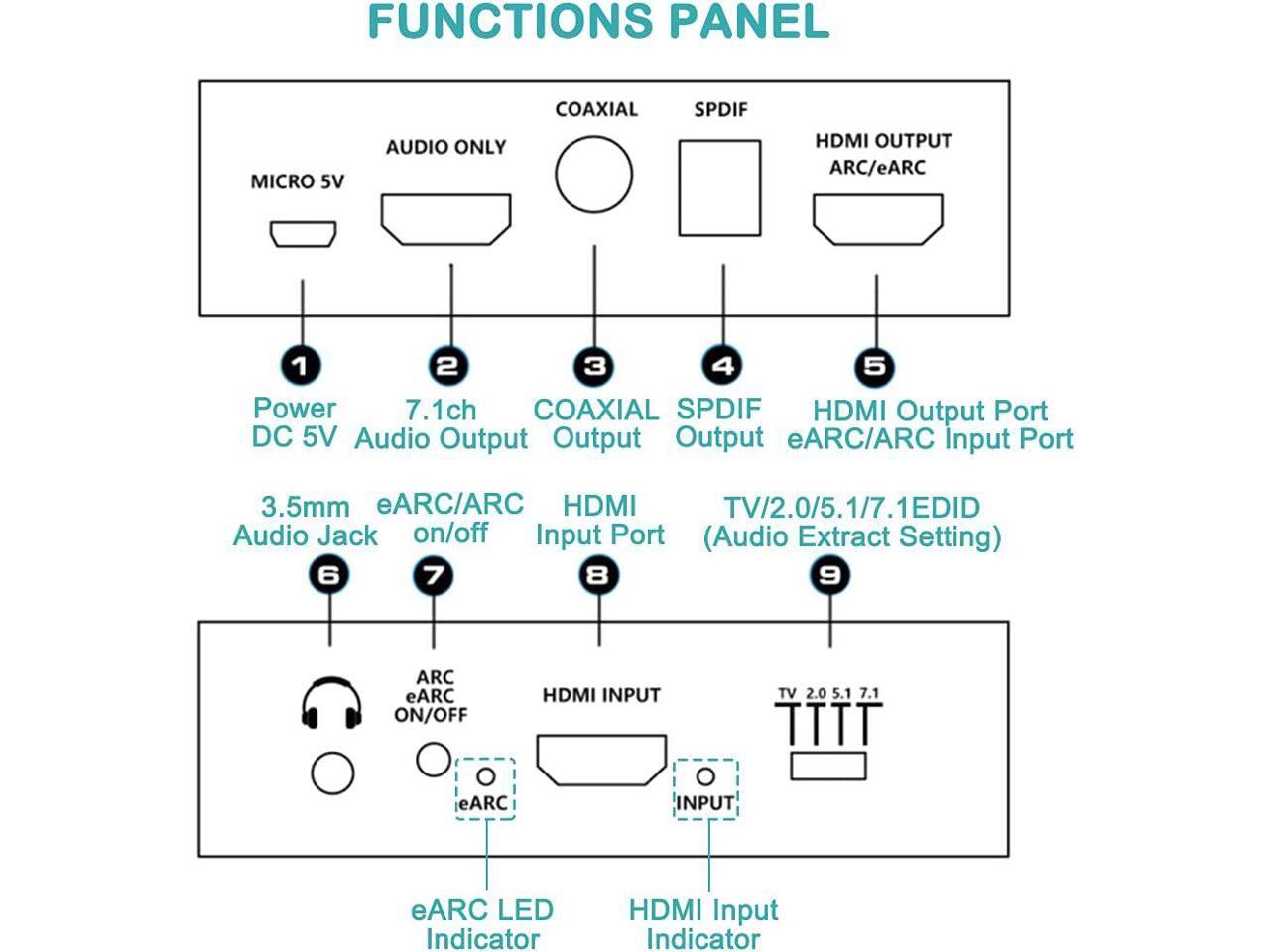

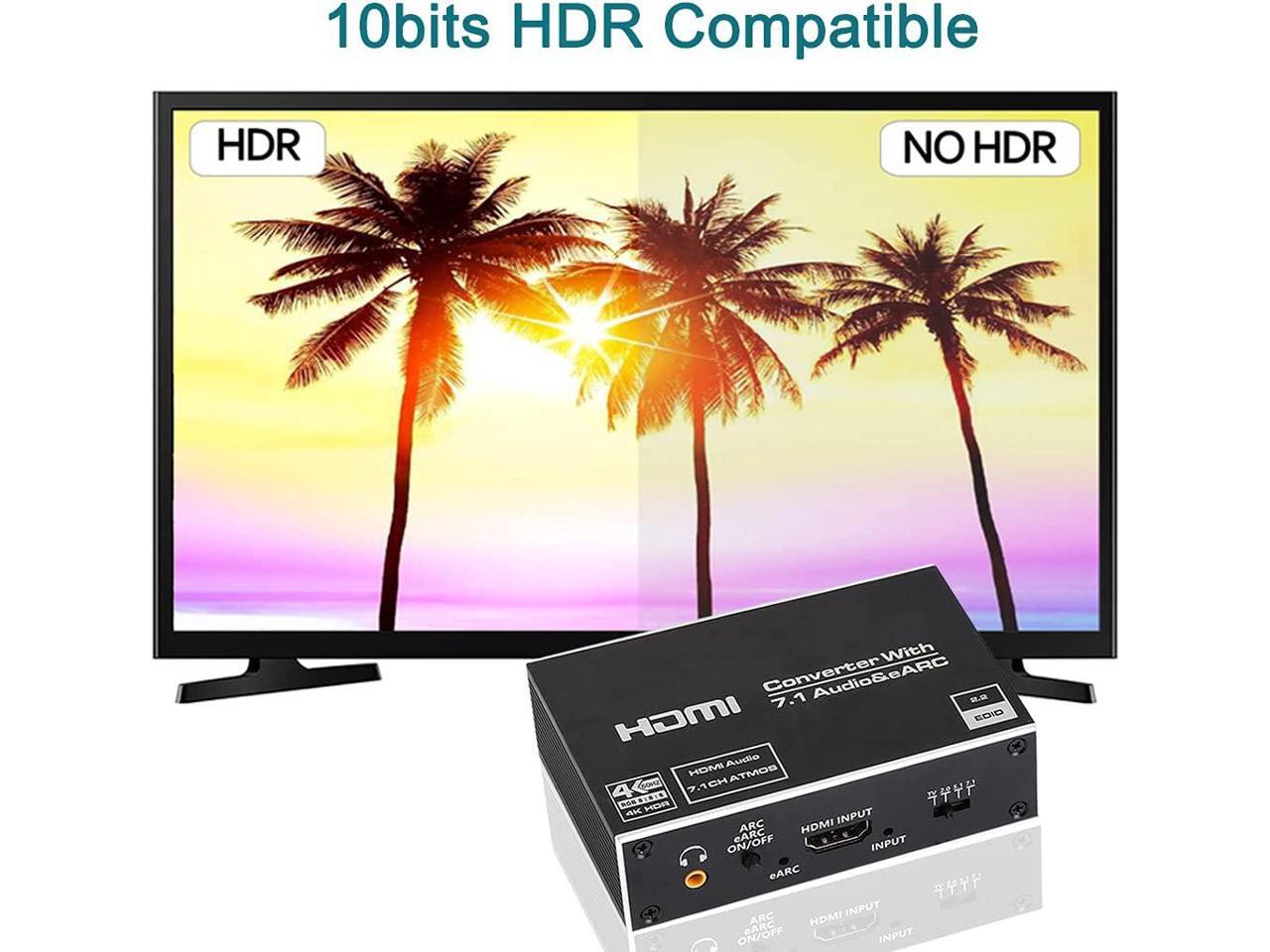

4K HDMI 2.0 Audio Extractor is a high performance 1 HDMI input and 1 HDMI output with audio Extract Function. The Audio can be output by 3.5mm Audio Jack, Toslink SPDIF, Coaxial, HDMI Audio Port. It allows user to use the existing audio Receiver to receive 4Kx2K@60Hz, HDCP 2.3 content audio. The product also supports HDMI loop out, as well as 10bits HDR(High Dynamic Range ) pass-through and eARC/ARC Function.
Support 4K x 2K@60Hz, Support 3D.
4 speed toggle switch to switch TV/ 2.0/ 5.1/ 7.1 audio format.

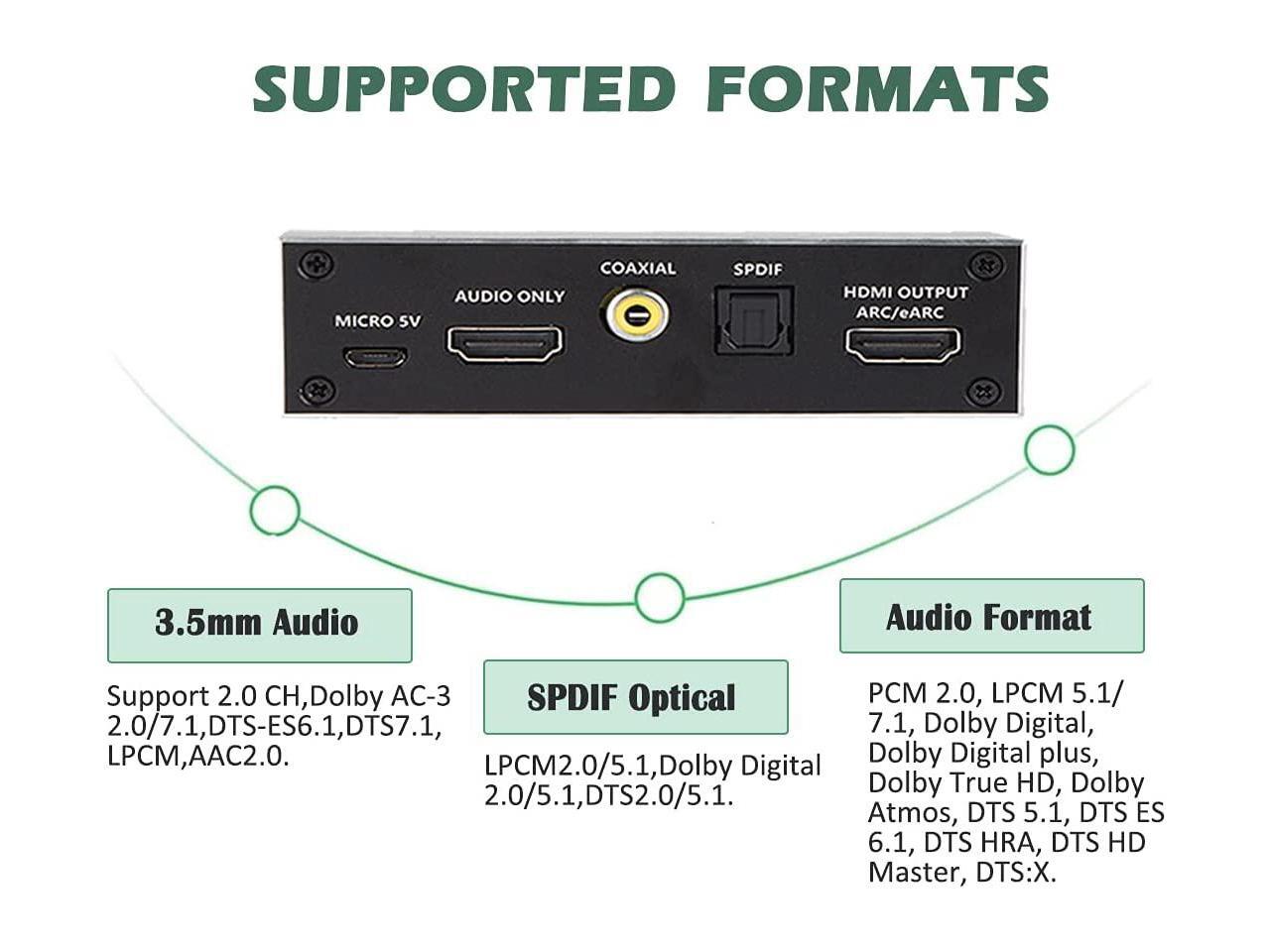

HDMI Audio Formats:PCM 2.0, LPCM 5.1/ 7.1, Dolby Digital, Dolby Digital plus, Dolby True HD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X.

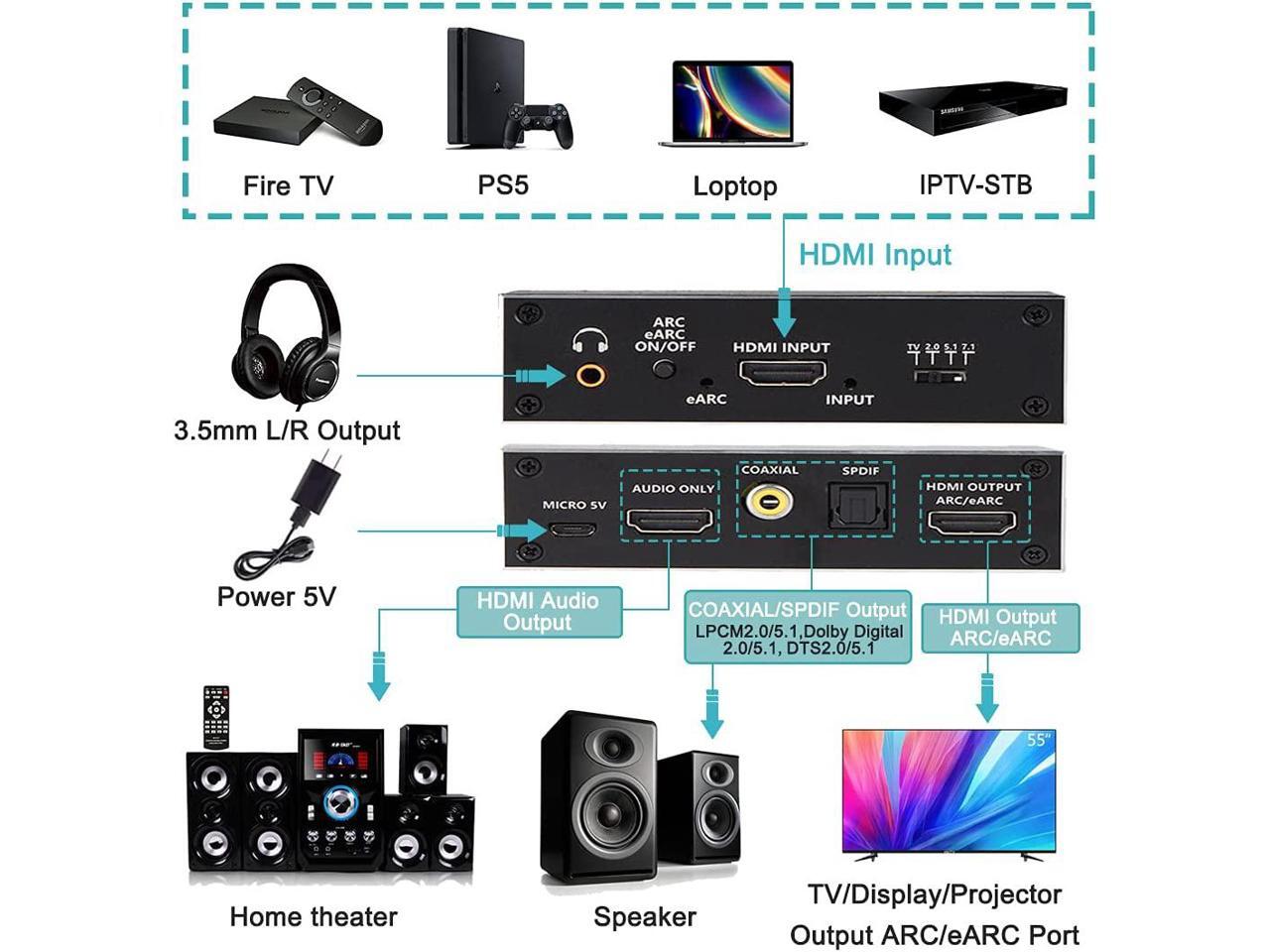

HDMI video/ audio output: monitor, TV, projector. HDMI Audio/ SPDIF/ 3.5mm/ Coaxial Audio Output: Receivers, amplifiers, speakers, headphones and other audio devices.
