HIGH-PERFORMANCE USB CARD: Upgrade or expand a desktop/server's USB connectivity by adding four external USB Type-C 10Gbps ports via a single PCI Express x4 connection
FAST DATA TRANSFER: ASM3142 controller supports USB 3.2 transfer speeds of up to 10Gbps; Ideal for transferring large files or editing high-resolution photos/videos on external storage devices
OPTIONAL POWER: USB PCIe expansion card with SATA power supplies additional power to the USB ports (when motherboard power is insufficient), providing up to 5V 3A (15W) per USB Type-C port and 5V 1.5A (7.5W) on the USB Type-A port
COMPATIBILITY: Drivers auto-install in most OS's including Windows 8 & up, macOS, and Linux; Works with all hardware platforms such as Intel, AMD, and Apple Silicon that have a PCI Express x4/x8/x16 slot; Does not support DP-Alt Mode/USB Power Delivery
Warm Notes:

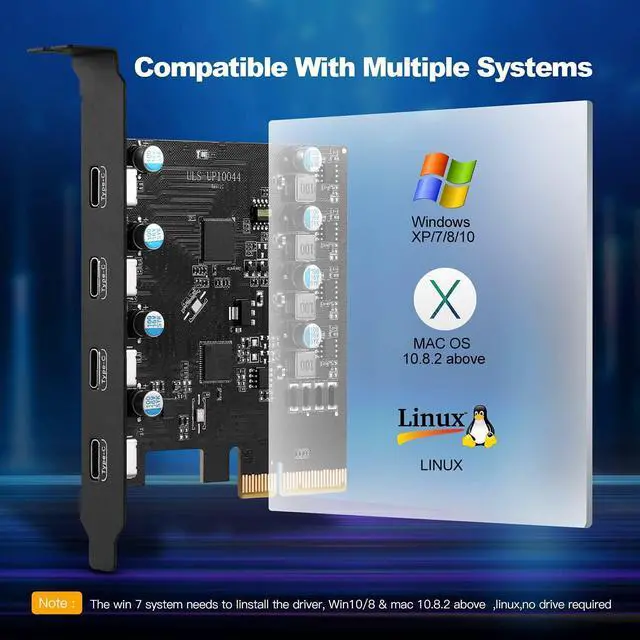

1.Operating system requirements are Windows XP/7/8/10, Mac OS 10.8.2 Above.(If your computer is experiencing compatibility issues/not recognizing any drivers, Go-*Online Support.)
2. Older versions of PCIE 1.0 are not supported.
3. Windows 7/XP system needs to install the driver from the included CD.
4. The USB C card only supports data transfer and doesn't support PD fast charging, Thunderbolt protocol and video signal transfer (ALT DP, HDMI, Bluetooth, Displays function conversion).
5. Only used for low-power USB devices to transfer data.
6. Since the internal USB pin board of this card USB interface is a precision part, please do not insert external devices into the USB-A/USB-C interface jack with great force when using it to avoid damage.

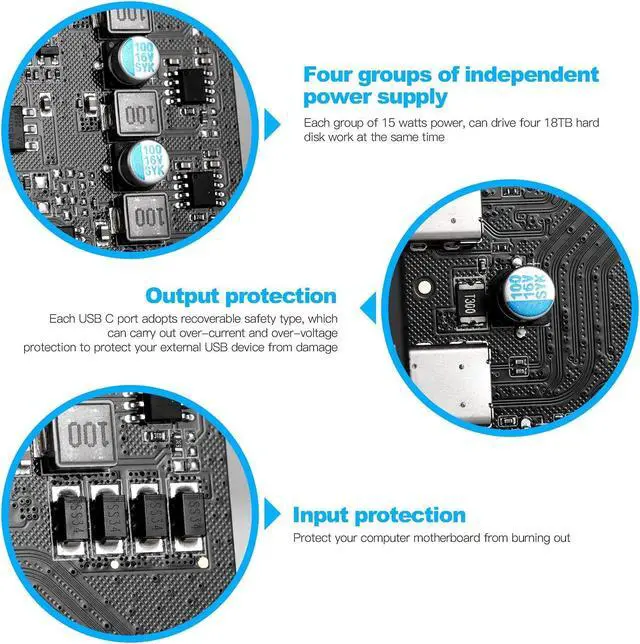

Explosion-proof capacitors are made of dielectric polymer materials. Each interface is equipped with a voltage regulating capacitor. Can ensure good temperature control during operation and ensure stable power supply for each interface.

Uses ASM3142 main control chip. It provides stable 10Gbps high-speed transfer for the USB 3.2 interface of the PCI expansion card, which is 70% faster than the conventional UASP USB 3.2.

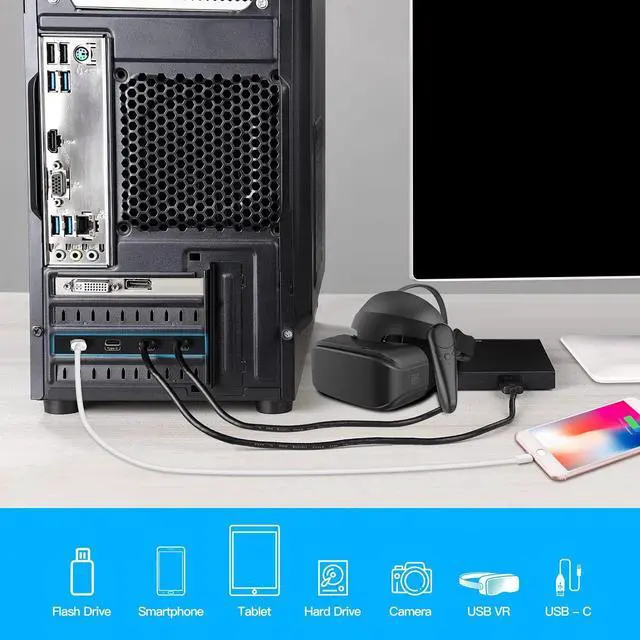

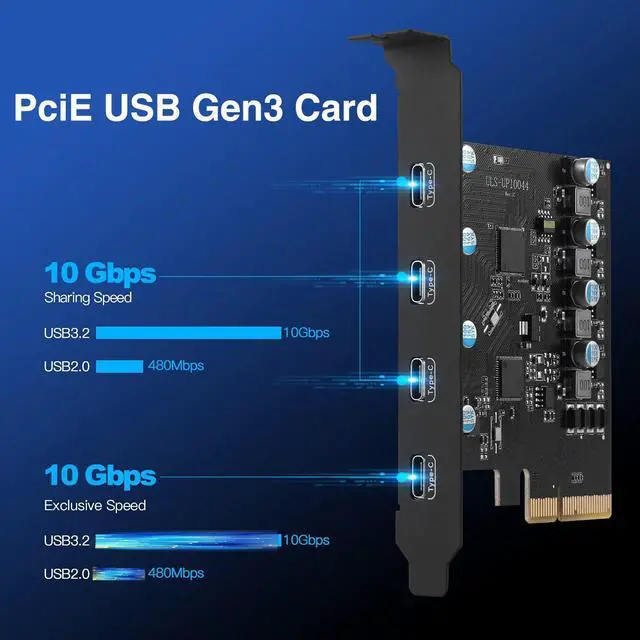

The PCIE card also has FOUR usb c ports. Which can solve the problem that there are no or few usb-c ports in the slot on the back of the pc host. The USB 3.2 Card can theoretically provide data transfer speeds of up to 10Gbps bandwidth.

Power off the computer and unplug the power supply. Then remove the cover from the computer mainframe.

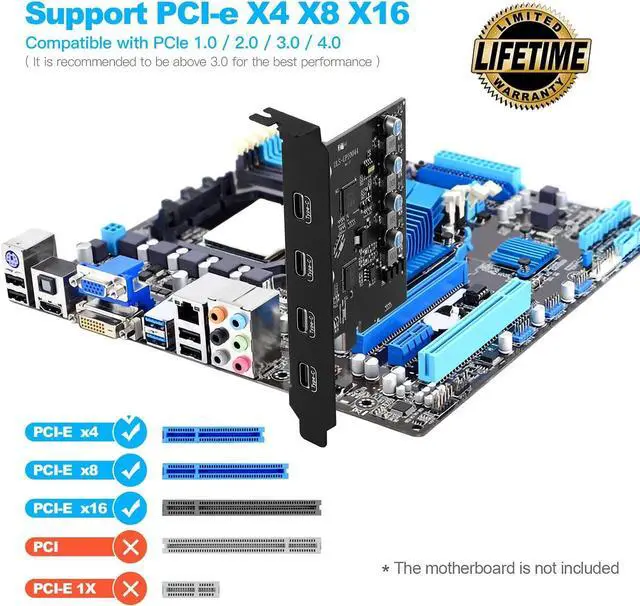

Find a PCI-E x4 or higher specification slot that fits the card.

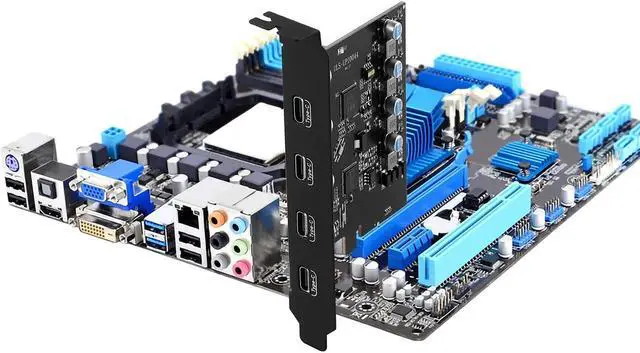

Insert the pcie usb c card down into the PCIE slot.

Tighten the screws on the side of the stand, replace the computer host cover, and insert the plug into the socket.
