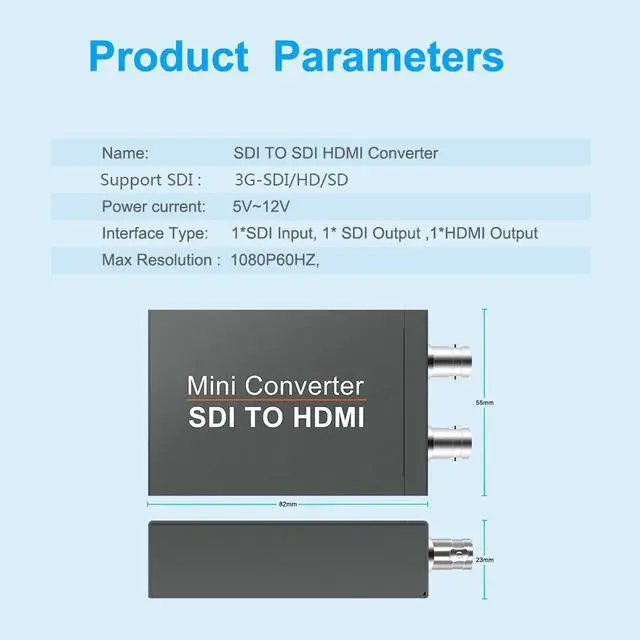

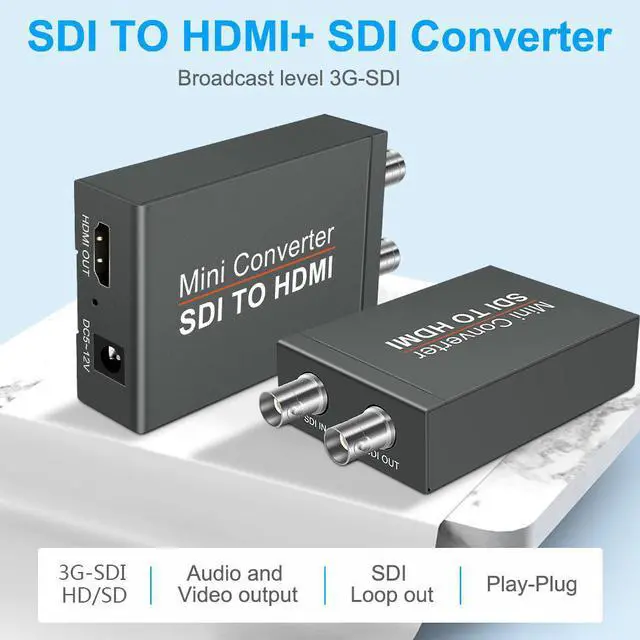

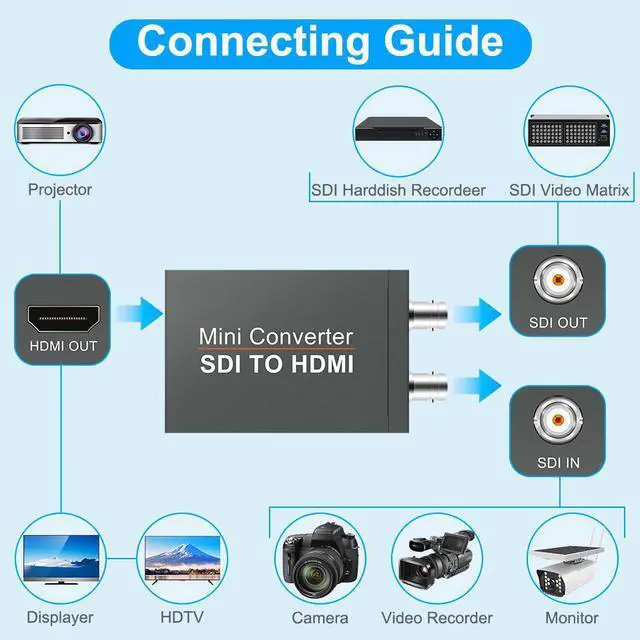

SDI to HDMI Converter Designed for SDI to HDMI Converter allows you easily display your work on common HDMI displays. The loop-through design also allows you to view the original SDI content on an SDI monitor simultaneous with the HDMI display. This converter supports bit rates up to 2.970 Gbps and supports SD-SDI, HD-SDI, and 3G-SDI video signals

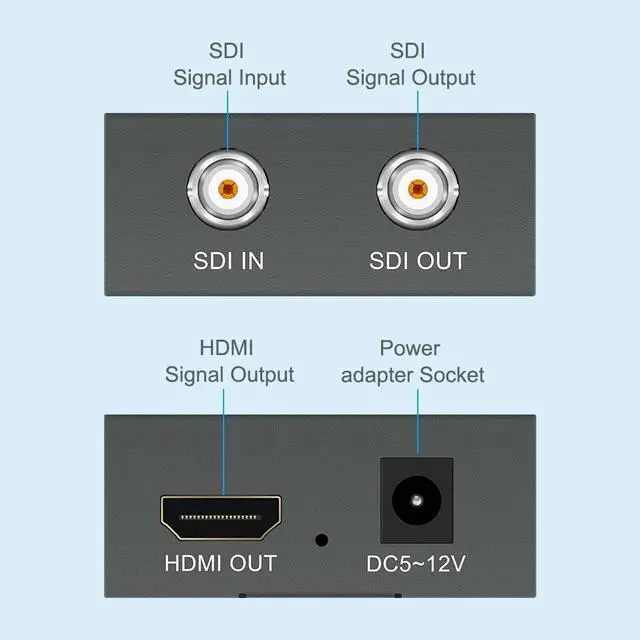

Input port: 1 x BNC (SD-SDI/HD-SDI/3G-SDI)
Output port: HDMI Port, 1 x SDI Output (BNC)
Output HDMI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz
Input SDI Format: 480i/p,576i/p,720P@60Hz,1080i@50/60Hz,1080p@24/25/30/50/60Hz, SD-SDI/HD-SDI/3G-SDI
Input video formats: 3G, HD, and SD-SDI(auto-selected); SMPTE-259 / 274 / 292 / 296 / 372 / 424 / 425;2 * BNC
Output audio formats: HDMI v1.3a, 30/36 bits per pixel, RGB or YUV,SD,HD,720p50/60,1080i 50/60,1080p 24 / 25 / 30 / 50 / 60. HDMI Standard type a connector
Input audio formats: SDI embedded audio, HDMI embedded audio,24 bit/48KHz,8 channels max
Note:
1. Only Support SDI signal, not support RF, CVBS, AHD, TVI, CVI Camera. not support Antenna Set Top Box, not support F-Type Male Connector
2. Only Support FHD 1080p,not support UHD 4K
3. Only Support BNC Male Connector
4. Its a SDI to HDMI Converter, cant be used reversed
Package Included:
1x SDI TO HDMI SDI converter
1x DC CABLE
1x User Manual
