ETCR1600 Wireless High Voltage Phase Detector Phase Range 0.0°~360.0°

ETCR1600 Wireless High Voltage Phase Detector Phase Range 0.0°~360.0°
Notice:
The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
1. High voltage phase detecting, frequency, phase, phase sequence, electricity testing
2. The results of the phase detecting are displayed by a wireless receiver and with a corresponding voice prompt.
3. Phase Range:0.0°~360.0°
4. Frequency Range:45Hz~65Hz and 215°~265°
5. Line Voltage:200V~220kV

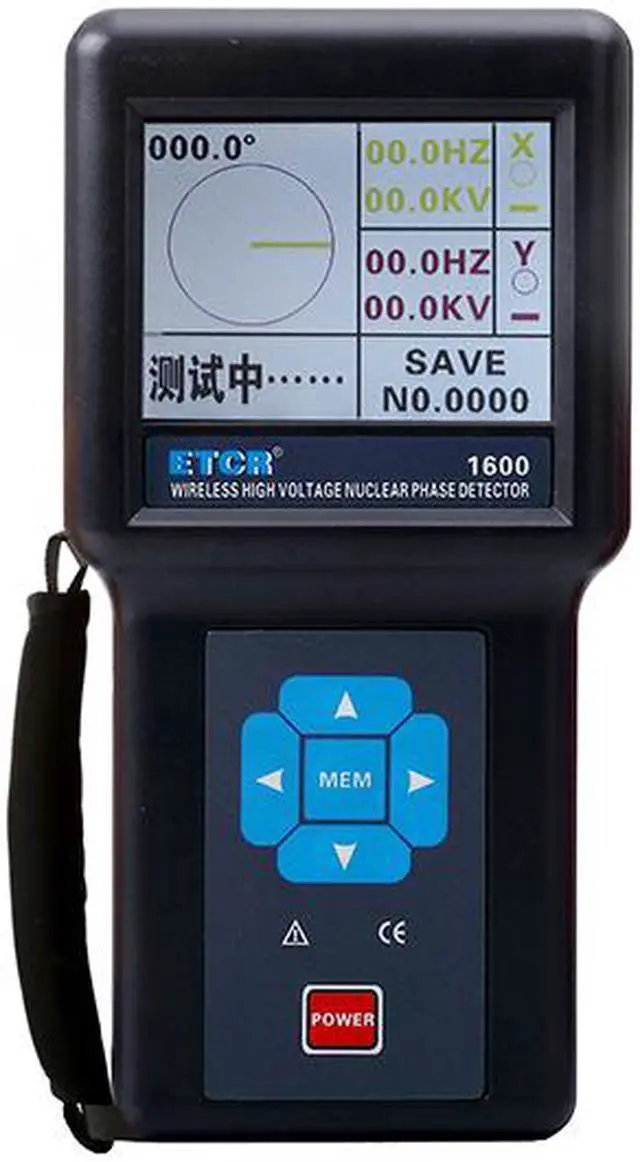

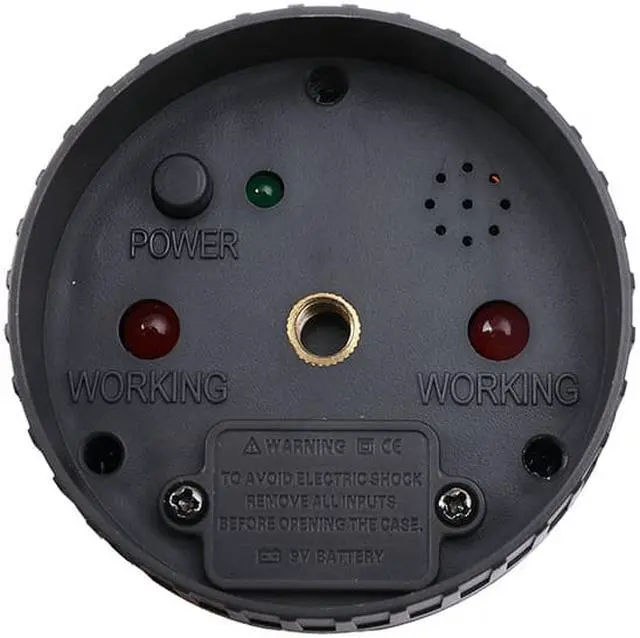

ETCR1600 Wireless High Voltage Phase Detector used in power line or substation electricity testing, phase detecting, phase testing, phase sequence judgment, and transformer groups judgment etc.(line voltage: 200V~220kV). The phase detector adopt wireless transmission technology, transmission distance reach 30M; The 3.5-inch LCD color screen can display the phase, frequency, phase sequence, and phasing results on the same screen. The dynamic vector diagram indication, clear and intuitive. with Voice prompt: "X signal is normal, Y signal is normal, same phase, out phase". For the phase detecting of the high voltage line (the voltage exceeds 400V), the metal hook probe of the detector can be gradually approached to the conductor. When induce the electric field signal can complete the phase detecting. The phase detecting results are directly displayed on the wireless receiver, when the voltage of bare wire exceeds 35kV, must use the non-contact phase detecting for safety.

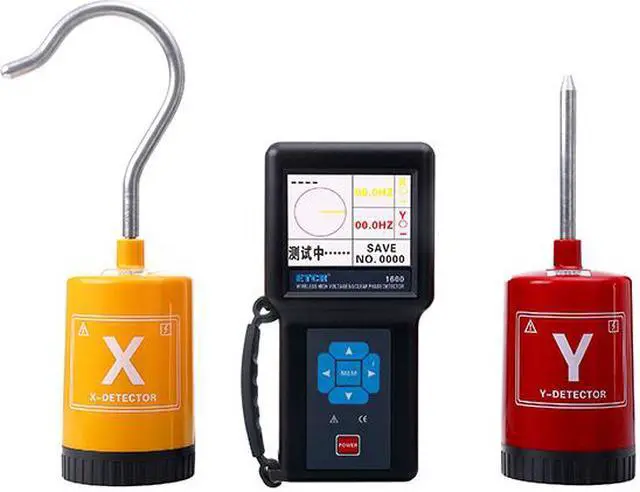

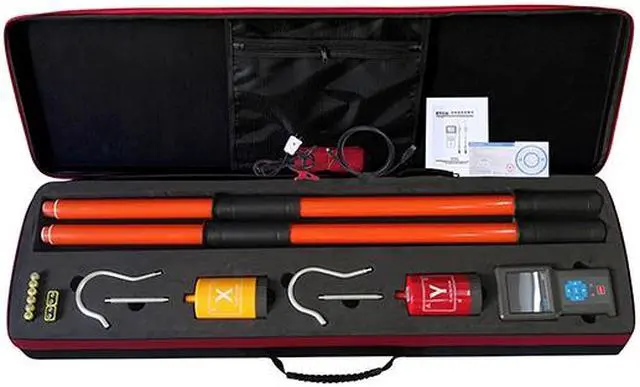

ETCR1600 Wireless High Voltage Phase Detector consists of host, detector, telescopic insulation rod, monitoring software and USB communication cable etc. The monitoring software has the functions of online real-time monitoring, historical data query, vector graph indication and phase indication. With historical data reading, accessing, saving, printing and other functions
