ETCR4000 Double Clamp Digital Phase Voltmeter New

ETCR4000 Double Clamp Digital Phase Voltmeter
Product Main Function

1. Direct measurement of AC voltage and AC current in the measured circuit which not open-loop, measure the phase between two voltages, two current and voltage current, and indirectly measure the power factor and power of the circuit. Distinguish three-phase phase sequence, transformer wiring group, inductive and capacitive circuit, test secondary circuit and bus differential protection system, Read out the phase relationship between each group of CT in differential protection, check whether the wiring of the electricity meter is correct or not, overhaul the line equipment etc.

2. Voltage Range:0~500V;

3. Current Range :0~10A;

4. Phase Range :0~360°;

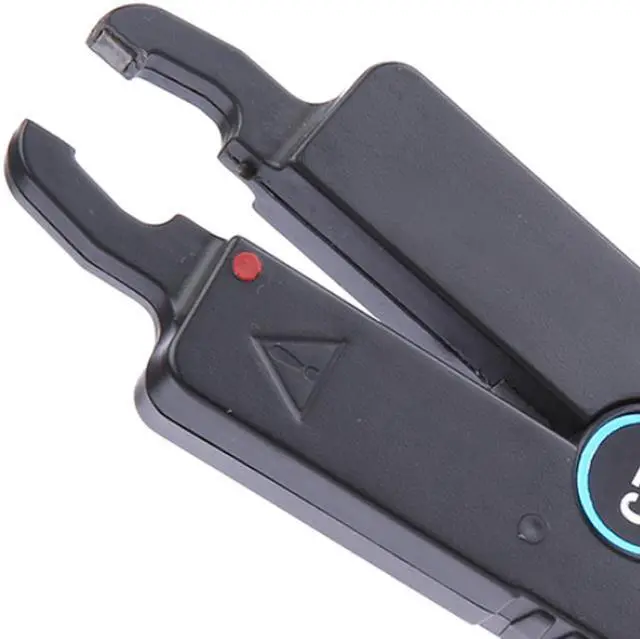

5. CT Size:F8mm

ETCR4000 Double Clamp Digital Phase Voltmeter is a multifunctional instrument specially designed for field testing, with high accuracy, high stability, low power consumption and easy to use and other features. It can direct measurement of AC voltage and AC current in the measured circuit which not open-loop, measure the phase between two voltages, two current and voltage current, and indirectly measure the power factor and power of the circuit. Distinguish three-phase phase sequence, transformer wiring group, inductive and capacitive circuit, test secondary circuit and bus differential protection system, Read out the phase relationship between each group of CT in differential protection, check whether the wiring of the electricity meter is correct or not, overhaul the line equipment etc.

ETCR4000 Double Clamp Digital Phase Voltmeter adopt super large LCD display screen, digital high 40mm, and with white screen backlight, display clear and obvious, shows the exquisite and luxurious appearance.

ETCR4000 Double Clamp Digital Phase Voltmeter suitable for electric power, petrochemical, metallurgy, railway, meteorology, industrial and mining enterprises, scientific research institutes, metrology departments, etc




Function Direct testing of the phase, AC current, AC voltage, AC leakage current, phase sequence; differentiate transformer group, inductive, capacitive circuit n; indirect testing of power factor, power.
Power Supply DC9V LR61.5V AAX6PCS(Battery does not include)
Working Current Open backlight max 35mA,the battery continues working about 15 hours;
Close backlight, the meter power consumption about 5mA,the battery continues working 100 hours
Display Mode LCD display, white screen backlight function, suitable for dark places
LCD Size LCD Size:70mm×62mm; Display Area:64mm×54mm
Meter Dimensions 196mm×92mm×54mm
Sampling Rate About 3 times/second
Range AC Voltage: 0~20V/200V/500V
AC Current: 0~200mA/2A/10A
Phase: 0~360°
The amplitude range of the tested singal in measuring phase Measure phase U1-U2:30V~500V;
Measure phase I1-I2:10mA~10.00A
Measure phase U1-I2 or I1-U2:10V~500V?10mA~10.00A
Data Hold In measurement, press HOLD key to hold data,“DH” symbol display
Auto Shut Down 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Voltage Detection When the battery voltage is lower than 7.8-8V, low battery symbol display,and remind to replace the battery.

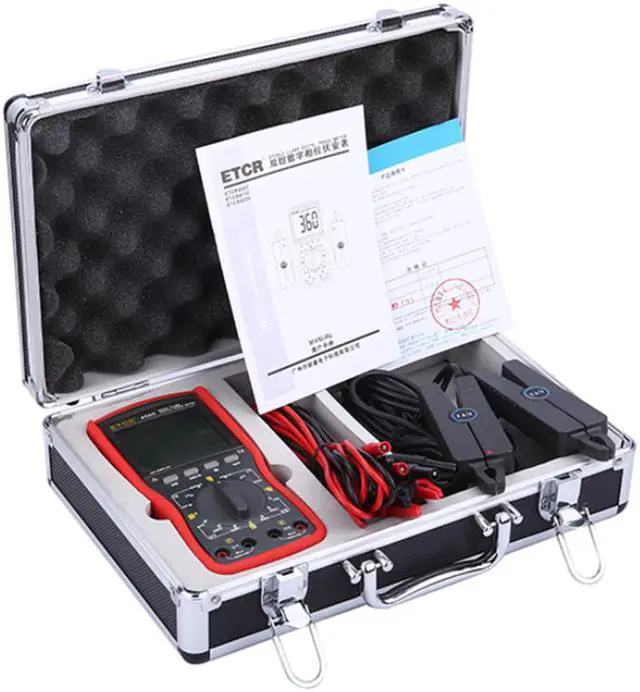

Meter Weight Host: 550g(with battery) ; Current Clamp: 170g x 2; Test wires : 250g
Test Wire Length 1.5m
Current Clamp Wire Length 2m
Working Temperature -10?~40?; below 80%Rh
Store Temperature -10?~60?; below 70%Rh
Input Impedance Test voltage each gears input impedance: 1MO;
Measure phase U1U2 voltage input impedance :40KO
Withstand voltage It took 1 minute to withstand 1000V/50Hz sine wave AC voltage between the meter line and the out shell.
Insulation =10MO between the instrument line and the casing, between the two voltage input terminals
Structure Double insulation
