ETCR4000A Intelligent Double Clamp Digital Phase Volt-Ampere Meter

ETCR4000A Intelligent Double Clamp Digital Phase Voltmeter

Product Main Function

1. Simultaneous measurement of two channel AC current, range: 0.0mA~20.0A

2. Simultaneous measurement of two channel AC voltage, range: 0.00V~600V

3. Simultaneous measurement the phase between UU, II, UI, range: 0.0°~360.0°

4. Measurement frequency, phase sequence, active power, reactive power, apparent power, power factor and others parameters.

5. Judge transformer group, inductive, capacitive circuit, overhaul line device.

6. Line Voltage: below 600V

7. CT Size: F8mm


ETCR4000A Intelligent Double Clamp Digital Phase Voltmeter is a well-developed full-automatic, multi-functional, digital, intelligent meter specifically designed for field testing, which is a overall upgrade product based on mechanical knob phase volt-ampere meter, can simplify operation and reduce the possibility of misoperation, featuring high accuracy, high stability, low power consumption, easiness to use and so on. It can directly measure AC voltage and AC current without opening the measured circuit, phases between three voltages, three currents and phase between the voltage and current; in addition, the power factor and power of the circuit can be indirectly measured, it can also be used to distinguish three-phase sequence, transformer wiring group, inductive and capacitive circuits, test second circuit and bus differential protection systems, read the phase relationship between CTs of the differential protection, check the meter wiring right, repair lines and equipment, etc. Apply to electric power, petroleum chemical industry, metallurgy, railway, and meteorology, industrial and mining enterprises, scientific research institutions, measurement sector and so on. Especially for the electricity billing system and relay protection system, and electricity measurement, electricity check, power inspection for power marketing department. Assembling, relay protection, differential detection, start experiment, substation overhaul, or power practical training, skills match for biotech department.

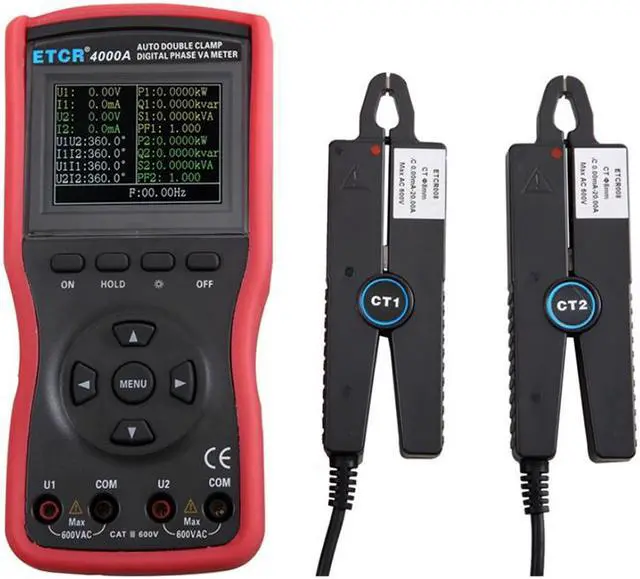

ETCR4000A Intelligent Double Clamp Digital Phase Voltmeter has well designed shell mould made of newest material, attach with shakeproof, skidproof, high insulation sheath, has a 240dots×160dots LCD screen, all the test data display on the screen simultaneously, vector diagram indication, and looks exquisite and comfortable. Meter equipped with USB-RS232 interface, can store 1500 sets of data, through the system software upload stored data to the computer, implementing online real-time monitoring and historical inquires, dynamic display. Can read, save, report, print history data, etc. Its small mouth clamps are suitable for line densely places.

ETCR4000A Intelligent Double Clamp Digital Phase Voltmeter aliases: full-automatic double-clamp digital phase voltmeter, multi-functional double-clamp digital phase voltmeter, full-automatic phase voltmeter, digital phase voltmeter, including the functions of the general mechanical double-clamp digital phase voltmeter, suitable for electric power, petrochemical, metallurgy, railway, industrial and mining enterprises, scientific research institutions, measurement departments.Especially suitable for electric energy billing system and relay protection system, its power supply Marketing Department of electric energy measurement, electricity inspection, electric power inspection, the production and technology department of the table connected to electricity, relay protection, differential detection, starting test, transformation maintenance, or electric power training, skills and so on.


Function Measure two channel AC voltages, current, phase between voltages, phase between currents, phase, frequency, phase sequence, active power, reactive power, apparent power, and power factor between voltage and current. Discriminate the transformer wiring group, inductive and capacitive circuits, test the secondary circuit and the busbar protection system, read the phase relationship between the CTs of the differential protection groups, check the wiring of the meter for correctness, and repair the line equipment, etc.

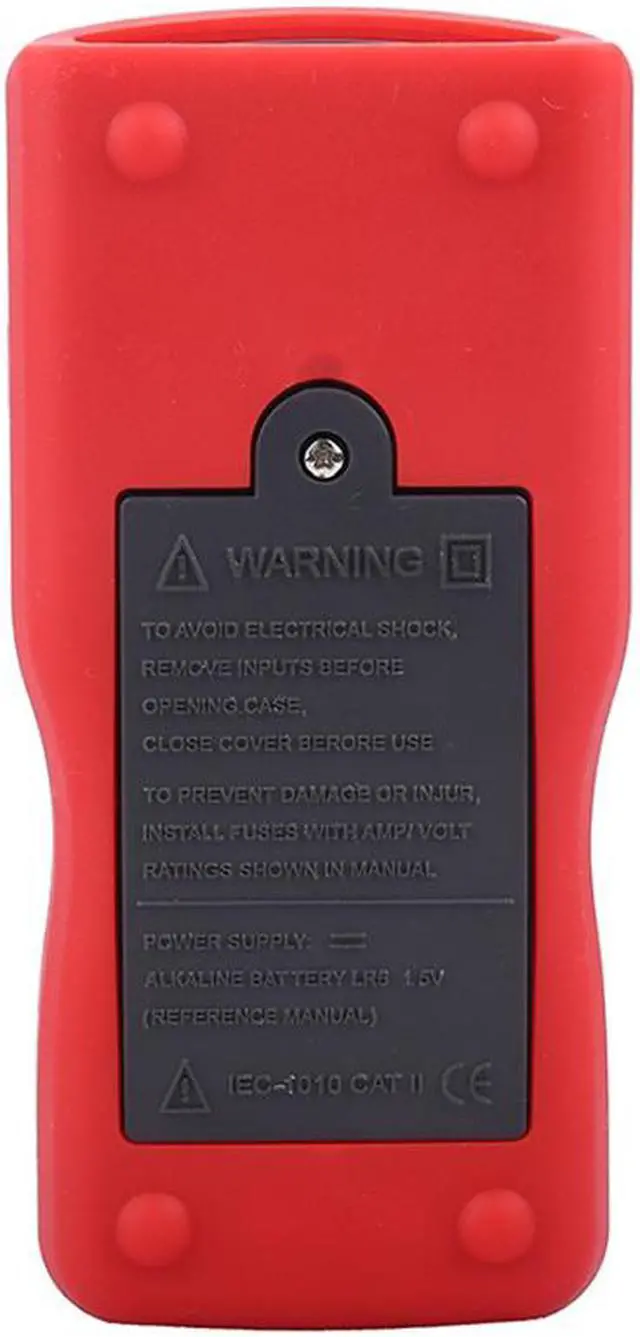

Power Supply DC 9V Alkaline dry battery LR14 1.5V 6 PCS
Clamp Sharp-nose current clamp: 7.5mm×13mm
Range(Automatic) Voltage:AC 0.00V~600V ;
Current:AC 0.0mA~20.0A;
Phase:0.0°~360.0°;
Frequency:45.00Hz~65.00Hz;
Active power:0.0W~12kW;
Reactive power :0.0VAR~12kVAR;
Apparent Power:0.0VA~12kVA;
Power factor:-1~+1;
Resolution Voltage:AC 0.01V
Current:AC 0.1mA
Phase:0.1°
Frequency:0.01Hz
Active Power:0.1W
Reactive power:0.1VAR
Apparent Power:0.1VA
Power factor:0.001
Date Storage 1200 groups

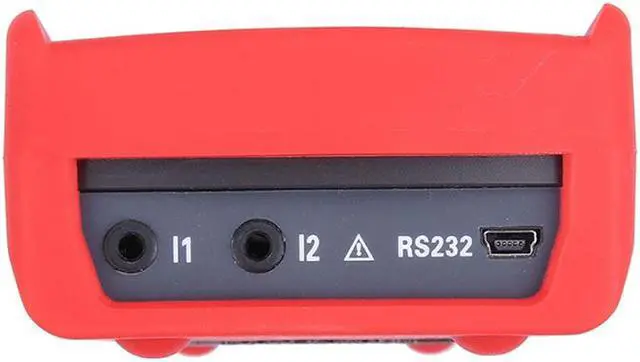

RS232 Interface USB-RS232 interface, the stored data upload computer, convenient to analyze management data
Power Consumption Open backlight with Max power consumption135mA, the battery continues working 6 hours
Close backlight,the meter power consumption 90mA,the battery continuesworking 9 hours
Display Mode 2.8 inch color LCD screen, display area: 58mm×44mm
Meter Diamension 196mm×92mm×54mm
Test Rate About 2 second/times
Data Hold In measurement, press HOLD key to hold data,“DH” symbol display
Auto Shut Down 15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
Backlight Function Yes, stuitable for dark place and use at night; it will close backlight after 5 minutes without any operation
Voltage Detection When the battery voltage is lower than 7.2V, low battery symbol display,and remind to replace the battery.
Instrument Weight Host: 550g
Current Clamp: 170gX2
Test Wires: 250g
Test Wire Length 1.5m
Current Clamp wire Length 2mX f4mm
Working Temperature -10?~40?;below 80%rh
Store Temperature -10?~60?;below 70%rh
Input Impedance Test voltage input impedance is:1MO
Withstanding Voltage It took 1 minute to withstand 1000V/50Hz sine wave AC voltage between the meter line and the out shell.
Insulation Between the meter line and the out shell = 100MO
Structure Double insulated, with insulated vibration-proof jacket
Suitable Safety Standard IEC61010-1 CAT ? 600V,IEC61010-031,IEC61326,Pollution 2


Battery does not include



Model Shift CT Size Current Range Voltage Range Communication Interface Data Storage
ETCR4000 manual control F8mm 0.0mA~10A 0~500V - -
ETCR4000A automatic F8mm 0.0mA~20.0A 0~600V USB-RS232 interface 1200 groups
ETCR4100 manual control F8mm - - - -
ETCR4200 automatic 35x40mm 0.0mA~600A 0~600V USB-RS232 interface 1200 groups

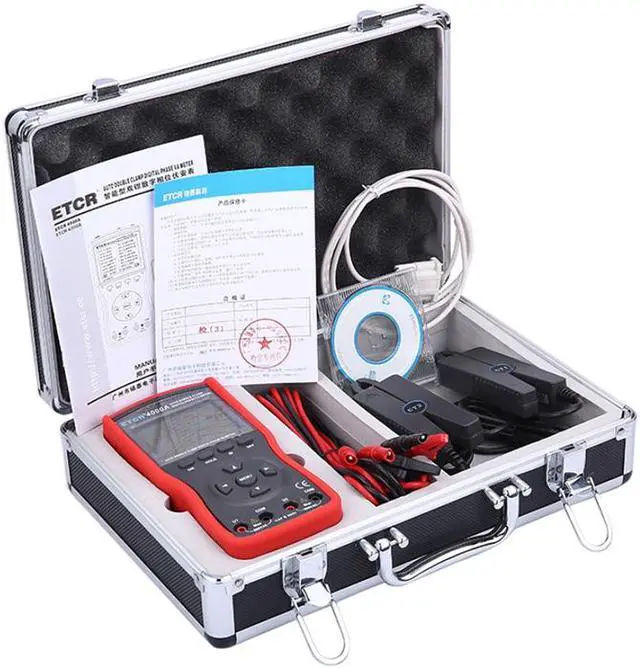

Package Outer Package Carton
Inner Package Aluminum box
Accessory Host 1 PCS
Instrument Case 1 PCS
Current Clamp 2 PCS
Test Wires 4 PCS(red 2 pcs,black 2pcs )
Data Cable 1 PCS
Manual , Warranty Card ,Certificate 1 SET
