ETCR4500 Wireless PT Secondary Voltage-drop/Load Tester 2V~700V 0.001A - 20A

ETCR4500 Wireless PT Secondary Voltage-drop/Load Tester 2V~700V 0.001A - 20A
Product Main Function
Used for wireless synchronous measurement of secondary voltage drop, load, current, voltage, phase and other parameters of the potencial transformer in substation
Voltage : 2V~700V
Current : 0.001A - 20A
Phase : 0°~360°
Frequency : 45Hz~65Hz
Active Power : 0.002W~7000W
Reactive Power : 0.002VAR~7000VAR
Apparent Power : 0.002VA~7000VA
Communication Mode : Wireless LORA(230MHz)

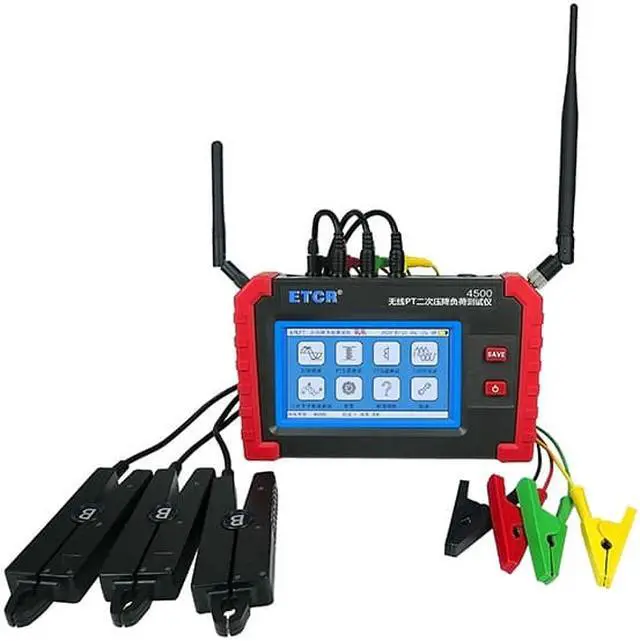

ETCR4500 Wireless PT Secondary Voltage-drop/Load Tester used for wireless synchronous measurement of secondary voltage drop, load, current, voltage, phase and other parameters of the potencial transformer in substation.  Adopt 5 inch touch color screen, easy and convenient operation, large capacity lithium battery, USB interface. The single tester can be used as three-phase voltammeter, load tester and three-phase unbalance degree tester. For two testers can be used as wireless phase voltammeter, can test the phase relationship between current, voltage, current & voltage in substation different positions.can wireless synchro testing the line voltage-drop of PT side, and can measure the line voltage-drop of single phase or three phase.The instrument adopts GPS and LORA synchronous technology to ensure the accuracy of synchronous measurement of secondary voltage-drop. The operation personnel only need to wiring operation, the instrument will automatically measure, and update data in real-time, which is facilitate the field analysis.
Range and Accuracy
Measurement Type Measurement Range Accuracy Resolution
Voltage 2V~700V ±0.3%rdg 0.0001
Current 0.001A-20A ±0.3%rdg 0.0001
Phase 0°~360° ±0.3° 0.1
Frequency 45Hz~65Hz ±0.03Hz 0.0001
Active Power 0.002W~7000W ±0.3%rdg 0.0001
Reactive Power 0.002VAR~7000VAR ±0.3%rdg 0.0001
Apparent Power 0.002VA~7000VA ±0.3%rdg 0.0001
PT Secondary Admittance 1.0mS~100mS ±0.5%rdg 0.0001
CT Secondary Impedance 0.1O~50O ±0.5%rdg 0.0001
Working Condition: 23oC±3oC, HR<75%, the detected conductor is in the center posistion of the clamp
Technical Specification
Function Description
Power Supply DC7.4V, 5200mAH rechargeable lithium battery
Function Option Touch screen option
Communication Mode Wireless LORA(230MHz)
Wireless Communication Distance 1Km(in the open area)

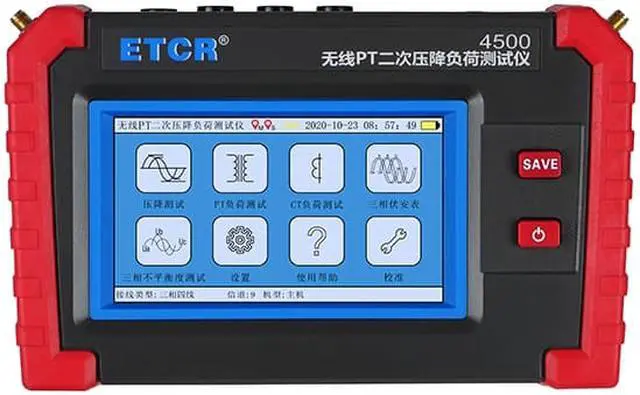

Display Mode 5 inch touch color screen
LCD Size 108X65mm
Host Meter Size 210mm×129mm×68mm
Weight Meter: 870g; Total weight: 5800g(with the package)

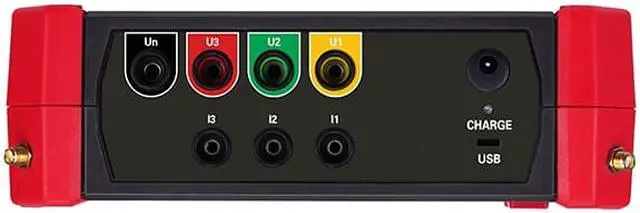

Test Line One of each yellow,green,red,black voltage test line
Current Clamp Clamp jaw size f8mm, 3pcs/meter
Data Storage Voltage-drop test :400 groups, Load test: 400groups; three phase voltage and ammper test: 400groups
Data Upload USB interface, tester record data can be uploaded to computer, and can export the Excel format
Battery Voltage Battery power indicator display, battery voltage lower than 10% remind to charge in time
Automatic Shutdown 15 Minutes after power on, will automatic shutdown without any operation. Before shutdown will reminder
Working Time Continue working time is 12 hours when full charge.
Power Consumption Standby(backlight 50mA) : 320mA; Working(backlight 50mA) : 420mA
Working Condition Temperature: -20?~ 50?  ;Relative humidity: 0 ~ 95%HR without condensation
Accessories Terminal meter:2PCS; Current clamp sensor: 6PCS; Test line: 8PCS;Charger:2PCS; USB communication cable: 2PCS;  Meter case:1PC;
