ETCR4800 Oil Pumping Multimeter Patrol Tester Petroleum Special Tester

ETCR4800 Pumping Unit Multimeter
Product Main Function

1. AC current test,range:0.0mA~300A

2. AC voltage test,range:0V~700V

3. Phase between voltage and current,range:0.0°~360°

4. Make-break resistance value,range:0.00kO~20.0kO

5. Maximum current of up and down stroke of pumping unit, stroke ratio, up and down stroke time, stroke times per minute.

6. Line Voltage:below 600V

7. CT Size:35mm x 40mm

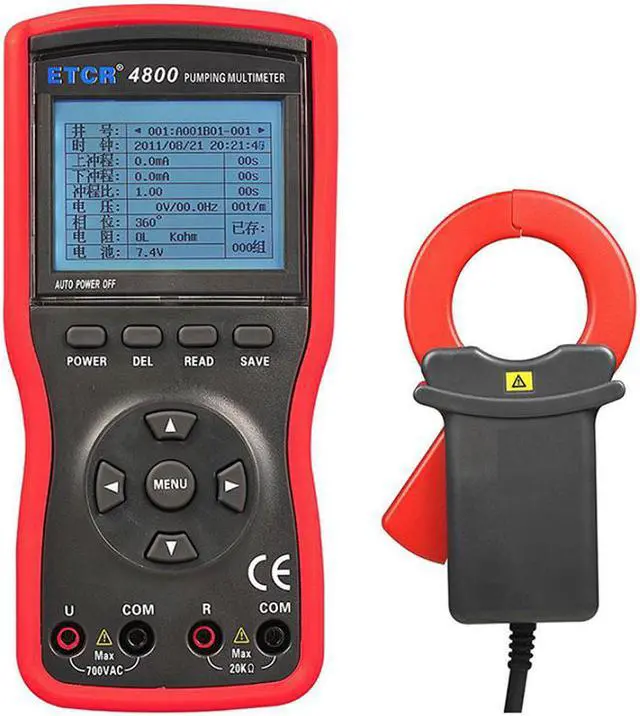

ETCR4800 Pumping Unit Multimeter, is an instrument specially designed for oilfield field measurement,Simultaneously measurement AC current(range:0.0mA~300A)?voltage(range:0V~700V)?frequency(range:10Hz~70Hz)?phase between voltage and current(range:0.0°~360.0°)?make-break resistance value(range:0.00kO~20.0kO)?maximum current of up and down stroke of pumping unit, stroke ratio, up and down stroke time, stroke times per minute. LCD display 240dots×160dots,All measured data are displayed on the screen, so that the working condition of the pumping unit can be easily judged.

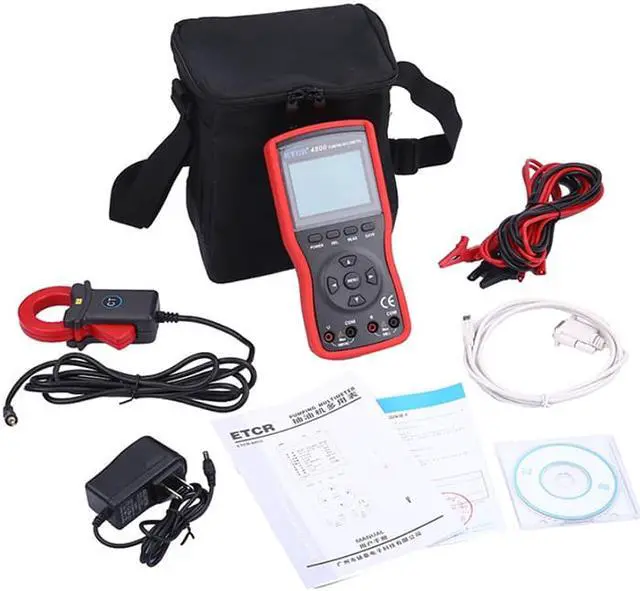

ETCR4800 Pumping Unit Multimeter is equipped with a rechargeable Ni-MH battery, a charger and a charging interface, which is convenient for long-term online use.The meter can store 1000 groups of data . USB interface with data upload function , storage data can be uploaded to the computer,save and print.

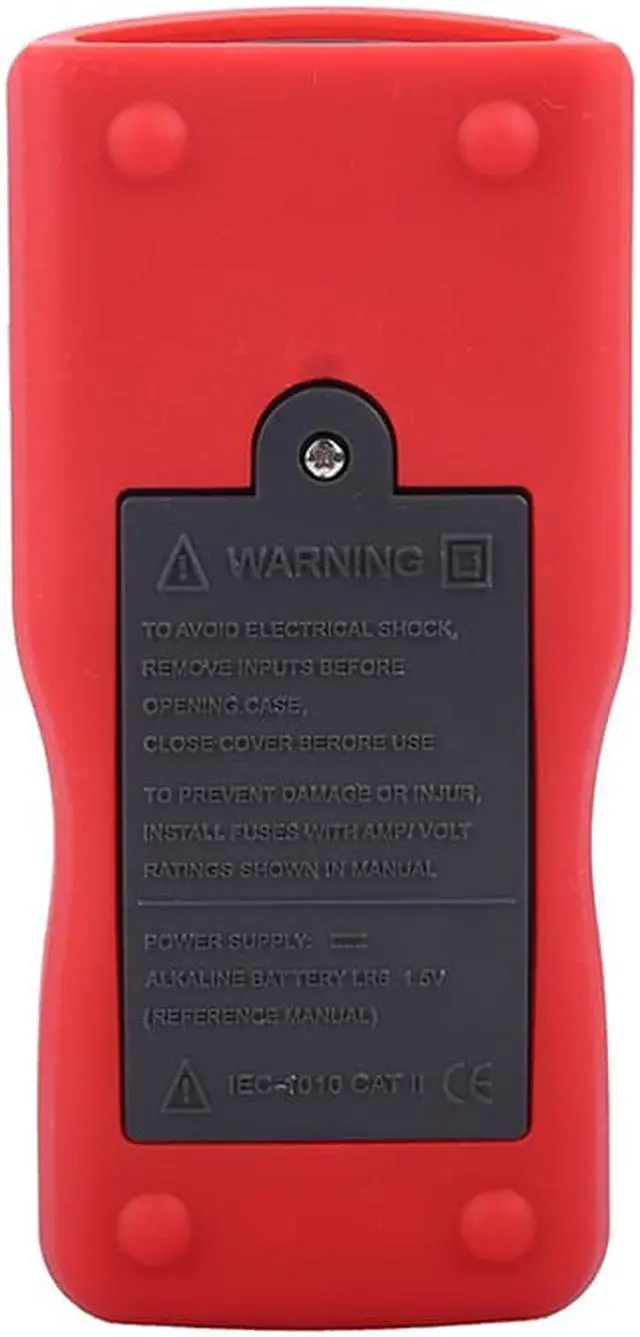

Power Supply DC7.2V 1.2V AAX6PCS NI-MH battery 1200mAH
CT Size 35mm x 40mm
LCD Size 240dotsX160dots(with back light)
Rang Voltage :AC 0V~700V
Current:AC 0.0mA~300A
Phse:0°~360°
Resistance:0.00Kohm~20.0Kohm
Frequency:10.0Hz~70.0Hz
Resolution Voltage:AC 1V
Current:AC 0.1mA
Phase :1°
Resistance :10ohm
Frequency:0.1Hz
Accuracy Voltage :±(1.5%rdg+3dgt)
Current:±(1.5%rdg+3dgt)
Phase:±3°
Resolution:±(2.0%rdg+3dgt)
Frequency:±(2.0%rdg+3dgt)
Measure Amplitude Of The Phase Frequency Voltage:30V~700V
Current:30mA~300A
Data storage 1000 groups

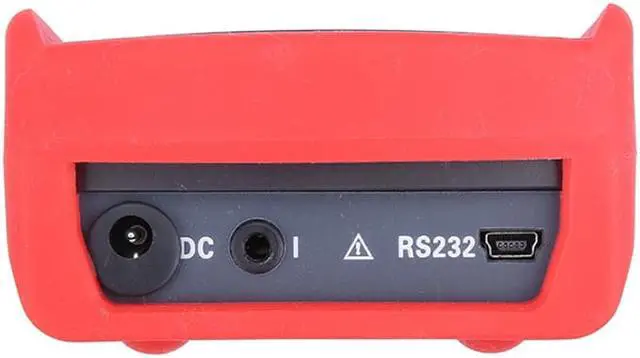

Communication Interface USB interface,storage data can be uploaded to computer
Auto Shut Down 15 minutes after boot up, the meter shuts down automatically without any operation
Working Current Meter power consumption of open backlight: 50mA
Meter power consumption of close backlight: 30mA
Working Temperature -20?~40?; below 80%Rh
Storage temperature -10?~60?;below 70%Rh
Well Number Quantity 100 number
Well No. Setting 15-bit code, The well number can be edited by the instrument or the upper computer software
Clock Function Yes
Password Setting Yes, 6 digital password
Cable Length Test wire length 1.5m
Current lamp wire length 2m
Detection Rate About 2second/times
Input Impedance Test voltage input impedance: 1MO
Voltage Detection The meter displays the battery voltage in real time. When the battery voltage is lower than 6.5v, low battery voltage symbol will display, please charge in time
Resistant to pressure Ac voltage of sine wave to withstand 1000v/50hz between instrument line and housing for 1 minute
Insulation =100m? between instrument line and sheath housing
Structure Double insulation, with insulated anti-vibration sheath
Suitable for safety regulations IEC61010-1 CAT ? 600V,IEC61010-031,IEC61326,Pollution degree 2
Weight 1000g
Dimension 196mm×92mm×54mm
