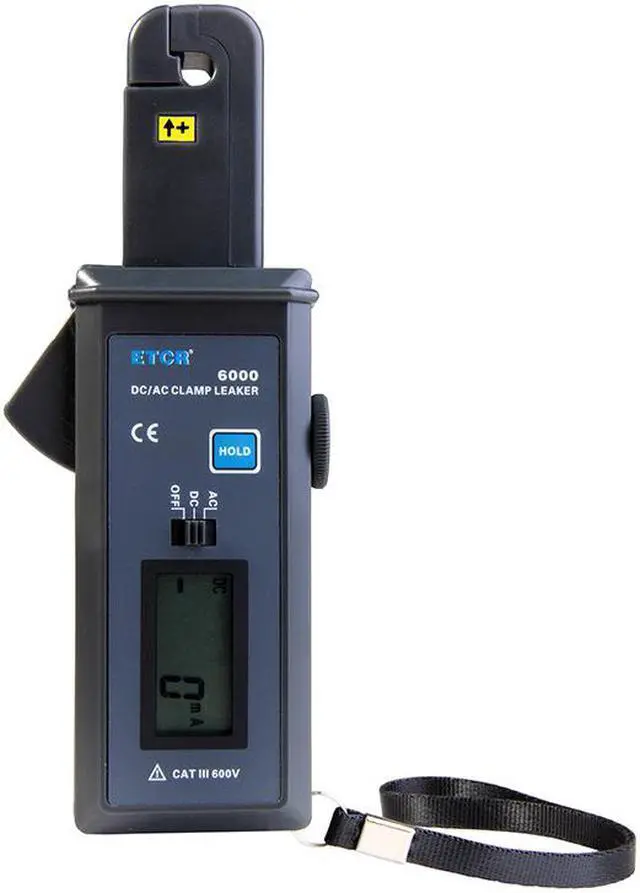

ETCR6000 AC/DC Clamp Leakage Current Meter 0mA~60.0A CT Size F7mm

ETCR6000 AC/DC Clamp Leakage Current Meter 0mA~60.0A CT Size F7mm
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
1. Measurement of AC/DC current, leakage current, Range: 0mA~60.0A
2. Data Storage: 99 groups
3. Line Voltage: below 600V
4. CT Size: F7mm
ETCR6000 AC/DC Clamp Leakage Current Meter  suitable for measuring AC, DC leakage current below 600V, range: AC/DC 0mA~60.0A, slenderness design of clamp, especially suitable for places with dense flat cable (power metering system, high-speed rail system, automobile circuit maintenance, etc.). Non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance.
The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by USB interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.
Technical Parameter
Function Description
Model  ETCR6000
CT Size  f7mm
Meter Size 168mm×65mm×34mm
Function  Measurement of car dark current, leakage current and other AC/DC current, leakage current
Power Supply  Zn-Mn dry battery 6F22 9V
Test Mode  Clamp CT, Non-contact measurement
Range  0mA~60.0A AC/DC
Resolution 1mA AC/DC
Accuracy
(23?±3?,
below 70%RH)  ±2%rdg±5dgt (23?±5?,below 75%rh)
Display Mode  4 digits LCD display
LCD Dimension  35mm×21.5mm;display area:32mm×15mm
Sampling Rate  about 2 times/s
Frequency  AC 45Hz ~ 400Hz
Polar Indication  Automatic identification, display "-" symbol
Wire Position The tested wire in the center of the clamp jaw
Range Shift  Automatically
Line Voltage  Line measurement below DC 600V
Interface  With interface, storage data can be uploaded to computer, software monitoring
Communication Parameter  Baud rate:9600,data bit 8,stop bit 1,check bit NONE
Data Storage  99units, display FULL symbol indicate storage full
Data Hold  Data hold function: DH symbol display
Overflow display  Exceed measure range overflow function: OL symbol display
Auto Shut Down  5 Minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage  While battery voltage decreases to around 7.2V, will display low battery voltage symbol“    ”, and remind to replace the battery
Meter Weight  180g
Working Current  20mA
Working Temperature  -10? ~ 50?,below 80%rh
Limit Temperature Error  -10?~0? and 40?~50?, the maximum increase in error is 2%rdg
Storage Temperature  -10? ~60?,below 70%rh
Insulating Strength  AC3700V/rms (between the core and outside shell)
Suitable Safety Standard  IEC1010-1?IEC1010-2-032?pollution, etc 2?CAT ?(600V)
 Package  Outer Package  Carton
 Inner Package  Cloth bag
 Accessory  Meter  1 PCS
 Communication Cable  1 PCS
 Software CD  1 COPY
 Cloth bag  1 PCS
 Manual  1 PCS
 Certificate  1 PCS
 Warranty Card  1 PCS
