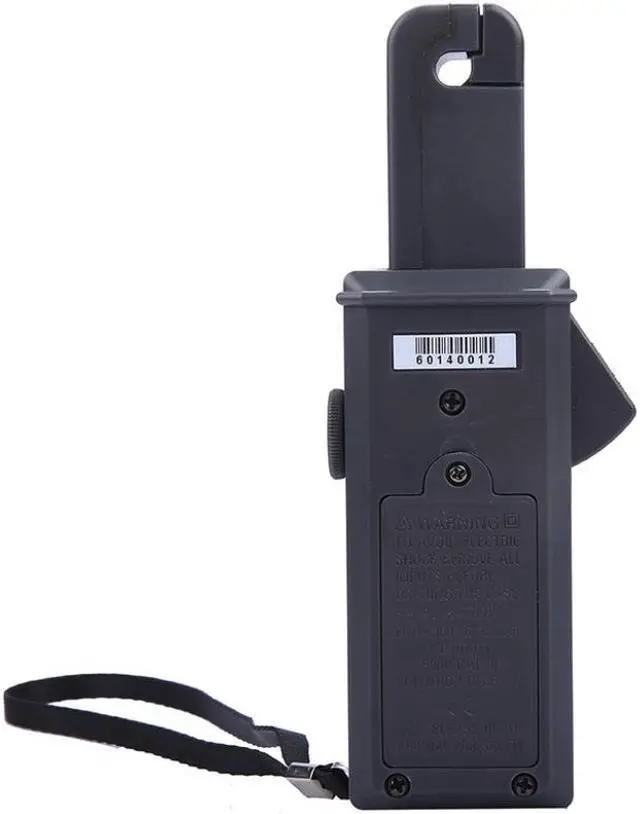

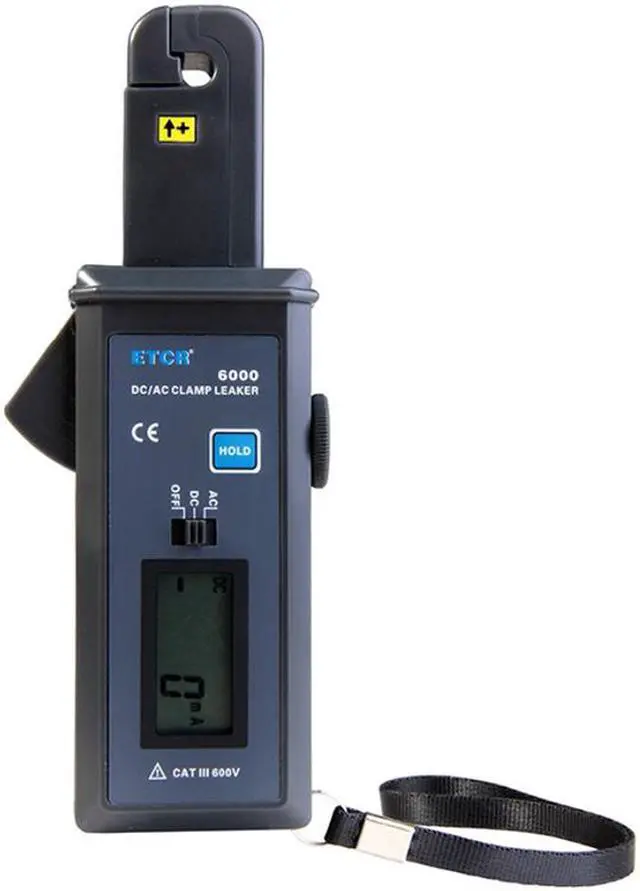

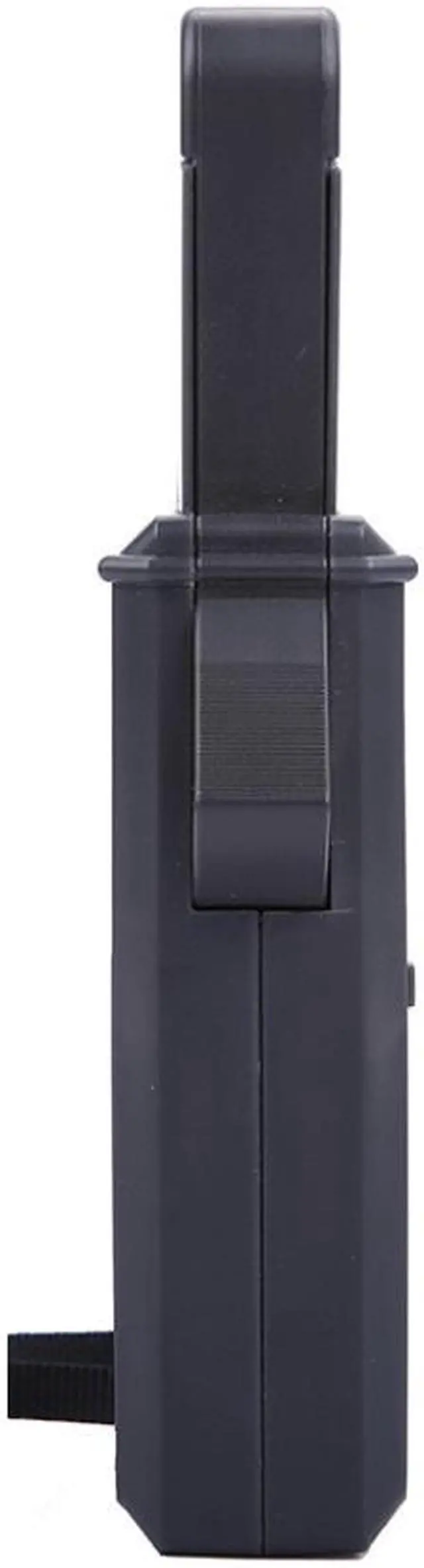

ETCR6000B AC/DC Clamp Leakage Current Meter with RS232 Interface 0mA-60.0A

ETCR6000 AC/DC Clamp Leakage Current Meter

Product Main Function

1. Measurement of AC/DC current, leakage current, Range: 0mA~60.0A

2. Data Storage: 99 groups

3. Line Voltage: below 600V

4. CT Size: F7mm

ETCR6000 AC/DC Clamp Leakage Current Meter suitable for measuring AC, DC leakage current below 600V, range: AC/DC 0mA~60.0A, slenderness design of clamp, especially suitable for places with dense flat cable (power metering system, high-speed rail system, automobile circuit maintenance, etc.). Non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance.

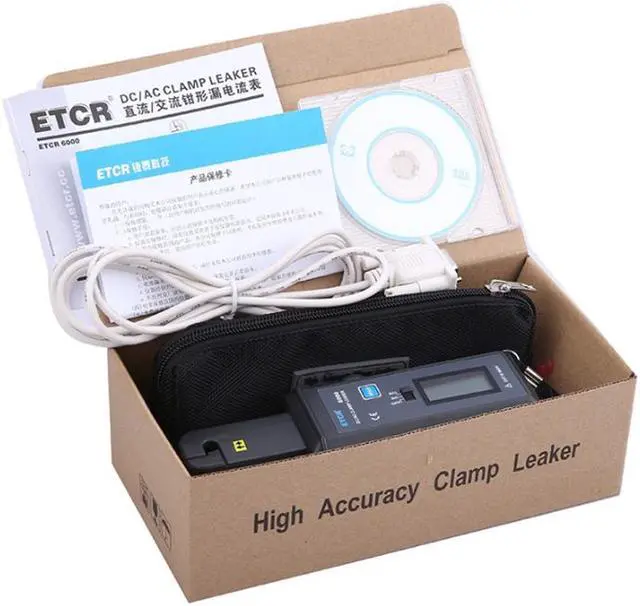

The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.


Model ETCR6000
CT Size f7mm
Meter Size 168mm×65mm×34mm
Function Measurement of car dark current, leakage current and other AC/DC current, leakage current
Power Supply Zn-Mn dry battery 6F22 9V, continues working 30 hours(Battery not included)
Test Mode Clamp CT, Non-contact measurement
Range 0mA~60.0A AC/DC
Resolution 1mA AC/DC
Accuracy
(23?±3?,
below 70%RH) ±2%rdg±5dgt (23?±5?,below 75%rh)
Display Mode 4 digits LCD display
LCD Dimension 35mm×21.5mm;display area:32mm×15mm
Sampling Rate about 2 times/s
Frequency AC 45Hz ~ 400Hz
Polar Indication Automatic identification, display "-" symbol
Wire Position The tested wire in the center of the clamp jaw
Range Shift Automatically
Line Voltage Line measurement below DC 600V
RS232 Interface With RS232 interface, storage data can be uploaded to computer, software monitoring
Communication Parameter Baud rate:9600,data bit 8,stop bit 1,check bit NONE
Data Storage 99units, display FULL symbol indicate storage full
Data Hold Data hold function: DH symbol display
Overflow display Exceed measure range overflow function: OL symbol display
Auto Shut Down 5 Minutes after power on, the meter shuts down automatically without any operation to reduce battery consumption
Battery Voltage While battery voltage decreases to around 7.2V, will display low battery voltage symbol“ ”, and remind to replace the battery
Meter Weight 180g
Working Current 20mA
Working Temperature -10? ~ 50?,below 80%rh
Limit Temperature Error -10?~0? and 40?~50?, the maximum increase in error is 2%rdg
Storage Temperature -10? ~60?,below 70%rh
Insulating Strength AC3700V/rms (between the core and outside shell)
Suitable Safety Standard IEC1010-1?IEC1010-2-032?pollution, etc 2?CAT ?(600V)
