ETCR7100A Superlarge Caliber Leakage Clamp Meter Ac 0.0A-4000A RS232 Data

ETCR7100A Super Large Caliber Clamp Current Meter
Product Main Function

1:Measurement of AC current, leakage current, Range: 0.0A~4000A

2:Resolution: 0.1A

3:Data Storage: 99 groups

4:Line Voltage: below 600V

5:CT Size: 108mm x 148mm

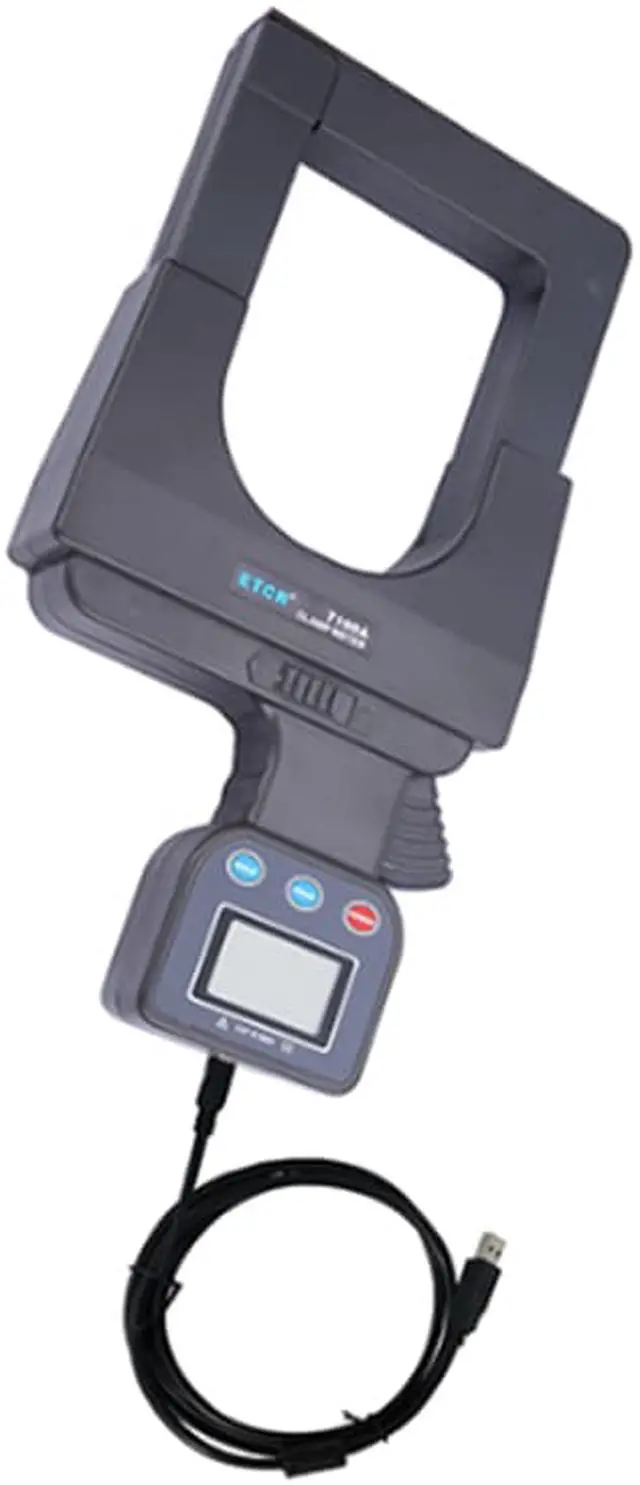

ETCR7100A Superlarge Caliber Leakage Clamp Meter suitable for measuring AC current, leakage current below 600V, range: 0.0A~4000A, CT size: 108mmx148mm, can clamp and test F108mm cable and 160mm×4mm flat steel grounding wire. The core is made of magnetic shielding material with strong anti-interference ability, ensures the accuracy and stability of measurement..

The meter with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.


Function AC leakage current, large current test (especially suitable for cable leakage current and transformer grounding flat steel leakage current detection)
Power Supply 6V DC(LR6×4 alkaline dry batteries, continuous working 12 hours)(Battery not included)
Measurement method Clamp CT,integration method
Clamp Size 148mmx108mm( can clamp F108mm wire, or 160mm × 4mm grounding flat steel )
Range AC 0.0A~3200A
Max Resolution AC 0.1A
Measure Accuracy
(23?±3?, below 70%RH,

measured wire at the center of the clamp)

AC 0.0A~499A ±2%±5dgt
AC 500A~999A ±3%±5dgt
AC 1000A~2999A ±4%±5dgt
AC 3000A~3200A ±5%±5dgt
Conductor Position The detected conductor is in the center position of the clamp
Data Storage 99 Groups , flash display “FULL” symbol indicate storage full
USB Interface

With USB interface, storage data can be uploaded to computer, convenient to data analyze

Communication cable USB communication cable, length: 1.8M
Frequency 50Hz?60Hz Automatic Identification
Shift Automatic
Sampling Rate

2 times/second

Line Voltage Below 600V circuit test
Display Mode 4 digital LCD display,47mm×28.5mm
Meter Dimension 350 mm×180 mm×55 mm
Backlight

Yes, Suitable for dark places

Data Hold Data hold function: "HOLD" symbol display
Overflow Display Exceed measure range overflow function: “OL” symbol display
PEAK Hold

Press PEAK key to open the peak hold function, press PEAK key once again to cancel this function

Automatic Shutdown 5 minutes after power on, it will power off automatically without any operation to reduce the power consumption
Battery Voltage While battery voltage is lower than 5.2V. low battery voltage symbol display, remind to replace the battery
Meter Weight 1.5 kg
Package Weight 3 kg (include accessories)
Working Environment -10?~40?;below 80%rh
Store Environment -10?~60?;below 70%rh
Insulation Strengh AC 3700kV/rms(Between iron core and shell)
Suitable Safety Standard IEC1010-1?IEC1010-2-032?Pollution 2?CAT ?(600V)
