ETCR7100D Super Large Caliber AC/DC Clamp Current Meter Data Hold

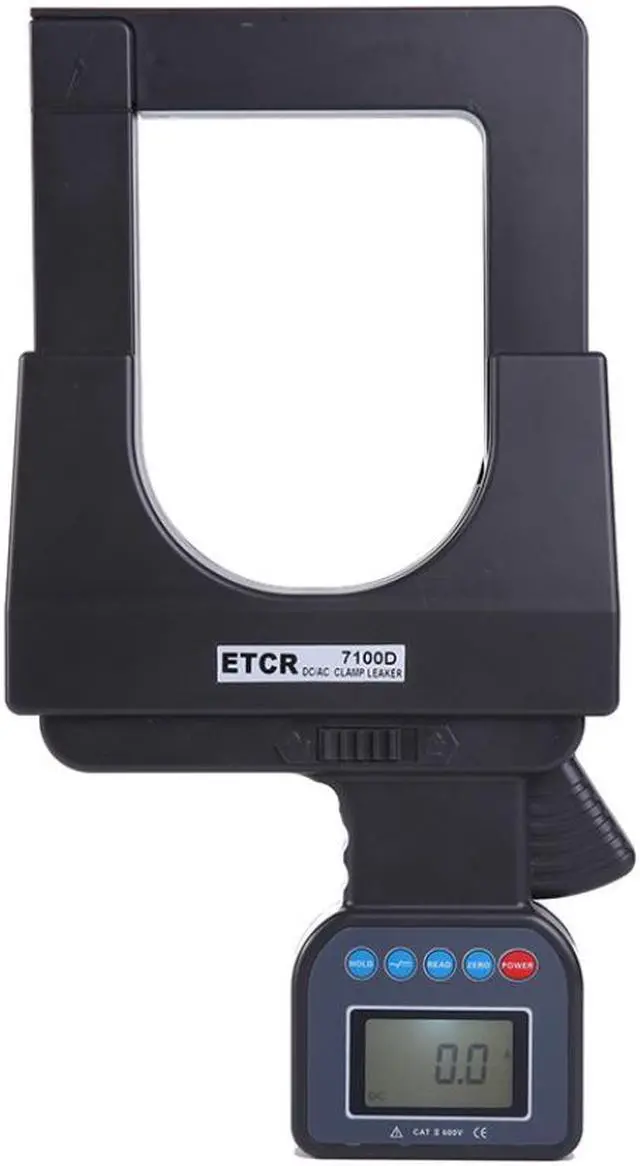

ETCR7100D Super Large Caliber AC/DC Clamp Current Meter
Product Main Function

1. Measurement of AC current , Range:0.0A~1000A

2. Measurement of DC current , Range: 0.0A~2000A

3. Resolution: 0.1A DC/AC

4. Data Storage: 99 groups

5. Line Voltage: below 600V

6. CT Size: 108mm x 148mm

ETCR7100D Super Large Caliber AC/DC Clamp Current Meter suitable for measuring AC/DC leakage current below 600V, range: AC0.0A~1000A,DC0.0A~2000A, CT size: 108mmx148mm, can clamp to test F108mm cable and 160mm×4mm flat steel ground wire, adopt non-contact current measurement, safe and simple operation.The instrument is small size, high accuracy, performance stable and function perfect, which is one of the necessary tools for electrician safety inspection and maintenance.

The instrument with data hold, data storage and other functions, can store 99 groups of data, the instrument connect computer by RS232 interface, stotage data can be uploaded to the computer, easy to read, analysis, save, print and so on.

Function Measurement of DC,AC current , peak current hold, online monitoring
Power Supply DC 6V (1.5V x 4)(Battery does not include)

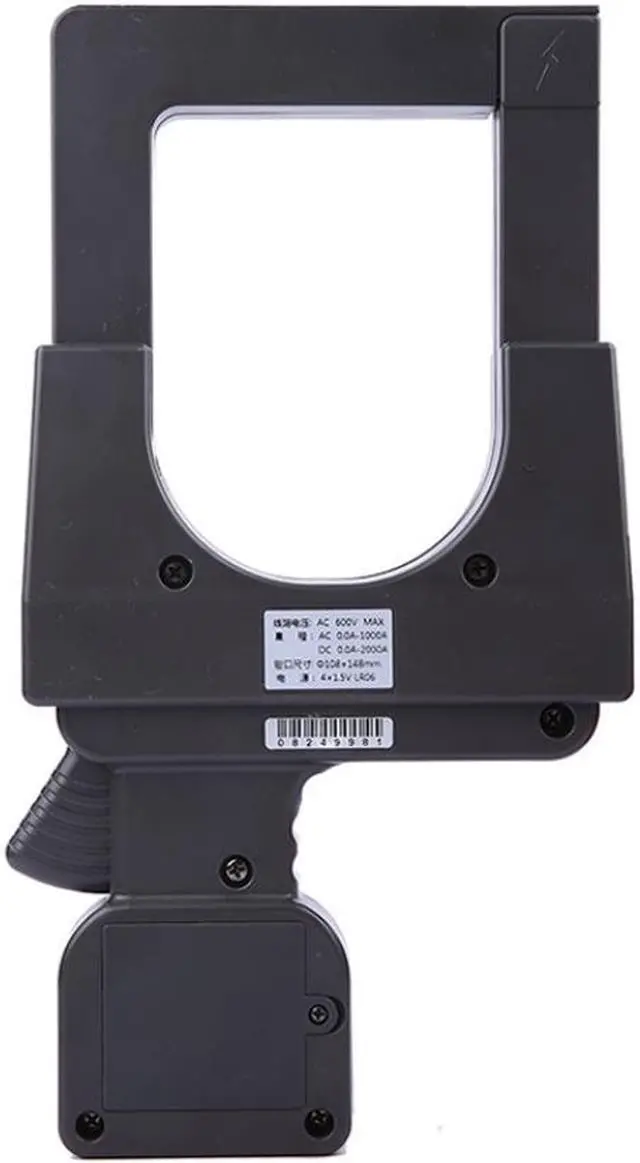

Clamp Size 148mmx108mm(can clamp f108mmcable or160mm×4mm flat cable or steel flat ground cable)
Range AC 0.0A~1000A
DC 0.0A~2000A
Resolution
0.1A DC/AC
Accuracy (Reference condition)

0.0A~999A: ±2%±5dgt
1000A~1499A: ±3%±5dgt
1500A~2000A: ±4%±5dgt
Reference Condition 23?±3?,below 75%rh,The conductor is at the center of the clamp
Frequency response AC:45Hz~400Hz
Sampling Rate

2 times/second

Measurement method Clamp CT,Non-contact measurement
Tested Conductor Position The detected conductor is in the center position of the clamp , and the deviation from the center position increases the maximum by 2%rdg
Display Mode 4 digital LCD display
Meter Dimension

350mm(L)×180mm(W)×55mm(H)
LCD Size

47mm×28.5mm

Polarity indication In DC current test auto identified and display“—” symbol
Shift Automatic
Line voltage Below 600V circuit test
Software Yes, storage data of meter can be uploaded to computer by software
USB Interface

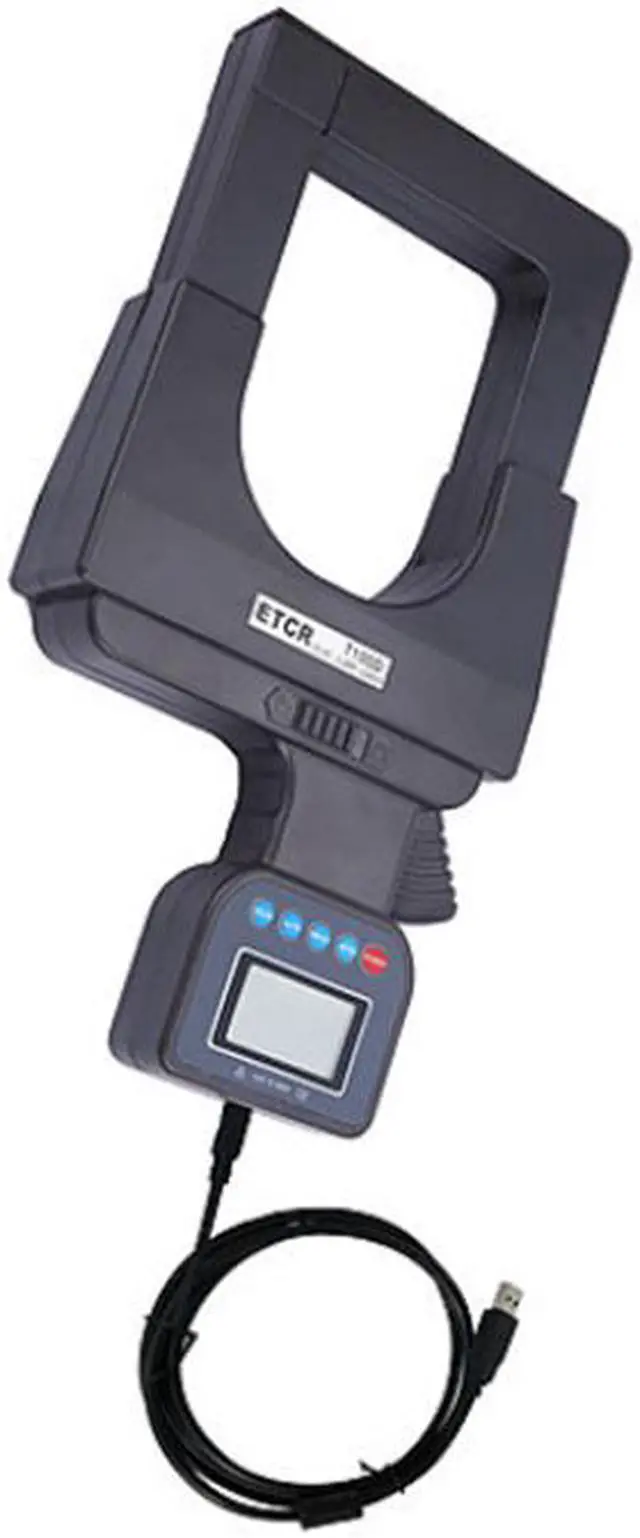

With USB interface, storage data can be uploaded to computer, software monitoring, USB cable length: 1.5m

Data Storage

99units, flash display “FULL” symbol indicate storage full

USB Cable Length 1.5M
Data Storage 99 groups, flash display “FULL” symbol indicate storage full
Peak Hold Peak value capture and hold function, long press HOLD key display peak value
Data Hold Data hold function: "HOLD" symbol display
Overflow Display Exceed measure range overflow function: "OL" symbol display
Automatic Shutdown 5 Minutes after power on will shutdown automatically without any operation, to reduce battery consumption
Battery Voltage When battery voltage lower than 4.6V, low battery voltage symbol will display, and remind to replace the battery
Weight Meter:1.5kg; Package: 2.6kg (include accessories)
Working Current
20mA

Working Environment -10?~40?;below 80%rh
Store Environment -10?~60?;below 70%rh
Insulation Strengh AC 3700kV/rms(Between backcover screw and shell)
Suitable Safe Standard IEC1010-1?IEC1010-2-032?Pollution 2?CAT ?(600V)
