ETCR9500C-030 Three-channel Wireless HV Transformation Ratio Tester

ETCR9500C-030 Three-channel Wireless HV Transformation Ratio Tester
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
Measurement of current transducer, primary and secondary current magnitude of transformer, transformation ratio, phase, polarity, phase sequence below 35kV.
Primary Current Test Accuracy : Range:0.0A~800A (23?±3?,below 70%  RH,the detected conductor is in the center position of the clamp);
Resolution:0.1;  Accuracy:±0.5%FS
Secondary Current Test Accuracy(3 channel current display on same screen):
Range:0.00mA~10A;Resolution:0.01mA;Accuracy:±0.5%FS
Transformation Ratio Measurement Range: 1~500
Transmission Distance:100m
Primary Current Clamp Jaw Size: f48mm

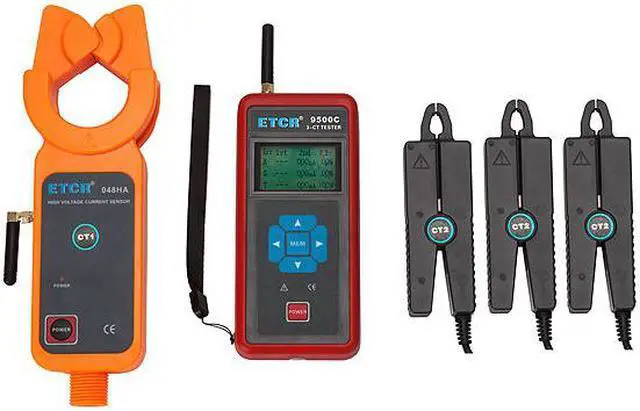

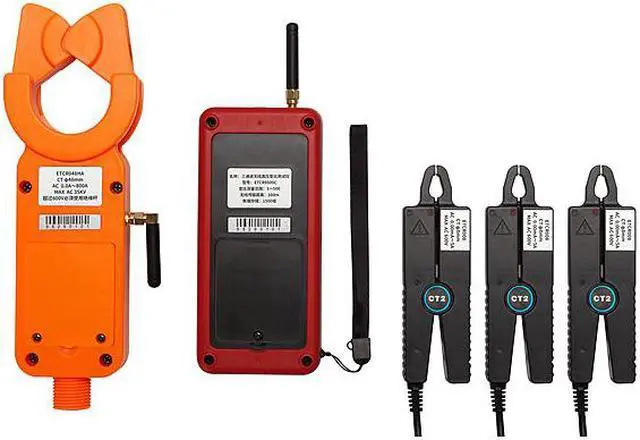

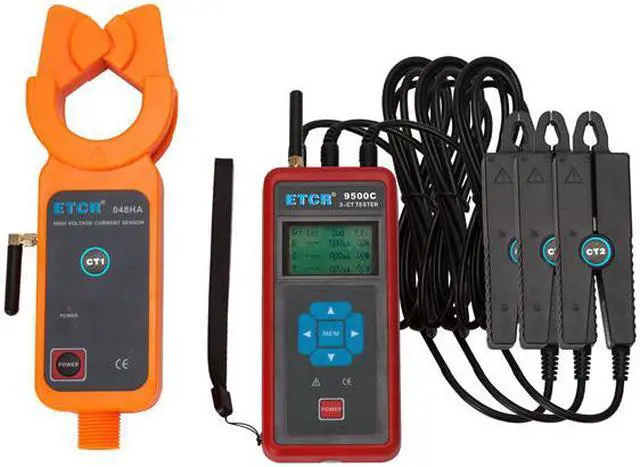

 ETCR9500C-030 Three-channel Wireless HV Transformation Ratio Tester is specially designed and manufactured for online measuring and verifying the H/L voltage current transducer, primary and secondary current magnitude of transformer, transformation ratio, ratio error phase, polarity, phase sequence in the operate distribution system below 35kV. The instrument consists of special primary high voltage current clamps, 3-channel secondary low voltage current clamps, host machine, high voltage insulation rod, monitoring software, communication cable etc. This instrument adopts 3pcs secondary low voltage current clamps to test the low voltage circuit simultaneously, which can directly determine the corresponding phase relationship between the high voltage end and the low voltage end, do not require totesting many times.
  ETCR9500C-030 Three-channel Wireless HV Transformation Ratio Tester widely used in substations, power plants, electric power inspection departments, industrial and mining enterprises, inspection stations, electrical maintenance departments for current detection, anti-theft and electrical field operations. The primary high voltage current clamp break through the traditional structure and have the function of automatic opening and closing. By pressing or pulling out the insulation rod can convient to clamp or withdraw the tested wire easily,  safety and save time. The insulation rod is handiness, and has the characteristics of moisture-proof, high temperature resistance, impact resistance, high insulation. The high voltage current clamp and the host machine adopt wireless transmission, can penetrate the barrier of the partition wall, and the straight line transmission distance is 100 meters. Secondary current clamps 008 current clamps are suitable for the line test of flat cable dense. The current clamp are made of permalloy and adopt CT magnetic shielding technology to ensure the  high accuracy, high reliability and high stability of continuous monitoring in a long time.
Technical Parameters
Function Description
 Fuction  H/L voltage current transducer, primary and secondary current magnitude of transformer, transformation ratio test, polarity, phase adjustment
 Power Supply  DC 6V(1.5V AAAx4)
 Test Mode  Clamp CT
 Primary Current Test  Accuracy  Range:0.0A~800A; Resolution:0.1; Accuracy:±0.5%FS (23?±3?,below 70%  RH,the detected conductor is in the center position of the clamp)
 Secondary Current Test Accuracy  Range:0.00mA~10A;Resolution:0.01mA;  Accuracy:±0.5%FS
 Transformation Ratio Measurement Range  1~500
 Transformation Ratio Resolution  0.1
 Primary CT Size  Jaw Size: f48mm; Out Shape Size: 76mm×255mm×31mm
 Secondary CT Size  Jaw Size: 25mm×30mm; Out Shape Size: 115mm×70mm×33mm
 Shift  Automatic shift
 Sampling Rate  3 times/second
 Data Storage  1500 groups, Press the left arrow key to hold the data and autonumber and store(Power down or replace the battery will not lose data)
 Data Hold  Press the left arrow key to hold data, “HOLD” symbol display, press “HOLD” key once again cancel the hold function
 Data Access  Press the right arrow key enter into data access mode
 Overflow Display  Exceed measure range overflow function: “OL” symbol display
 No Signal Indication  When the receiver has not received transmit signal, dynamic display “no- -”symbol
 Automatic Shutdown  15 minutes after boot up, the meter shuts down automatically without any operation
 Battery Voltage  When battery voltage is lower than 4.8V, low battery voltage symbol  will display and remind to replace battery.
 Transmission Distance  Primary current clamp wireless transmission distance 100m
 Secondary Current Clamp Connection Cable Length   2 M
 Display Mode  LCD:128dots×64dots  backlight function, suitable for dark places
 LCD Size  Display area :44mm×27mm
 Host Dimension  78mm×165mm×42mm
 Weight  5kg (including insulation rod and battery)
 Interference  Avoid 315MHz, 433MHz Same-frequency Signal Interference
 Working Temperature  -15?~50?;below70%rh
 Store Temperature  -10?~60?;below 70%rh
 Insulation Rod Size  F32mm,1m/pcs(5pcs)
 Insulation Rod Withstand Voltage  110 KV
 InsulationStrength  Host and detector:AC1000V/rms(between the shell and screws)
Related Series Model
Model  Primary Current Clamp Secondary Current Clamp  Transformation Ratio Range
Size   Range Size   Range
ETCR9500C-008 f48mm 0.0A~800A f8mm 0.00mA~5A 1~500
ETCR9500C-030 f48mm 0.0A~800A 25mm×30mm 0.00mA~10A 1~500
Package Outer Package Carton
Inner Package Cloth bag
Accessory Meter 1 PCS

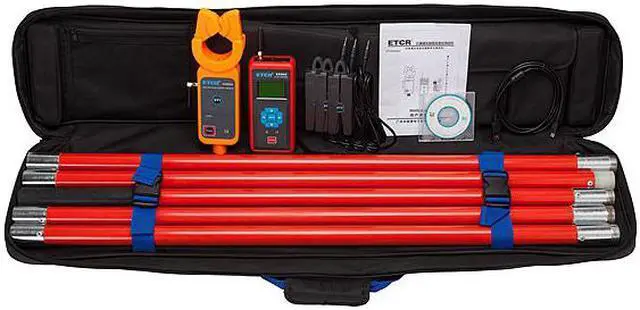

Primary High Voltage Current Clamp 1 PCS
Secondary Low Voltage  current clamp 3 PCS
Insulation rod(1M) 5 PCS
Tool  Bag 1 PCS
USB Communication Cable 1 PCS
Manual 1 PCS
Certificate 1 PCS
Warranty Card
