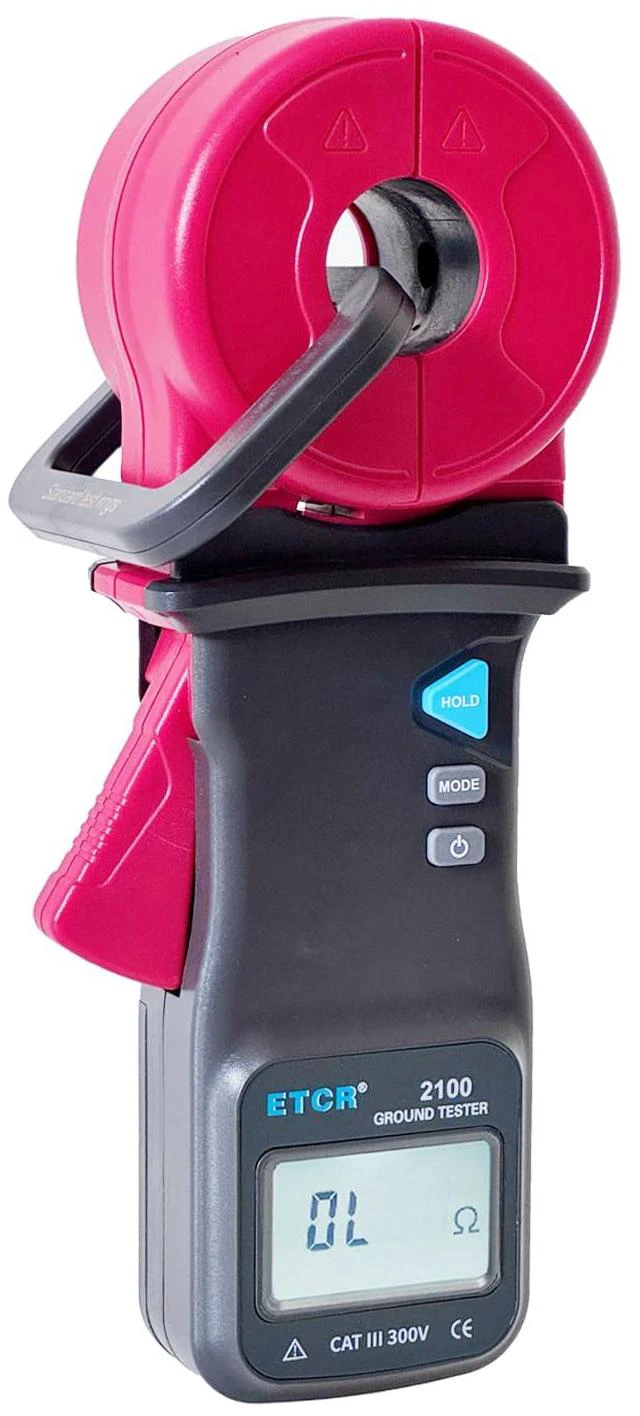

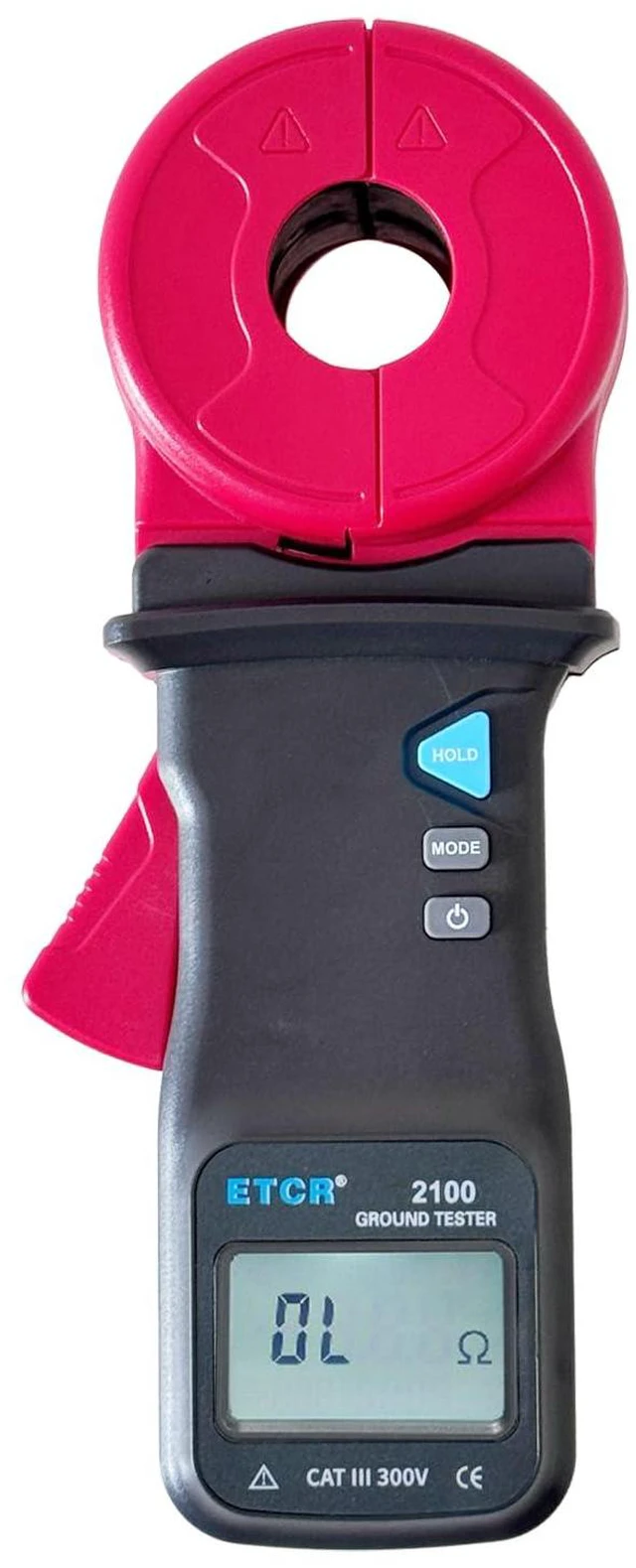

    ETCR ETCR2100 Digital Clamp Ground Resistance Meter Earth Resistance Tester Loop Resistance Measurement 0.010-1000

    Be the first to review this product...
    • Wide Application: Ideal for measuring grounding resistance in power, meteorology, oilfields, construction, and industrial electrical equipment. No need to break down grounding leads or use auxiliary electrodes for loop system measurements
    • Advanced Functionality: Measures ground faults undetectable by traditional methods, making it suitable for applications where conventional meters fail. Accurately measures the combined resistance of the grounding body and lead

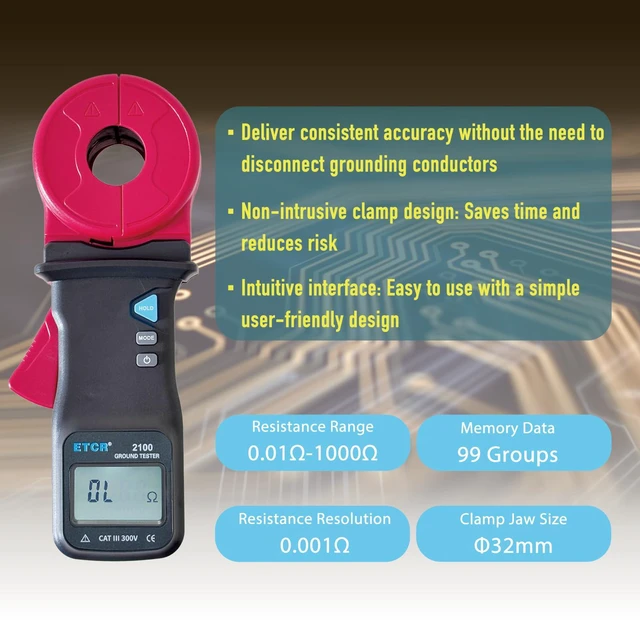

    • Measurement Range: Offers a wide measuring range from 0.010 to 1,000 with a high resolution of 0.001. The clamp size is 32mm, ensuring versatility in various testing scenarios
    • Precision Measurement: Utilizes loop resistance measurement, combining voltage and current coils. It measures induced potential and current to calculate resistance using the formula R=E/I for precise results
    • Important Notice: Designed to measure loop resistance only, not single-point grounding. Users can create an artificial loop near the grounding electrode for testing. Refer to the user manual for detailed instructions
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI mode will help you find out quickly.

    Try me now

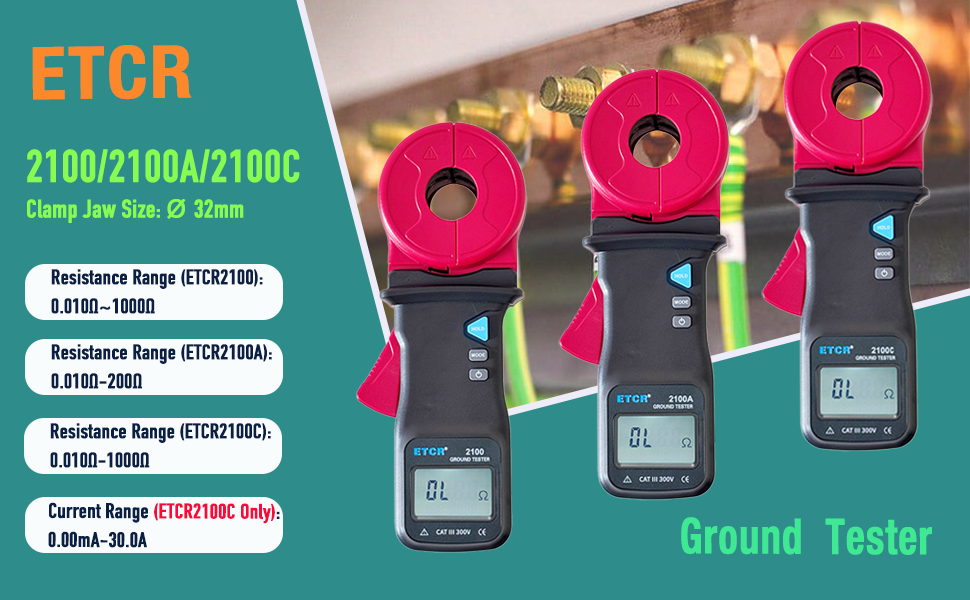

    ETCR2100A+ Ground Resistance Meter

    Product Introduction

    • ETCR2100 Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, earth resistance tester, loop resistance tester, single clamp earth resistance tester, which is used for measurement of earth resistance, loop resistance, and grounding fault judgment.
    • In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.
    • The clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.
    • The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.

    Product Features

    • Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
    • The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
    • With data hold function, memory function, alarm function.

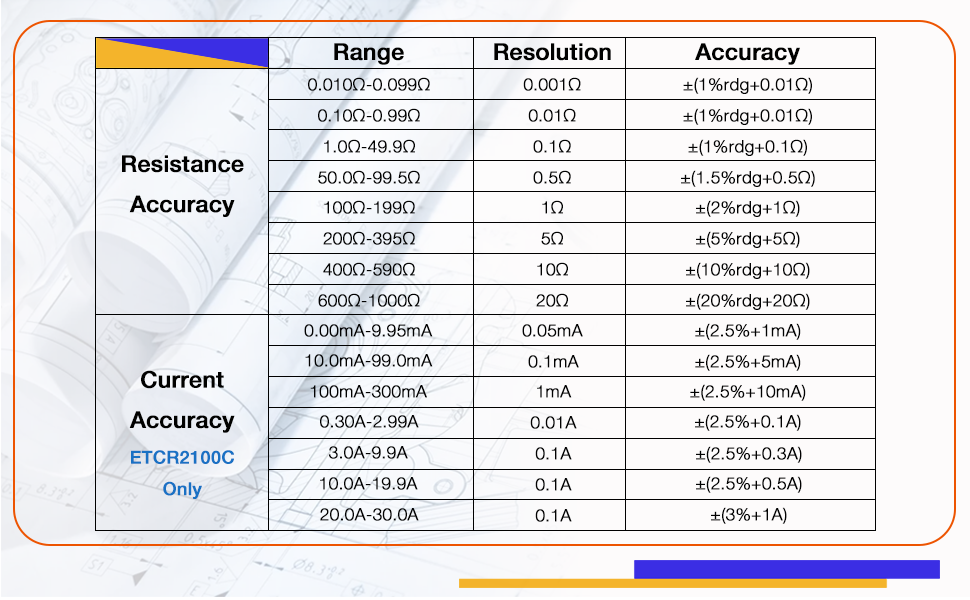

    ETCR2100A Ground Resistance Tester

    Technical Specifications

    Function Grounding Resistance Measurement, Loop Resistance Measurement, Judge Grounding Fault
    Resistance Range 0.010O-1000O
    Clamp Jaw Size F32mm
    Tester Dimension 260mm(L)X105mm(W)X60mm(H)
    Tester Weight 1130g
    Power Supply DC6V alkaline battery (LR6 1.5V X 4PCS)
    Single Measurement Time 0.5s
    LCD Screen 4 Digits LCD display: 47mm(L)X28.5mm(W)
    Data Storage 99 Groups
    Audible & Visual Alarm “Du—du—du” alarm sound , press AL key to turn on/off
    Alarm Threshold Setting 1-199O
    Clamp Jaw Open Size 32mm
    Protection Level Double insulation
    Shift Automatically

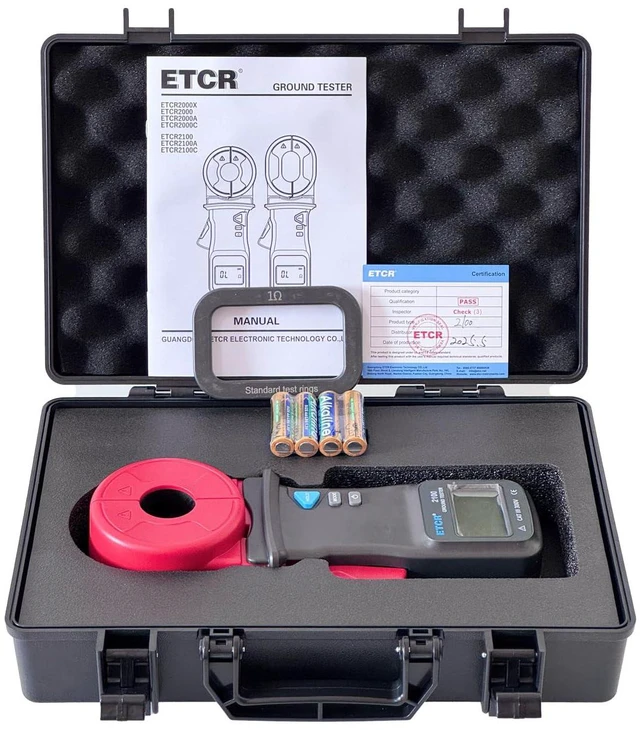

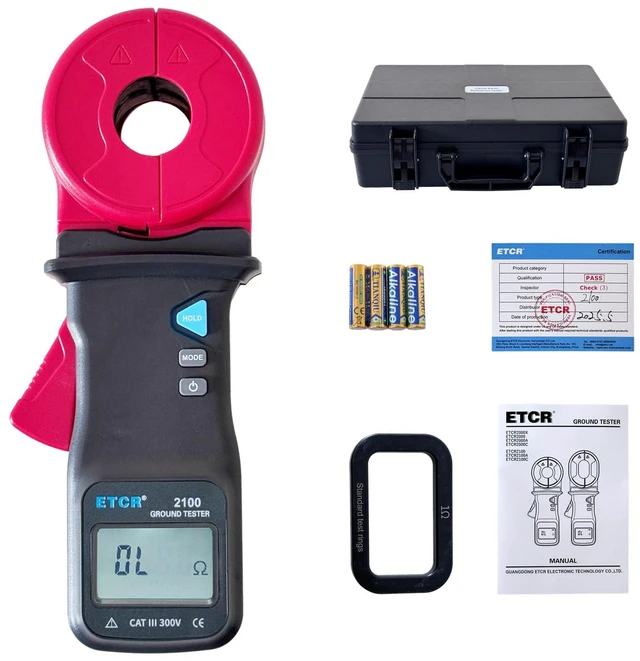

    Accessories Meter: 1 PCS; Test Ring: 1 PCS; LR6 battery: 4 PCS; User Manual: 1 PCS; Carrying Case: 1 PCS
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100A
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100C
    Price ———
    Resistance Range 0.010O-200O 0.010O-1000O 0.010O-1000O
    Current Range ? ? 0.00mA-30.0A
    Clamp Jaw Size F32mm F32mm F32mm
    ETCR2100A+ Ground Resistance Meter

    Product Introduction

    • ETCR2100 Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, earth resistance tester, loop resistance tester, single clamp earth resistance tester, which is used for measurement of earth resistance, loop resistance, and grounding fault judgment.
    • In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.
    • The clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.
    • The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.

    Product Features

    • Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.
    • The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.
    • With data hold function, memory function, alarm function.

    ETCR2100A Ground Resistance Tester

    Technical Specifications

    Function Grounding Resistance Measurement, Loop Resistance Measurement, Judge Grounding Fault
    Resistance Range 0.010O-1000O
    Clamp Jaw Size F32mm
    Tester Dimension 260mm(L)X105mm(W)X60mm(H)
    Tester Weight 1130g
    Power Supply DC6V alkaline battery (LR6 1.5V X 4PCS)
    Single Measurement Time 0.5s
    LCD Screen 4 Digits LCD display: 47mm(L)X28.5mm(W)
    Data Storage 99 Groups
    Audible & Visual Alarm “Du—du—du” alarm sound , press AL key to turn on/off
    Alarm Threshold Setting 1-199O
    Clamp Jaw Open Size 32mm
    Protection Level Double insulation
    Shift Automatically
    Accessories Meter: 1 PCS; Test Ring: 1 PCS; LR6 battery: 4 PCS; User Manual: 1 PCS; Carrying Case: 1 PCS
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100A
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100
    https://m.media-amazon.com/images/S/aplus-media-library-service-media/ca4c15b3-2f83-4096-b5bf-169997a2ac90.__AC_SR150,300___.png
    ETCR2100C
    Price ———
    Resistance Range 0.010O-200O 0.010O-1000O 0.010O-1000O
    Current Range ? ? 0.00mA-30.0A
    Clamp Jaw Size F32mm F32mm F32mm

    ETCR ETCR2100 Clamp Earth Resistance Tester


    Product Series : Earth Resistance Tester (Round Clamp Jaw)


    Main Features


    - Grounding Resistance Measurement, Loop Resistance Measurement, Judge Grounding Fault

    - Clamp Jaw Size: 32mm

    - Resistance Range: 0.010-1,000

    - Memory: Data Storage 99 Groups

    - Alarm Function: Alarm threshold can be set.


    Product Introduction


    ETCR ETCR2100 Clamp Earth Resistance Tester, also known as clamp type earth resistance tester, earth resistance tester, loop resistance tester, single clamp earth resistance tester, which is used for measurement of earth resistance, loop resistance, and grounding fault judgment.

    In the loop grounding system measurement, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is safe, fast and convenient to use.the clamp earth resistance tester is widely used in earth resistance and loop resistance measurement of electric power, telecommunications, meteorology, oil fields, construction and industrial electrical equipment.The long clamp is particularly suitable for flat steel grounding site.

    The tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods, because the clamp earth resistance tester is measuring the comprehensive value of the grounding body resistance and the grounding lead resistance.


    1.Non-contact measurement is safe and fast. When measuring the loop grounding system, no need to disconnect the grounding down lead, and not request the auxiliary grounding pole, which is saving time and efficient.

    2.The clamp earth resistance tester can measure ground faults that cannot be measured by traditional methods, and can apply to the site which cannot be measured by traditional methods.

    3.With data hold function, memory function, alarm function.


    Technical Parameters


    - Resistance Range: 0.010-1,000

    - Max. Resolution Of Resistance Measurement: 0.001

    - Clamp Jaw Size: 32mm

    - Clamp Jaw Open Size: 32mm

    - Power Supply: 6V DC (4 PCS AA alkaline batteries)

    - LCD Screen: 4-digit LCD digital display, 47mm×28.5mm

    - Single Measurement Time: 0.5s

    - Tester Dimension: 260mm×105mm×60mm

    - Weight: Appx. 1.54kg (include accessories)

    - Protection Level: Double insulation

    - Structure Feature: Clamp type

    - Measurement Range Gear Shift: Automatic

    - Alarm Threshold Setting Range: 1-199

    - Resistance Measurement Frequency: 1kHz

    - Data Storage: 99 groups

    - External Magnetic Field: 40A/m

    - External Electric Field: 1V/m

    - Working Temperature: -10-55

    - Relative Humidity: 10-90

    - Standard Accessories: Ground Resistance Meter: 1PCS; Test Ring: 1PCS; User Manual: 1PCS; LR6 Battery: 4PCS; Carrying Case: 1PCS


    Product information

    Brand ETCR
    Power Source Battery Powered
    Style Digital
    Color Dark Grey & Red
    Item Weight 2.1 Pounds
    Product Dimensions 10.24 x 4.13 x 2.36 inches; 2.1 Pounds
    Item model number ETCR2100
    Batteries 4 AA batteries required. (included)
