ETCR2800C Multifunction Non-Contact Resistance Online Tester 0.01O~200O

ETCR2800C Multifunction Non-Contact Grounding Resistance Online Detector
Product Main Function

1. On - line monitoring the earth resistance of grounding system
2. Measure Range: 0.010O~200O
3. With GPRS communication and RS485 interface
4. 47mm×28.5mm LCD
5. Network system can be built to realize real-time detection and remote monitoring
6. EX-Mark: Exia?BT3Ga
7. Explosion Proof Certification: CE18.2332X

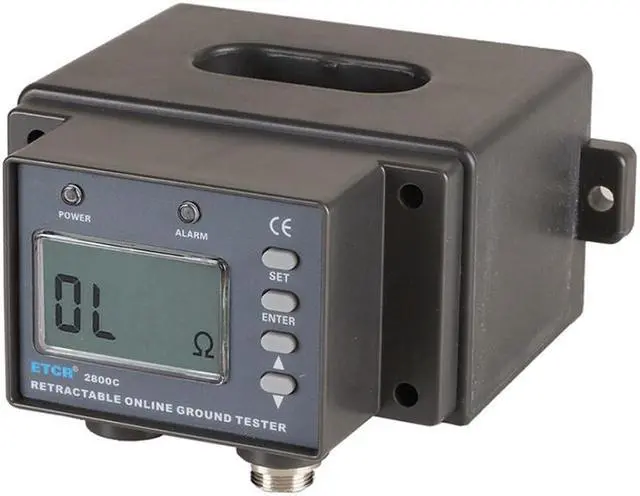

ETCR2800C Non-Contact Grounding resistance Online Detector used for on-line monitoring the earthing resistance of earthing system, measure range: 0.010O~200O. On-line testing, non-contact measurement, grounding wire pass through the perforation of the detector, definitely not influence grounding for lightening effect and normal operation, real time on-line testing. Use by RS485 wire communication or GPRS wireless communication data transmission, realize remote online monitoring .Detector built-in sensor and circuit board, completely sealed, ensure high-accuracy, high stability and high reliability of long time on-line monitoring at field and indoors.

ETCR2800C Non-contact Earth Resistance Online Detector, can display the measured data directly through the LCD; the detector could set alarm threshold, with sound and light alarm indication, suitable for independent installation and use no need to set up the network.


Function Return circuit grounding resistance on-line monitoring, metal return circuit resistance connection online monitoring, grounding condition monitoring.

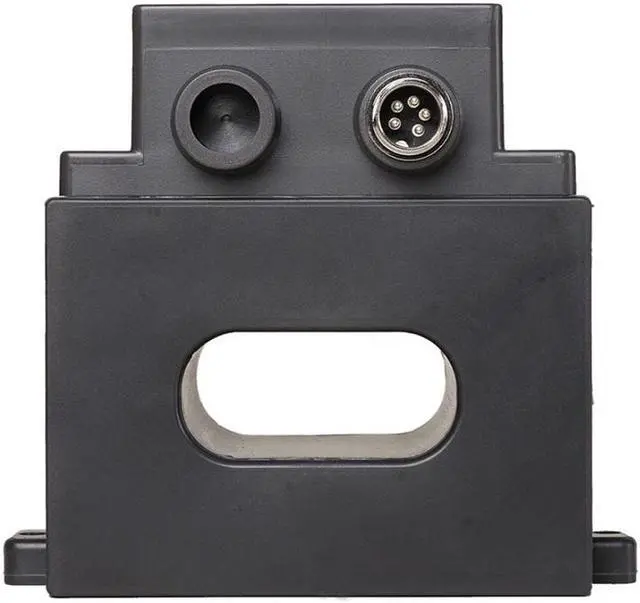

CT structure Closed loop
Power Supply Detector:6VDC~12VDC,50mA Max(GPRS 12VDC 150mA Max). (Ui:6V;Ii:50mA; Ci:0µF;Li:0mH;Pi:0.1W)(User supply),Instrument and safety barrier matching relation:Uo=Ui,Io=Ii,Po=Pi,Co=Ci,Lo=Li
Resistance Range 0.01O~200O
Resolution 0.001O
Accuracy ±2%rdg±3dgt(20?±5?,below 70%RH)
CT Size 60mmx28mm
Overflow Indication test data>200O, system software or LCD display “OLO” symbol;
Connection line 1pcs ,1 meter cord(5 core wire)
Connection Identifier Red/brown---power supply input anode;
Black--- power supply input cathode;
Blue---RS485 signal anode;
Grey---RS485 signal cathode;
White--- grounding wire shield
(power supply input cathode can connects with analog grounding by short circuit connection)
Communication Method Wired network: RS485 communication protocol(support MODBUS)
Wireless network: RS485 or GPRS communication protocol(support MODBUS)
Network Points Wired network: 1 ~ 250 grounding points, scalable
Wireless network: 60000 grounding points, can be expanded
Communication distance Wired network: about 1500m,scalable
Wireless network: not limited
Alarm Indication the detector sound-light alarm and LCD display
Alarm Setting System Software Settings
Data Display LCD display
Dimensions Detector: 132mm × 130mm × 76mm
Weight Detector: 1KG
Working Temperature And Humidity -20?~55?;20%RH~90%RH
Humidors Error Within 5%
Shift Automatic shift
Grounding Lead Interference Current Should be avoid
External Magnetic Field <40A/m
External Electric Field <1V/m
Single Measurement time About 0.5 second
Working current Detector: 50mA Max.(GPRS: 12VDC 150mA Max)
Explosion-proof mark Ex ia ?B T3 Ga
Explosion-proof Certification CE18.2332X.
Protection Level IP54
Power Supply Mode External power supply (Equipped by user)


Battery does not include



Model CT Structure Range Difference
ETCR2800B Close loop 0.010O~200O NO LCD and Indicator light, need to build Internet
ETCR2800C Close loop 0.010O~200O With LCD, Alarm Setting,Sound and light alarm indication
ETCR2800KB Split-core 0.010O~100O No need to disconnect the grounding wire in installing,detector with sound and light alarm indication
ETCR2800KC Split-core 0.010O~100O No need to disconnect the grounding wire in installing, detector with LCD, Alarm Setting, sound and light alarm indication
ETCR2800N Close loop and built-in type 0.010O~200O No shell, suitable for secondary development
ETCR2900 None 0.01O~2000O Need ground auxiliary pile,communicate with the computer directly, dector with LCD, alarm setting,sound and light alarm indication


Package Outer package Carton
Inner package None

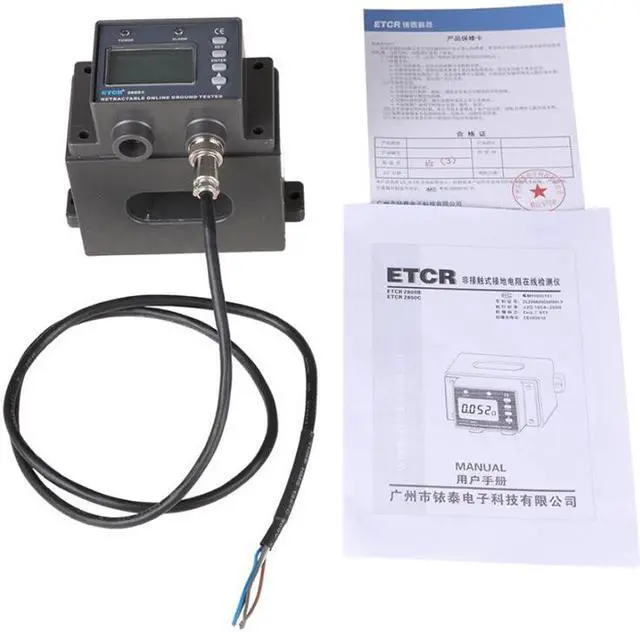

Accessory Meter 1 pcs
Power and Communication Cable 1 pcs
Manual 1 pcs
Certificate 1 pcs
Warranty Card 1 pcs
