USB C PD Trigger Board, Type-C PD3.0/3.1 QC Decoy Module, 5V 9V 12V 15V 20V 28V Adjustable Voltage Fast Charge Power Trigger, 140W 5A USB-C Female Input (1-Pack)
- Multi-Protocol Support Triggers PD2.0/3.0/3.1, QC, FCP, AFC protocols. Adjustable voltage output: 5V / 9V / 12V / 15V / 20V / 28V via an easy-to-set 3-position DIP switch.
- High Power & Wide Compatibility Supports up to 28V/5A (140W max). Actual output current and power are determined by your charger and load. Works universally with USB-C female input fast chargers.
- Safe & Reliable Design Ultra-low power consumption and solid build for long service life. Prevents misoperation, effectively protecting your load devices from voltage damage.

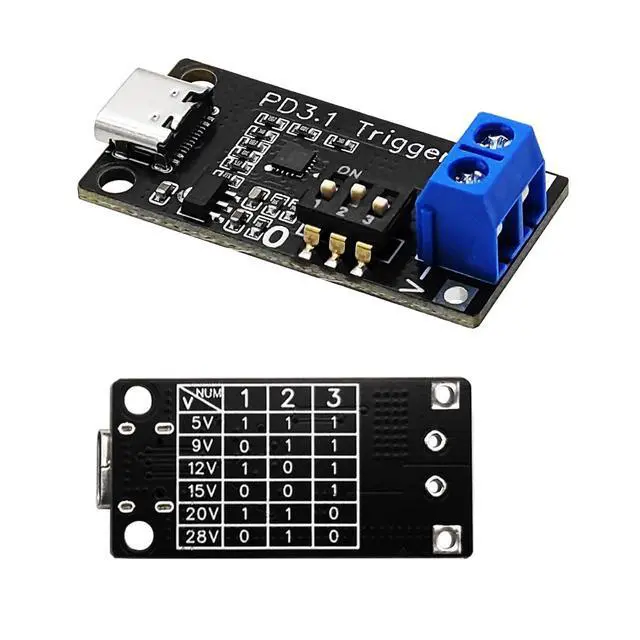

- Effortless to Use Voltage configuration table is clearly marked on the back of the board, making it simple to select the exact voltage you need without any extra tools.
- Versatile Applications & Package Ideal for converting a fast charger into a DC power supply, powering routers, optical modems, battery charging, and DIY projects. *Note: When you want to test/use the voltage 28V, please make sure the 140W power supply is connected to only one piece type-C cable with E-mark. (If the 140W power supply is connected to 2 pieces or more cables, the power supply output will not reach 28V).*
+
+
Overview
Specs
Reviews
Any questions? Our AI mode will help you find out quickly.
Try me now
Product Description

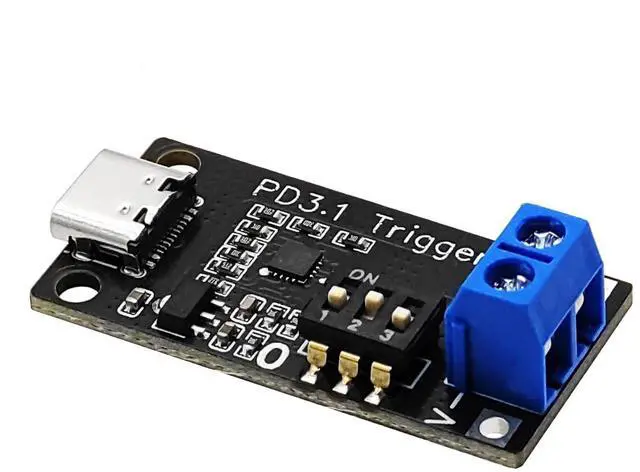

This USB-C PD Trigger Board is designed to easily request fixed voltages (5V to 28V) from any compatible USB-C fast charger, turning it into a dedicated DC power supply.
With its compact size of just 41 x 20 x 11mm and weighing only 5g, it integrates effortlessly into your projects.

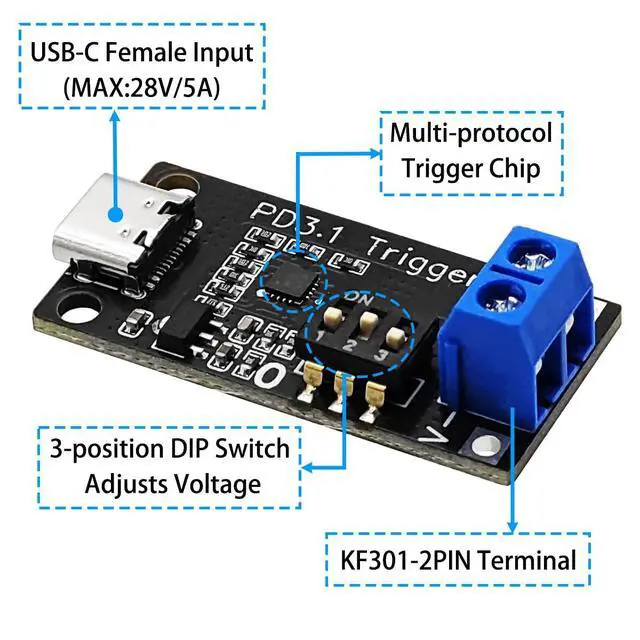

Specifications
Input: USB-C Female
Output:KF301-2pin Screw Terminal
Supported Protocols: PD2.0/3.0/3.1, QC, FCP, AFC
Output Voltages: 5V / 9V / 12V / 15V / 20V / 28V (Adjustable via DIP Switch)
Max Output Current: 5A
Max Power: 100W (20V/5A), 140W (28V/5A)
Operating Temperature: -40°C to +85°C

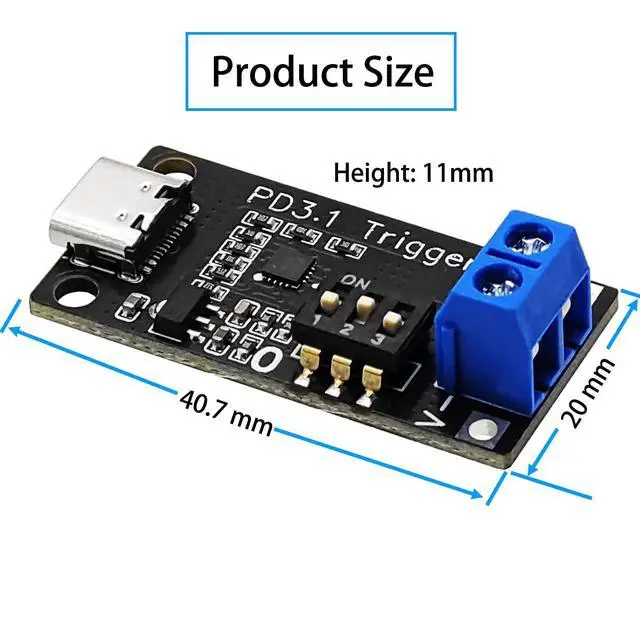

Product Size: 41mm x 20mm x 11mm
Product Weight: 5g
Key Features
Multi-protocol trigger supports PD3.1 EPR (28V) as well as QC/AFC/FCP.
Ultra-low power consumption, durable build, and misoperation protection prevent voltage damage to your devices.

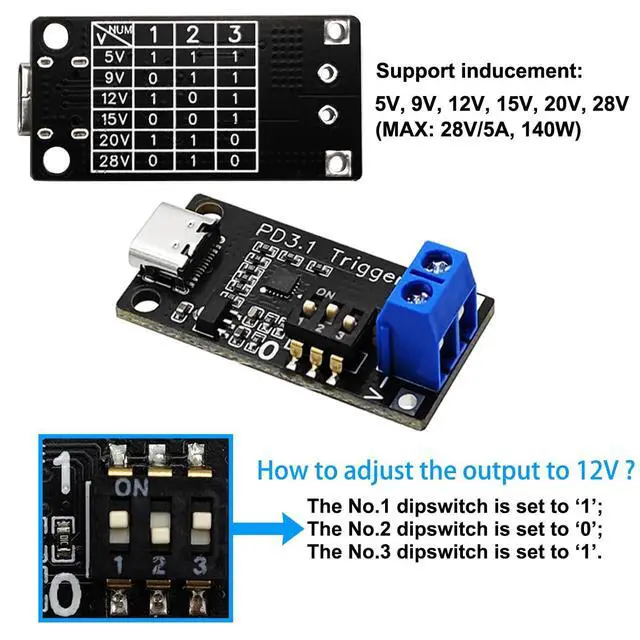

A clear voltage-setting table is printed on the back, making it simple to select the desired output with the DIP switch.
Important Notes
This board cannot boost or buck voltage; it only induces the power supply to output the requested voltage.
Not all chargers support all voltage levels. If the requested voltage is unsupported, the charger will output the next lowest available voltage.
For power above 65W, a Type-C cable with an E-mark chip is required.
***Note***
To achieve 28V/140W, connect only one E-mark cable to the 140W charger; using splitters or multiple cables will prevent 28V output.
There is no built-in voltage display. It is recommended to verify the output with a multimeter before connecting your application circuit.
Package Included
1x PD3.1 Trigger Board
