Question 1

What's its ampere and/or current rate?

Accepted Answer

Frankly I bought this long time ago and do not remember.. not an expert either. I believe I plugged it in directly to the motherboard and it worked normally so this may be a clue.

Question 2

is there a wiring diagram to explain which wires do what?

Accepted Answer

Typically, the black is ground, red is either +5 or +12 volts for low or high speed and the yellow is a tachometric signal that tells the computer if the fan is actually spinning or not.

Question 3

What is the CFM?

Accepted Answer

If you're asking what CFM means, then Patrik answered that already - A measurement of how much air the fan moves per minute.

If you want to know how many CFM this fan provides, the answer is 6.24 CFM according to the description.  That's a very technical answer, however.  To put it in perspective - an 80mm fan I just bought promises 25 CFM.

If you NEED a fan this small in order to replace an old 40mm fan or to squeeze one into a case that doesn't have room for a bigger one, this is the fan for you.  Otherwise, consider a larger fan.

Question 4

Is it 2 ball bearing?

Accepted Answer

NO

Question 5

Does the fan fit Adaptec 6805 without additional screws/bolts?

Accepted Answer

I have the Adaptec 6405 that i got this fan for, but i did need to order some screws special with it to mount it.
I needed M2.6x12mm screws to mount it

Question 6

I'd like to get a few of these, but my motherboard only has one SYS_FAN slot. What type of connector/adaptor do I need to attach these fans to the PSU?

Accepted Answer

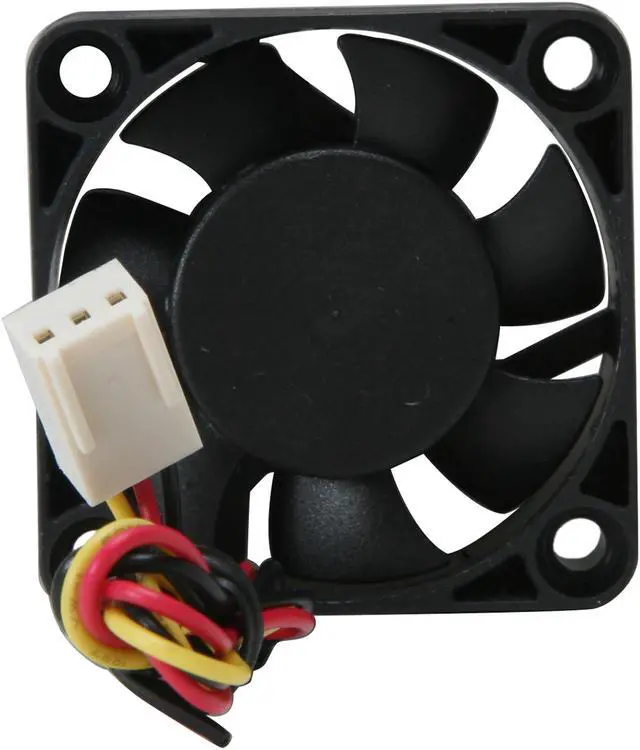

the fan comes with with 3 connectors:
  3 pin female with corners that orient the plug to a 3 pin male conn.
  3 pin enclosed female,  and
  std 4 pin pwr cable connector

Question 7

Dimensions?

Accepted Answer

40mm x 40mm and 10mm thick. You can usually find this information under the specifications tab here on newegg!

Question 8

What size screws are required?

Accepted Answer

The item came with 4 screws longer than the depth of the fan.

Question 9

Does it have "Locked Rotor Alarm Signal Output" wire?

Accepted Answer

I don't think so.

Brand	EVERCOOL
Model	FAN-EC4010M12CA

Type	Case Fan
Compatibility	Case
Fan Size	40mm
Bearing Type	Ball
RPM	5000 RPM
Air Flow	5.22 CFM
Noise Level	< 21 dBA
Power Connector	3 / 4 Pin
Color	Black

Meet Your Seller

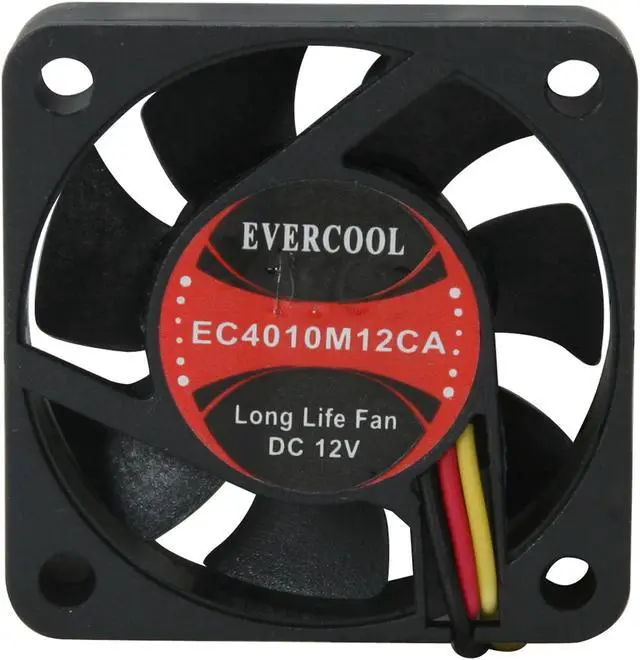

EVERCOOL FAN-EC4010M12CA 40mm Case Cooling Fan
