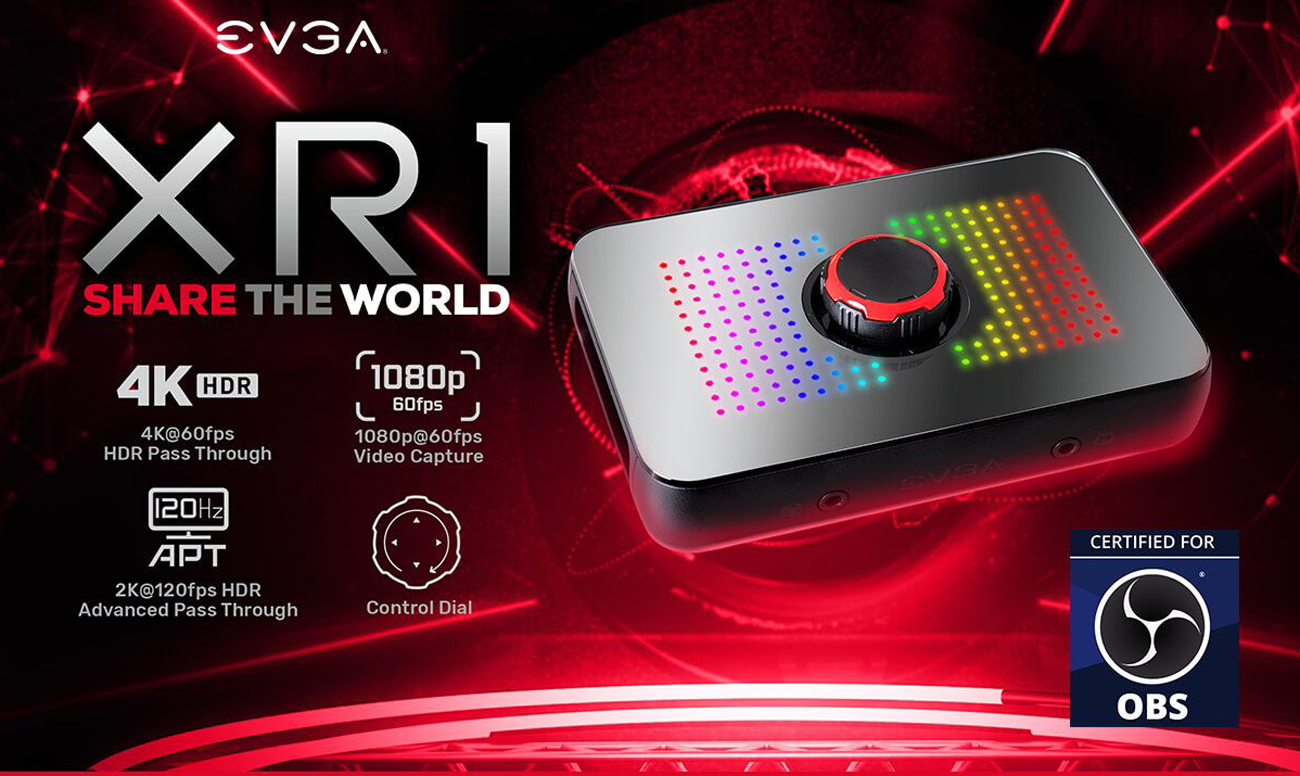

The EVGA XR1 Capture Device allows you to share the world with 4K HDR Pass Through Mode -
Record at 1080P/60FPS while you game at 4K/60FPS with HDR. Also features an Advanced Pass Through Mode that allows you to switch to 144Hz refresh rate + HDR with the press of a button.
No need to disconnect or disable to get the full capabilities of your display!

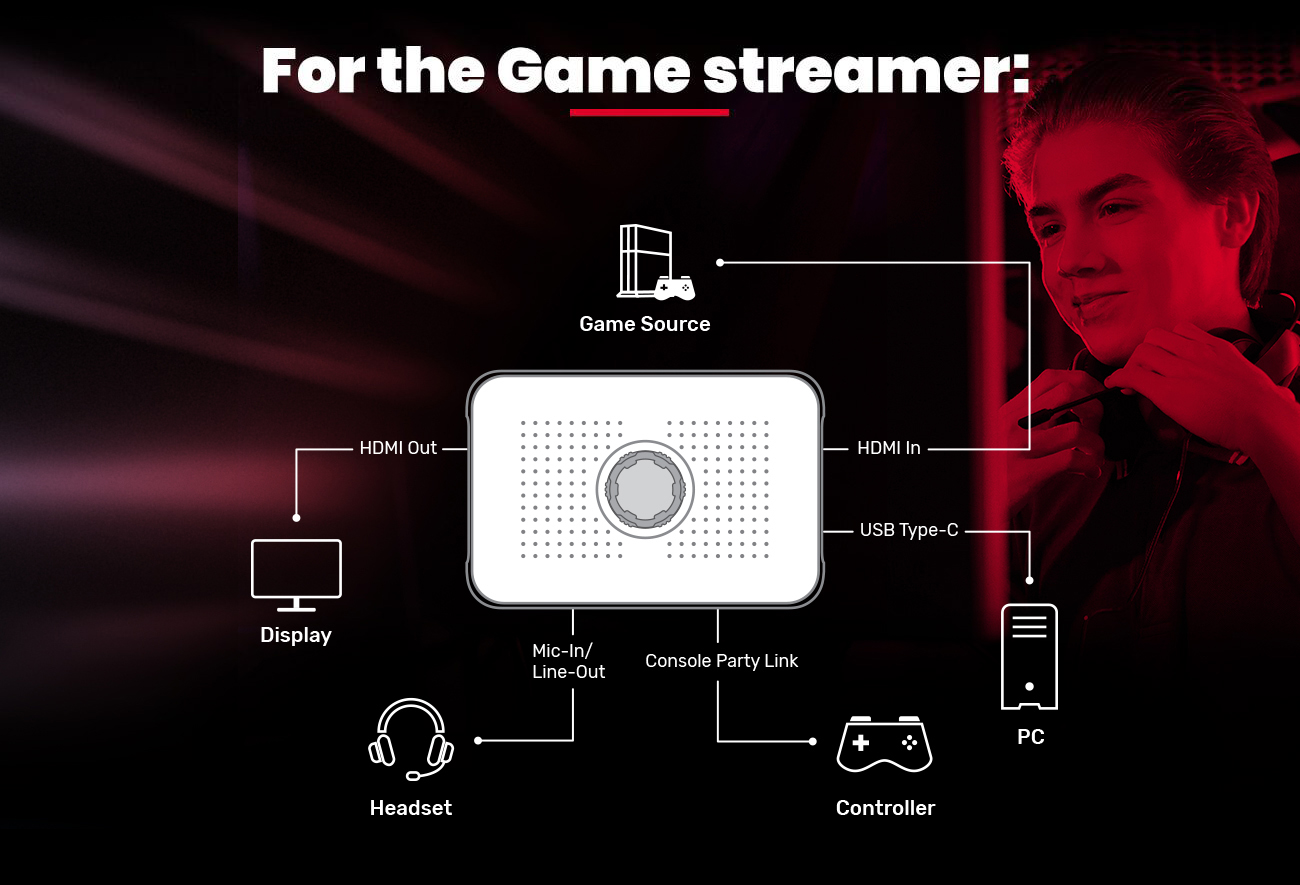

Instantly capture and stream every moment every win of your game play.

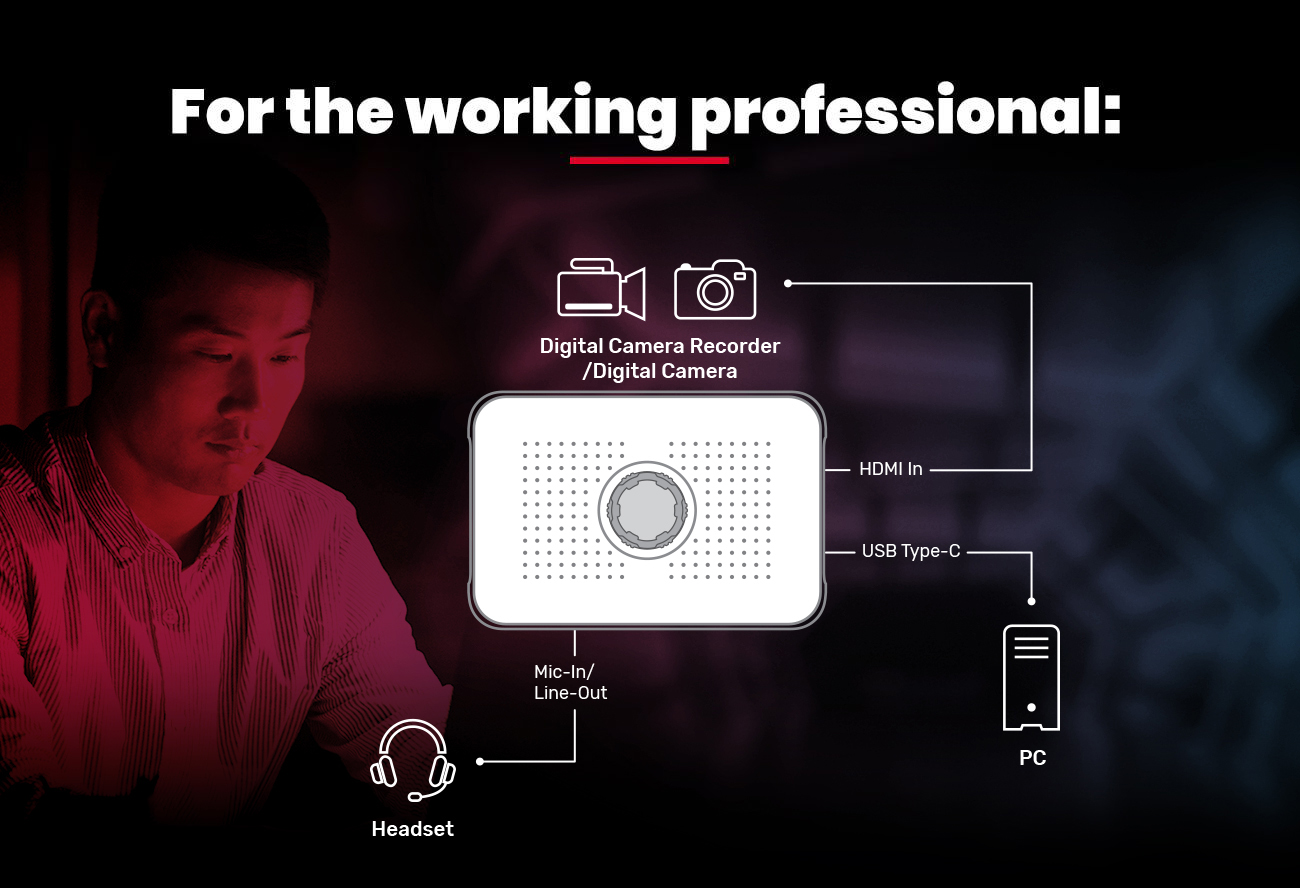

Connect a camera to set up web conference, meetings, lectures, or seminars for higher video quality.

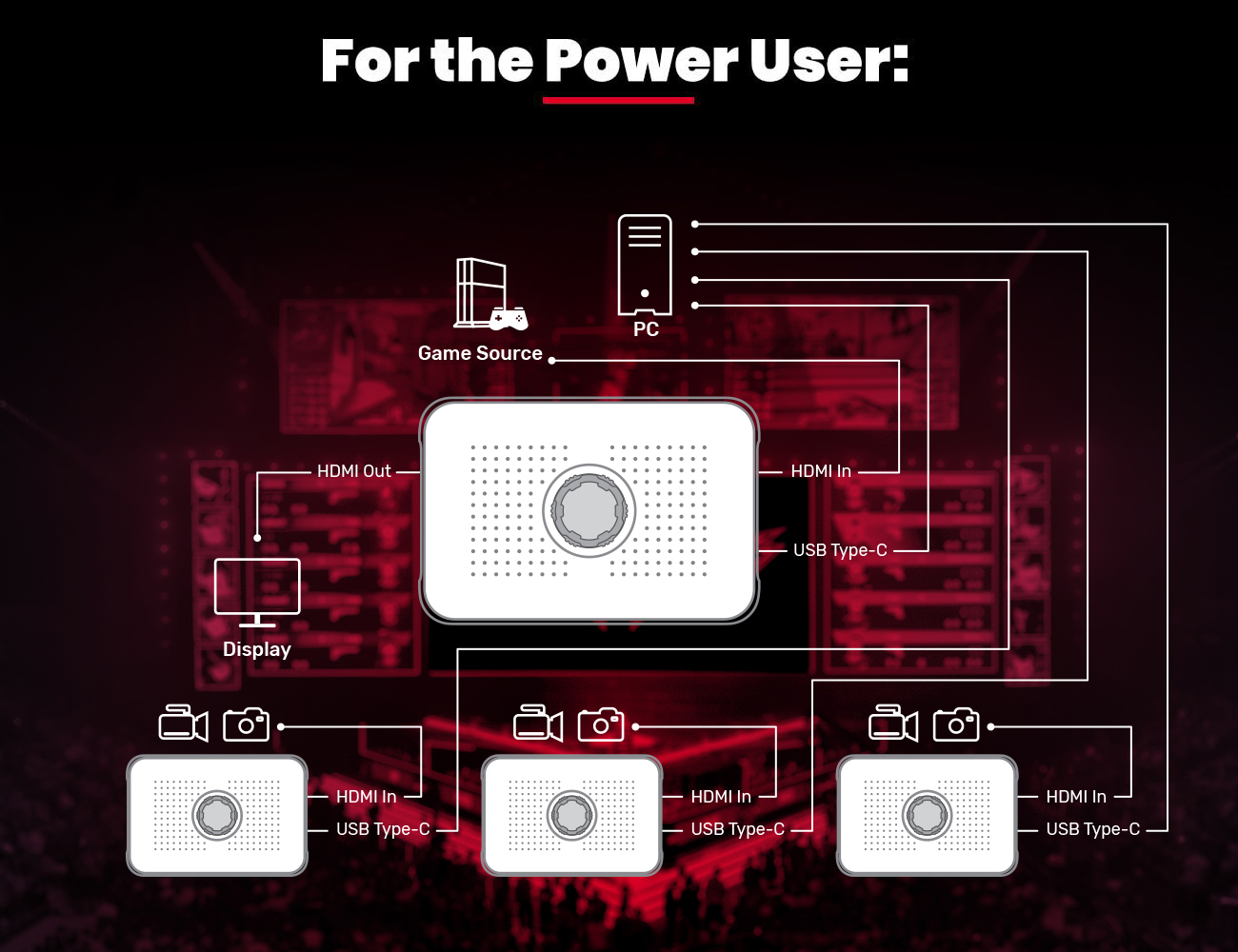

Connect multiple EVGA XR1 with connected cameras for a multi angle broadcast.

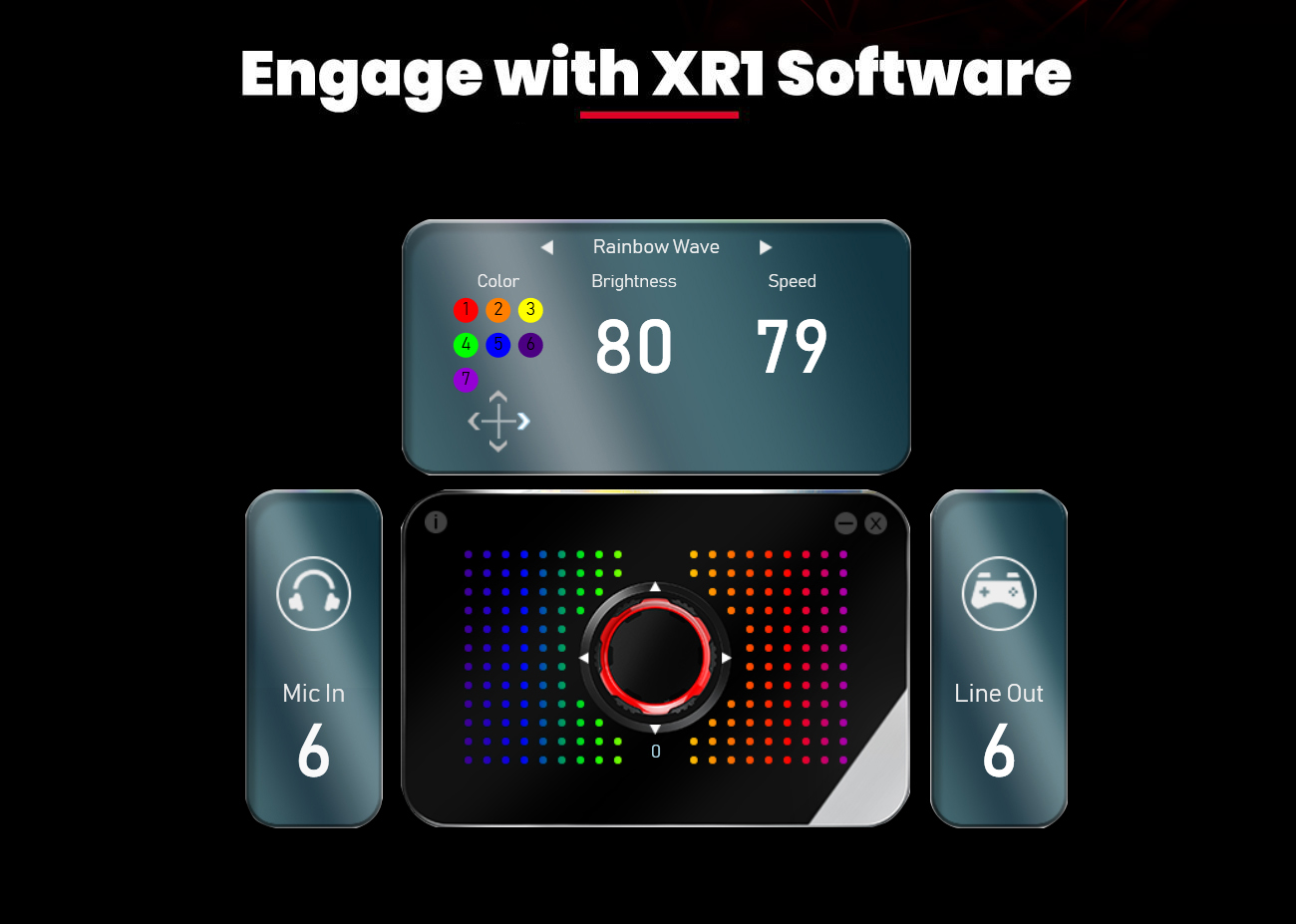

Show your audio levels, change colors and more with the press of a button.

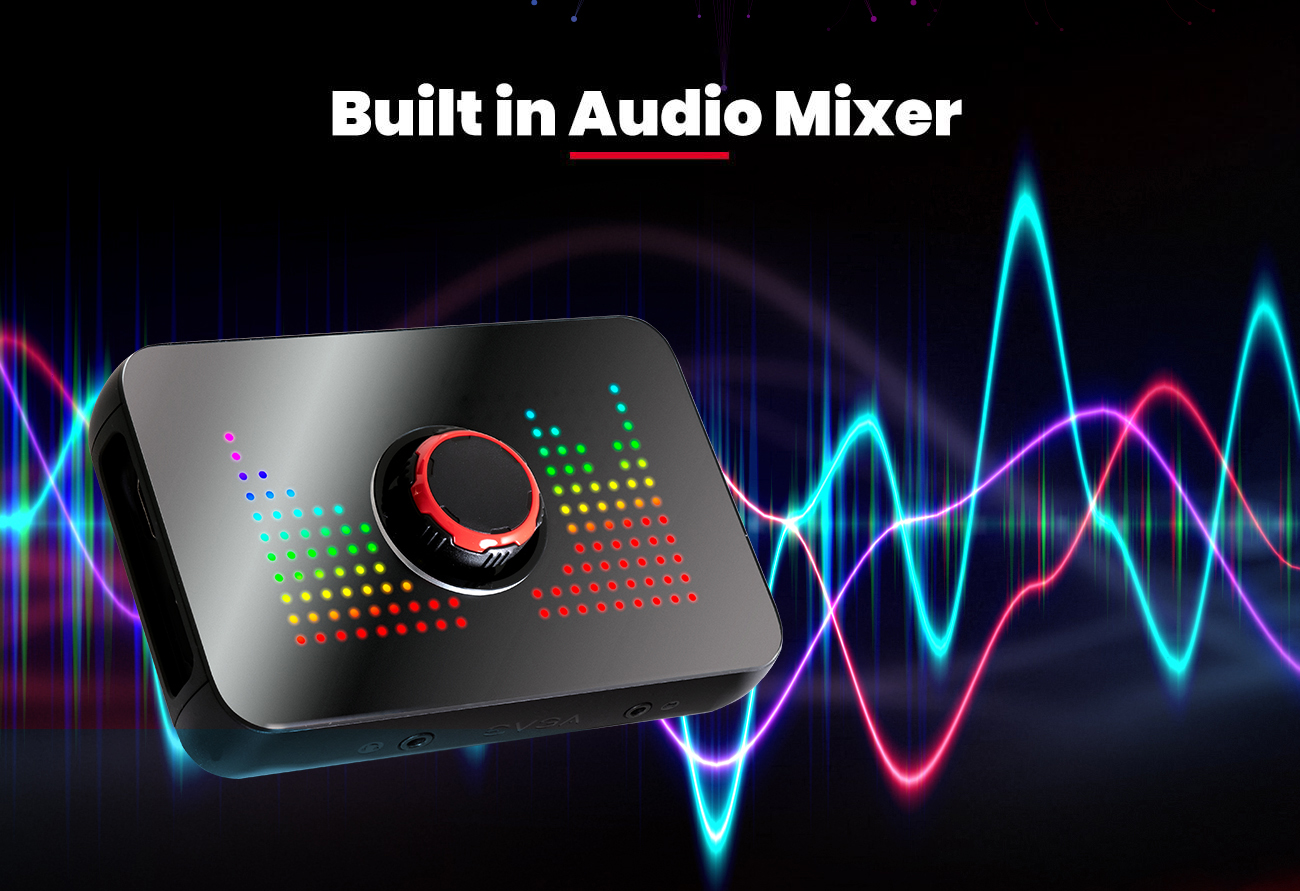

Control your Mic-In volume with the built in control dial, no need to exit your game or launch software!
Free and open source software for video recording and live streaming.
Download and start streaming quickly and easily on Windows, Mac or Linux.

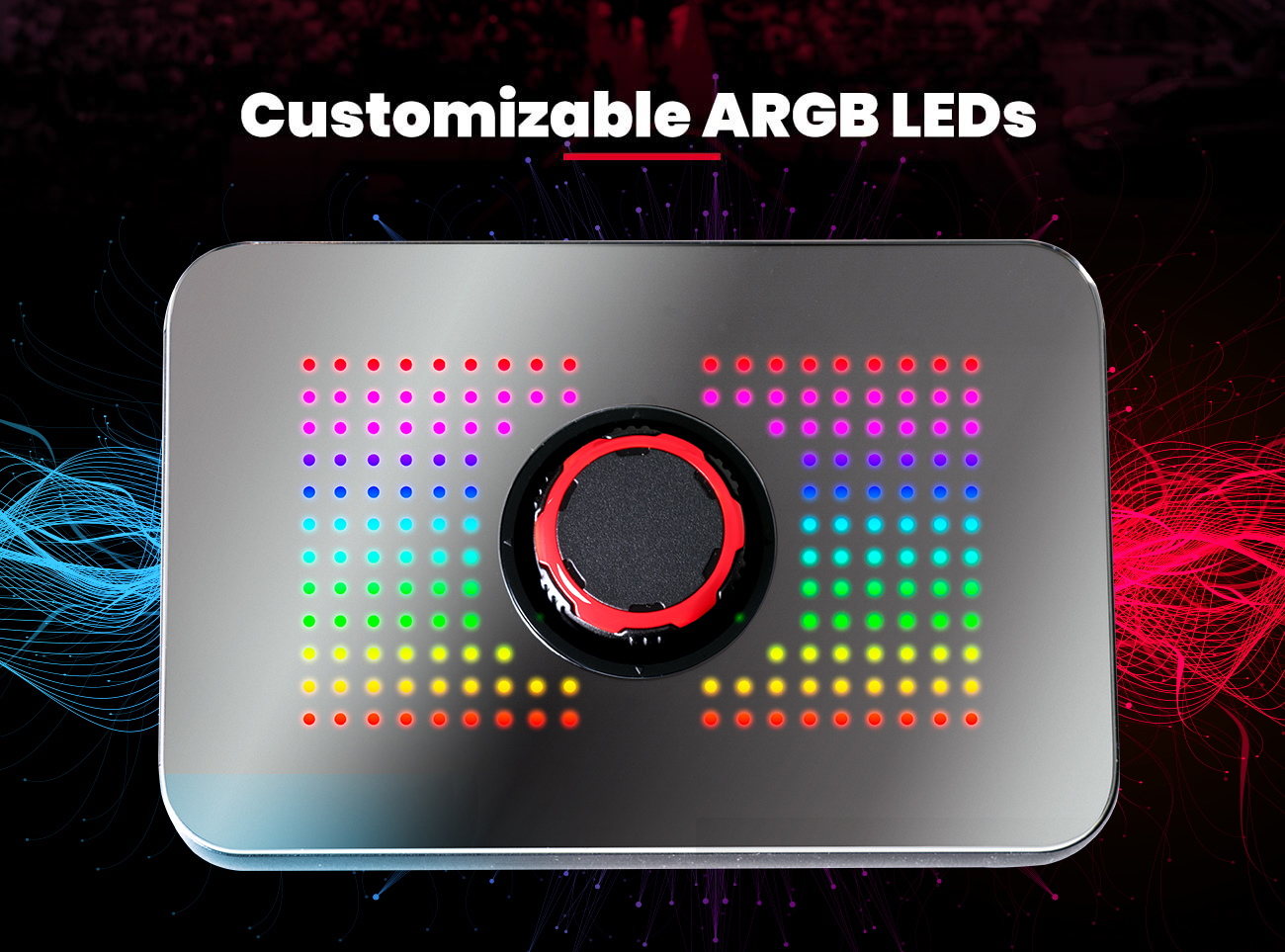

Fully customizable ARGB lighting with EVGA XR1 RGB.

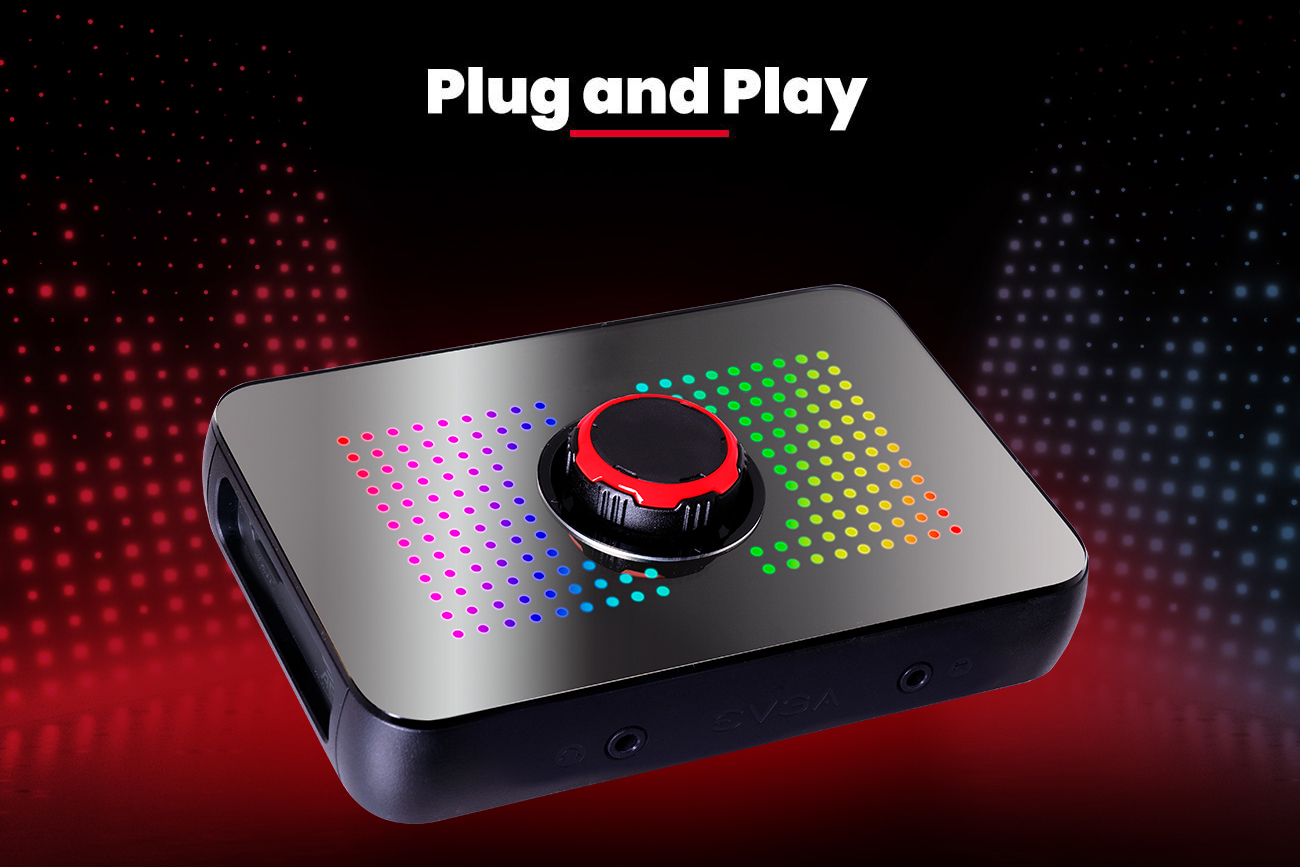

ARGB lighting and No driver installation needed. Simply connect the XR1 and immediately start streaming with OBS.
"My DJ Stream on Twitch focuses on high end graphics effects with multiple camera angles,
and the EVGA XR1 was able to deliver full HD with 60 frames per second!"
- DJ Buck Rodgers
"I have been using EVGA products for years and now with the new XR1 my live streams are
looking better than ever, and installation was a snap."
- Arabian Prince
"The EVGA XR1 Capture Device has secretly been in use on our weekly streams for weeks without hiccups.
We are using multiple EVGA XR1's to bring in multiple camera angles, PC's and more. Delivering full 1080P 60FPS gaming and video, and being Certified for OBS allows quick and easy installation!"
- EVGA Weekly
SPECS
Interface:
USB 3.0 Type-C
Video Input Interface:
HDMI 2.0 (up to 4k@60fps)
Audio Input Interface:
HDMI
Video Bypass:
HDMI (up to 4k@60fps)
Video Resolution Input:
480p / 576p / 720p / 1080p / 1440p / 2160p@60fps
Video Resolution Pass Through:
480p / 576p / 720p / 1080p / 1440p / 2160p@60fps
Video Resolution Advanced Pass Through:
720p / 1080p / 1440p@120fps
Encode Resolution:
Up to 1080p @ 60fps
Encode Format:
RAW
FEATURES
1080p@60fps Video Capture
2K@120fps HDR Advanced Pass Through
4K@60fps HDR Pass Through
Built in Audio Mixer via Control Dial
DIMENSIONS
With Control Dial:
Width: 130mm
Length: 86.4mm
Height: 32.95mm
Without Control Dial:
Width: 130mm
Length: 86.4mm
Height: 24.15mm
Weight:
159g
